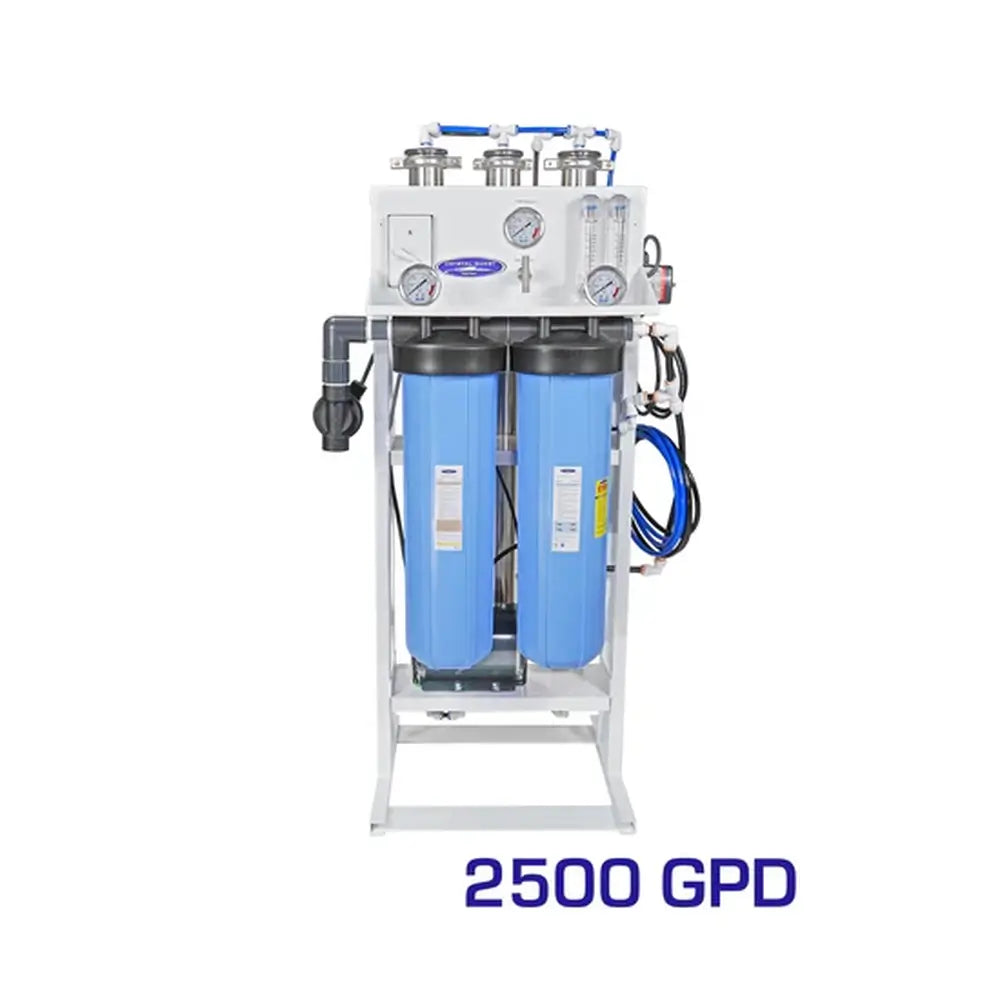

The Crystal Quest Whole House Reverse Osmosis System is a configurable point-of-entry reverse osmosis system designed to support treated water throughout a home or larger property with properly reviewed daily water demand. It is available in listed production options from 200 GPD to 7000 GPD, with standalone configurations or optional atmospheric storage tank kits where available. Buyers can choose from listed brass rotary and stainless steel rotary pump options where available for the selected system. Each system includes prefiltration to help protect the reverse osmosis membranes, while optional add-ons may vary by selected GPD model and may include UV sterilization, remineralization or alkalizing post-treatment, controller upgrades, TDS monitoring, chemical pump outlet, blending valve, and other listed options. Because output is rated at 77°F water and source-water conditions affect performance, the exact system should be selected based on daily water demand, feed pressure, TDS, hardness, storage needs, installation space, and licensed installer guidance.

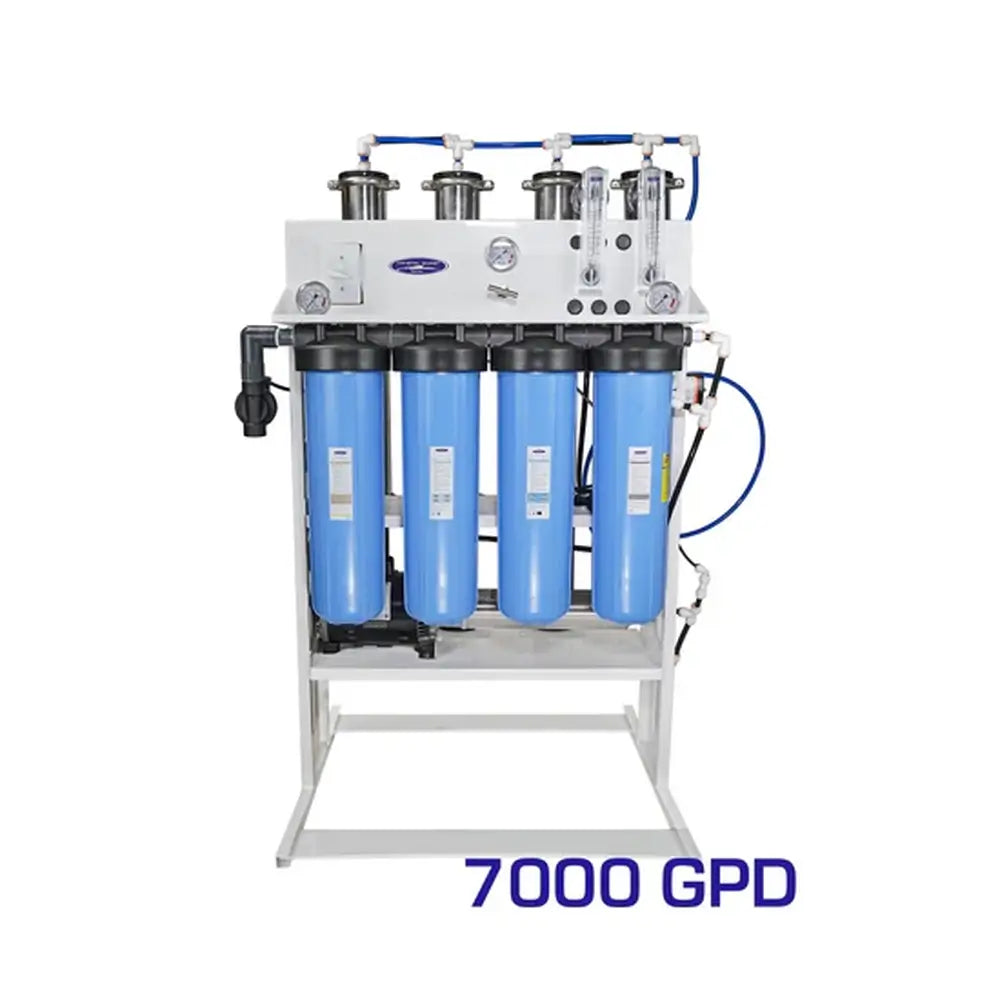

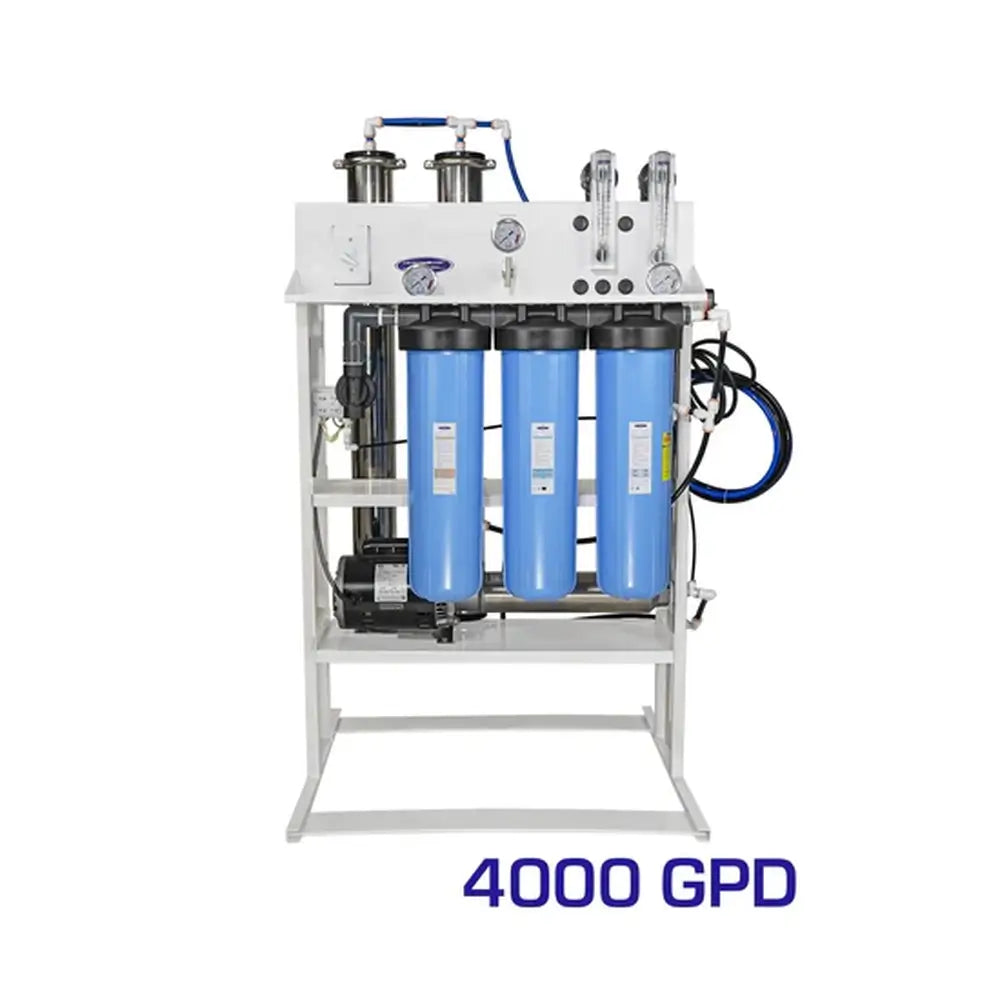

This Crystal Quest system is designed for properties that need reverse osmosis treatment beyond a single drinking-water faucet. Available capacities range from smaller residential daily demand to larger 4000, 5000, and 7000 GPD applications, giving buyers a way to size the system around actual water use.

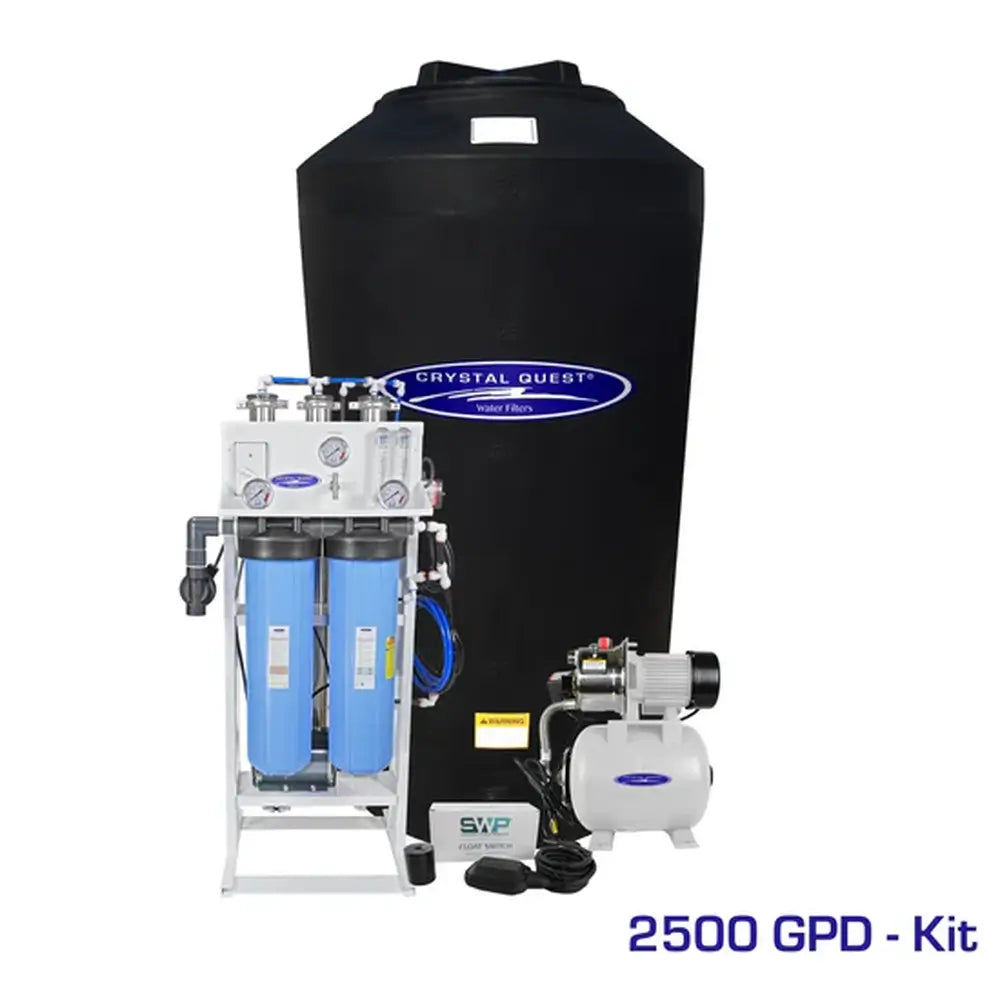

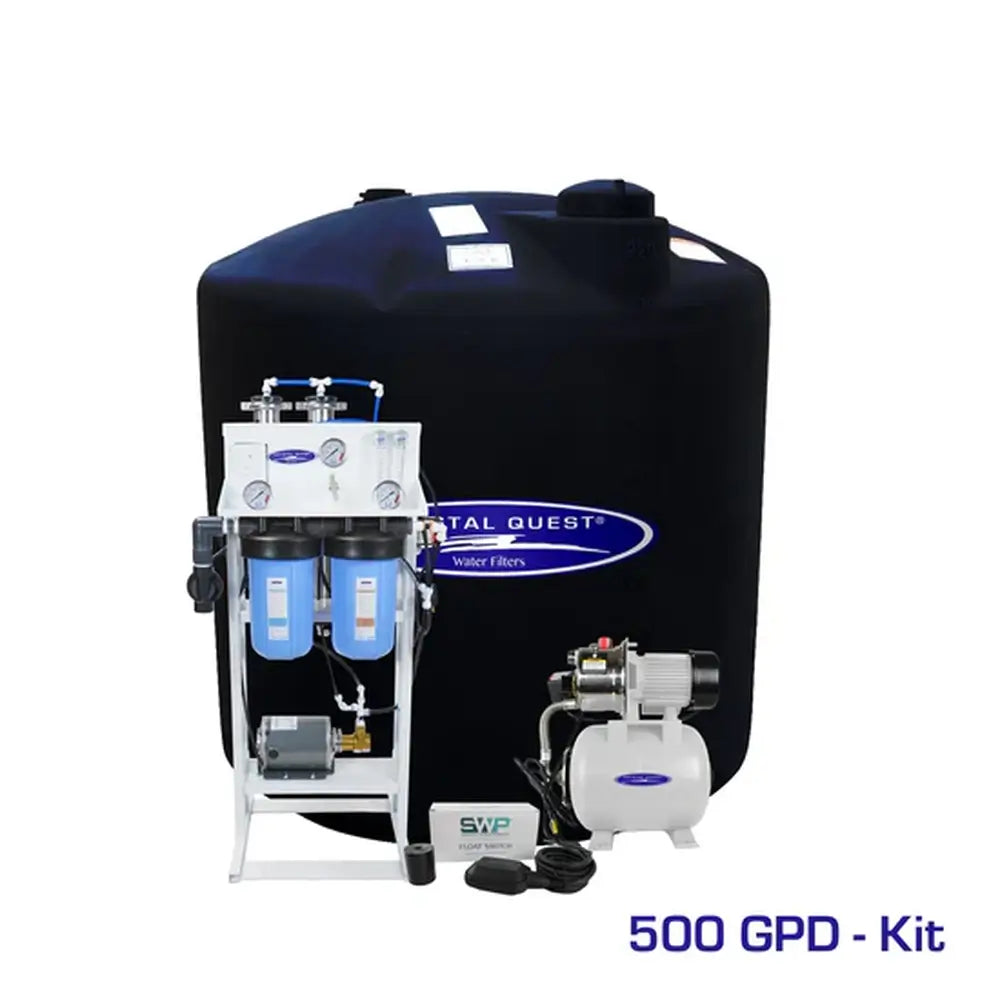

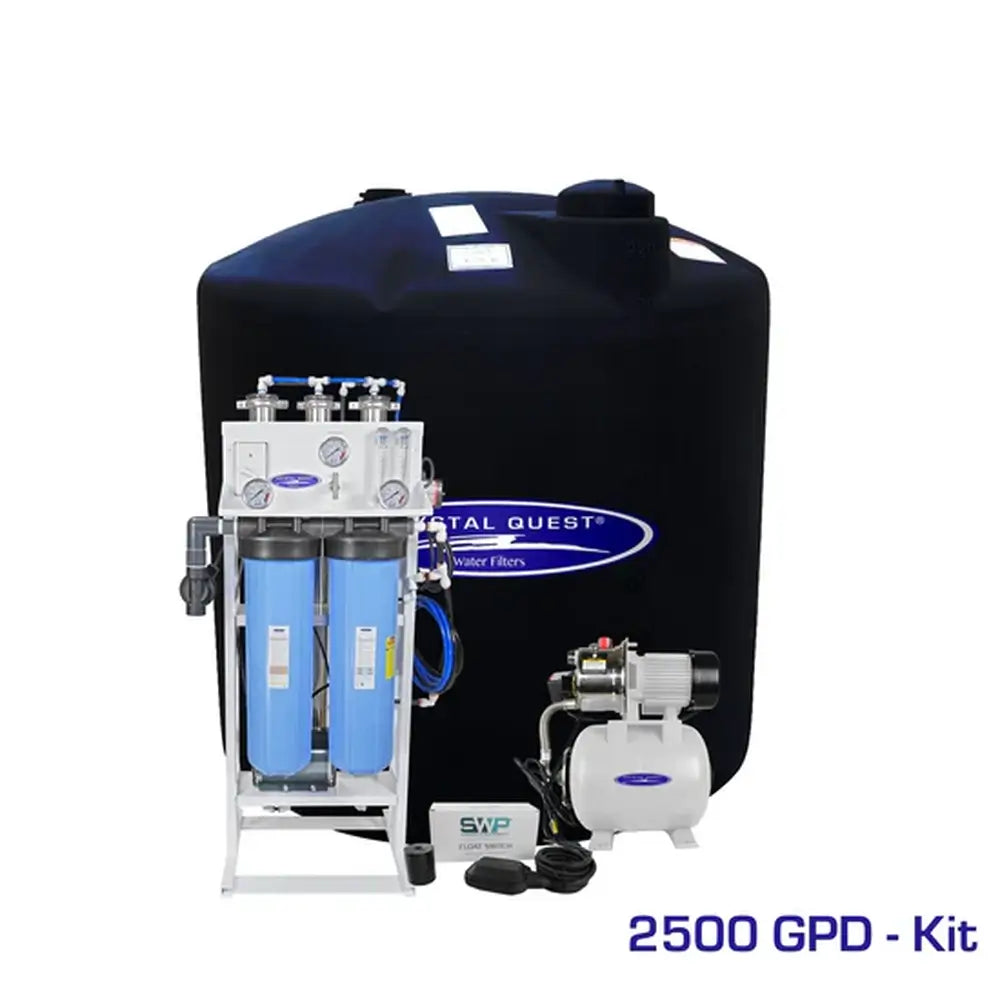

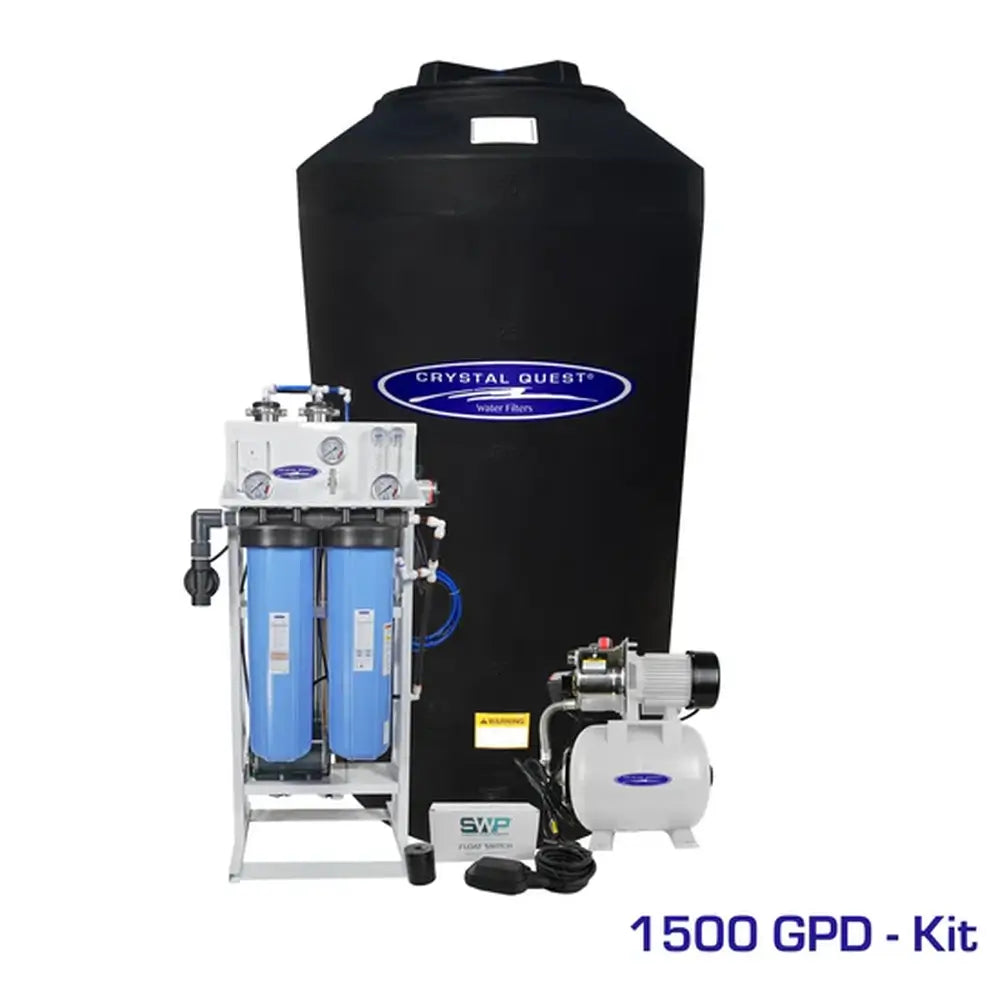

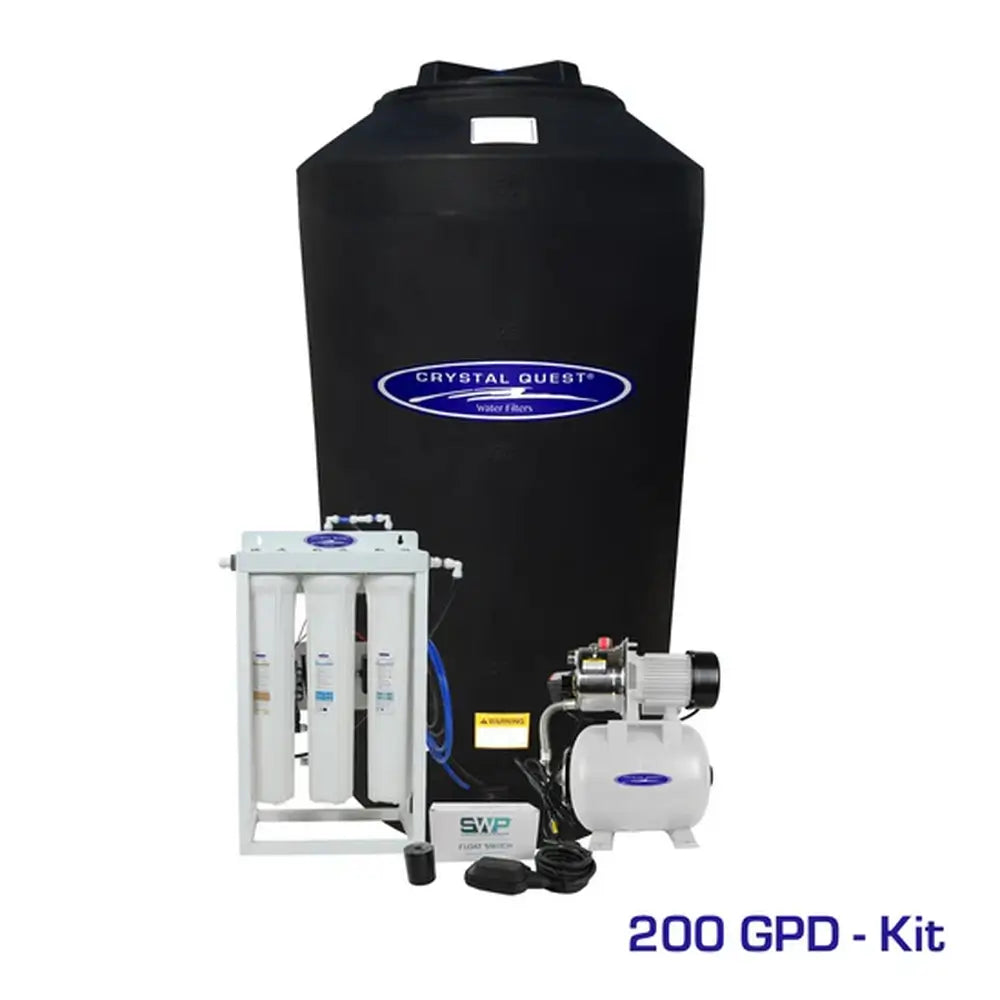

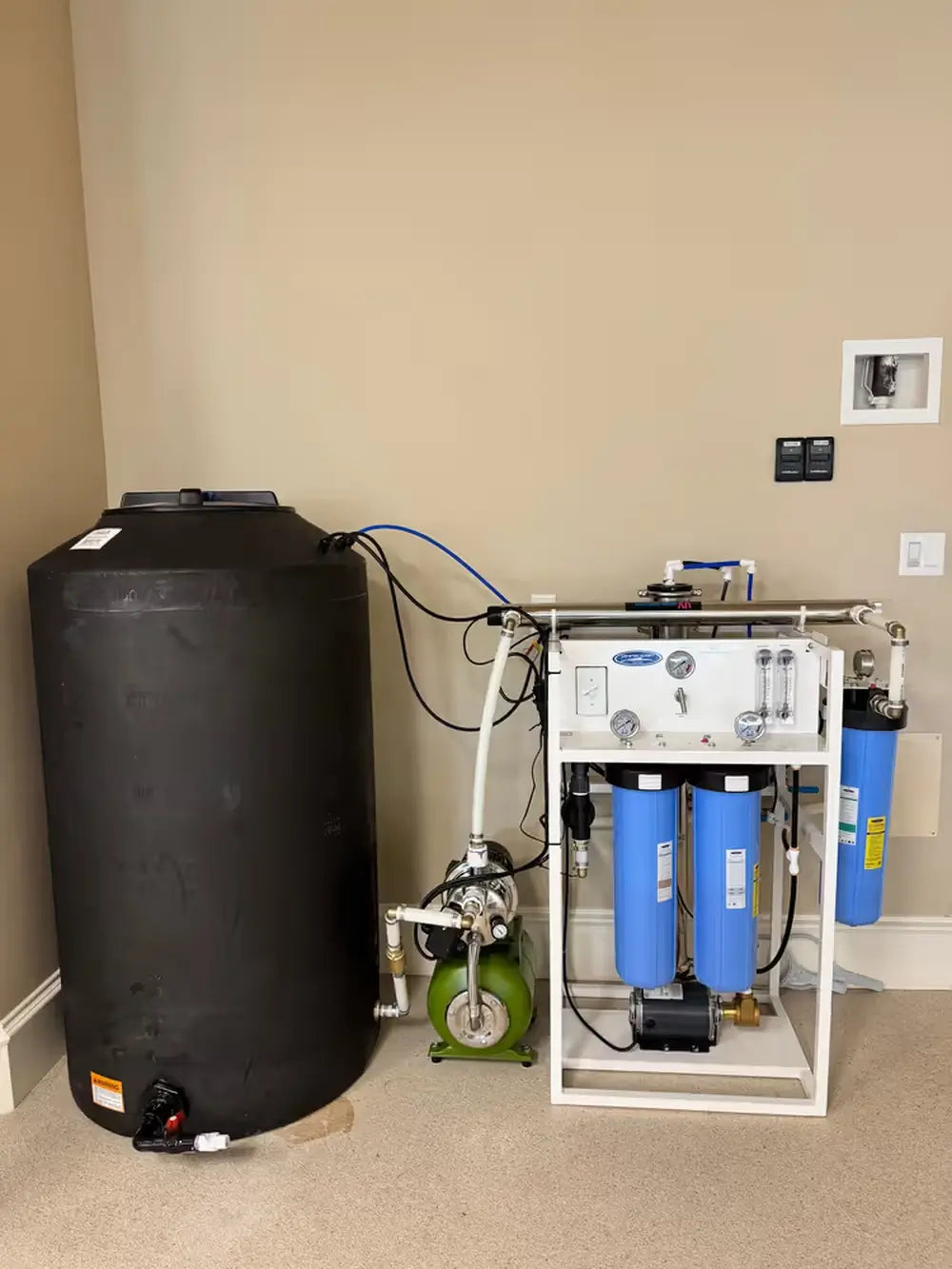

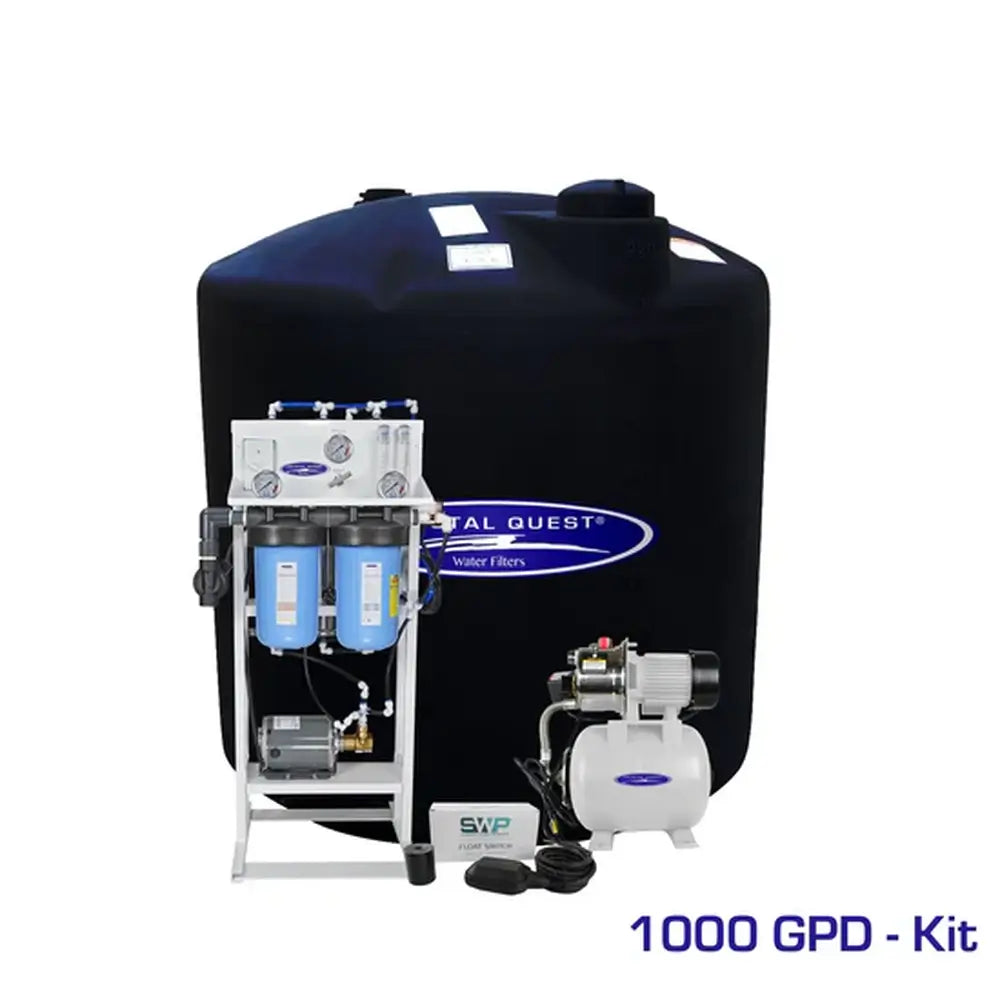

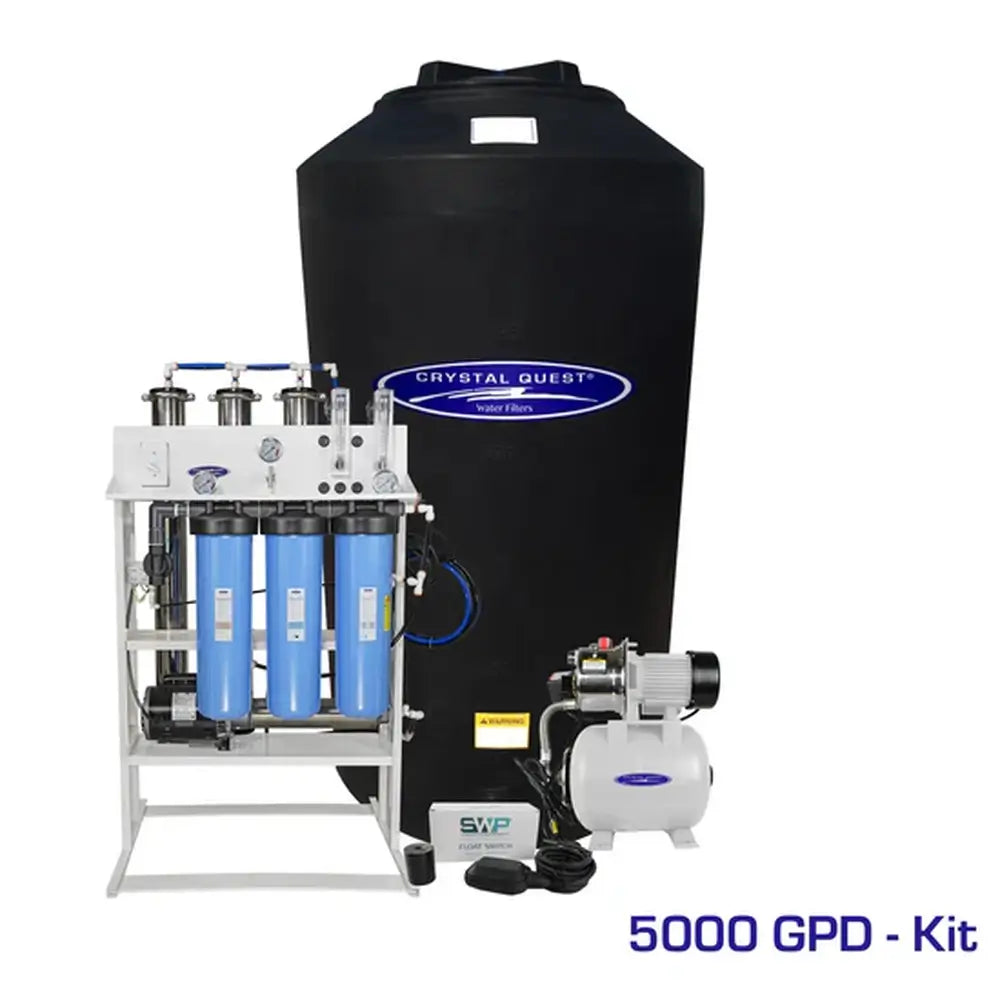

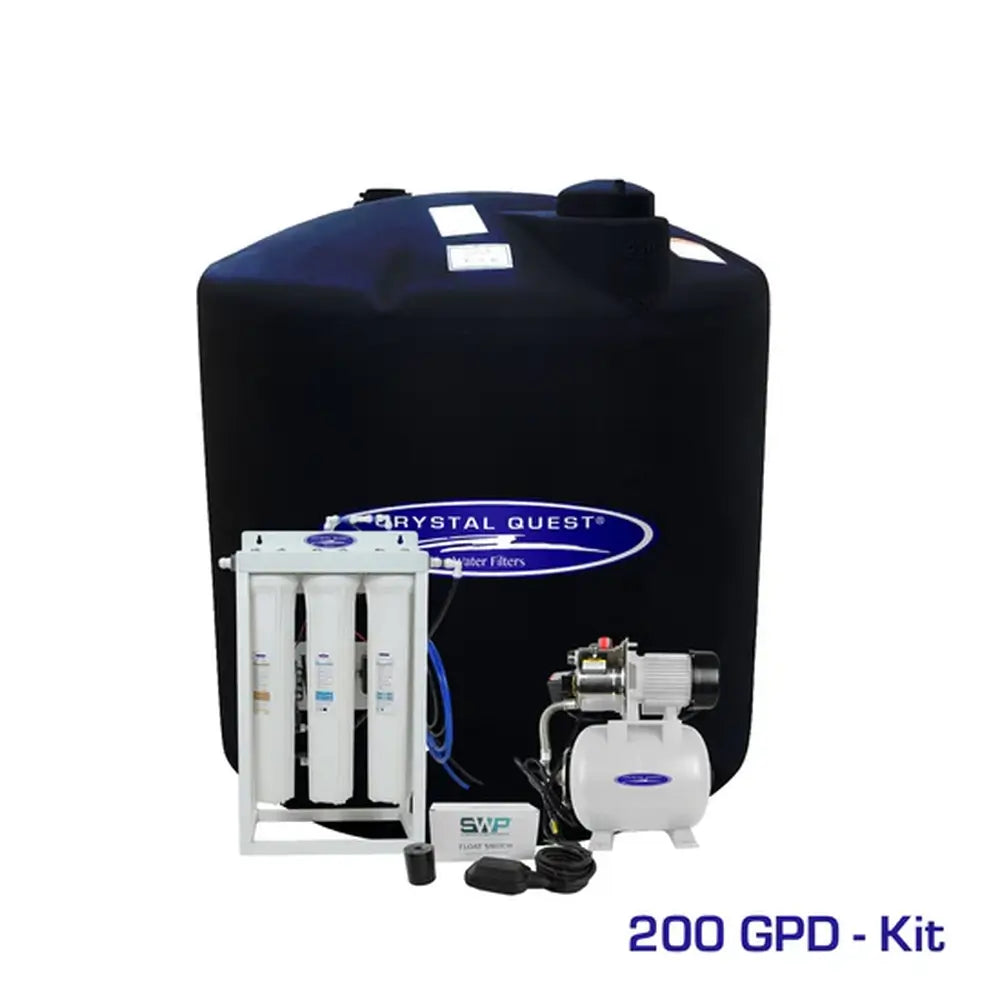

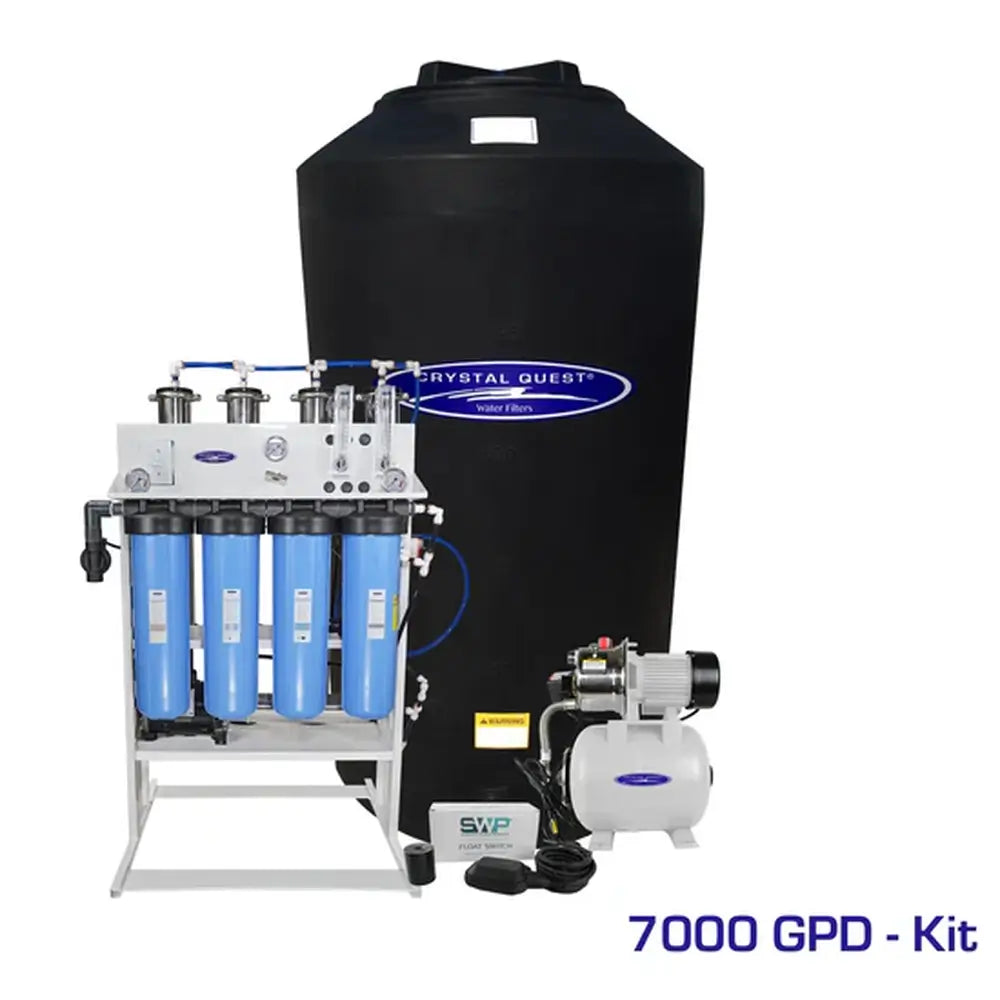

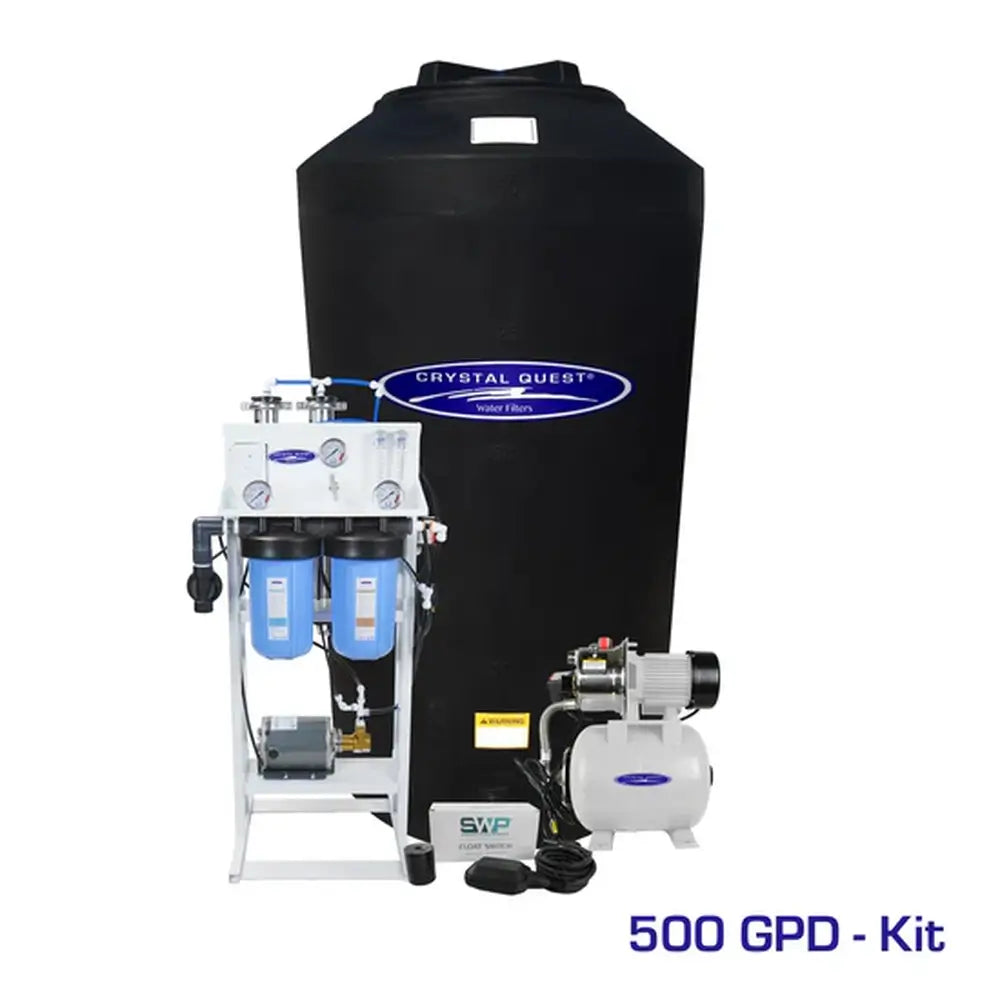

The system can be ordered as a standalone reverse osmosis unit or paired with an atmospheric storage tank kit where available. Official Crystal Quest product information lists 165, 220, and 500 gallon atmospheric storage tank options, while some dealer/store data may reference 550 gallon kits. Confirm the selected tank size and dimensions against the exact product variant before installation.
Reverse osmosis treatment can reduce dissolved minerals, so post-treatment planning may be appropriate when pH, mineral balance, or plumbing compatibility is a concern. Crystal Quest lists remineralizer and alkalizing post-treatment options that may be selected based on the system size and water-treatment goals.
System performance is tied to source-water conditions. Crystal Quest manual materials note that systems are rated with 77°F water, and higher TDS and/or lower water temperature can reduce membrane production. Properties outside the stated constraints should be reviewed before purchase.
This whole house reverse osmosis system is designed for homes and properties that need more than point-of-use drinking water filtration. It supports larger daily water demand with multiple GPD options, pump selections, and optional storage tank kits.
Choose the system by daily gallon output, storage tank size, pump option, feed-water quality, and available installation space. Larger systems should be checked against the exact dimensional, feed-flow, and installation requirements for the selected model.
Need help sizing a whole house reverse osmosis system?
TrueStead Supply can help you compare GPD output, storage tank size, pump options, and post-treatment needs.
✓ 200-7000 GPD configurations
✓ Optional atmospheric storage tank kits where available
✓ Remineralization, UV, and pump-option planning
| Brand | Crystal Quest |
| Product Type | Whole house reverse osmosis system |

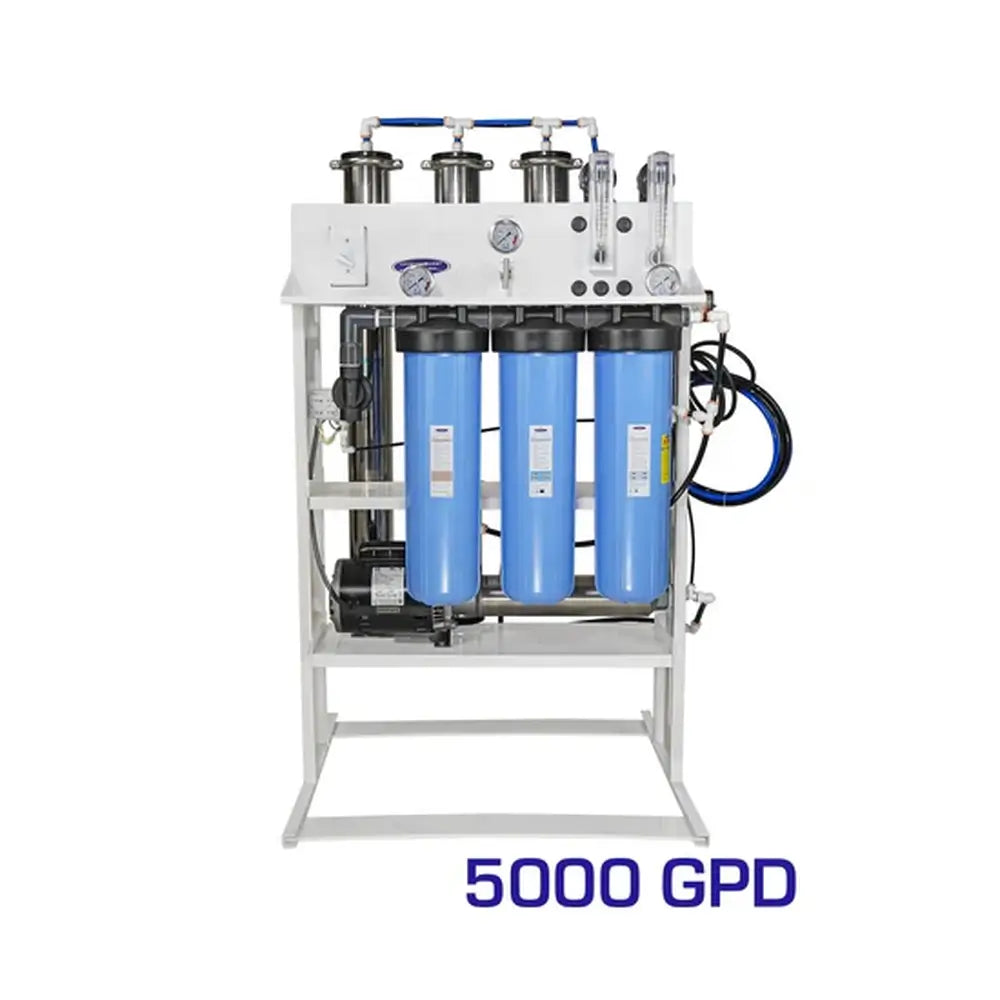

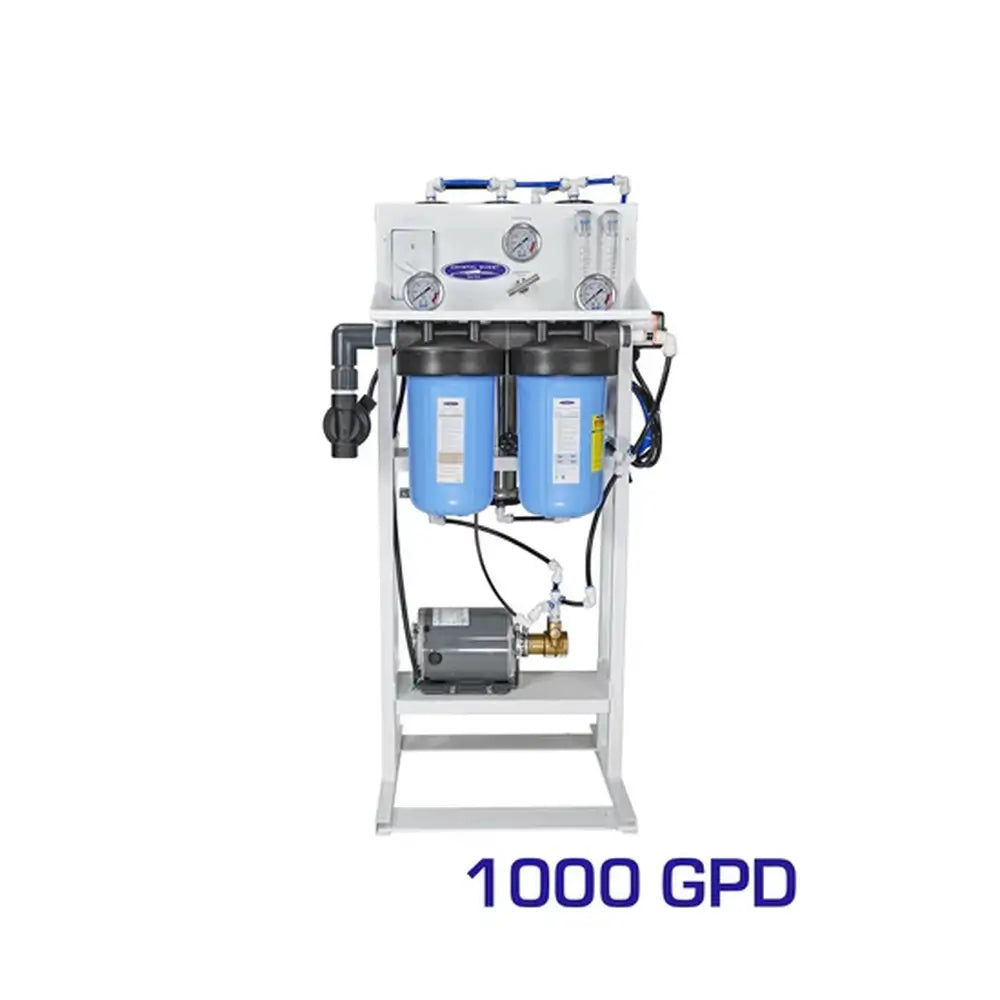

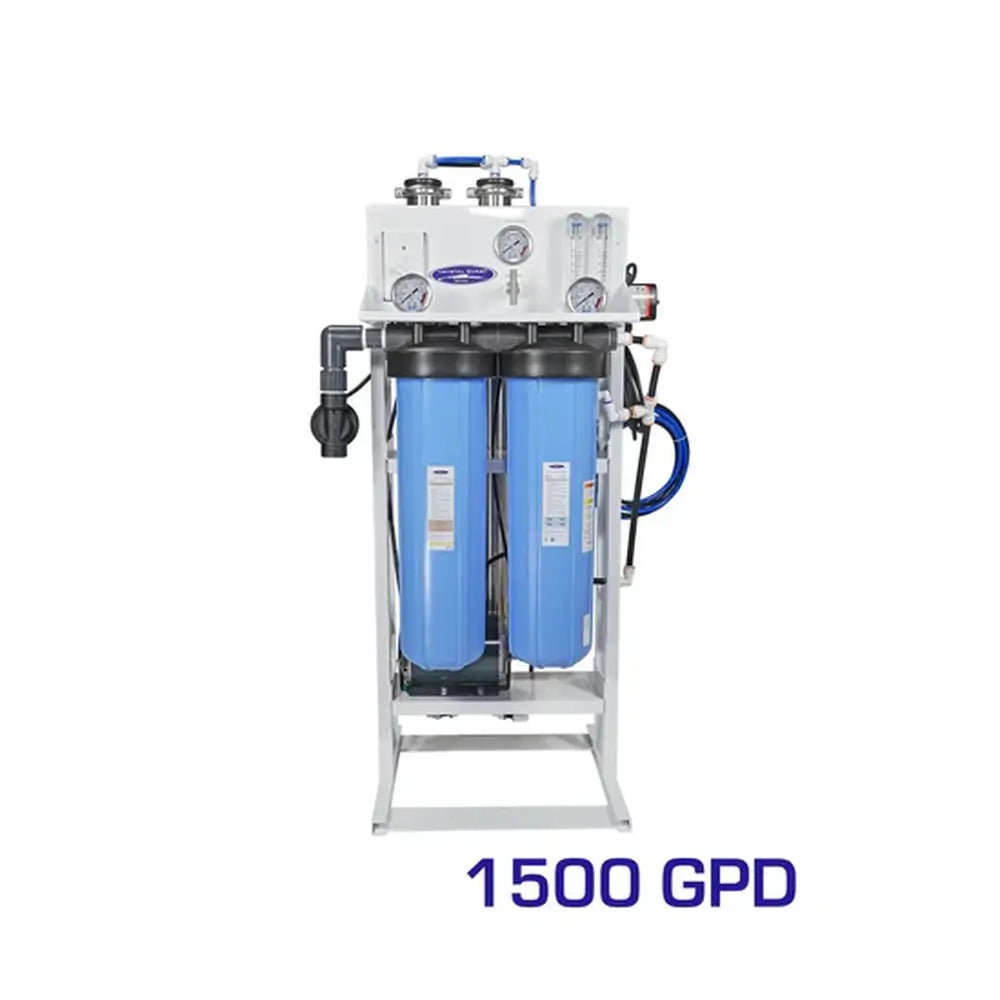

| Flow Rate Options | 200, 300, 400, 500, 750, 1000, 1500, 1800, 2500, 4000, 5000, or 7000 GPD, where available by selected model |
| Configuration Options | Standalone reverse osmosis unit or atmospheric storage tank kit configurations where available; confirm selected tank size before installation |
| Pump Options | Brass rotary or stainless steel rotary options may be available depending on selected system |
| Weight Range | 50-265 lbs. |
| Motor Range | 0-1.5 hp |
| Voltage | 110V / 220V; standard 110V unless otherwise requested |
| Hertz | 50 or 60 Hz |
| Feed Connection | 3/8" or 1" |
| Product Connection | 3/8" or 1" |
| Waste Connection | 1/4", 3/8", or 1" |
| Minimum Feed Pressure | 45 psi |
| NaCl Rejection Range | 96%-98.5% |
| Feed Flow Range | 1-10 GPM |
| Maximum Hardness | 15 grains per gallon |
| Maximum TDS | 1000-2000 ppm; refer to exact system requirements |
| Operating Pressure | 50-150 psi |
| pH Range | 3-11 |
| Rated Conditions Note | Systems are rated with 77°F water and listed TDS constraints; refer to exact system manual for final values |
| 300-400 GPD Dimensions | 17" × 23" × 35" |

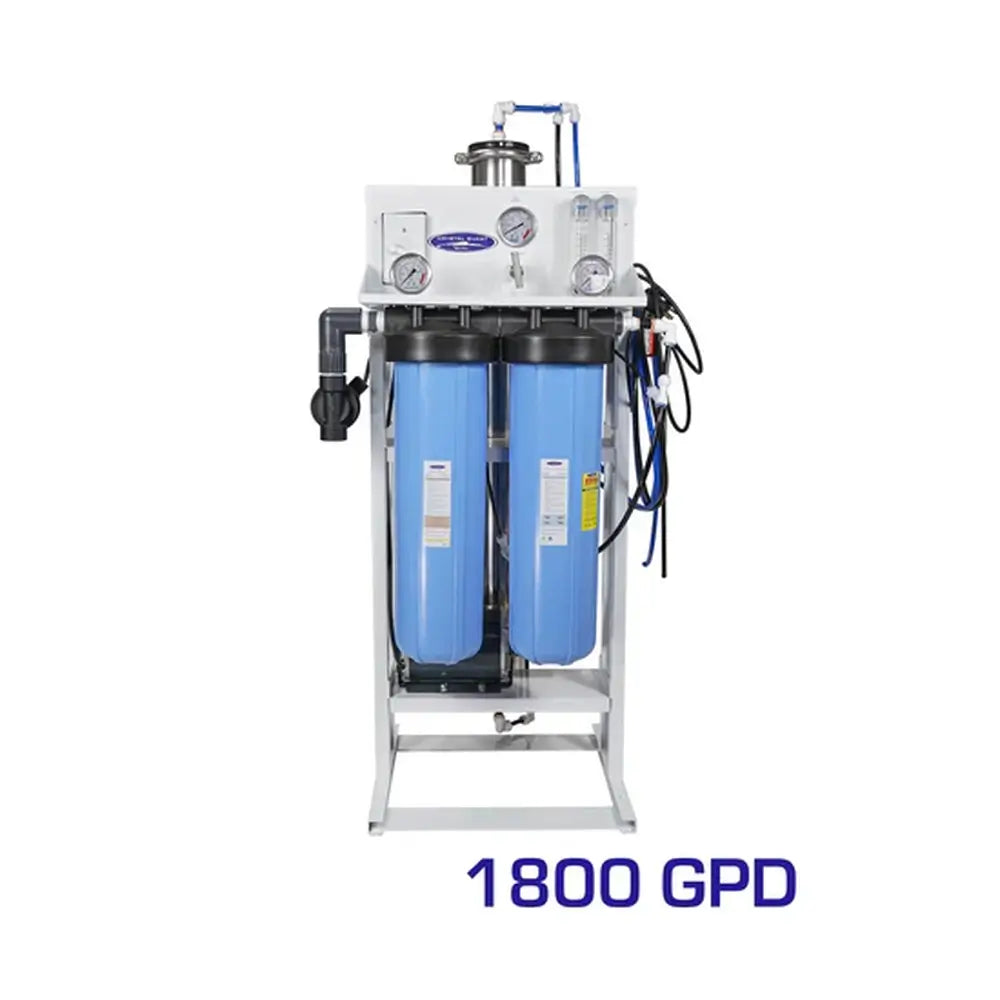

| 500-2500 GPD Dimensions | 18" × 24" × 49" for 500, 750, 1000, 1500, and 2500 GPD; 20" × 24" × 51" for 1800 GPD |
| 4000-7000 GPD Dimensions | 30" × 36" × 59" |
| Storage Tank Guidance | Official Crystal Quest product information lists 165, 220, and 500 gallon atmospheric storage tank options; confirm selected tank size against the exact product variant before installation. |
| Storage Tank Dimensions | 165 gallon: 31" D × 56" H; 220 gallon: 42" D × 44" H; larger tank dimensions should be confirmed against the selected 500-gallon or store-specific tank kit before installation. |
| Storage Tank Note | Storage tank sizing and dimensions should be confirmed against the selected tank kit before installation |
| Sizing Guidance | Preliminary sizing should be based on daily water demand, peak usage, storage tank size, feed-water conditions, and installer guidance rather than bathroom count alone. |
| Installation Guidance | All equipment should be plumbed into the water system by a qualified, licensed plumber and installed according to local plumbing codes. |
| Water Source Requirement | Use on a potable cold-water supply only; source-water conditions should be reviewed before final system selection. |
| Performance Note | Higher TDS and/or lower water temperature can reduce membrane production; final output should be reviewed against selected model specifications. |

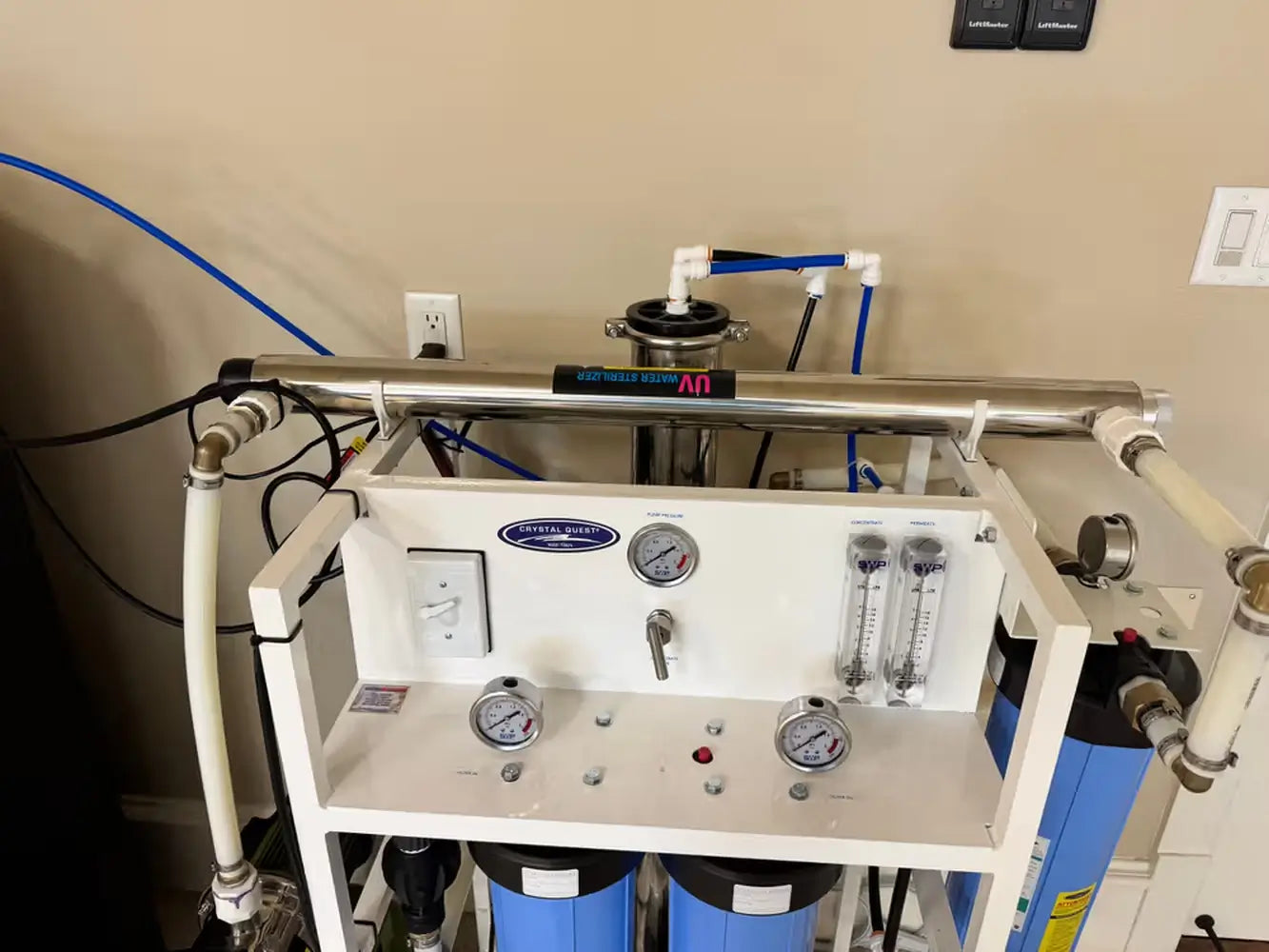

| Optional Add-Ons | UV sterilizer, alkalizing postfilter, remineralizer system, controller upgrades, TDS monitoring, chemical pump outlet, blending valve, permeate sample port, voltage options, wood crate |
| Selection Note | Confirm daily water demand, feed pressure, source-water TDS, hardness, storage needs, and installation space before final system selection |
