The Rich Solar RS-BC12V10 is a 12V lithium iron phosphate battery charger designed for compatible 12V LiFePO4 batteries that match the charger’s technical data. It converts 100–240V AC input into 14.4V ± 0.2V DC output at 10A for controlled battery charging. Its three-stage charging process uses pre-charge, constant current, and constant voltage operation to manage charging across supported battery conditions. LED indicators show charging, fully charged, standby, or protection/error status, while an aluminum housing with fan supports heat dissipation. Rich Solar lists IP65 protection and built-in safeguards for over-temperature, reverse polarity, short circuit, and output over-voltage conditions.
The RS-BC12V10 provides a documented 14.4V ± 0.2V direct current output at 10A for compatible 12V lithium iron phosphate batteries that match the charger’s technical data. Its 100–240V AC input range supports charging from suitable alternating current power sources within the specified 47Hz to 63Hz frequency range.
The charger uses pre-charge, constant current, and constant voltage charging stages. Rich Solar’s manual states that pre-charge supplies limited current when battery voltage is below its normal standard, before the charger transitions to 10A charging and then voltage-controlled completion.

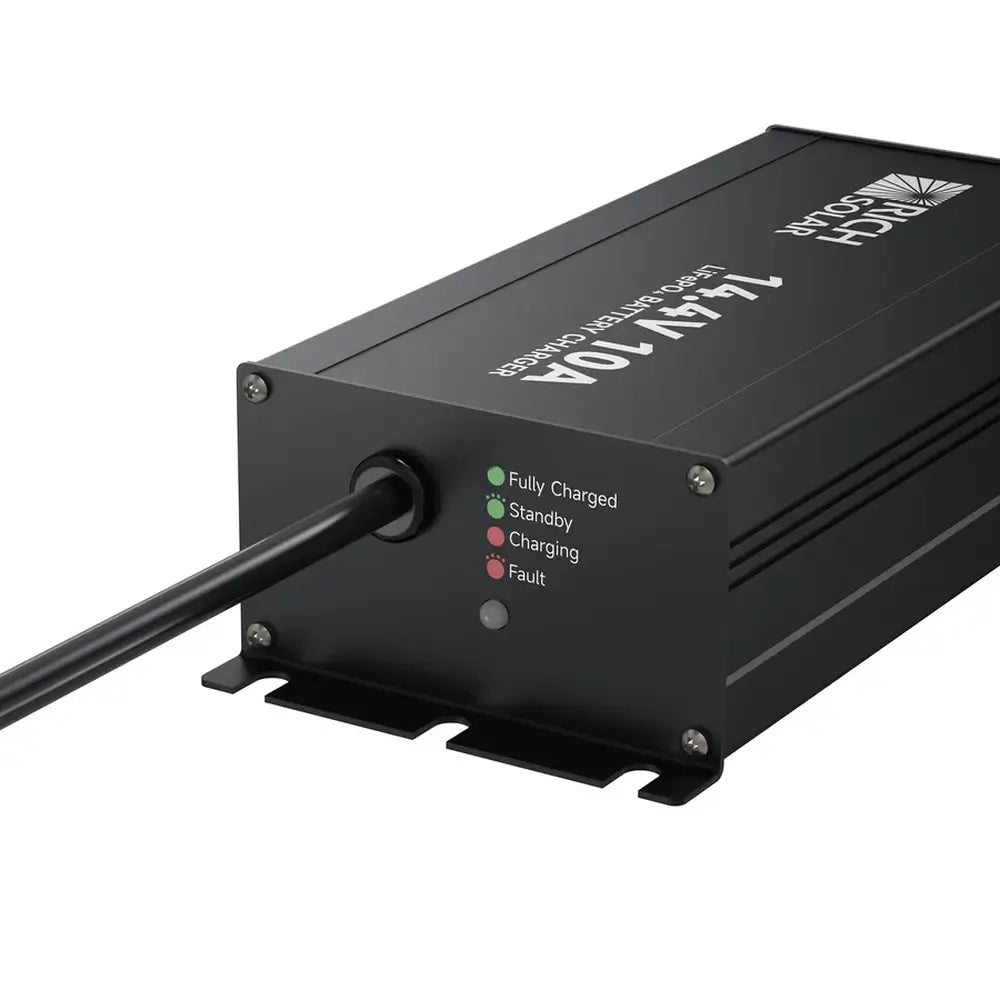

LED indicators provide quick operating visibility: solid red indicates charging, solid green indicates a fully charged battery, flashing green indicates standby, and flashing red indicates a fault or protection condition. The charger is equipped with an Anderson connector for connection to compatible battery charging setups.

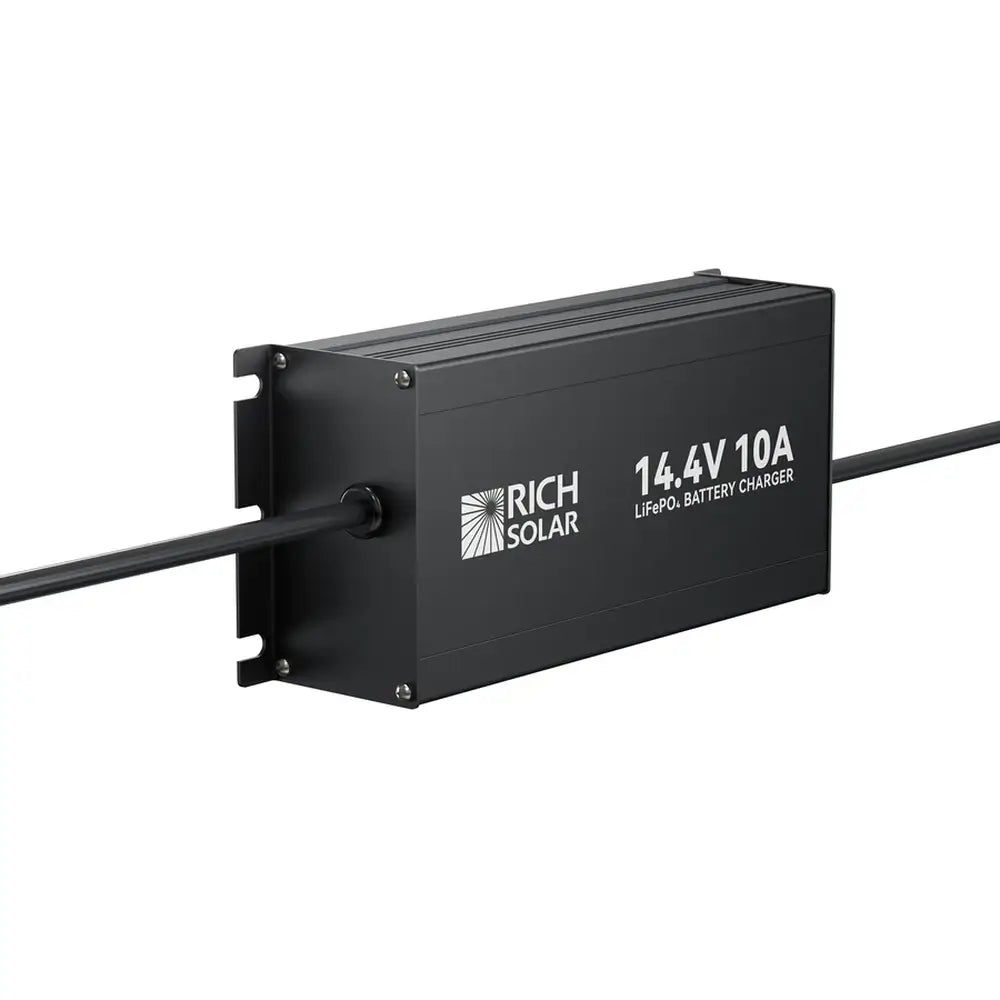

The RS-BC12V10 is built with an aluminum housing and fan for heat management during operation. Rich Solar lists IP65 protection class along with over-temperature, reverse polarity, short-circuit, and output over-voltage protections, while instructing users to keep the charger and battery away from water, heat sources, flames, sparks, and hazardous chemicals during charging.
The RS-BC12V10 supplies 14.4V ± 0.2V DC output at 10A for compatible 12V lithium iron phosphate batteries.
Three-stage charging, LED status indicators, IP65 protection class, and built-in fault protections support practical charging setup and monitoring.
Need help selecting the right charger for your LiFePO4 battery setup?
Contact TrueStead Supply for charger selection guidance, battery compatibility support, and quote assistance.
✔ Charger selection guidance ✔ Battery compatibility support ✔ Quote assistance
Contact Us for a Quote| Brand | Rich Solar |
| Model / SKU | RS-BC12V10 |
| Product Type | LiFePO4 Battery Charger |
| Battery Application | Compatible 12.8V lithium iron phosphate batteries |
| Input Voltage | 100V to 240V AC; 47Hz to 63Hz |
| Maximum Input Current | 2A |
| Output Voltage | 14.4V ± 0.2V DC |
| Output Current | 10A |
| Charging Stages | Pre-charge, constant current, and constant voltage |
| Connection Type | Anderson connector included; terminal size and connector amperage rating require Rich Solar confirmation due to conflicting official documentation |
| Use Precautions | Confirm battery compatibility before charging; keep the charger and battery away from water, heat sources, sparks, flames, flammable gas, and hazardous chemicals; follow the manual’s connection sequence |
| Status Indicators | LED indicators for standby, charging, fully charged, and fault or protection status |
| Housing | Aluminum housing with fan |
| Protection Functions | Over-temperature, reverse polarity, short circuit, and output over-voltage protection |
| Protection Class | IP65 |
| Operating Temperature | -4°F to 104°F / -20°C to 40°C |
| Storage Temperature | -40°F to 158°F / -40°C to 70°C |

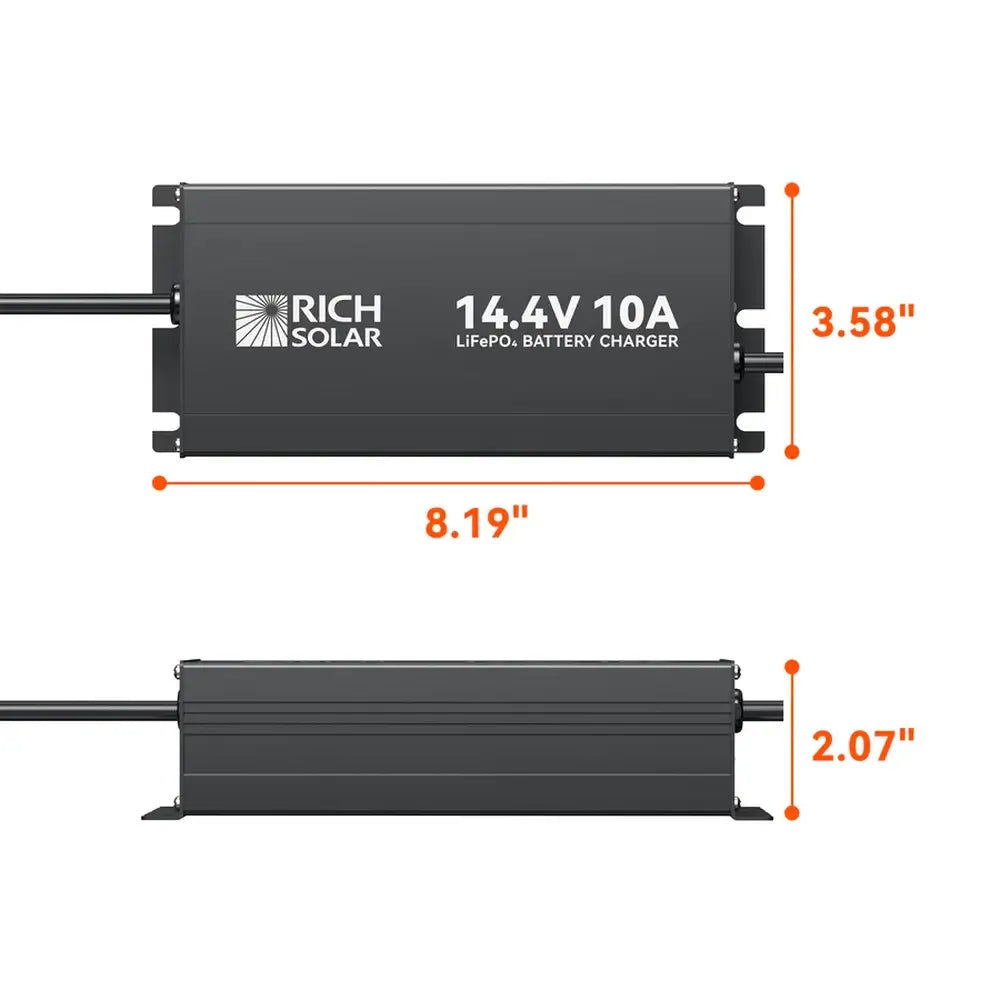

| Dimensions | 8.19" × 3.58" × 2.07" / 208 × 91 × 52.5 mm |
| Net Weight | 3.86 lb / 1.75 kg |
