The Rich Solar NOVA 12K PV Hybrid Inverter Solar Kit is a split-phase hybrid inverter and server-rack battery package for professionally designed energy-storage systems using the included RS-H12K inverter, which Rich Solar identifies for residential, cabin, accessory dwelling unit, agricultural, off-grid and on-grid applications. Identified by SKU SRx12-H12Kx1-NO, the kit includes one Rich Solar NOVA 12K hybrid inverter, twelve ALPHA 5 PRO 51.2V 100Ah LiFePO4 batteries, and two battery racks. The included batteries provide 61.44kWh combined nominal energy, while the inverter accepts up to 12,000W of compatible photovoltaic input and supplies 10,000W rated AC output in supported 120/240V or 120/208V split-phase configurations. Rich Solar does not identify photovoltaic modules, mounting hardware, array wiring or a complete external protection package among the included kit components. Array design, battery-bank configuration, grid or generator integration, permitting, overcurrent protection, grounding, rapid-shutdown implementation, commissioning and final installation must be completed or confirmed by qualified professionals.
This kit includes twelve Rich Solar ALPHA 5 PRO batteries, each rated at 51.2V, 100Ah, and 5,120Wh nominal energy. Together, the included batteries provide 61.44kWh of nominal storage capacity before reserve settings, system losses, temperature conditions, battery management limits, and connected-load demand are considered. Two battery racks are listed with the package to support organized server-rack battery installation planning.

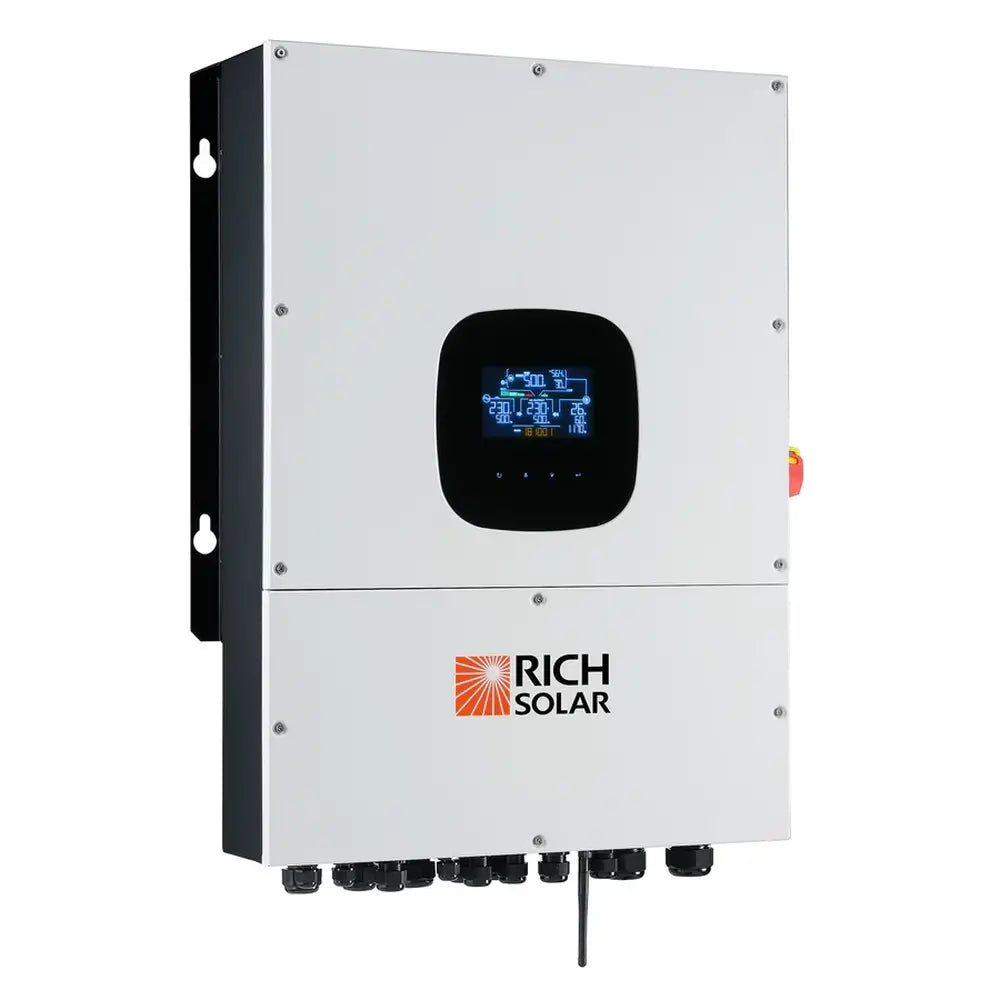

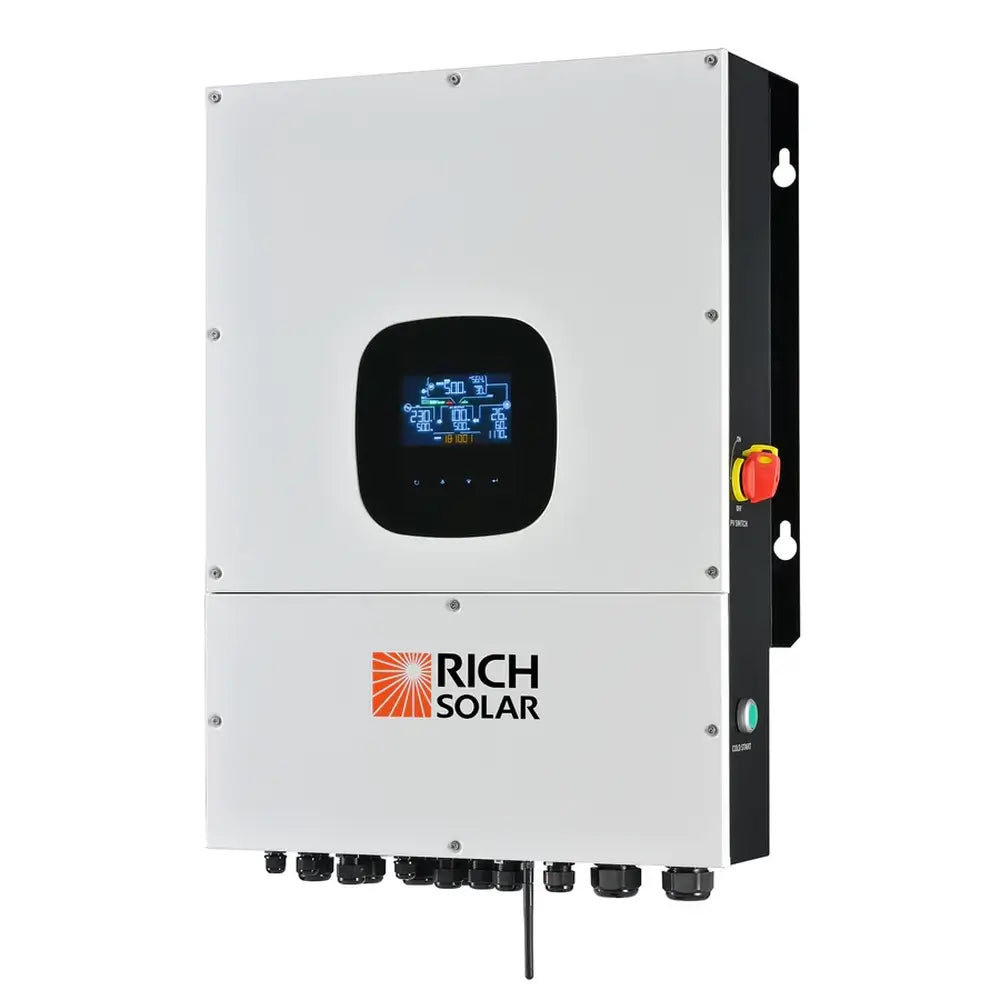

The included NOVA 12K inverter, model RS-H12K, is rated for 10,000W AC output and up to 12,000W photovoltaic input. It supports documented 120/240V or 120/208V split-phase configurations, a 48V-class battery system, generator input, AC coupling, and grid-tie, off-grid, or hybrid operating modes when properly designed and commissioned.

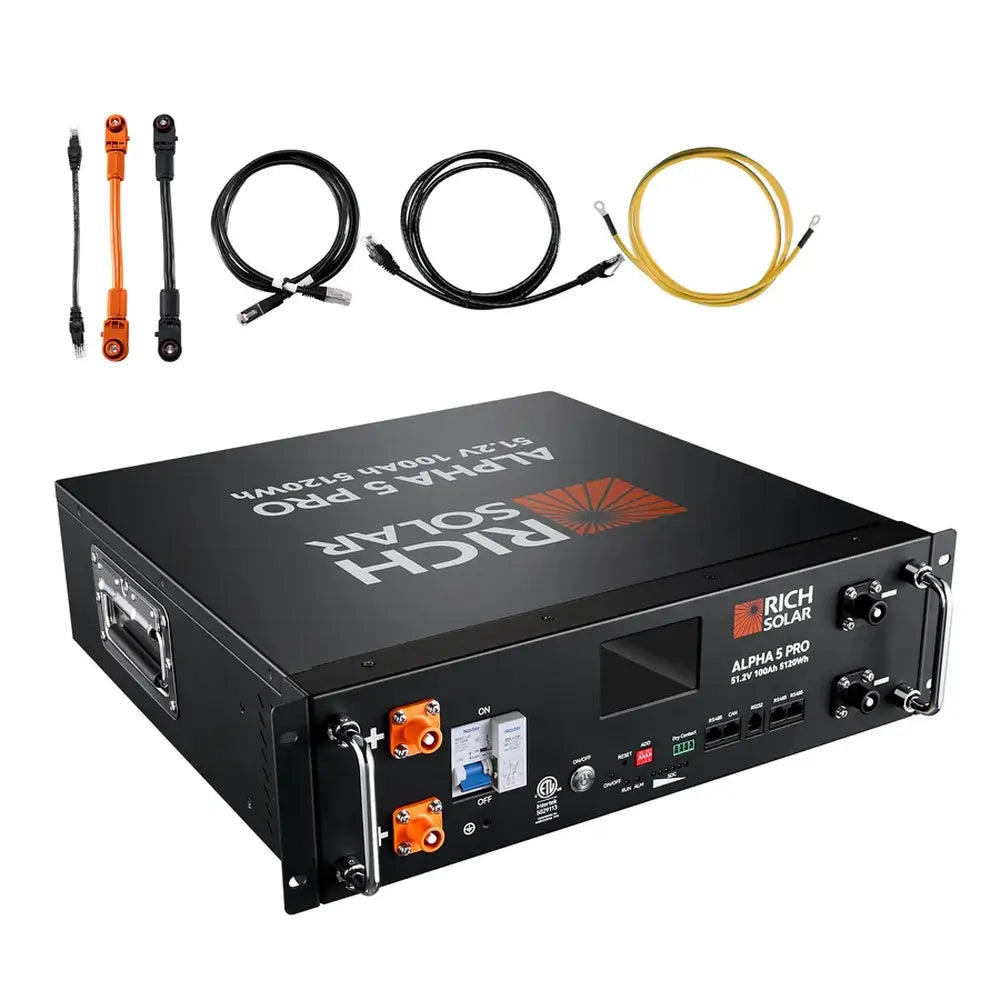

The ALPHA 5 PRO battery is listed with Wi-Fi and Bluetooth monitoring, RS485, RS232 and CAN communication ports, low-temperature charging protection, and an integrated 150W subzero heater. The NOVA 12K includes Wi-Fi monitoring and RS485 battery management communication support. Correct battery protocol selection, wiring, settings, communication setup, and commissioning remain required for proper system operation.
The NOVA 12K includes manufacturer-listed 300A DC and 60A AC integrated breakers, arc-fault detection and rapid shutdown functions, ground-fault detection, and photovoltaic input lightning protection. Because this package combines high-voltage photovoltaic input, large-capacity lithium battery storage, and split-phase AC output, it requires project-specific electrical design rather than plug-in installation.

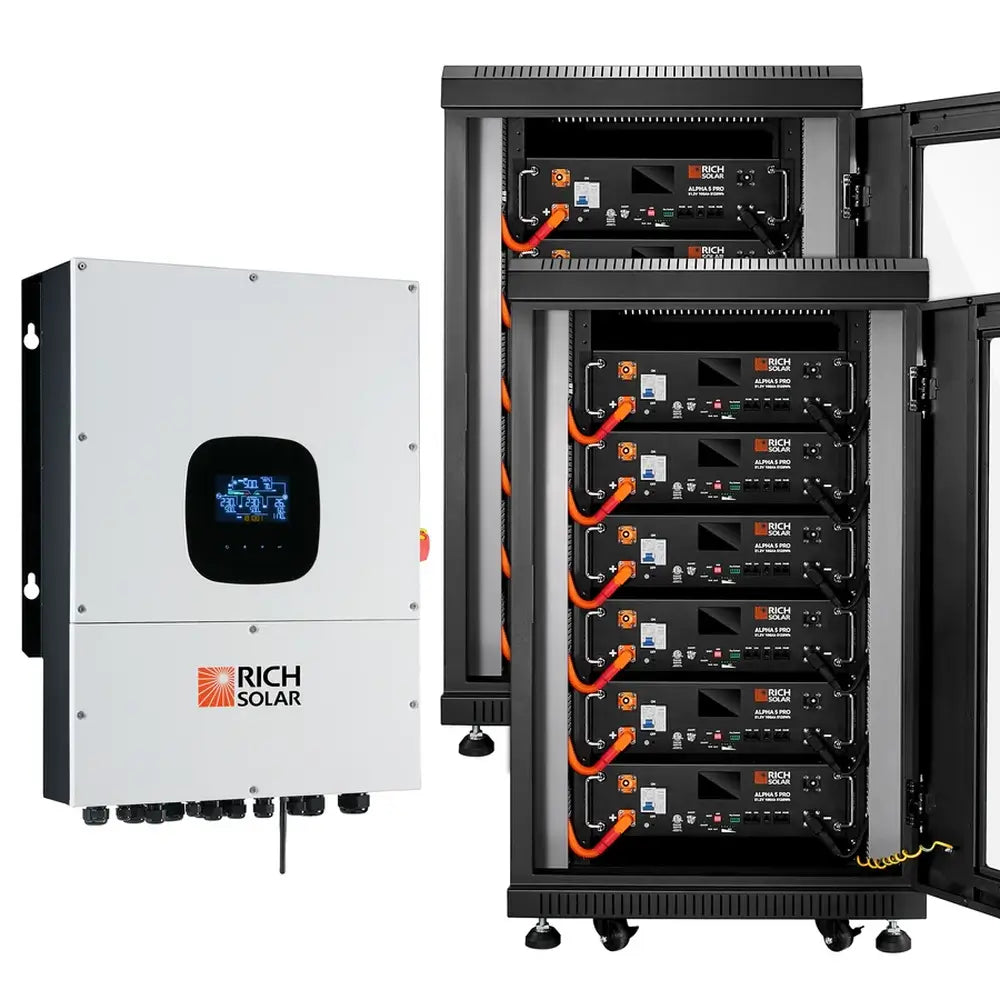

The pictured NOVA 12K inverter and rack-mounted ALPHA 5 PRO batteries represent the major equipment categories included in this kit; refer to the included-components table for confirmed quantities and storage capacity.

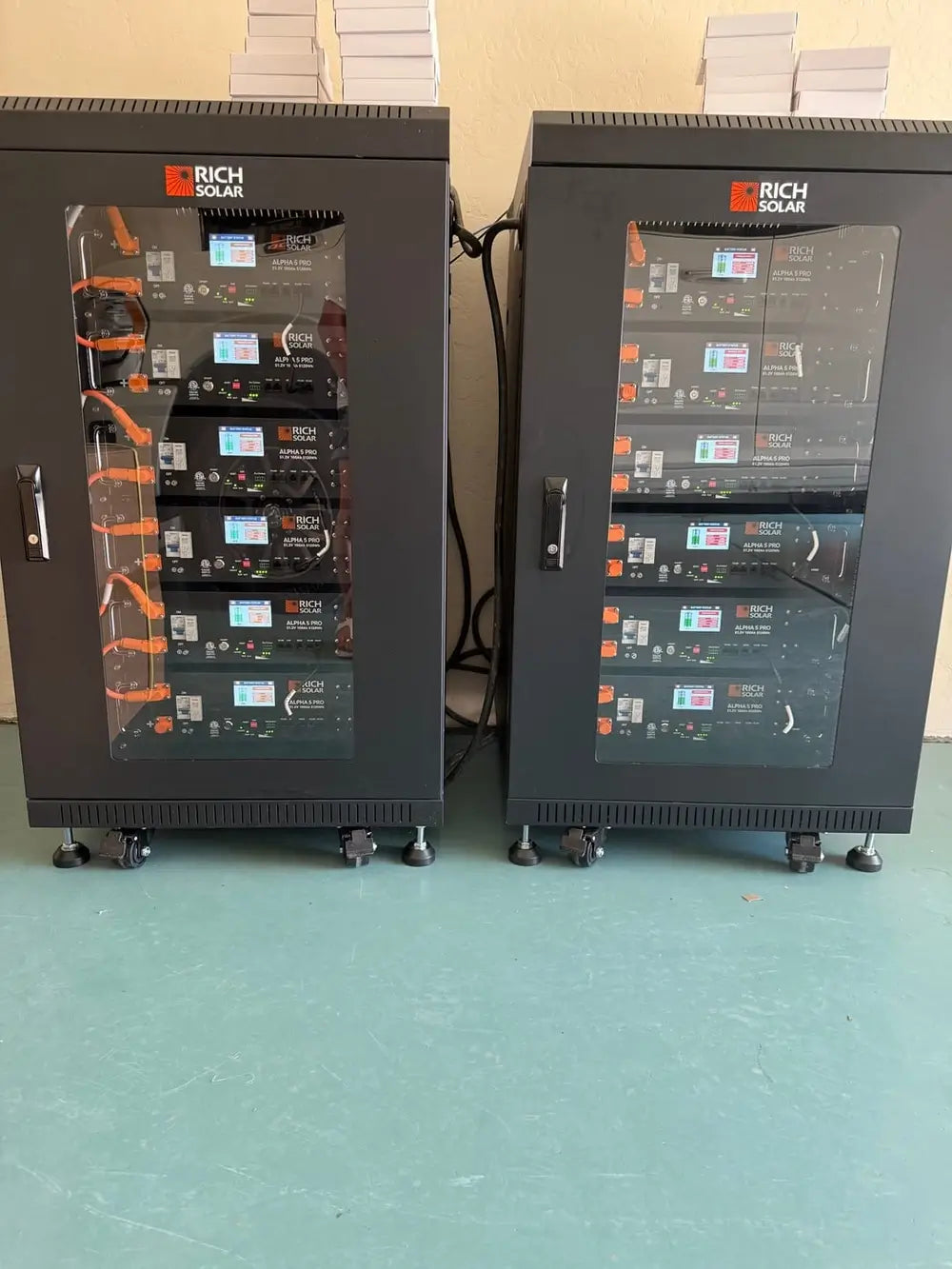

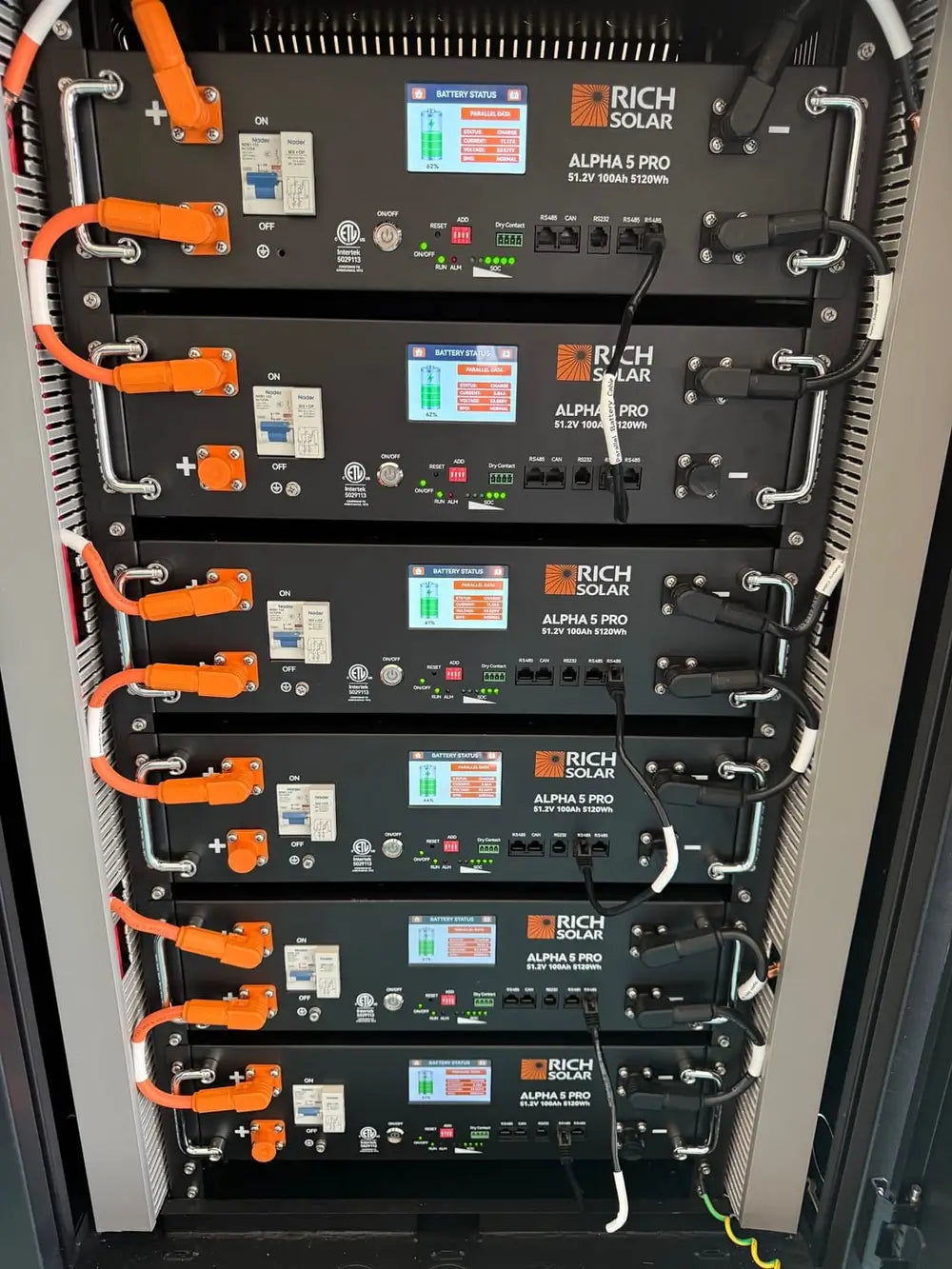

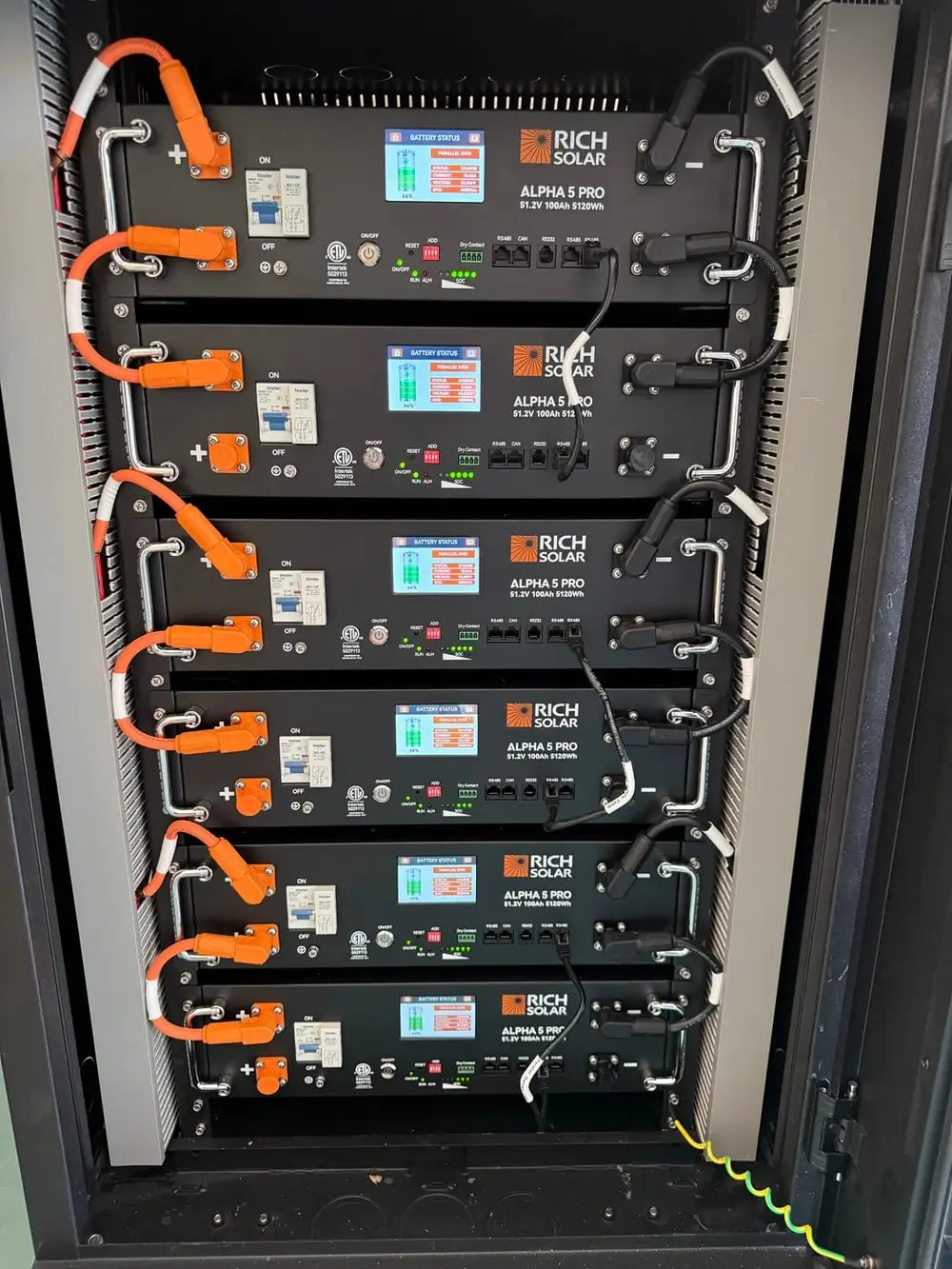

Rack-mounted ALPHA 5 PRO batteries provide organized lithium iron phosphate storage hardware for the kit’s professionally designed battery-bank configuration.
Planning a high-capacity hybrid energy storage system for your property?
Contact TrueStead Supply for inverter and battery-kit guidance, system planning support, and quote assistance.
✔ Hybrid system guidance ✔ Battery storage planning ✔ Quote assistance
Contact Us for a Quote| Brand | Rich Solar |
| Product Name | NOVA 12K PV Hybrid Inverter Solar Kit with 61.44kWh Server Lithium Battery |
| Kit Reference | KIT-SR0002 |
| SKU | SRx12-H12Kx1-NO |
| Product Type | Hybrid Inverter and LiFePO4 Battery Storage Package |
| Included Inverter | 1 × Rich Solar NOVA 12K Split-Phase Hybrid Inverter, RS-H12K |
| Included Batteries | 12 × Rich Solar ALPHA 5 PRO Server Rack LiFePO4 Batteries, RS-B5121P |
| Included Battery Racks | 2 battery racks |
| Nominal Energy Per Battery | 5,120Wh / 5.12kWh |
| Combined Nominal Battery Energy | 61,440Wh / 61.44kWh before operating losses and reserve settings |
| Photovoltaic Modules Included | Not identified as included on Rich Solar’s official KIT-SR0002 included-components list |
| Installation Requirements | Qualified-personnel installation required; follow current Rich Solar manuals for array design, battery-bank wiring, communications, AC/grid/generator connections, breakers, grounding, rapid shutdown, clearances, commissioning and applicable electrical requirements |
| Inverter Installation Environment | IP65-rated inverter intended for protected indoor or outdoor installation; do not install in direct sunlight or where exposed to rain or snow; mount on concrete or another non-combustible surface within a closed electrical operating area as directed by the manufacturer manual |
| Battery Bank Installation Guidance | Install with approved battery-bank overcurrent protection, matched parallel wiring, sufficient bus-current capacity, correct communications configuration and commissioning procedures according to Rich Solar manuals and applicable electrical requirements |

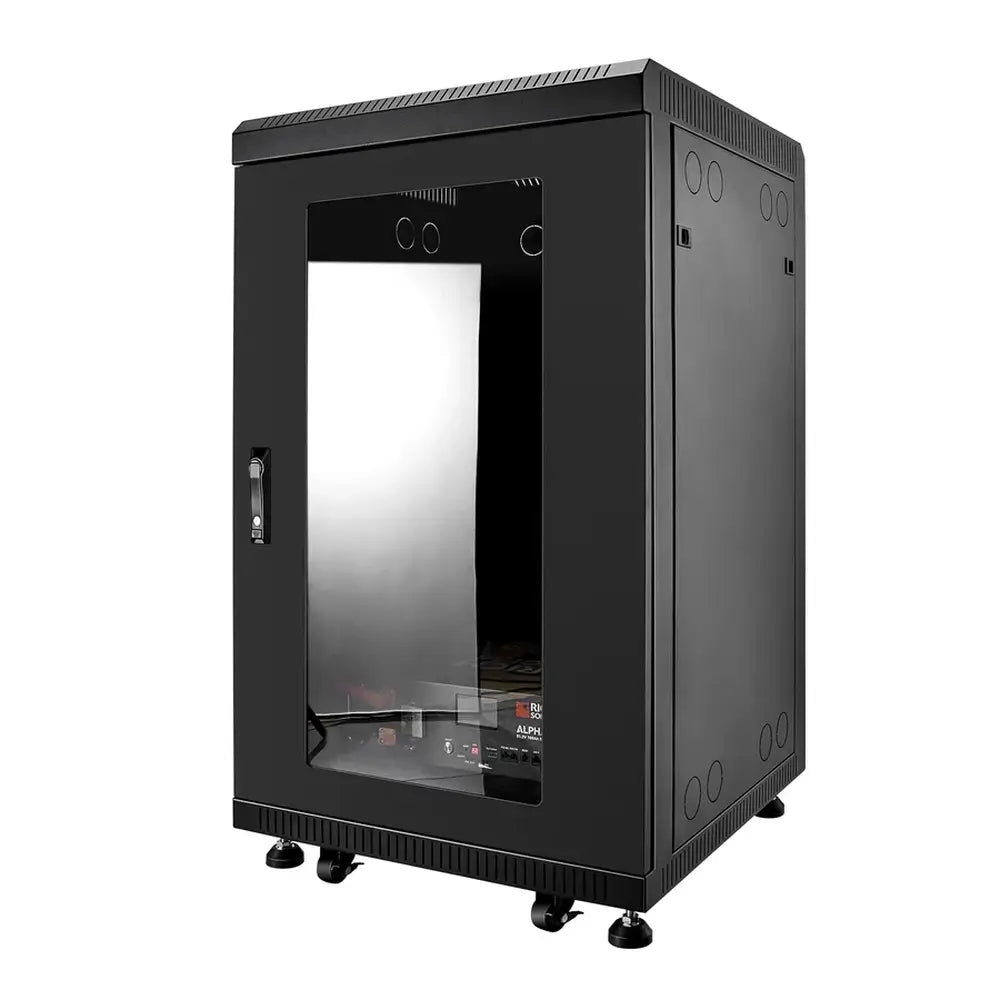

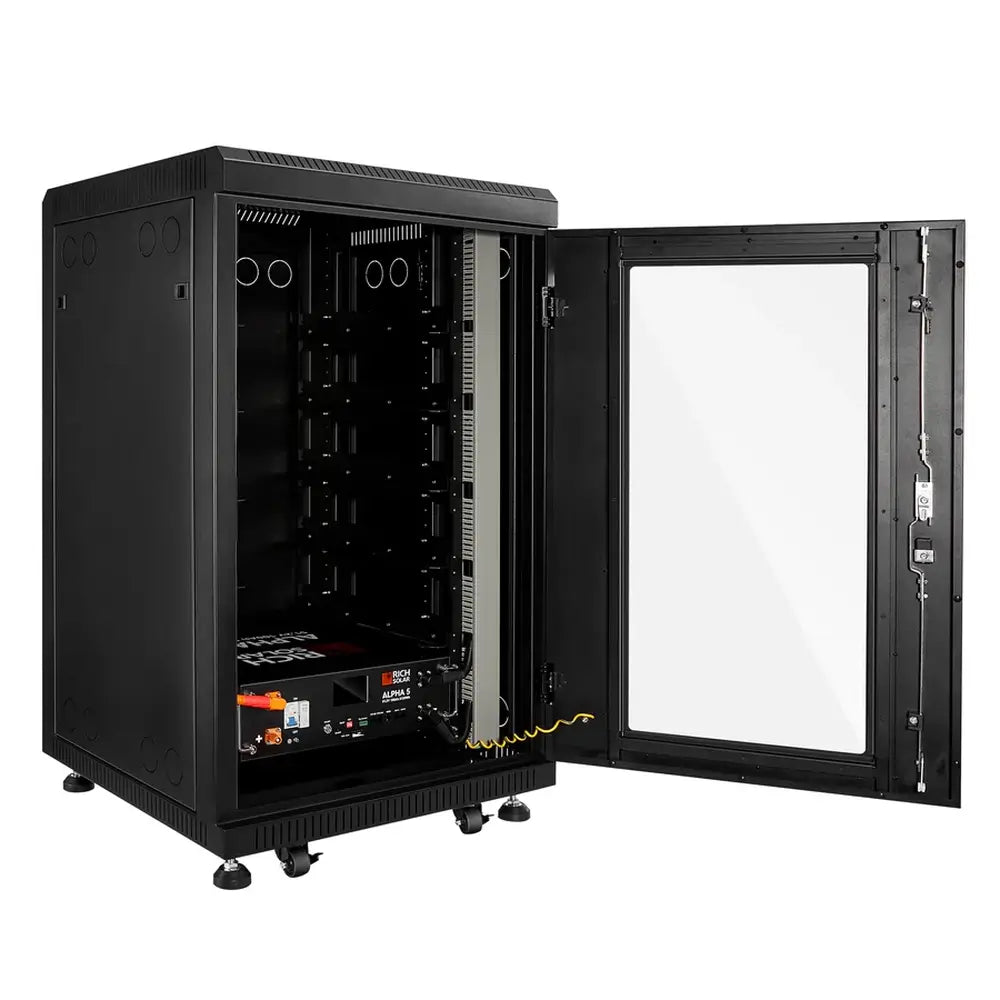

| Rack Planning Note | Kit includes 2 battery racks; Rich Solar states its ALPHA 5 Series battery server rack holds up to 6 batteries per rack |
| Inverter Warranty | 3-year warranty for Rich Solar hybrid inverters; refer to manufacturer warranty terms for coverage details |
| Qty. | Included Component | Model / SKU |
| 1 | NOVA 12K 48V Split-Phase Hybrid Inverter | RS-H12K |
| 12 | ALPHA 5 PRO 51.2V 100Ah Server Rack LiFePO4 Battery | RS-B5121P |
| 2 | Battery Rack | Included with kit; model not stated in kit listing |
| Model | RS-H12K |
| Product Type | Premium Split-Phase Hybrid Inverter |
| Rated AC Output Power | 10,000W / 10,000VA |
| Maximum PV Input Power | 12,000W |
| PV Voltage Range | 120–550VDC |
| PV Startup Voltage | 125VDC |
| MPPT Inputs | Dual inputs; 2 × 18A, 30A peak |
| Nominal Output Voltage | 120VAC phase-to-neutral / 208VAC phase-to-phase / 240VAC phase-to-phase |
| Nominal Output Current | 41.7A per phase |
| Battery Integration | 48VDC nominal; 40–62VDC range |
| Maximum Charging Current | 200A |
| Output Waveform | Pure sine wave |
| DC-to-AC Efficiency | 91% |
| Operating Modes | Grid-tie / Off-grid / Hybrid |
| Generator Input and AC Coupling | Supported according to manufacturer configuration requirements |
| Parallel Capability | Up to 6 units |
| Monitoring and Communication | Wi-Fi/mobile app monitoring; RS485 BMS communication; RS232 and USB interfaces |
| Integrated Protection Functions | 300A DC breaker, 60A AC breaker, arc-fault detection, rapid shutdown, ground-fault detection and PV input lightning protection, as listed by Rich Solar |
| Protection Degree | IP65 |
| Operating Temperature Range | -13°F to 140°F / -25°C to 60°C; power derating above 113°F / 45°C |
| Dimensions | 8.5" D × 20.3" W × 28.1" H / 215 × 516 × 714 mm |
| Net Weight | 112 lb / 51 kg |
| Manufacturer-Listed Compliance | UL 1741SA/SB, CSA C22.2 No. 107.1, IEEE 1547, CEC-listed, FCC Part 15 Class B, CA Rule 21 and HECO Rule 14H |
| Model | RS-B5121P |
| Battery Type | LiFePO4 Server Rack Battery |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah |
| Nominal Energy | 5,120Wh / 5.12kWh each |
| Maximum Charge Voltage (BMS CC/CV) | 57.6V |
| Listed Charging Voltage | 56V |
| Maximum Charging Current | 100A |
| Maximum Discharge Current | 100A |
| Cycle Life | At least 7,000 cycles with capacity retention of at least 70%, per Rich Solar specification sheet |
| Wireless Monitoring | Wi-Fi + Bluetooth |
| Communication Ports | RS485 / RS232 / CAN |
| Low-Temperature Support | Charging protection below 32°F; integrated 150W subzero heater listed on current product page |
| Protection Class | IP21 |
| Dimensions | 17.7" × 17.8" × 5.2" |
| Manufacturer-Listed Certifications | UL1973 and UL9540A; FCC listed on Rich Solar product information |
| Warranty | 10-year warranty listed by Rich Solar; terms apply |
