The Rich Solar 1600W 24V Complete Solar Kit is a packaged solar power system for compatible recreational vehicle, tiny home, and properly planned off-grid installations. Identified by SKU RS-CK1600, it includes eight 200W MEGA solar panels, two 25.6V 100Ah ALPHA 4 LiFePO4 batteries, one NOVA PURE MAX 3K 24V inverter, and one 60A maximum power point tracking charge controller. The included panels provide 1,600W total rated solar capacity, while the two batteries provide 5,120Wh combined nominal energy before system configuration and operating losses. The included inverter supplies 3,000W continuous 120V AC output with 6,000W peak surge capacity for properly sized connected loads. Solar-array layout, battery configuration, fuse and breaker protection, cable sizing, grounding, mounting, load planning, and final installation must be confirmed for the exact application before operation.
This kit includes eight Rich Solar MEGA 200 panels, each rated at 200W, for 1,600W total photovoltaic capacity. The included RS-MPPT60 charge controller automatically detects supported system voltages and is listed for up to 1,600W of photovoltaic input on a 24V battery system. The kit’s rated panel capacity therefore equals the controller’s published 24V maximum photovoltaic input-power rating, so final series/parallel wiring must remain within all manufacturer-stated voltage, current, and installation limits.
Two included ALPHA 4 batteries provide 25.6V nominal voltage, 100Ah nominal capacity, and 2,560Wh nominal energy per battery according to Rich Solar’s current specification sheet. That document also identifies Bluetooth monitoring, internal heating technology, IP65 protection class, UL94 V-0 plastic-shell flame-retardant rating, 28.8V charging voltage, 48.50 lb weight, and ≥5,000 cycles. Battery configuration, charging limits, parallel-connection requirements, and applicable shipped-product specifications must be confirmed against current Rich Solar documentation before installation.
The kit includes the Rich Solar NOVA PURE MAX 3K inverter, model RS-V3P24, for compatible 24V battery-powered installations. It is rated for 3,000W continuous power, 6,000W peak surge power, 24V DC input, 120V AC output, three AC sockets, a 5V / 2.1A USB port, and included remote-control operation.

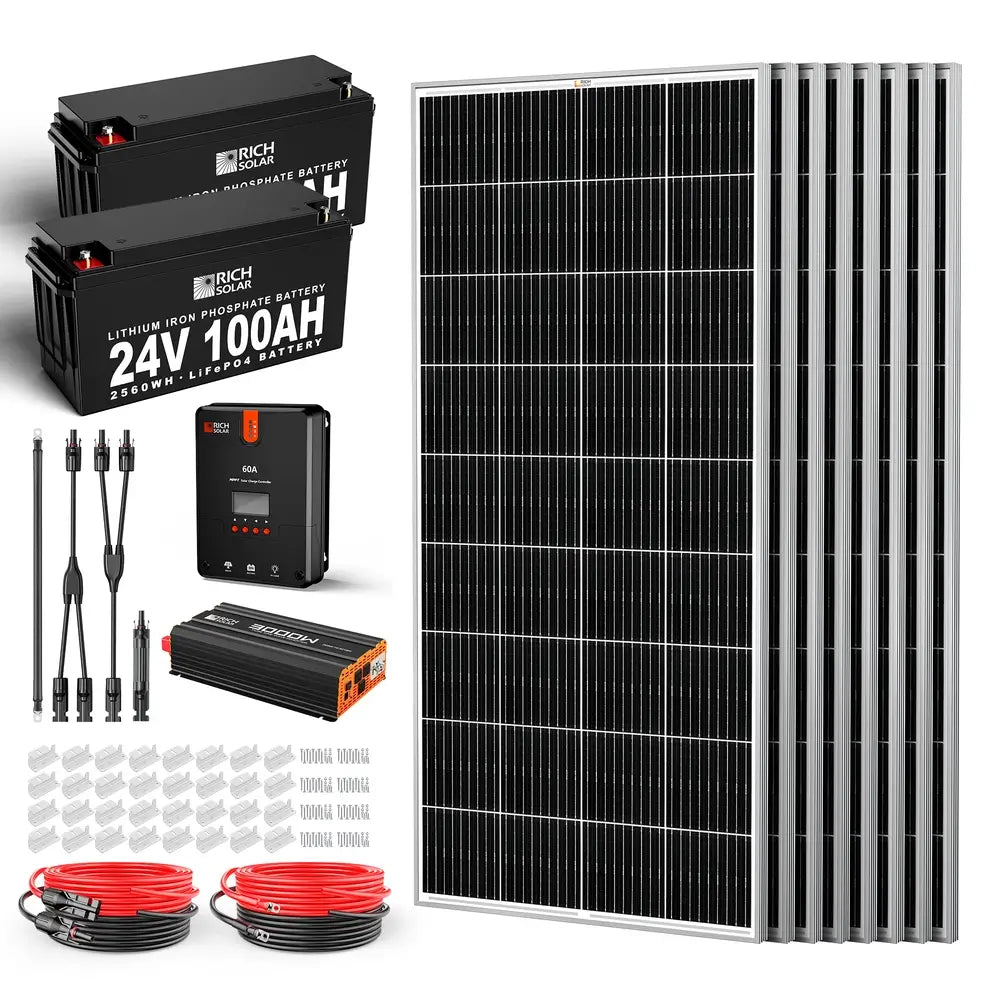

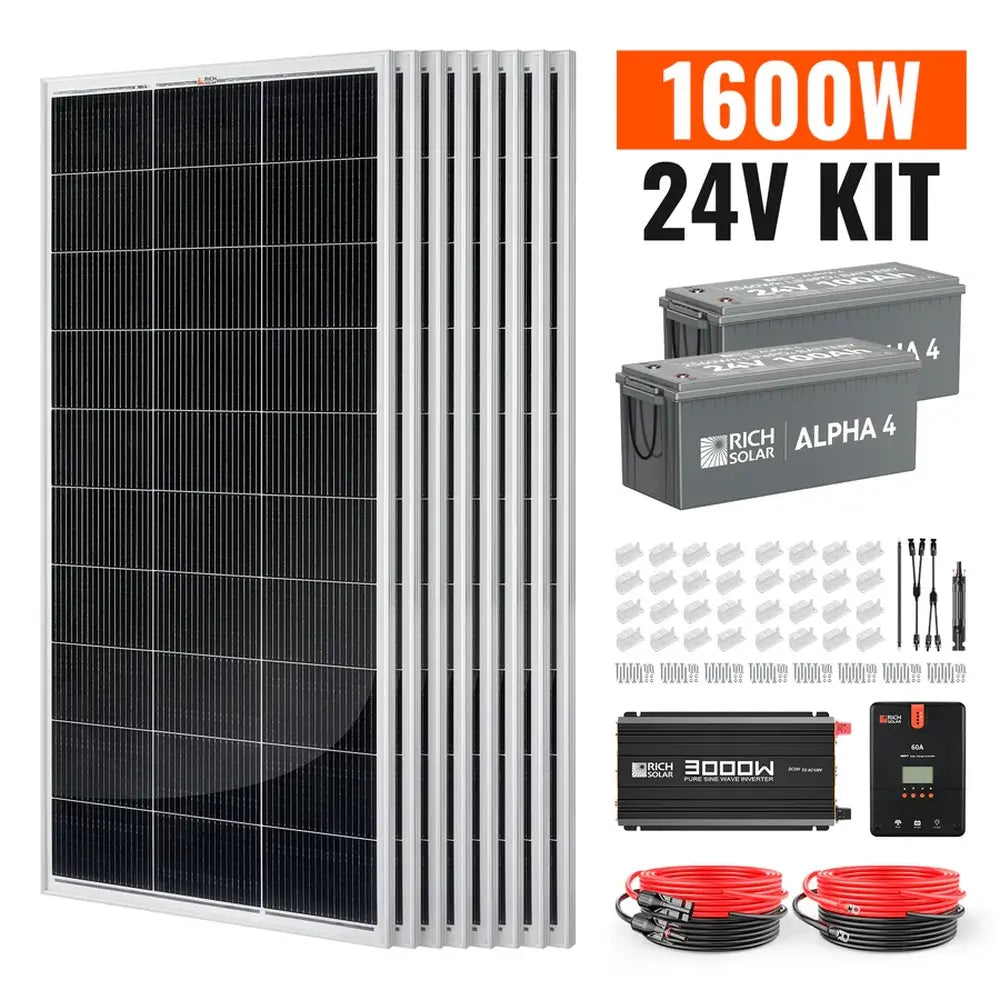

The RS-CK1600 package includes eight Z-bracket sets, solar cable sets, battery cables, a Y-branch parallel adapter, and an inline fuse holder as listed by Rich Solar. These supplied components support system assembly, but final panel wiring arrangement, conductor routing, overcurrent protection, battery connection method, mounting structure, and electrical-code compliance remain installation-specific responsibilities.
This illustrative diagram shows the general panel-to-controller-to-battery-to-inverter energy flow. Refer to the included-components table for the exact RS-CK1600 quantities.

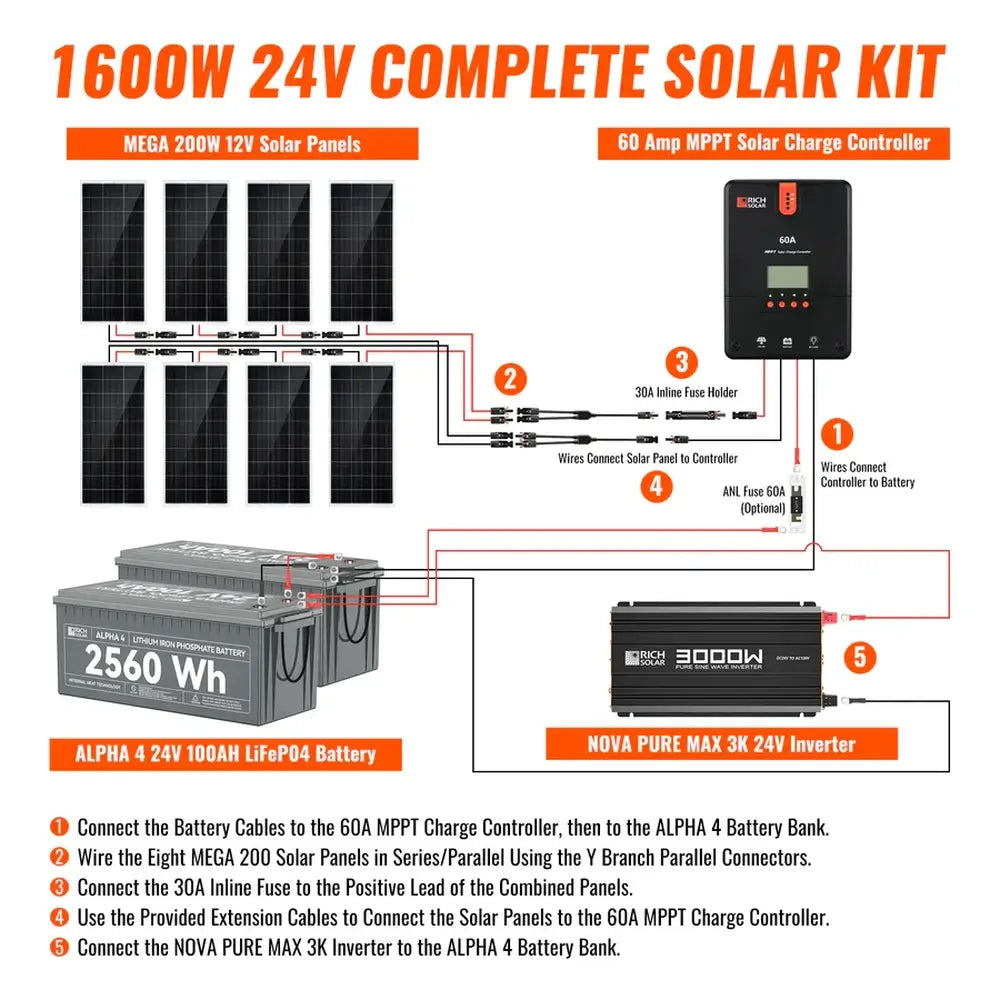

This RS-CK1600 diagram shows eight solar panels, two ALPHA 4 batteries, the MPPT controller, and the NOVA PURE MAX 3K inverter. The ANL 60A fuse identified as optional in the diagram is not listed by Rich Solar as an included kit component.
Planning a complete solar power system for your RV, cabin or tiny home?
Contact TrueStead Supply for kit selection guidance, battery and inverter planning support, and quote assistance.
✔ Solar kit guidance ✔ Battery and inverter planning ✔ Quote assistance
Contact Us for a Quote| Brand | Rich Solar |
| Product Name | 1600 Watt 24V Complete Solar Kit |
| SKU | RS-CK1600 |
| Product Type | Complete 24V Solar Power Kit with Lithium Batteries and Inverter |
| Total Solar Panel Capacity | 1,600W |
| Solar Panel Quantity | 8 × Rich Solar MEGA 200 solar panels |
| Battery Quantity | 2 × Rich Solar ALPHA 4 LiFePO4 batteries |
| Battery Energy Per Unit | 2,560Wh nominal energy |
| Combined Nominal Battery Energy | 5,120Wh / 5.12kWh before operating losses |
| Inverter | Rich Solar NOVA PURE MAX 3K, model RS-V3P24 |
| Inverter Continuous Power | 3,000W |
| Inverter Peak Surge | 6,000W |
| Charge Controller | Rich Solar RS-MPPT60 60A MPPT Solar Charge Controller |
| Controller Maximum Solar Input Power at 24V | 1,600W |
| Controller Battery Compatibility | Sealed, gel, flooded and lithium battery settings as listed by Rich Solar |
| Primary Application | Compatible RV, tiny home and off-grid solar installations, subject to system design |
| Qty. | Included Component | Model / SKU |
| 8 | MEGA 200W 12V Solar Panel | RS-M200 |
| 2 | ALPHA 4 25.6V 100Ah LiFePO4 Battery | RS-B241S |
| 1 | NOVA PURE MAX 3K 24V Pure Sine Wave Inverter | RS-V3P24 |
| 1 | 60A MPPT Solar Charge Controller | RS-MPPT60 |
| 8 | Z Bracket Set | RS-ZB4C |
| 1 | 30A Inline Fuse Holder | RS-SC30F |
| 1 | Y Branch Parallel Adapter | RS-Y2 |
| 1 | 2 Gauge 1 FT Inverter Battery Cable, Red | RS-C21R |
| 1 | 2 Gauge 1 FT Inverter Battery Cable, Black | RS-C21B |
| 1 | 30 FT 10 AWG Solar Cable Set, Panel to Controller | RS-30101 |
| 1 | 10 FT 8 AWG Solar Cable Set, Controller to Battery | RS-810 |
| 1 | 4 AWG Battery Cable Set | RS-C48R & RS-C48B |
| MEGA 200 Panel | 200W each; 18.4V maximum power voltage; 10.9A maximum power current; 21.8V open-circuit voltage; 15A maximum series fuse rating; 58.7" × 26.8" × 1.2"; 24.0 lb each |
| ALPHA 4 Battery | 25.6V; 100Ah; 2,560Wh each; 28.8V charging voltage; 100A maximum charging current; 100A continuous discharge current; 200W heating function; IP65; 20.9" × 8.1" × 8.5"; 48.50 lb each |
| NOVA PURE MAX 3K Inverter | 24VDC input; 120VAC output; 3,000W continuous power; 6,000W peak surge; pure sine wave; greater than 88% efficiency; 3 AC sockets; 5V / 2.1A USB port; remote control included; 18.7" × 9.6" × 4.0"; 12.1 lb |
| 60A MPPT Controller | 60A rated battery current; automatic 12V / 24V / 36V / 48V detection; 1,600W maximum solar input power at 24V; 150V maximum solar input voltage at 77°F; LCD and LED indicators; RS232 and RS485 communication interfaces |
| Battery Bank Connection Guidance | For parallel battery-bank configuration, use matching ALPHA 4 batteries with equal-length matching cables and follow Rich Solar manual requirements for state-of-charge matching, current limits, polarity verification, and final system design |
| Installation Requirements | System design and installation must follow current Rich Solar component manuals and applicable electrical requirements, including array wiring, battery-bank configuration, overcurrent protection, grounding, cable sizing, inverter ventilation, mounting, and load planning |
