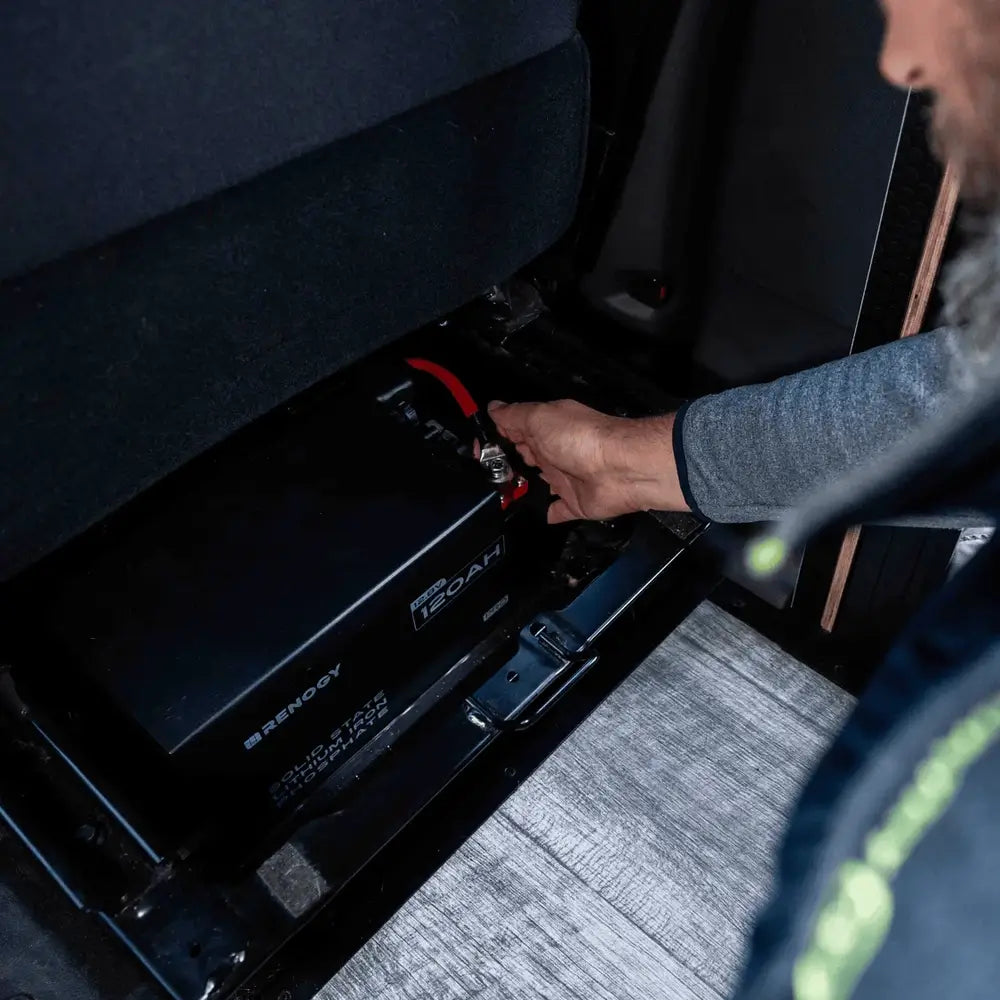

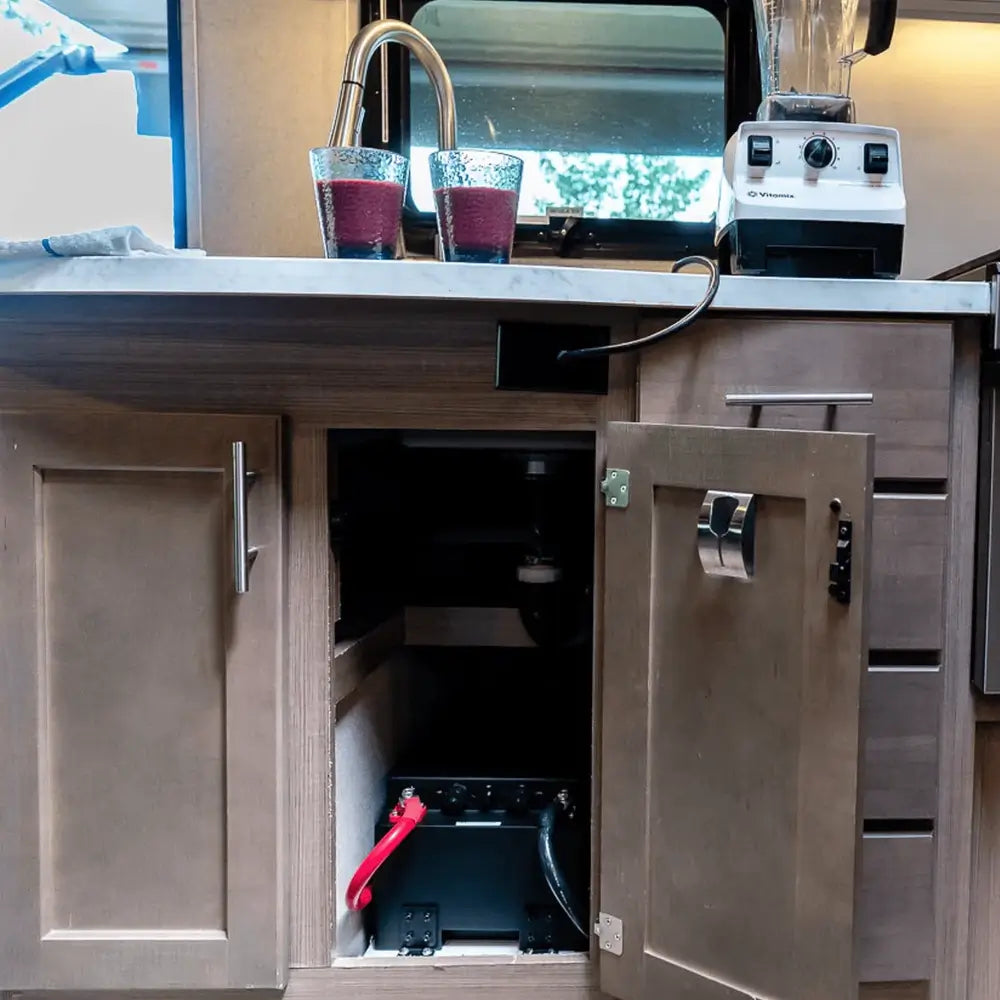

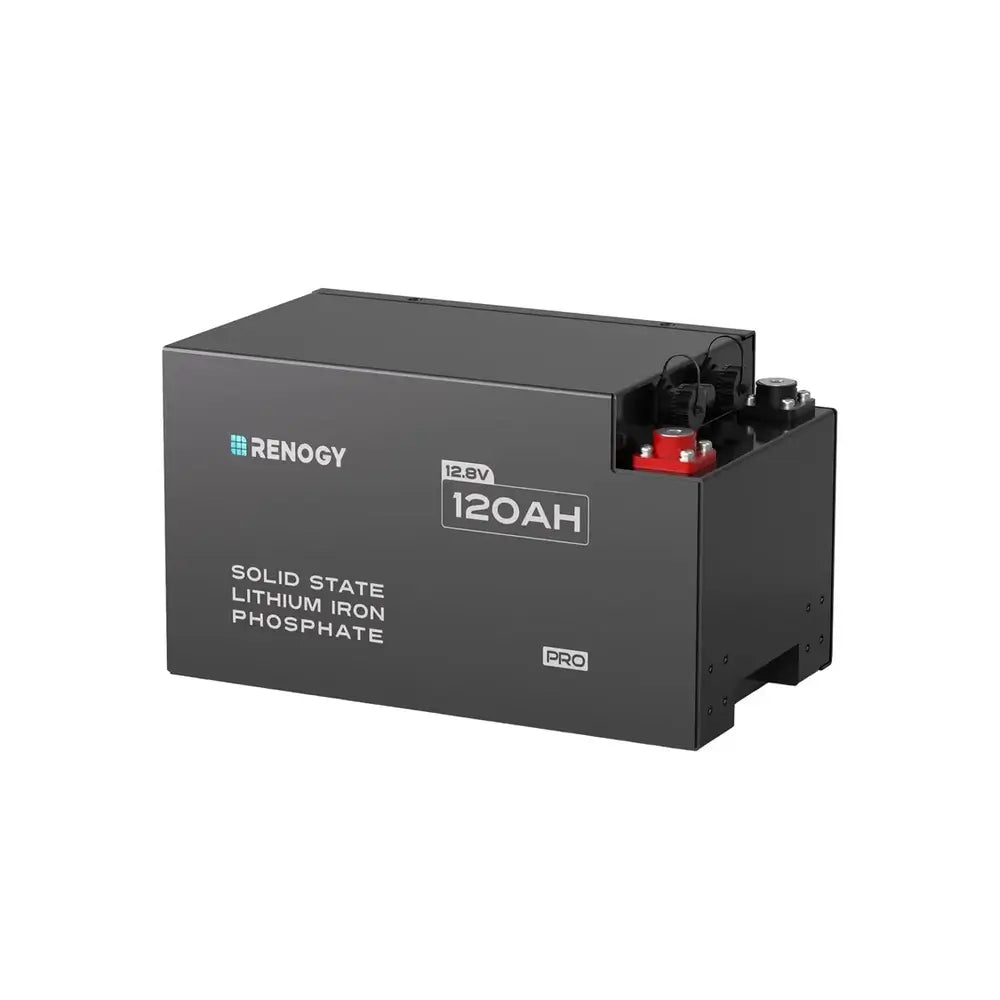

The Renogy Pro S1 12V 120Ah Semi-Solid State LiFePO4 Battery is an advanced lithium iron phosphate battery built for RVs, vans, motorhomes, sailboats, cabins, and properly designed off-grid 12V battery systems where output, monitoring, and installation space matter. This battery provides 12.8V nominal voltage, 120Ah rated capacity, and a listed 150A maximum continuous discharge current for properly designed electrical systems. Renogy equips the Pro S1 120Ah with Intelligent Power Armor protection, self-heating support, Bluetooth monitoring, CAN communication, OTA update support, and an IP67 protection rating. Its 12.8" x 7.44" x 7.4" size and 29.5 lb listed weight help support compact installations, including under-seat layouts where Renogy’s clearance and access requirements are met. Final inverter sizing, charger settings, cable gauge, fusing, terminal torque, series or parallel configuration, and installation clearance should be confirmed against current Renogy documentation.
The Renogy Pro S1 120Ah battery is designed for users who want high-output 12V lithium storage in a compact case. Its 120Ah rated capacity, 12.8V nominal voltage, and 10.8V to 14.6V voltage range support properly configured RV, van, marine, cabin, and off-grid battery systems.
The Pro S1 120Ah is listed with a 120A maximum continuous charge current, 150A maximum continuous discharge current, and 350A peak discharge current for 30 seconds. Renogy’s Intelligent Power Armor battery management system is designed to apply protection based on different risk levels, helping the battery respond more precisely under supported operating conditions.
Renogy describes the Pro S1 series as offering up to 70% faster self-heating to help recover from low-temperature cut-off, with performance dependent on model and conditions. The battery is listed with a charge temperature range down to -4°F and a discharge temperature range down to -4°F, but cold-weather use should still follow Renogy’s charging, heating, and storage guidance.
Bluetooth monitoring helps users check battery data through the Renogy app, while CAN communication supports integration with compatible power-system equipment. Renogy lists enhanced Bluetooth range up to 32.8 yd / 30 m and over-the-air update support for easier monitoring and long-term battery management.
The Renogy Pro S1 120Ah battery is built for compact 12V power systems where output, monitoring, and cold-weather recovery support are important. It works best as part of a complete system with compatible chargers, inverters, fuses, wiring, and battery protection equipment.
Before installation, Renogy recommends clearance above the battery and additional side space near the busbars. Confirm mounting location, terminal torque, cable sizing, charging settings, communication setup, and environmental exposure before use.
Need help matching a lithium battery to your power system?
Contact TrueStead Supply for quote support and product selection help.
✔ Battery sizing support ✔ Off-grid power guidance ✔ Quote assistance
Contact Us for a Quote| Brand | Renogy |
| Series | Pro S1 |
| Model / SKU | RBT12120LFP-SBH-G1-US |
| Product Type | Semi-solid state lithium iron phosphate battery with self-heating, Bluetooth, and CAN |
| Battery Cell Type | Lithium Iron Phosphate |
| Nominal Voltage | 12.8V |
| Rated Capacity | 120Ah at 0.5C, 25°C |
| Nominal Energy | 1536Wh calculated from 12.8V x 120Ah |
| Charge Voltage | 14.4V |
| Voltage Range | 10.8V to 14.6V |
| Maximum Continuous Charge Current | 120A |
| Maximum Continuous Discharge Current | 150A |
| Peak Discharge Current | 350A at 30 seconds |
| Cycle Life | 6000 cycles at 80% depth of discharge |
| Charge Temperature Range | -4°F to 131°F / -20°C to 55°C |
| Discharge Temperature Range | -4°F to 140°F / -20°C to 60°C |
| Storage Temperature Range | -4°F to 140°F / -20°C to 60°C |
| Series / Parallel Support | Renogy lists 4S4P support; final battery count, wiring layout, fusing, balancing, and equipment compatibility must follow the current Renogy manual |
| Communication | Bluetooth and CAN |
| Bluetooth Range | Up to 32.8 yd / 30 m |
| OTA Updates | Supported through the Renogy app via Bluetooth connection |
| Installation Clearance | Leave 1.97–3.94 in / 5–10 cm above the battery and at least 7.87 in / 20 cm on the side with the busbars |
| Protection Rating | IP67 |
| Operation Relative Humidity | 5% to 95% |
| Dimensions | 12.8" x 7.44" x 7.4" / 325 x 189 x 188 mm |
| Weight | 29.5 lb / 13.4 kg |
| Terminal Bolt Size | M8 x 1.25 x 12 mm |
| Long Terminal Bolt Size | M8 x 1.25 x 16 mm |
| Recommended Terminal Torque | 70.8 in-lb / 8 N·m |
| Certifications | MSDS, UN38.3, FCC, CE, PSE, RoHS, RCM, IC, UKCA |
| Included Components | Pro S1 12V 120Ah LiFePO4 battery; terminal bolts; long terminal bolts; battery fix brackets; combined bolts; self-tapping screws; user manual |
| Warranty | 7 years |
