The Renogy Core Mini 12V 200Ah LiFePO4 Battery 4-Pack with Low-Temperature Protection is a compact lithium iron phosphate battery set for RVs, vans, campers, compatible trolling motor battery setups, cabins, home energy storage planning, and properly designed off-grid battery systems that need scalable 12V storage. This 4-pack provides 800Ah total rated capacity in a 12V parallel configuration and 10,240Wh / 10.24kWh nominal energy from four 2560Wh batteries before system losses, reserve settings, and operating conditions are considered. Each battery includes a 200A battery management system, low-temperature charge and discharge cut-off, IP65 protection, and 5000-cycle listing at 80% depth of discharge. Renogy lists each battery at 15.12" x 7.64" x 9.96" and 42.44 lb, giving builders a compact option for higher-capacity battery banks. Final charger settings, inverter sizing, fuse protection, battery balancing, series or parallel wiring, terminal torque, and installation clearance should be confirmed against current Renogy documentation.

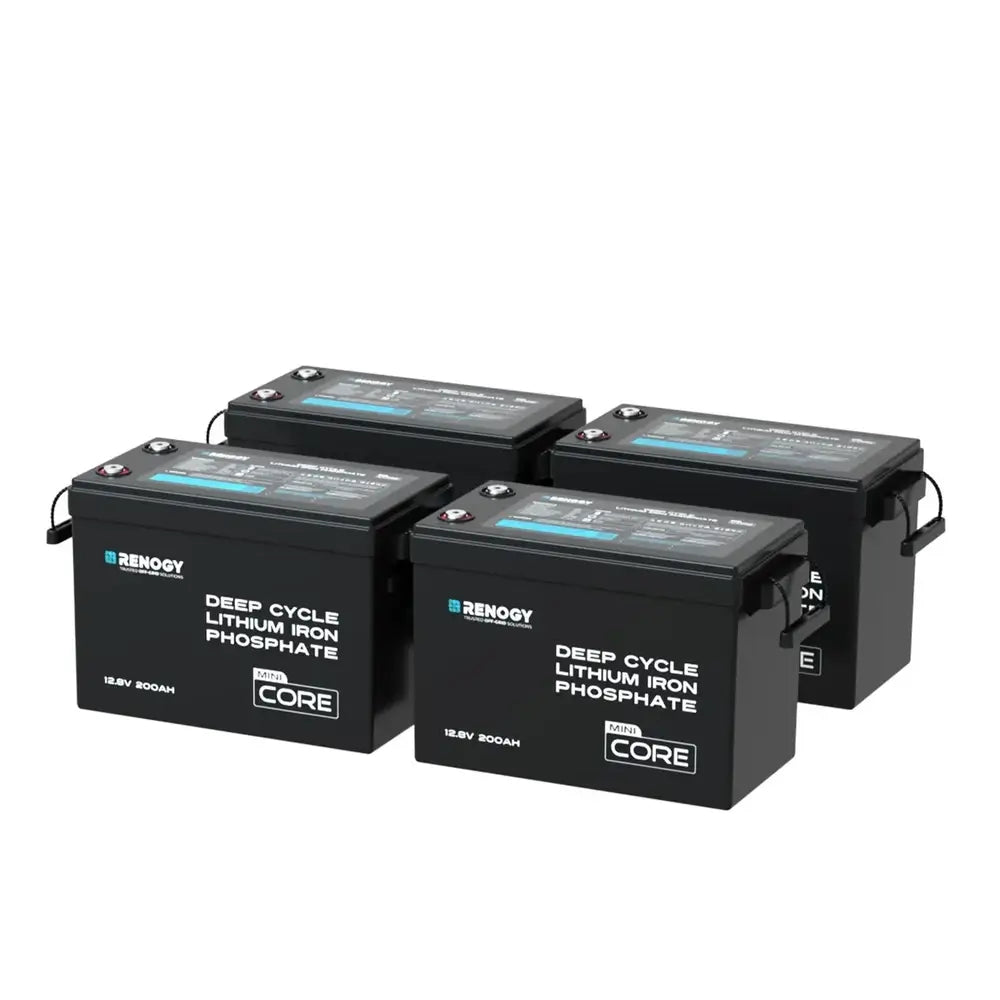

This Renogy Core Mini 4-pack gives users four 12V 200Ah lithium iron phosphate batteries for larger battery-bank planning. In a properly configured 12V parallel bank, the set provides 800Ah rated capacity and 10.24kWh listed energy before real-world system losses and depth-of-discharge settings are considered.

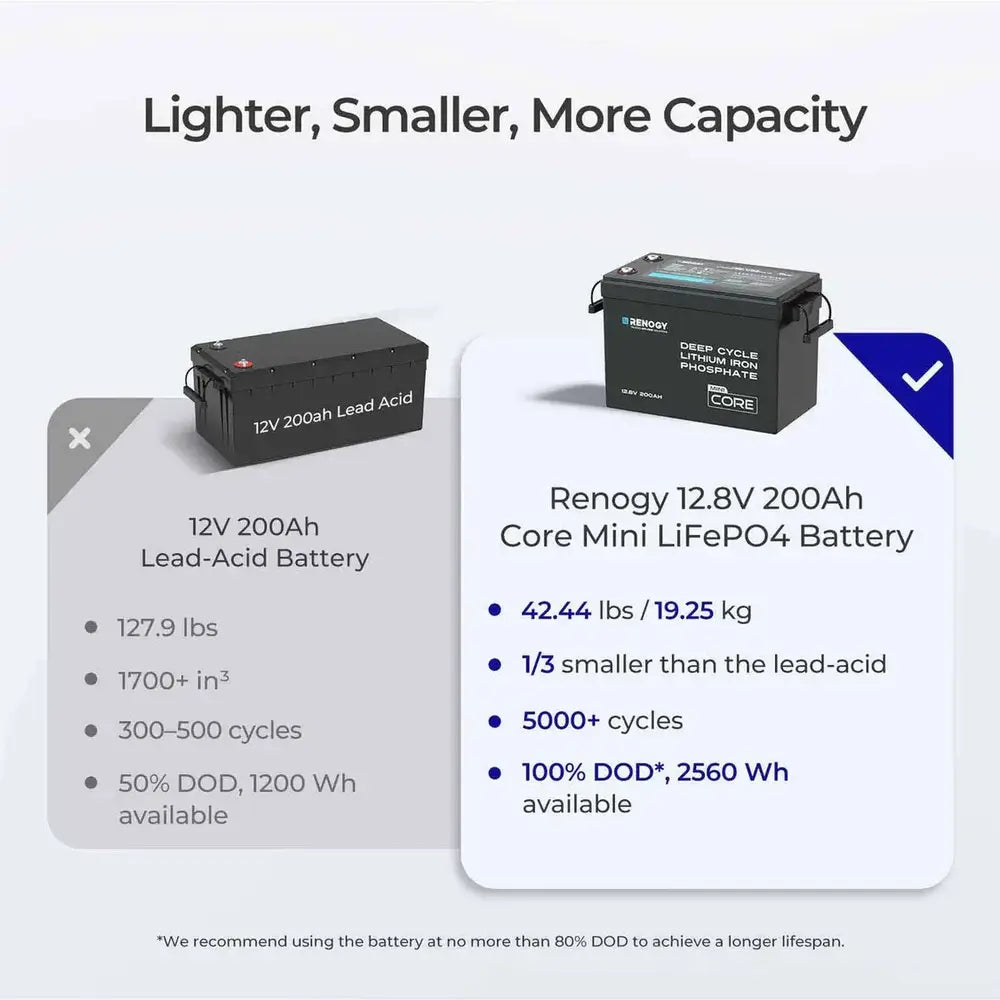

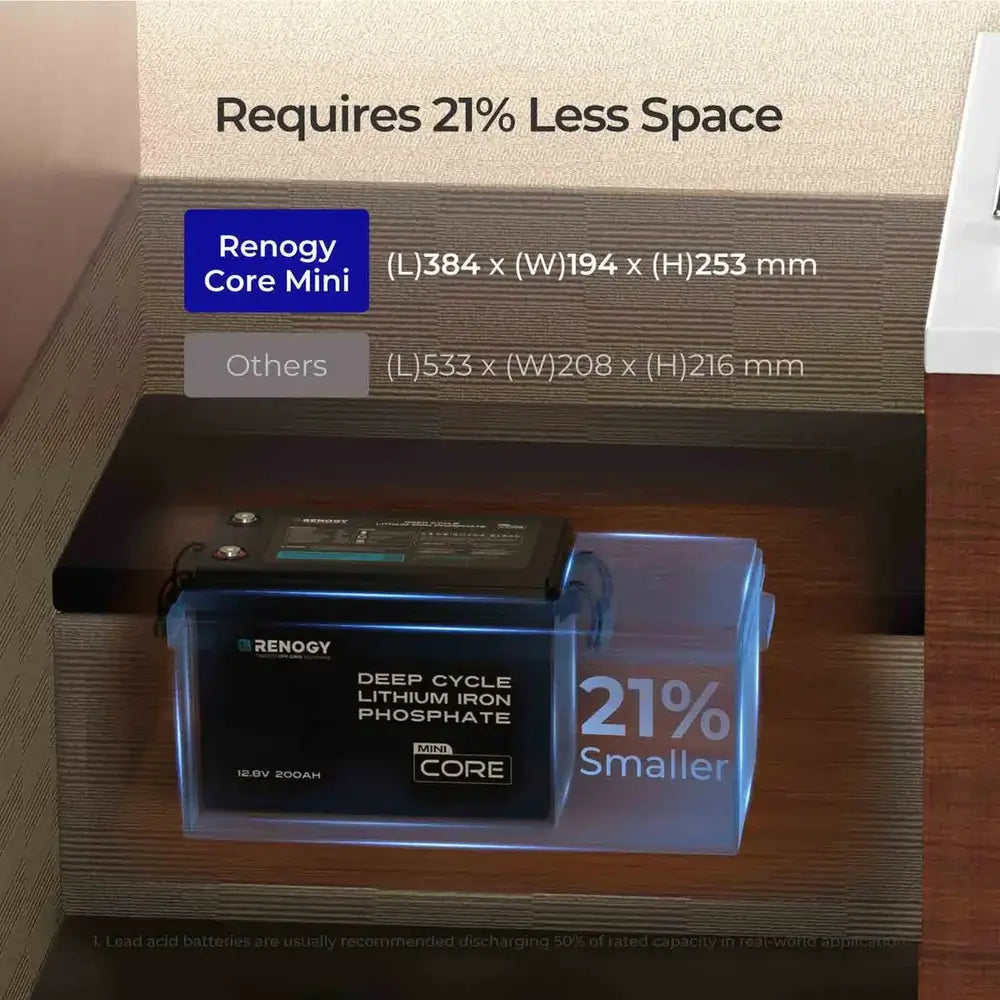

Renogy positions the 200Ah Core Mini as 21% smaller than its counterparts and about one-third smaller than a 12V 200Ah lead-acid battery. The smaller case helps free up room for cable routing, service access, and tighter installations in RVs, vans, marine compartments, cabinets, and off-grid battery areas.

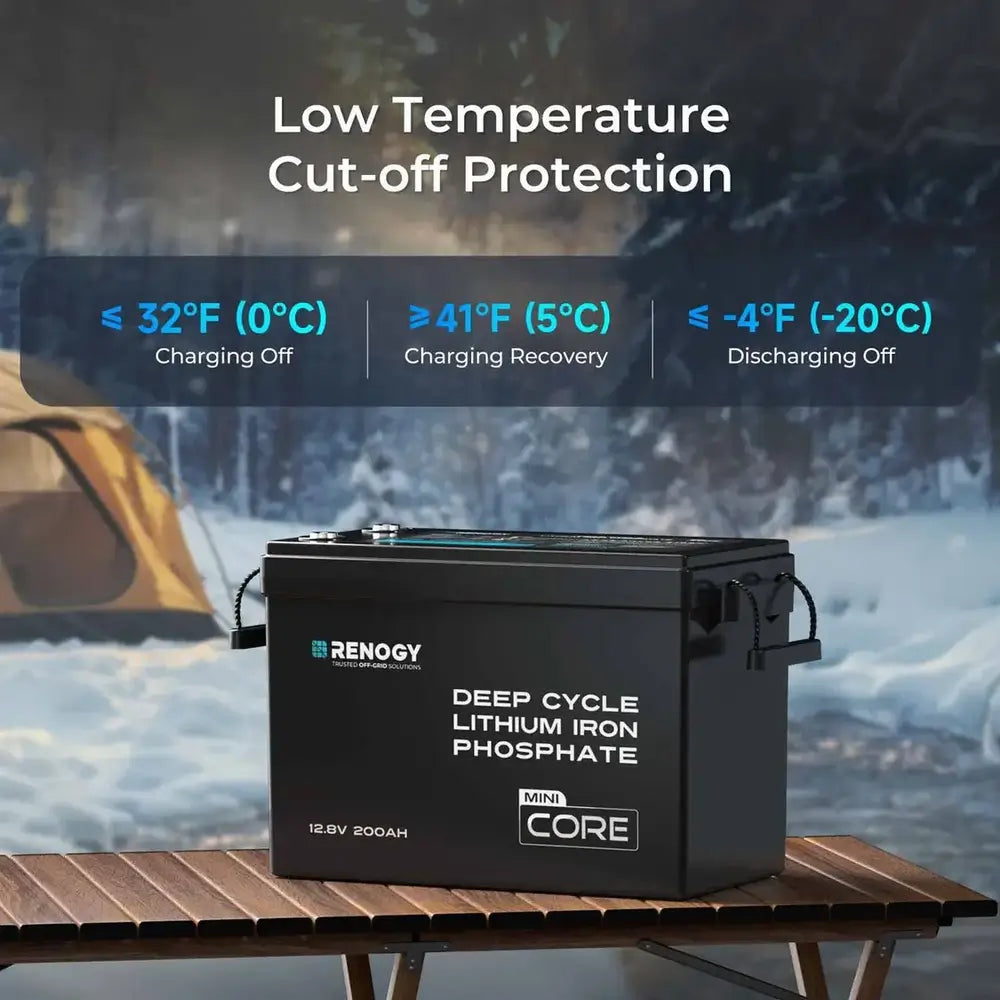

Each battery includes a 200A battery management system and automatic low-temperature cut-off for charge and discharge protection. The listed operating range allows charging from 32°F to 131°F and discharging from -4°F to 149°F, but cold-weather installation and charging should still follow Renogy’s current battery guidance.
The Core Mini 200Ah battery supports series and parallel system planning when batteries are matched and installed correctly. Because multi-battery systems can change voltage, current, fault risk, and charging behavior, wiring layout, fuse placement, cable size, and battery monitor compatibility should be reviewed before installation.
The Renogy Core Mini 200Ah 4-pack is built for users who need more battery-bank capacity without giving up unnecessary space. It is best used as part of a complete system with compatible charging equipment, inverter capacity, wiring, fusing, and battery monitoring.
Before installation, leave clearance above each battery and additional space near the busbar side as Renogy recommends. Confirm terminal hardware, torque, cable routing, battery orientation, and expansion limits before final setup.
Need help sizing a lithium battery bank?
Contact TrueStead Supply for battery sizing guidance, quote support, and help planning compatible solar and inverter components.
✔ Battery sizing support ✔ Off-grid power guidance ✔ Quote assistance
Contact Us for a Quote| Brand | Renogy |
| Series | Core Mini |
| Product Type | Lithium iron phosphate battery 4-pack with low-temperature protection |
| Battery Quantity | 4 batteries |
| Battery Type | Lithium Iron Phosphate |
| Voltage Per Battery | 12V / 12.8V nominal class |
| Rated Capacity Per Battery | 200Ah at 0.5C, 25°C |
| Energy Per Battery | 2560Wh |
| Total Listed Energy | 10,240Wh / 10.24kWh from four batteries |
| 12V Parallel Capacity | 800Ah when four batteries are wired in parallel according to Renogy guidance |
| Voltage Range | 10V to 14.6V |
| Maximum Continuous Charge Current | 100A per battery |
| Maximum Continuous Discharge Current | 200A per battery |
| Peak Discharge Current | 380A at 10 seconds per battery |
| Cycle Life | 5000 cycles at 80% depth of discharge, 80% end of life |
| Operation Temperature Range | Charge: 32°F to 131°F / 0°C to 55°C; discharge: -4°F to 149°F / -20°C to 65°C |
| Storage Temperature Range | -4°F to 140°F / -20°C to 60°C |
| Operation Relative Humidity | 5% to 95% |
| Connection Method | Series, parallel, and series-parallel supported; Renogy lists up to 4 batteries in series, up to 8 batteries in parallel, and up to 4S × 4P with same-model batteries of similar capacity |
| Bundle Contents Note | Battery-only 4-pack unless the selected supplier SKU explicitly includes a monitor or shunt accessory |
| Protection Rating | IP65 |

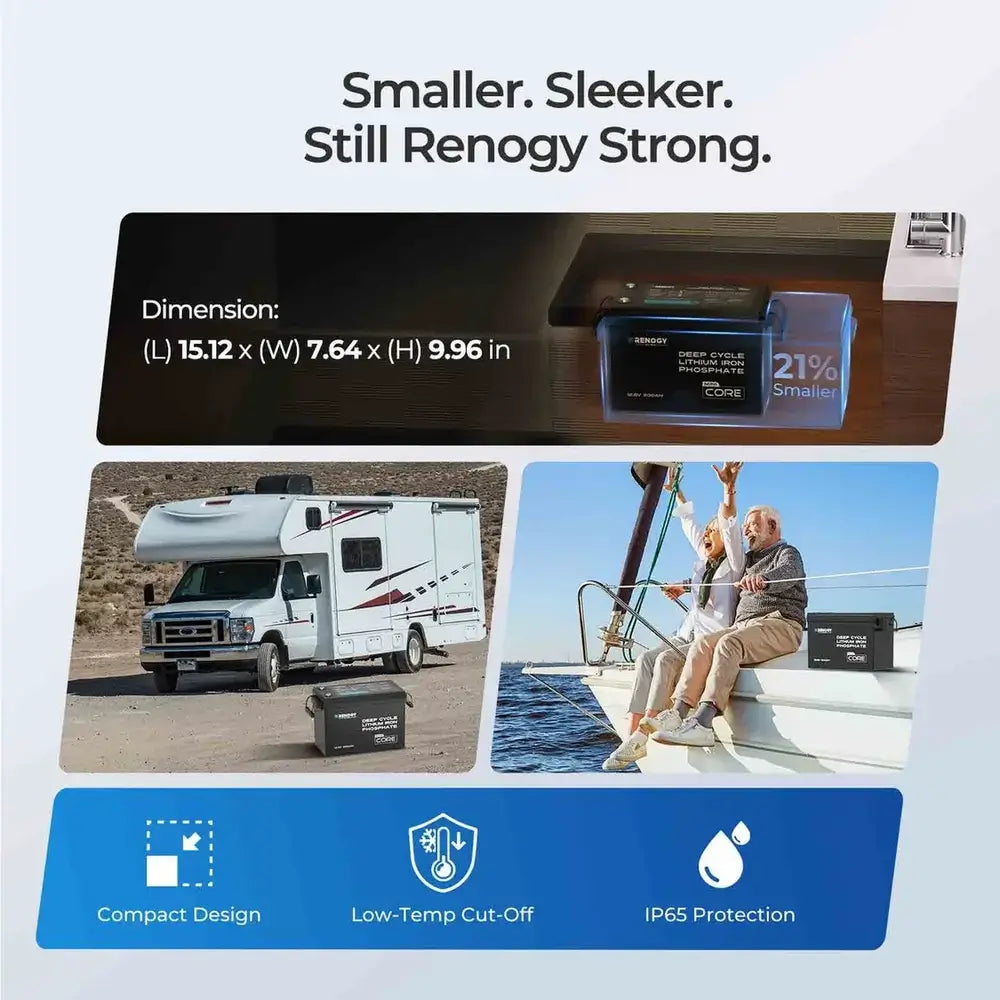

| Dimensions Per Battery | 15.12" x 7.64" x 9.96" / 384 x 194 x 253 mm |
| Weight Per Battery | 42.44 lb / 19.25 kg |
| Approximate Total Battery Weight | 169.76 lb / 77 kg for four batteries |
| Terminal Bolt Size | M8 x 1.25 x 12 mm and M8 x 1.25 x 16 mm |
| Included Components Per Battery | 12V 200Ah LiFePO4 battery; long terminal bolts; terminal bolts; user manual |

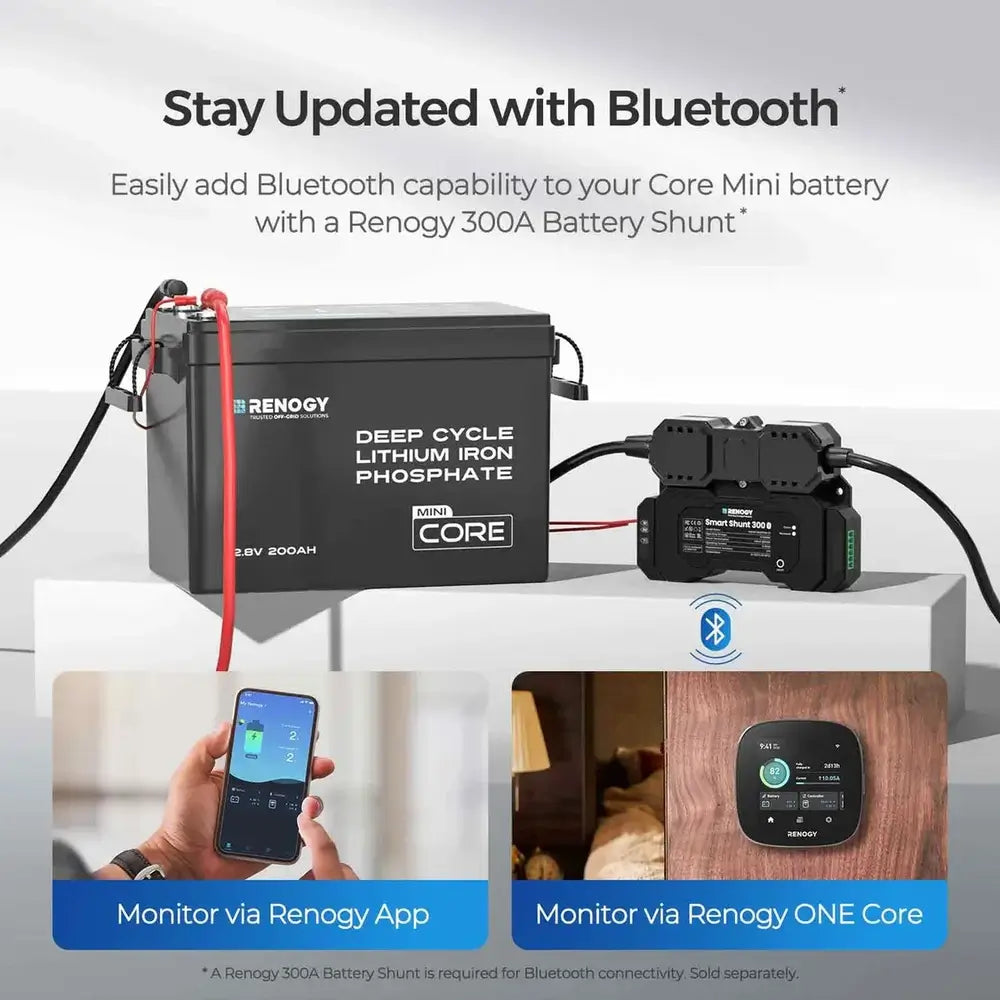

| Compatible Monitoring Accessory | Renogy 300A Battery Shunt, sold separately unless included in the selected bundle |
| Certifications | MSDS, UN38.3, FCC, CE, PSE, RCM, IC, RoHS, UKCA |
| Warranty | 5-year prorated material and workmanship warranty |
