The Renogy 200W N-Type Portable Solar Suitcase Kit: more power, less weight, zero wiring headaches — completely plug-and-play right out of the box.

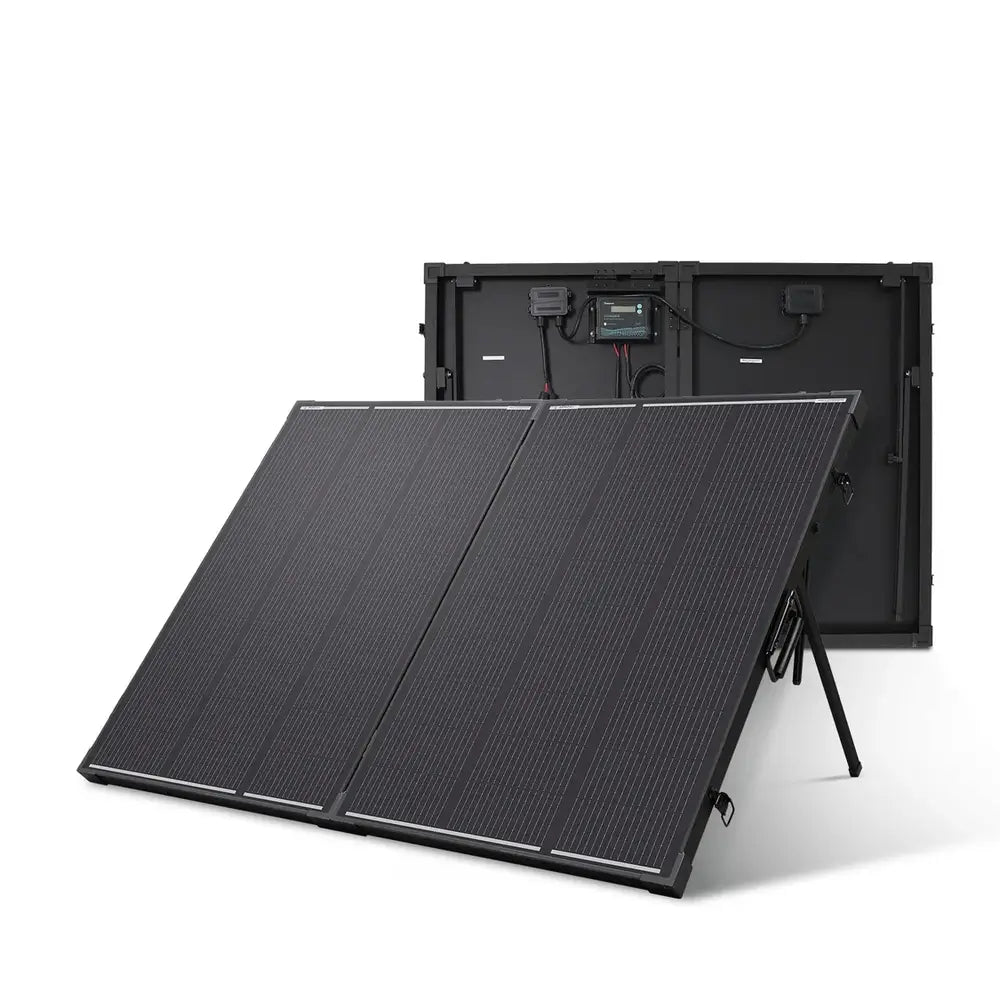

The Renogy 200W 12V N-Type Portable Solar Panel Suitcase Kit with 20A PWM Controller (SKU: RNG-KIT-STCS200DC-VOY20-G1-US) is a fully self-contained, foldable solar charging system built for RV owners, campers, cabin dwellers, and off-grid enthusiasts who need reliable battery power without a permanent rooftop installation. Upgraded with next-generation N-Type monocrystalline cells delivering up to 25% efficiency, this suitcase kit weighs just 28.46 lbs, unfolds in seconds, and connects directly to your 12V battery bank or portable power station — no tools, no complicated wiring, no separate controller purchase required.
Renogy's G1 N-Type suitcase packs premium cell technology and a complete charge system into a carry-anywhere form factor — here's what sets it apart from older P-Type designs.

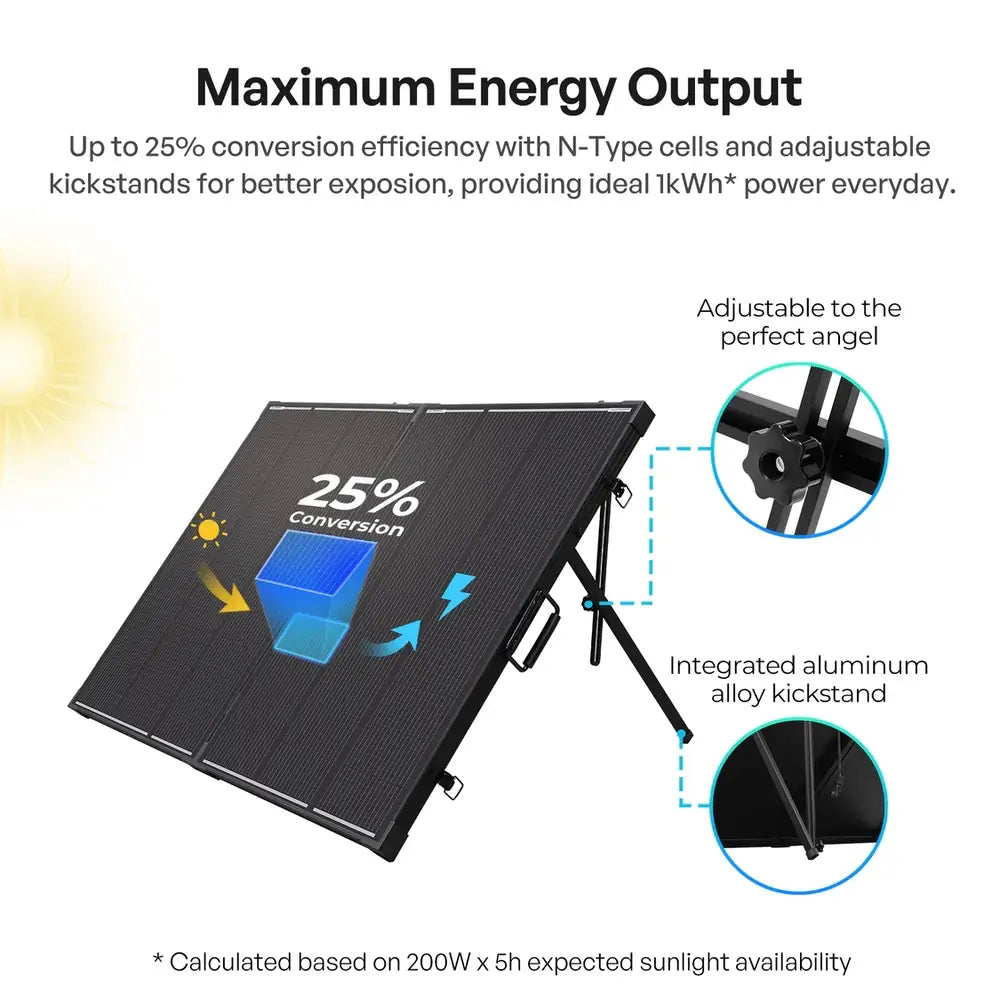

N-Type monocrystalline cells convert more sunlight into usable electricity than standard P-Type panels, so you harvest closer to the full 200W rating even on hazy days or in partial sun.
N-Type cells are inherently resistant to light-induced degradation, meaning your panels will still produce near-peak power years down the road — a meaningful advantage over conventional monocrystalline alternatives.
Based on approximately 5 hours of good sunlight, this kit can deliver around 1 kilowatt-hour per day — sufficient to keep lights, a 12V refrigerator, fans, and USB devices running at a campsite or cabin.*

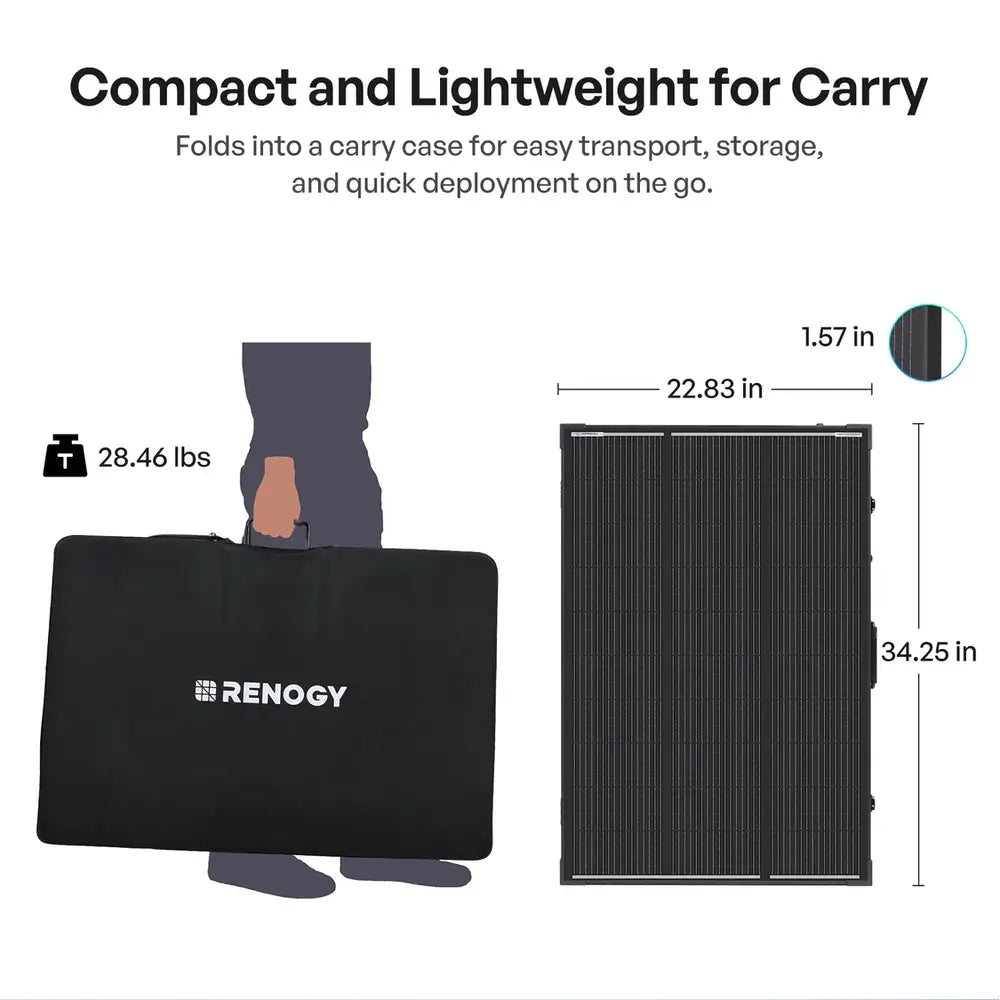

Weighing in at 28.46 lbs (12.91 kg), this kit is noticeably lighter than older 200W suitcase designs, making it practical to carry to a sunny spot, reposition throughout the day, and stow between trips.

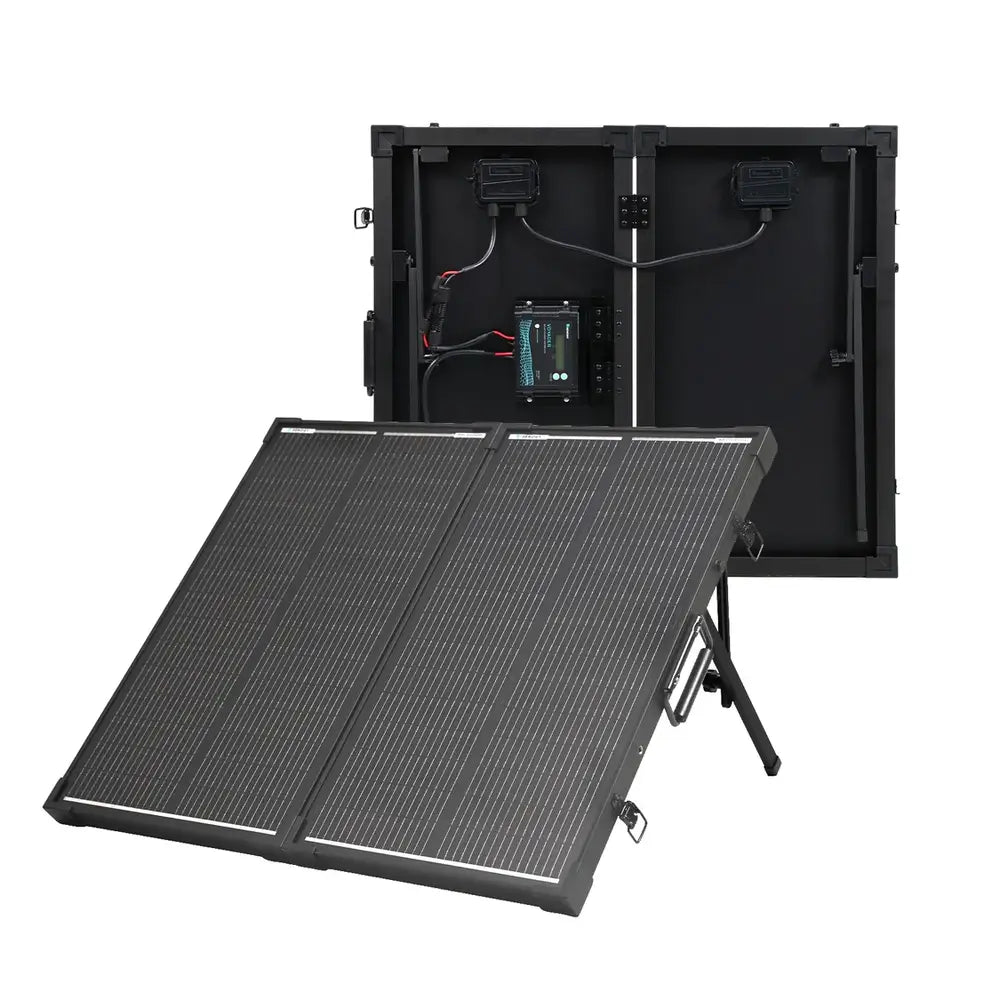

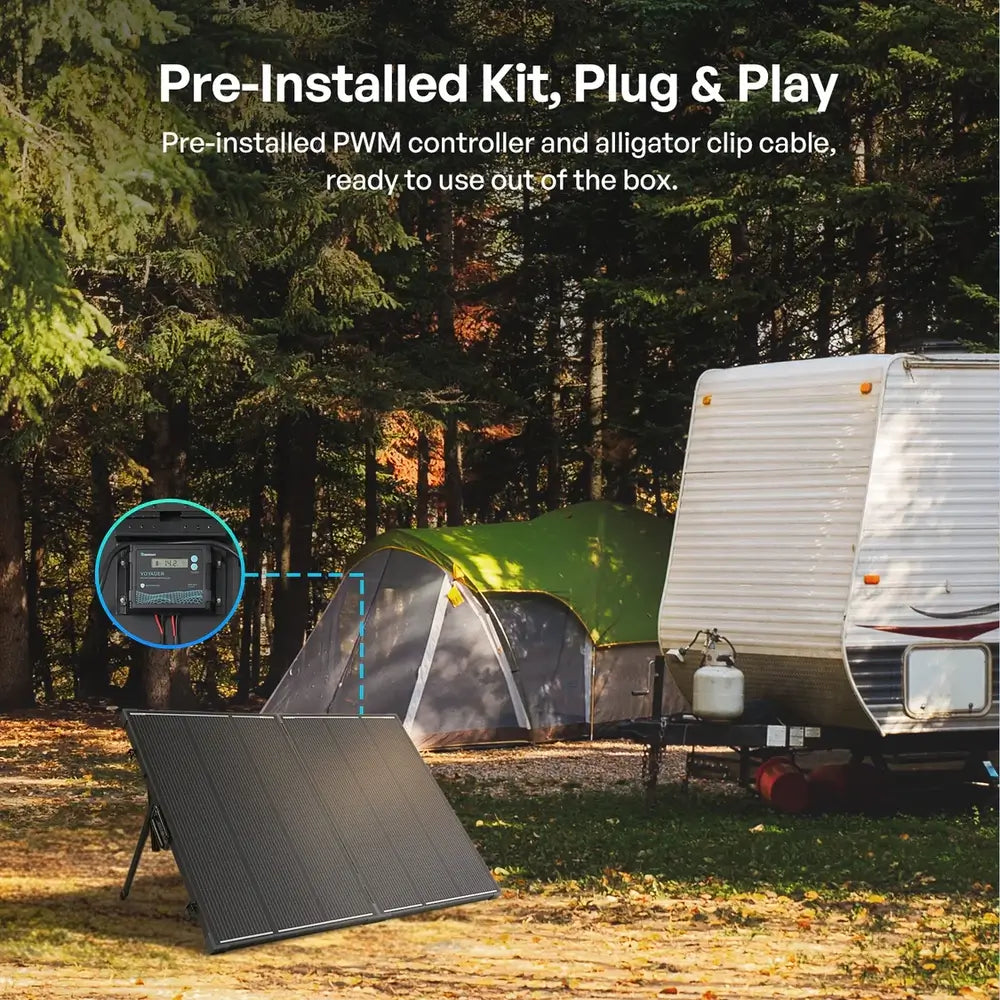

Everything you need is in the box: the 200W N-Type panel suitcase, a waterproof Voyager 20A PWM charge controller, and alligator clip cables. Unfold, connect, and you're generating power — no additional purchases necessary.

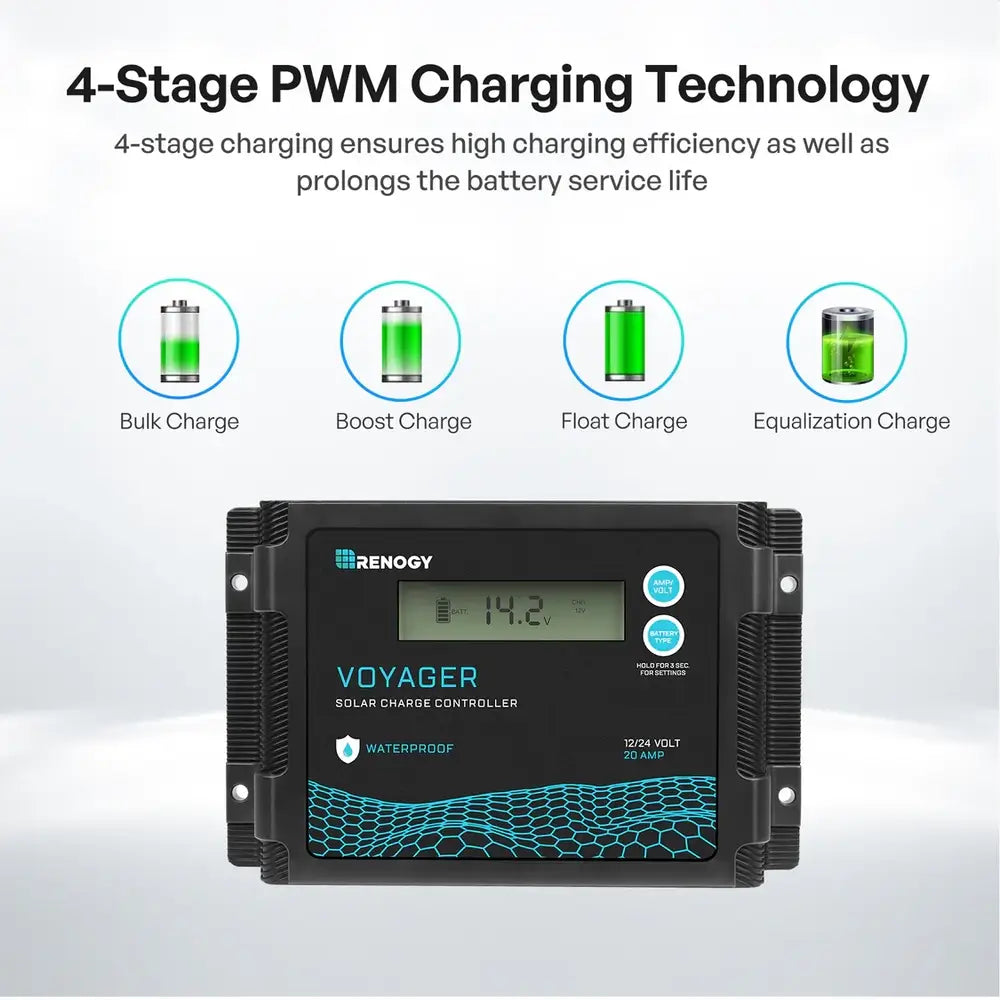

The included Voyager 20A PWM charge controller uses 4-stage charging technology to safely bring your battery from bulk charge through absorption, float, and equalization phases. This extends battery life compared to simple on/off charging and guards against overcharge, over-discharge, and short-circuit conditions. Compatible with 12V sealed lead-acid, gel, AGM, flooded, and lithium battery types, the Voyager controller works equally well with traditional RV batteries and modern lithium iron phosphate (LiFePO4) setups.

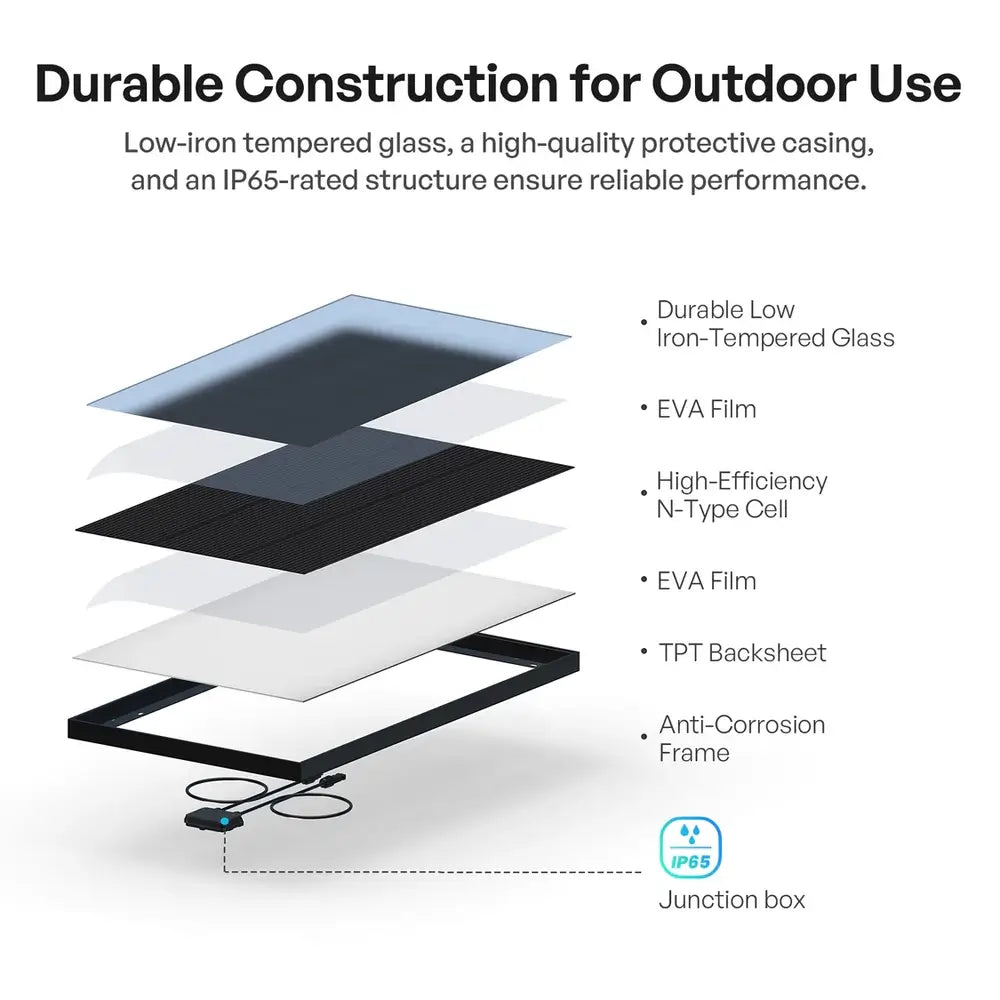

Unlike flexible or fabric-based panels, this suitcase uses low-iron tempered glass over the cell surface — improving impact resistance, long-term weather durability, and structural integrity. Bypass diodes installed inside the junction boxes minimize the effect of partial shading, preventing hotspots that can degrade cells over time. The rugged canvas protective case keeps both panels safe during transport and storage.
| Maximum Power at STC | 200W |
|---|---|
| Cell Type | N-Type Monocrystalline |
| Cell Efficiency | Up to 25% |
| Open Circuit Voltage (Voc) | 21.47V |
| Optimum Operating Voltage (Vmp) | 18.65V |
| Short Circuit Current (Isc) | 11.89A |
| Optimum Operating Current (Imp) | 11.05A |
| Annual Power Degradation | <0.4% per year |
| Operating Temperature | -40°F to 185°F / -40°C to 85°C |
| System Compatibility | 12V batteries and portable power stations |
| Certifications | CE, CA65 |
| Controller Type | PWM (Pulse Width Modulation), 4-stage charging |
|---|---|
| Rated Charge Current | 20A |
| Nominal System Voltage | 12V DC / 24V DC (auto-detect) |
| Max PV Input (Voc) | 12V @ 25V; 24V @ 55V |
| PV Input Voltage Range | 15V to 55V |
| Battery Compatibility | 12V Sealed Lead-Acid, Gel, AGM, Flooded, Lithium |
| Waterproof / IP Rating | IP65 |
| Grounding Type | Positive |
| Unfolded Dimensions | 34.25 × 45.87 × 1.57 in (870 × 1165 × 40 mm) |
|---|---|
| Folded Dimensions | 34.25 × 22.83 × 3.15 in (870 × 580 × 80 mm) |
| Weight | 28.46 lbs (12.91 kg) |
| SKU / Model | RNG-KIT-STCS200DC-VOY20-G1-US |

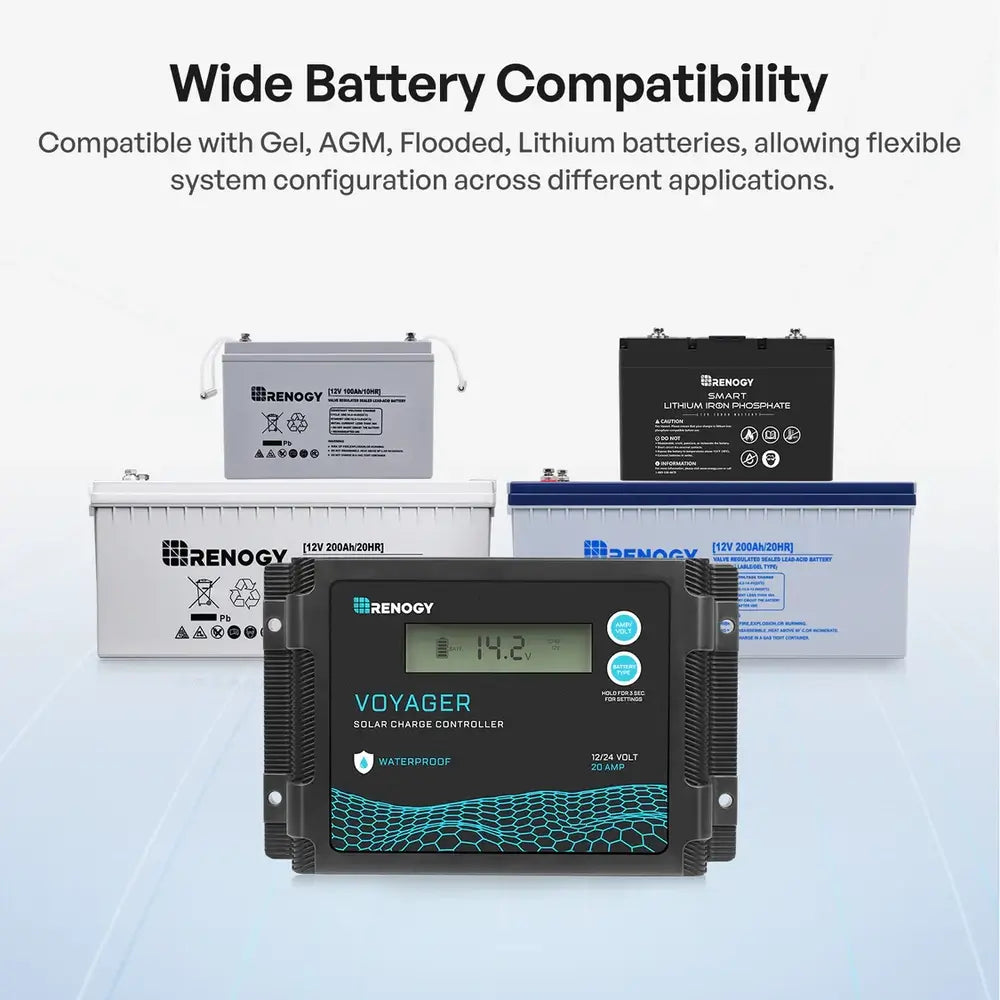

The included Voyager 20A PWM charge controller is compatible with 12V sealed lead-acid, gel, AGM, flooded, and lithium battery types — including modern LiFePO4 batteries. It supports both 12V and 24V nominal systems via auto-detection.
Yes — the kit is compatible with most 12V portable power stations. Connect using the included alligator clip cables. Check your power station's maximum DC solar input voltage before connecting; the panel's open circuit voltage is 21.47V, which falls within the input range of most compatible stations.
The G1 N-Type upgrade delivers up to 25% cell efficiency (vs. 22.5% on the older P-Type model), a lower annual power degradation rate of under 0.4% per year, improved output in high-heat conditions, better low-light performance, and a lighter overall weight of 28.46 lbs (vs. ~34 lbs on the older model). The warranty is also upgraded to 5 years on the G1 vs. 3 years on previous versions.
Actual charge time depends on the battery's state of charge, sun conditions, and panel angle. As a general reference: a 12V 100Ah battery at 50% state of charge holds approximately 600Wh of usable energy. With a 200W panel and average losses, you might realistically see 150–180W of net output in good sun, resulting in roughly 3.5–4 hours of charging time under ideal conditions. Cloud cover, heat, and angle all affect the actual rate.
No — this kit charges a 12V battery or power station; it does not include an inverter and cannot directly power 120V AC devices. To run AC appliances, connect the kit to a 12V battery and use a separate inverter sized to your load. Renogy offers compatible pure sine wave inverters if you need AC power output.
The Voyager charge controller is described by Renogy as waterproof; the exact IP rating for this G1 model should be confirmed in the product manual before extended outdoor exposure. The tempered glass panel surface is designed for outdoor durability and weather resistance. As a best practice, bring the suitcase indoors during heavy rain or extended periods of non-use.
The Renogy 200W N-Type Portable Solar Suitcase Kit (RNG-KIT-STCS200DC-VOY20-G1-US) carries a 5-year material and workmanship warranty on the solar panel suitcase, as confirmed on Renogy's product page. Purchased from TrueStead Supply as an authorized Renogy dealer, your warranty is fully supported.
Connecting two 200W suitcases to one Voyager 20A PWM controller is not recommended, as doing so would exceed the controller's rated capacity. If you need 400W of portable solar power, the recommended approach is either to upgrade to a higher-amperage charge controller rated for your combined panel array, or to use Renogy's dedicated 400W portable suitcase designed as a single unit. Refer to the included installation manual for wiring guidance and system sizing limits.
