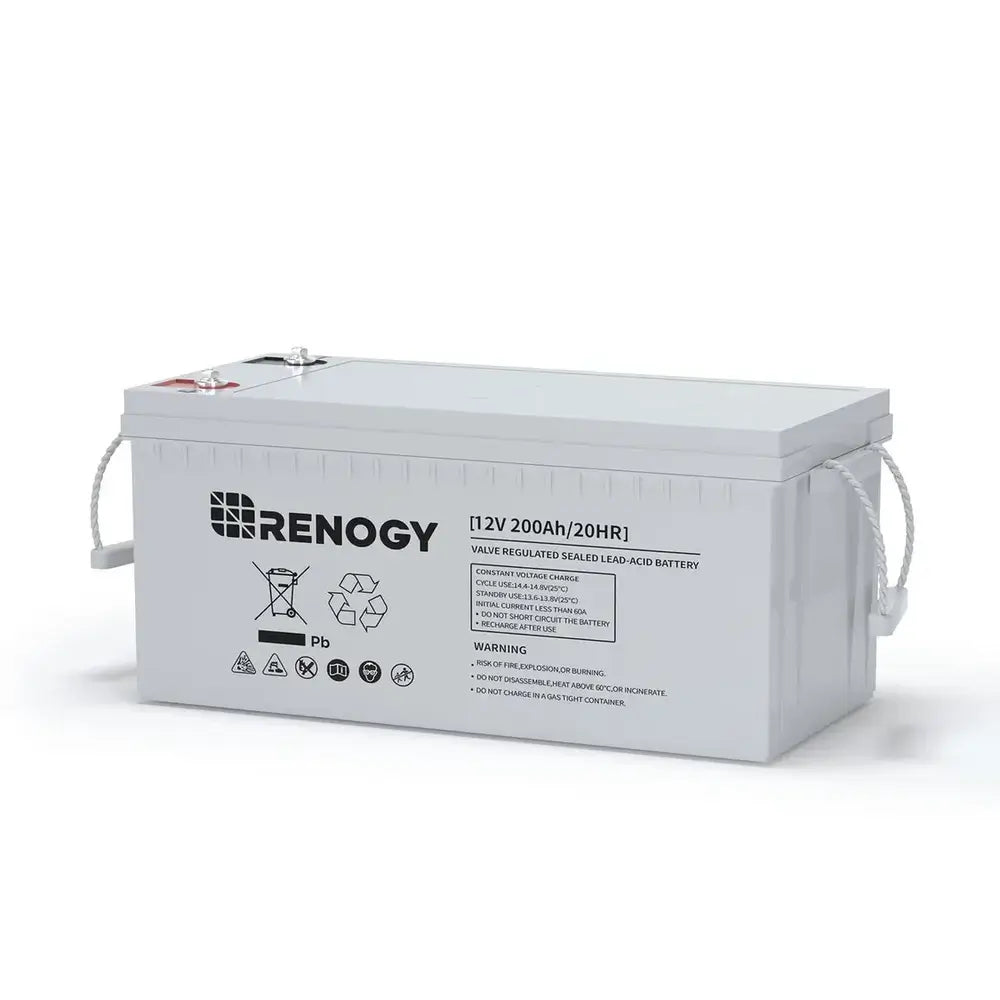

Renogy 12V 200Ah Deep Cycle AGM Battery

Renogy 12V 200Ah Deep Cycle AGM Battery – Sealed Lead-Acid Power Storage

The Renogy 12-Volt 200Ah Deep Cycle AGM Battery is a sealed absorbent glass mat battery built for RVs, cabins, protected marine battery installations, backup power, solar storage, and properly designed off-grid battery systems where simple operation and stable lead-acid storage matter. This battery provides 200Ah rated capacity at the 20-hour rate to 10.5V and uses an integrated sealed AGM structure that reduces internal maintenance compared with flooded lead-acid batteries. Renogy lists a 2000A maximum discharge current for 5 seconds, a 60A maximum continuous charging current, and support for series and parallel battery-bank configurations. Its wider discharge temperature range from -4°F to 140°F helps support use in demanding environments, while the 127.9 lb weight and 20.6" x 9.4" x 8.8" size require careful handling and mounting planning. Final charger settings, wiring size, fuse protection, parallel limits, series balancing, installation clearance, and installation-environment requirements should be confirmed before use.

200Ah AGM Storage for Solar, RV, and Backup Power

The Renogy 12V 200Ah AGM battery gives users a maintenance-light sealed lead-acid option for properly sized 12V battery systems. Its 200Ah rating, 12V nominal voltage, and 500-cycle rating at 50% depth of discharge make it a practical choice for buyers who want AGM storage instead of lithium or flooded lead-acid batteries.

Sealed AGM Design with Minimal Internal Troubleshooting

AGM construction uses an absorbed electrolyte and sealed battery structure, reducing the routine internal maintenance associated with flooded batteries. This makes the battery easier to manage for solar beginners, RV owners, and users who prefer a simpler lead-acid battery format.

High Short-Duration Discharge Rating

Renogy lists the battery with a maximum discharging current of 2000A for 5 seconds. That short-duration rating may support brief high-current demand within the battery’s listed limits, but connected equipment, inverter surge rating, cabling, fusing, voltage drop, temperature, state of charge, and total battery-bank design must still be planned correctly.

Series and Parallel Battery-Bank Support

This AGM battery supports series connections and parallel connections up to four batteries according to the provided source. Total system voltage, balancing, equipment ratings, wiring method, and installation requirements should be confirmed before wiring a battery bank.

The Renogy 12V 200Ah AGM battery is built for users who want sealed lead-acid storage with straightforward operation. It is best planned as part of a complete power system with compatible charging equipment, wiring, protection, and battery monitoring.

Before installation, leave clearance above the battery and at least 7.87 in / 20 cm on the terminal side, as stated in the provided Renogy guidance. Because this battery weighs 127.9 lb, placement, lifting, mounting support, and cable routing should be planned before final installation.

Renogy 12V 200Ah Deep Cycle AGM Battery Features & Benefits

• 200Ah rated capacity: Provides sealed 12V lead-acid storage for properly designed RV, cabin, marine, solar, and backup systems.
• AGM battery construction: Uses a sealed absorbent glass mat design for simpler operation than flooded lead-acid batteries.
• 2000A short-duration discharge: Supports brief high-current demand for up to 5 seconds within the listed battery and system limits.
• 60A maximum continuous charging current: Gives system designers a clear charging limit for compatible chargers and solar controllers.
• Series and parallel support: Supports larger battery-bank planning, with parallel configurations listed up to four batteries and series wiring subject to system voltage and equipment limits.
• Wide discharge temperature range: Supports discharge operation from -4°F to 140°F for cold and hot environment planning.
• Low self-discharge: Listed self-discharge rate below 3% per month at 77°F helps support storage and seasonal-use planning.

Renogy 12V 200Ah Deep Cycle AGM Battery Specifications

Renogy 12V 200Ah Deep Cycle AGM Battery Info

Warranty
