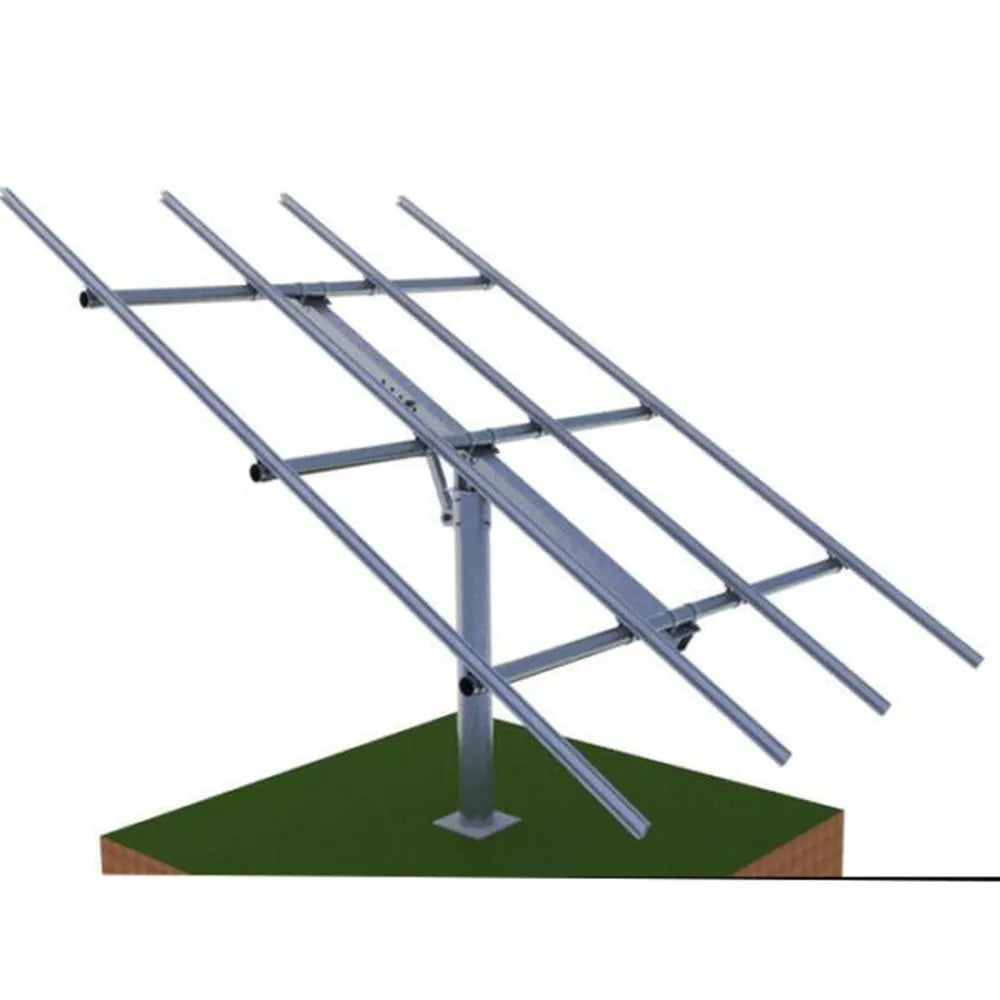

The AIMS Power PV6X250POLE Heavy-Duty Solar Single Pole Mount Rack is designed for ground-based PV solar panel installations in residential, farm, commercial, and open-area settings. This single pole mount rack supports up to 6 large PV solar panels, with total panel capacity listed up to 2.0kW depending on panel size. Built with galvanized ASTM A36 steel, aluminum HD rails, aluminum clamps, stainless steel hardware, and rust/corrosion-resistant materials, it is made for durable outdoor solar mounting applications. The system includes the rack components needed for installation, except for the required concrete foundation used to anchor the pole. A 3-day additional prep time should be allowed for the custom crate required for this product.

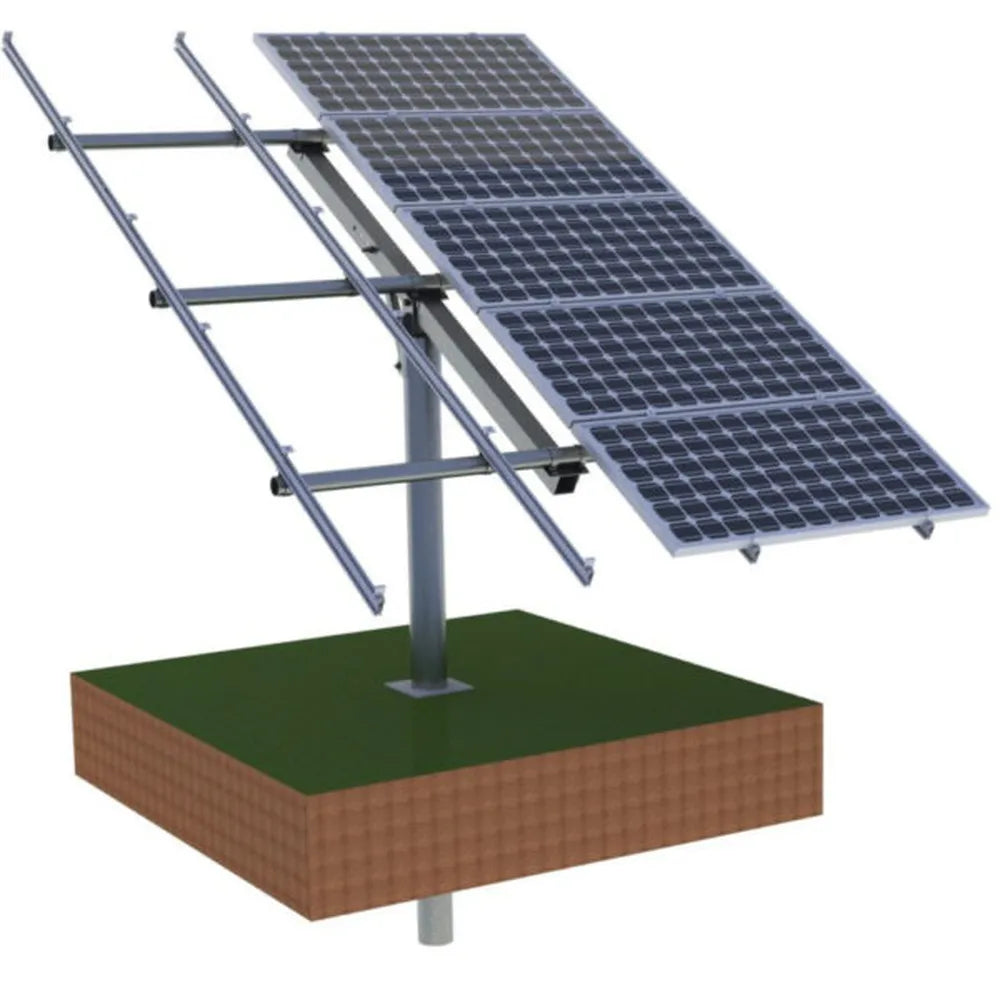

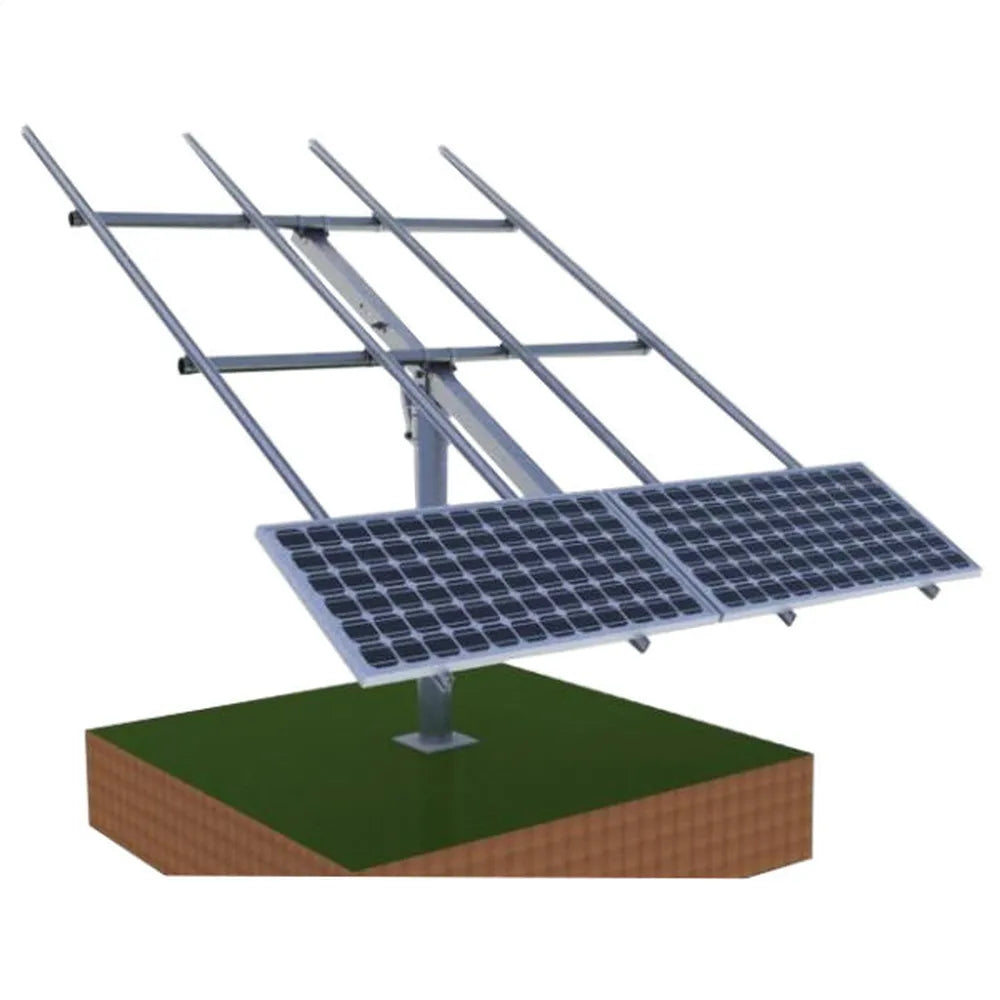

This AIMS Power pole mount rack is made to support up to 6 large PV solar panels rated 265 watts or larger, with more panels possible depending on panel size. The pole and rails are 126" long, giving installers a defined structure for planning a larger solar panel array.
The PV6X250POLE supports four tilt angle positions: 10°, 20°, 30°, and 40°. The seasonal elevation adjustment design uses pre-drilled holes, a U-bolt, and pitman arm to help make angle changes more manageable during setup and seasonal panel positioning.

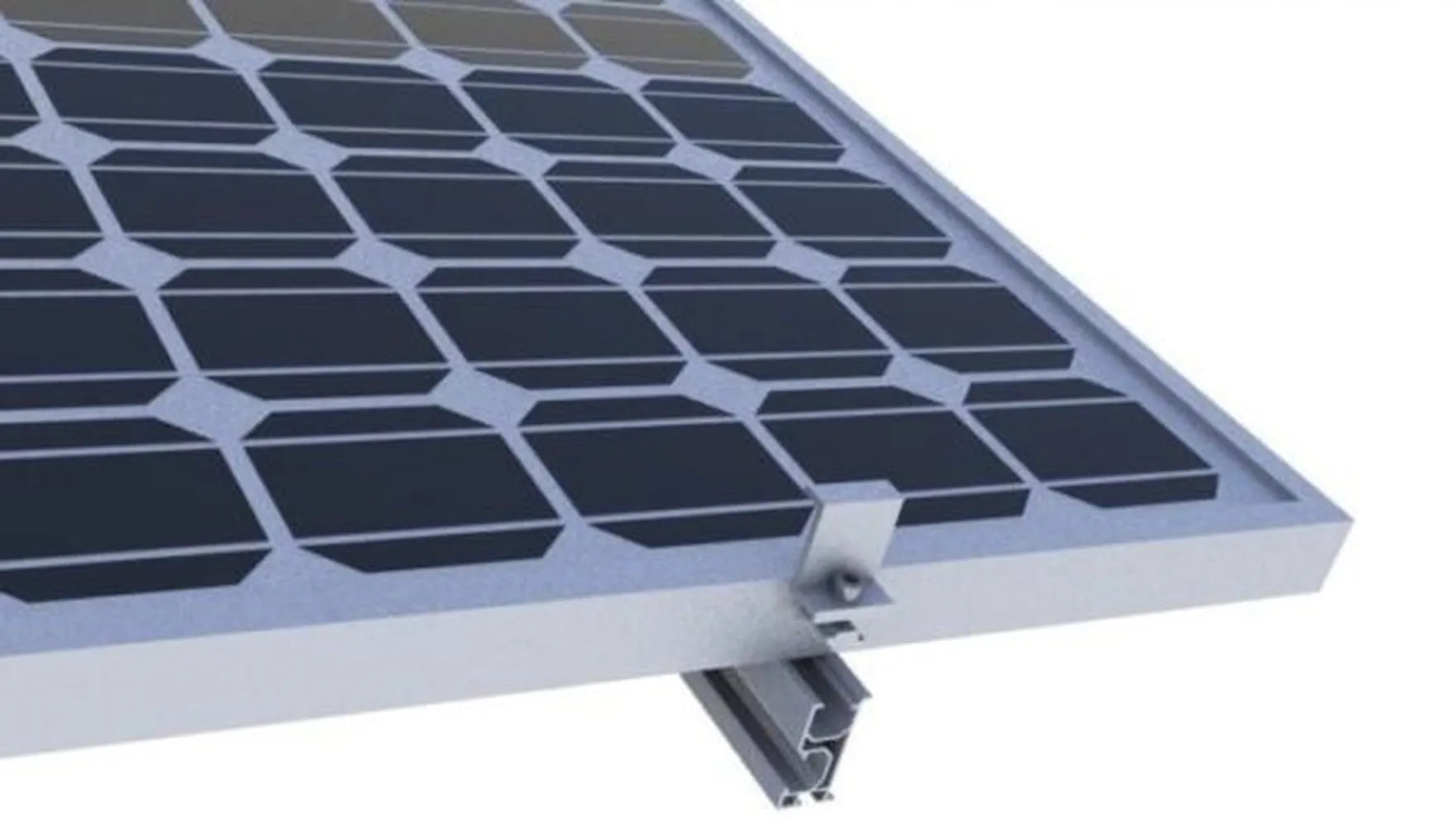

The rack combines galvanized ASTM A36 steel, 6000-series aluminum rails, aluminum clamps, and stainless steel hardware. This material mix supports long-term outdoor use while helping the system maintain strength across solar mounting applications.
This heavy-duty pole mount rack is suitable for residential properties, farms, commercial sites, and open areas where pole-mounted solar panels are preferred over roof-mounted panels. The system requires a concrete foundation and should be installed according to local structural, permitting, and site requirements.
The AIMS Power PV6X250POLE gives large PV solar panel arrays a dedicated single pole mounting structure for properties, farms, commercial sites, and open-area solar projects.
With universal HD sliding rails, pre-drilled seasonal adjustment holes, stainless steel hardware, and four tilt angle options, this rack supports a structured approach to heavy-duty PV panel mounting.
Need help choosing the right solar mounting setup for your property?
Contact TrueStead Supply for solar rack guidance, product comparison, and quote support.
✔ Solar mounting support ✔ Off-grid power accessories ✔ Property and installer-ready options
Contact Us for a Quote| Brand | AIMS Power |
| Model / SKU | PV6X250POLE |
| Product Type | Heavy-duty solar single pole mount rack |
| Panel Capacity | Fits up to 6 large PV solar panels |
| Supported Panel Output | Up to 2.0kW depending on panel size |
| Large Panel Fit | Up to 6 large panels, 265 watts or larger |
| Panel Orientation | Portrait |
| Panel Types | PV 60-cell, 72-cell, and 96-cell panels |
| Tilt Angles | 10°, 20°, 30°, and 40° |
| Wind Tolerance | 102 mph |
| Snow Load | 80 PSF, depending on snow characteristics |
| Rail and Pole Length | 126" |
| Foundation Requirement | Requires concrete foundation 63" square × 24" deep |
| Materials | Galvanized ASTM A36 steel, stainless steel, and aluminum |
| Rail Material | 6000-series aluminum |
| Hardware | Stainless steel hardware |
| Applications | Residential, farms, commercial, and open areas |
| Included Components | Pole mount rack system components; concrete foundation not included |
| Prep Note | Please allow 3 extra days to prep the custom crate |
| Warranty | 15-year manufacturer defect warranty |
