Clean, stable AC power for laptops, gaming devices, small electronics, and medical equipment — compact, lightweight, and ready to run from any 12V battery with the included cables.
The AIMS Power 300 Watt Pure Sine Wave Inverter with USB Port (PWRI30012S) converts 12V DC battery power into clean 120V AC — the kind of stable, distortion-free output that sensitive electronics like laptops, cameras, gaming devices, and medical equipment need to run reliably. A load-based fan only activates when the inverter senses a connected load, keeping operation quiet during light use. Compact and lightweight, it's built for work trucks, RVs, off-grid setups, and anywhere you need dependable mobile power from a 12V source.
A compact, no-fuss inverter built for quick connections, clean power, and durability in mobile and marine environments.
Pure sine wave output with less than 3% total harmonic distortion closely matches utility power — ideal for laptops, cameras, medical equipment, and other electronics sensitive to lower-quality AC waveforms.

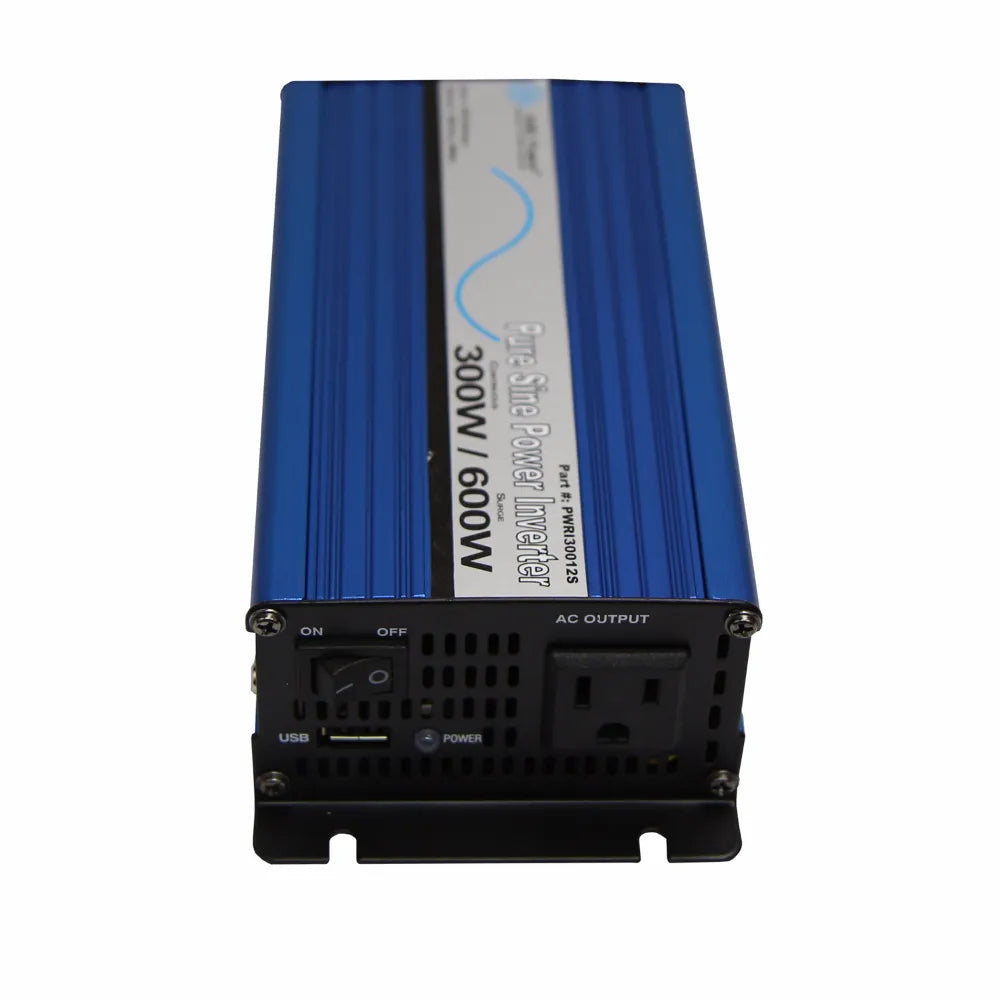

A built-in 5V/1A USB port gives you a direct charging option alongside the AC outlet. The load-based fan only runs when the inverter senses a connected load, keeping the unit silent when idle.

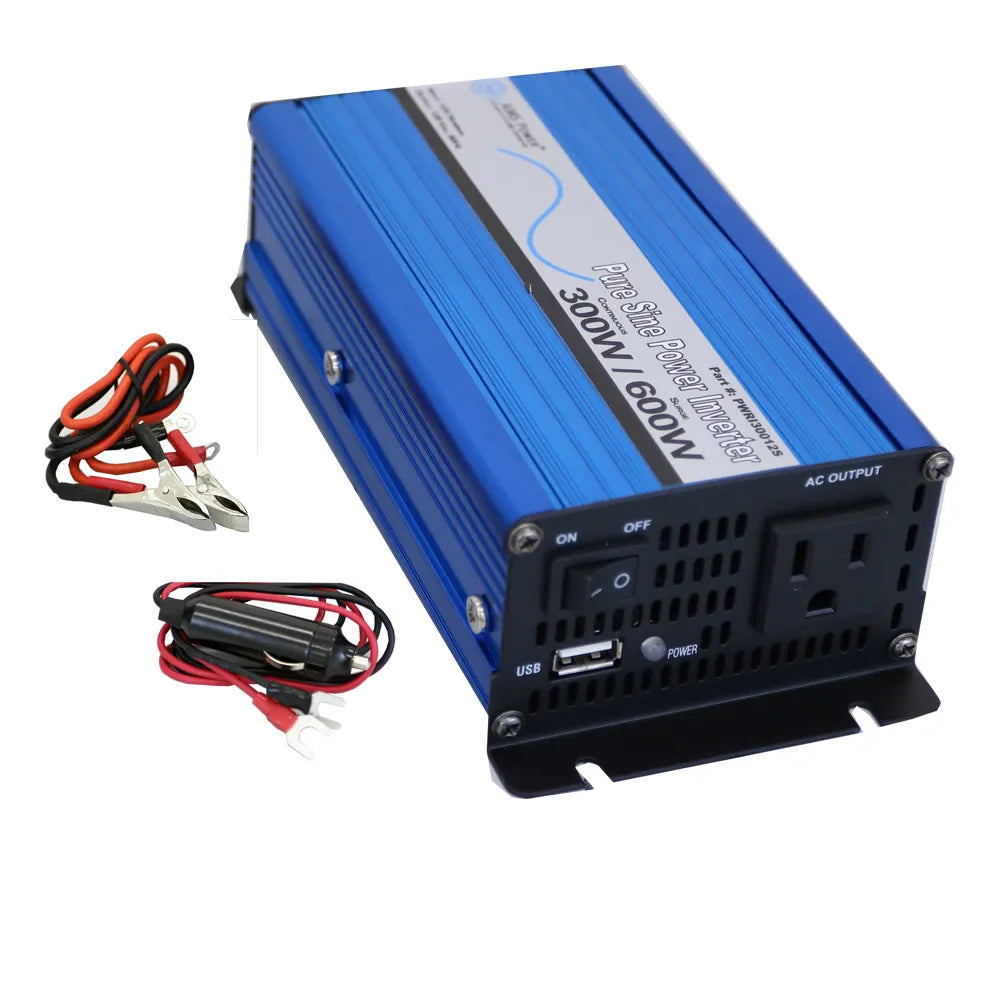

The circuit board is conformal coated to resist moisture and corrosion — a practical advantage for marine and humid environments. A cigarette lighter plug and DC battery alligator clip cables are both included, so you're ready to connect right away.
| Continuous Output Power | 300 Watts |
|---|---|
| Surge / Peak Power | 600 Watts (for 40 milliseconds) |
| Output Voltage | 120V AC |
| Output Voltage Regulation | ± 3% |
| Output Waveform | Pure Sine Wave (<3% THD) |
| Output Frequency | 60 Hz ± 2 Hz |
| AC Output Socket Type | Single Type 2 — 3-prong + USB Output |
| AC Amps | 2.5A |
| USB Port Output | 5V DC, max 1A |
| Full Load Efficiency | 90% |
| 1/3 Load Efficiency | 95% |
| DC Input Voltage Range | 10–15V DC (nominal 12V) |
|---|---|
| DC Amps | 25A |
| No-Load Power Consumption | <0.7A DC |
| Battery Low Voltage Alarm | 10.5V ± 0.5V |
| Battery Low Voltage Shutdown | 10.0V ± 0.5V |
| High Input Voltage Protection | 15V (shutdown) |
| Min Operating Temp (No Load) | 50°F (10°C) |
| Max Operating Temp (Full Load) | 145°F (63°C) — auto shutdown above this |
| Board Protection | Conformal coated (moisture and corrosion resistant) |
| Unit Dimensions (D × W × H) | 7.25 × 3.65 × 2.2 in (18.4 × 9.3 × 5.6 cm) |
|---|---|
| Unit Weight | 1.5 lb (0.7 kg) |
| Shipping Weight | 2 lb (0.9 kg) |
At 300W continuous, this inverter is well suited for laptops, monitors, small TVs, phone and camera chargers, fans, LED lights, and similar low-to-mid draw electronics, including many types of medical equipment. The 600W surge capacity provides brief extra headroom for devices with a startup spike. Pure sine wave output with less than 3% distortion makes it a good match for sensitive electronics. Always check a device's running wattage before connecting it.
The cigarette lighter plug is the quickest option for loads up to 180 watts — the maximum a vehicle's cigarette lighter circuit can safely handle. For loads between 180W and this inverter's 300W rating, use the included alligator clip cables to connect directly to the battery terminals instead, bypassing the vehicle's accessory socket fuse limit.
Yes — the circuit board on this model is conformal coated to protect against moisture and corrosion, making it a more durable choice for marine environments than a standard uncoated inverter. As with any electronics on a boat, install it in a location that minimizes direct exposure to spray and standing water.
This inverter is backed by a 2-year manufacturer warranty from date of purchase, plus lifetime U.S.-based technical support from AIMS Power. As an authorized AIMS Power dealer, TrueStead Supply ensures your warranty is valid from day one.
