Bar-graph volt and watt meters, isolated ground neutral, and a slim 3.3-inch profile — purpose-built for 24V DC power sources where higher efficiency at heavy loads matters.

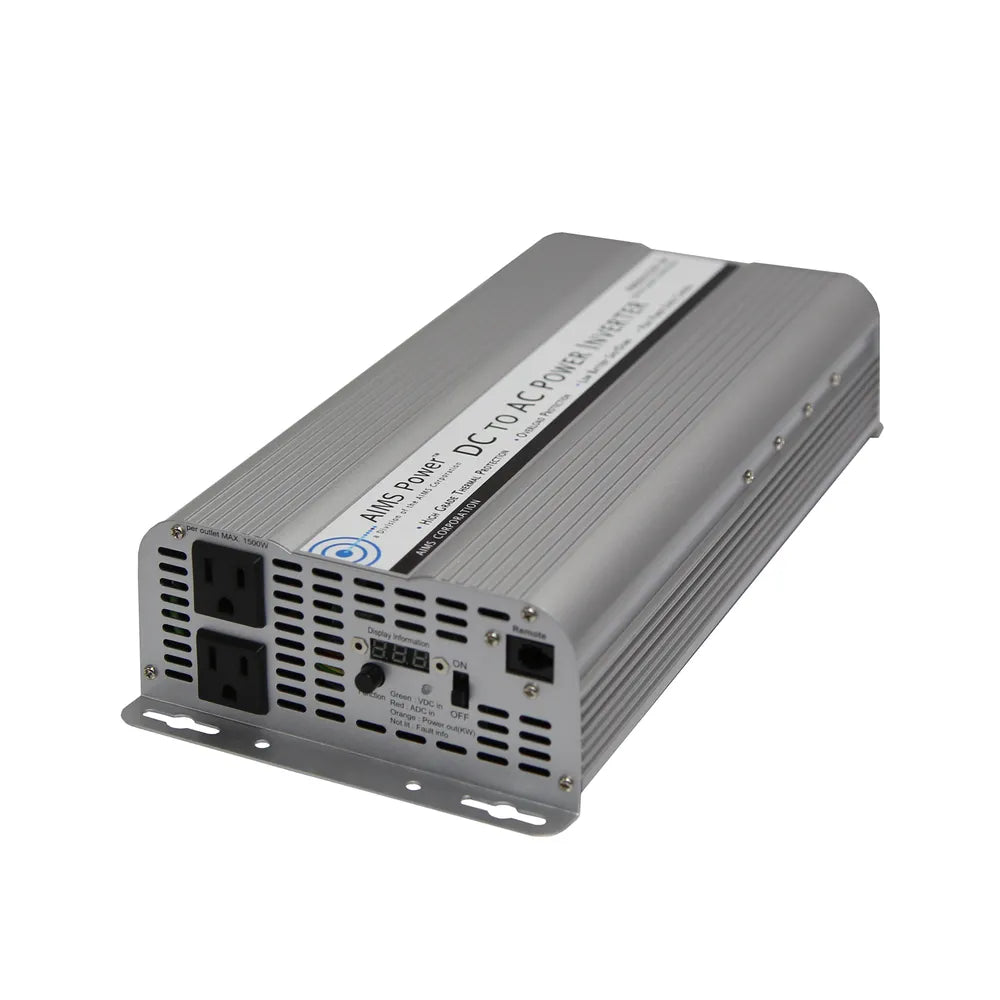

The AIMS Power 2500 Watt Modified Sine Wave Inverter (PWRINV250024W) converts 24V DC battery power into 120V AC at a continuous 2500 watts — with 5000-watt peak surge capacity for motor and pump startups. Designed specifically for 24V DC power sources, this inverter delivers higher efficiency at heavier loads compared to 12V equivalents, making it a natural fit for buses, coaches, commercial vehicles, 24V solar battery banks, and larger off-grid installations. Dual bar-graph display meters, isolated ground neutral, and a pre-wired remote switch port round out a well-equipped, compact package.
The PWRINV250024W brings together 24V efficiency, bar-graph monitoring, and isolated ground neutral in a slim, mountable aluminum chassis suited to commercial and off-grid power systems.
Designed specifically for 24V DC power sources — buses, coaches, commercial trucks, and 24V solar battery banks. Operating at 24V means lower DC current draw at equivalent output, reducing cable losses and improving overall system efficiency at heavy loads.
2500 watts of continuous AC power with 5000 watts of peak surge capacity — enough to start pumps, motors, and tools that demand significantly more on startup than at running load.
Dual bar-graph style meters with red, yellow, and green LED segments show battery voltage and AC output wattage at a glance — giving you an immediate visual reference for system condition without having to read a numeric display.
Isolated ground neutral allows this inverter to connect to an off-grid AC panel and is required in marine installations and many professional configurations — avoiding ground loops, galvanic corrosion, and grounding conflicts.
90% efficient at full load and 95% at one-third load, with an idle draw under 0.6A — this inverter conserves battery capacity during standby and maximizes usable energy at every load level.
| Continuous Output Power | 2,500 Watts |
|---|---|
| Surge / Peak Power | 5,000 Watts |
| Output Voltage | 120V AC ± 10% |
| Output Waveform | Modified Sine Wave with Phase Correction |
| Output Frequency | 60 Hz ± 1 Hz |
| AC Output Socket Type | Dual Type 2 — 3-prong receptacles |
| AC Amps | 21A |
| UL Max Recommended Per Outlet | 1,500W |
| Ground Neutral | Isolated |
| DC Input Voltage Range | 20–30V DC (nominal 24V) |
|---|---|
| DC Amps (Max Draw) | 104A |
| No-Load Current Draw | <0.6A DC |
| High Input Voltage Protection | 30V–34V (shutdown range) |
| Low Voltage Shutdown | 20.0V ± 0.5V |
| Recommended Inline Fuse | 150A |
| Full Load Efficiency | 90% |
|---|---|
| 1/3 Load Efficiency | 95% |
| Operating Temperature Range | 30°F–150°F (−1°C–66°C) — auto shutdown above 150°F |
| Unit Dimensions (D × W × H) | 14.6 × 6.6 × 3.3 in (37.1 × 16.8 × 8.4 cm) |
|---|---|
| Unit Weight | 6.2 lb (2.8 kg) |
At 2500W output, a 24V inverter draws approximately half the DC current of an equivalent 12V inverter (around 104A at 24V vs. ~200A+ at 12V). Lower DC current means less heat in cables, reduced voltage drop, thinner cable requirements, and better system efficiency at heavy loads. If your vehicle, solar bank, or installation already runs 24V — as many buses, coaches, and commercial vehicles do — a 24V inverter is the logical match without requiring any voltage conversion or separate battery banks.
No. The PWRINV250024W requires a 24V DC input — its operating voltage range is 20–30V DC. It will not power on or operate correctly from a 12V battery. For 12V systems at this wattage, see AIMS Power's PWRINV250012W (12V, 2500W) instead.
The dual bar-graph style meters use red, yellow, and green LED segments to give you an instant visual readout of battery voltage and AC output wattage. The color coding provides a quick-glance system health check — green indicates normal operation, yellow signals a caution range, and red indicates a condition approaching a fault threshold. A separate green/red LED indicator confirms ready or fault status for the inverter itself.
At 2500W continuous and 21 AC amps, this inverter can run most pumps, motors, power tools, refrigerators, microwave ovens, lights, fans, and similar loads within its wattage capacity. Modified sine wave works well for most resistive and motor-driven loads. Some variable-speed drives, certain medical equipment, laser printers, and audio equipment may not run optimally. Each AC outlet is UL-rated for 1500W individually; do not exceed 2500W total across both outlets simultaneously.
Isolated ground neutral means the AC output's neutral conductor is not bonded to the DC chassis ground. This is important for connecting the inverter to an off-grid AC distribution panel, in marine applications where bonded neutrals can cause galvanic corrosion, and in professional installations where grounding standards prohibit bonded neutrals at the inverter. If your panel requires a bonded neutral, consult a qualified electrician about the correct bonding point for your system.
This inverter is backed by a 2-year manufacturer warranty from date of purchase, plus free lifetime technical support from AIMS Power's dedicated tech team. As an authorized AIMS Power dealer, TrueStead Supply ensures your warranty is valid from day one.
