The AIMS Power 230 Watt Flexible Bendable Slim Solar Panel is built for solar installations where a rigid framed panel may not be the right fit. Designed with advanced monocrystalline solar cells, anti-cracking film, and a slim flexible structure, this panel supports compatible installations on curved and uneven surfaces such as RVs, boats, vans, buses, utilities, golf carts, sun shades, and other mobile or off-grid applications. It is rated at 230 watts maximum power, with 18V optimum operating voltage, 12.74A optimum operating current, and 21.6V open-circuit voltage based on the submitted product data. The panel supports up to a 60° bend, includes 10 AWG PV wire with MC4 male and female connectors, and uses an IP67-rated junction box for outdoor solar use. Pre-drilled grommet holes support non-permanent mounting methods, while the thin and lightweight design also supports adhesive or industrial-thread mounting where appropriate.
This AIMS Power flexible solar panel is designed for curved and uneven surfaces where traditional rigid panels may be harder to install, including properly prepared RV roofs, boats, vans, buses, utilities, golf carts, and outdoor equipment.
The panel uses advanced monocrystalline solar cells, anti-cracking film, and a thin bendable profile to support efficient solar harvesting while remaining lightweight enough for mobile and compact solar applications.
Integrated 10 AWG PV wire with MC4 male and female connectors supports solar wiring integration, while pre-drilled grommet holes support zip ties, Velcro, straps, adhesive mounting, or industrial thread depending on the installation method.
The panel includes an IP67-rated junction box, bypass diode, Class A fire safety rating, and certifications listed as CE, ETL, TUV, and RoHS for supported outdoor solar applications.
This 230 watt flexible solar panel is designed for compatible mobile and off-grid installations where low-profile solar power, surface flexibility, and compact storage matter.
With MC4 connectors, pre-drilled grommets, weather-resistant construction, and a slim bendable structure, this AIMS Power panel supports practical solar layouts for RVs, boats, vans, buses, golf carts, and outdoor gear.
Need help matching a flexible solar panel to your charge controller or battery setup?
Contact TrueStead Supply for solar equipment guidance, panel selection help, and quote support.
✔ Flexible solar guidance ✔ Charge controller support ✔ Off-grid and mobile power options
Contact Us for a Quote| Brand | AIMS Power |
| Model / SKU | PV230SLIM |
| Product Type | Flexible Bendable Monocrystalline Solar Panel |
| Maximum Power | 230W |
| Maximum System Voltage | 600V DC (UL) |
| Optimum Operating Voltage | 18V Vmp |
| Optimum Operating Current | 12.74A Imp |
| Open-Circuit Voltage | 21.6V Voc |
| Short-Circuit Current | 13.5A Isc |
| Cell Efficiency | 22.1% |
| Module Efficiency | 20.1% |
| Light Transmittance | Up to 93% |
| Tolerance Wattage | ±5% |
| Power Tolerance | 0 to +5W |
| Number of Cells | 4 × 15 |

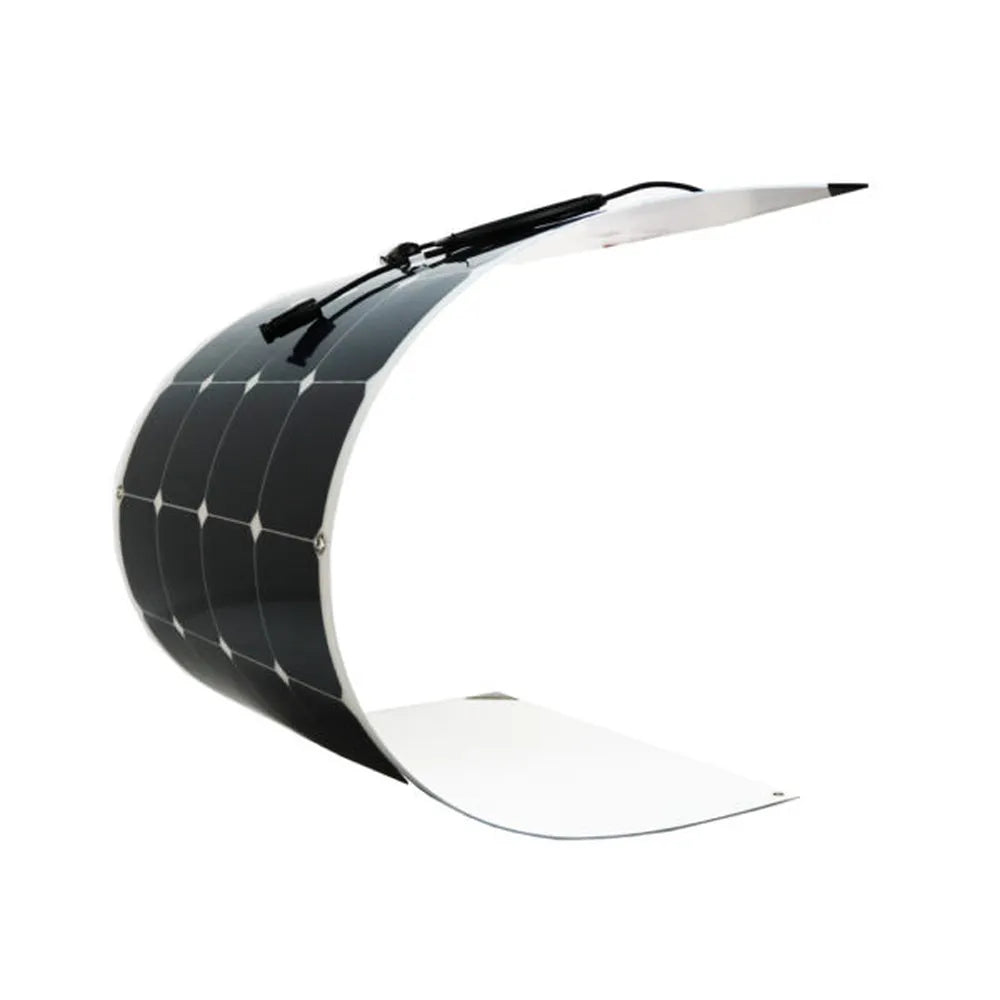

| Maximum Bend | Up to 60° |
| Junction Box | IP67 Rated |
| PV Wire | 10 AWG with MC4 Male and Female Connectors |
| Cable Length | 35" MC4 Connectors |
| Fire Safety Class | Class A |
| Temperature Range | -40°F to 185°F |
| Temperature Coefficient of Power | -0.38% / °C |
| Temperature Coefficient of Current | 2.2mA / °C |
| Temperature Coefficient of Voltage | -60.8V / °C |

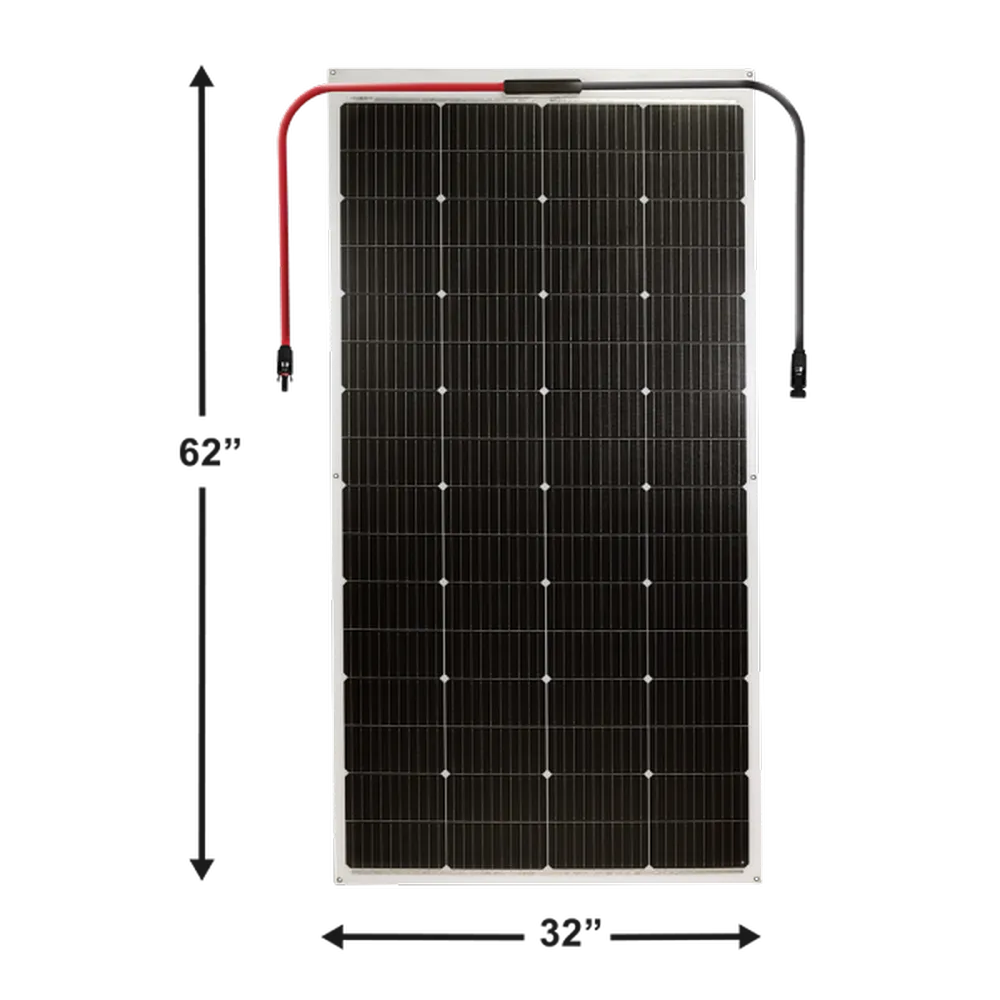

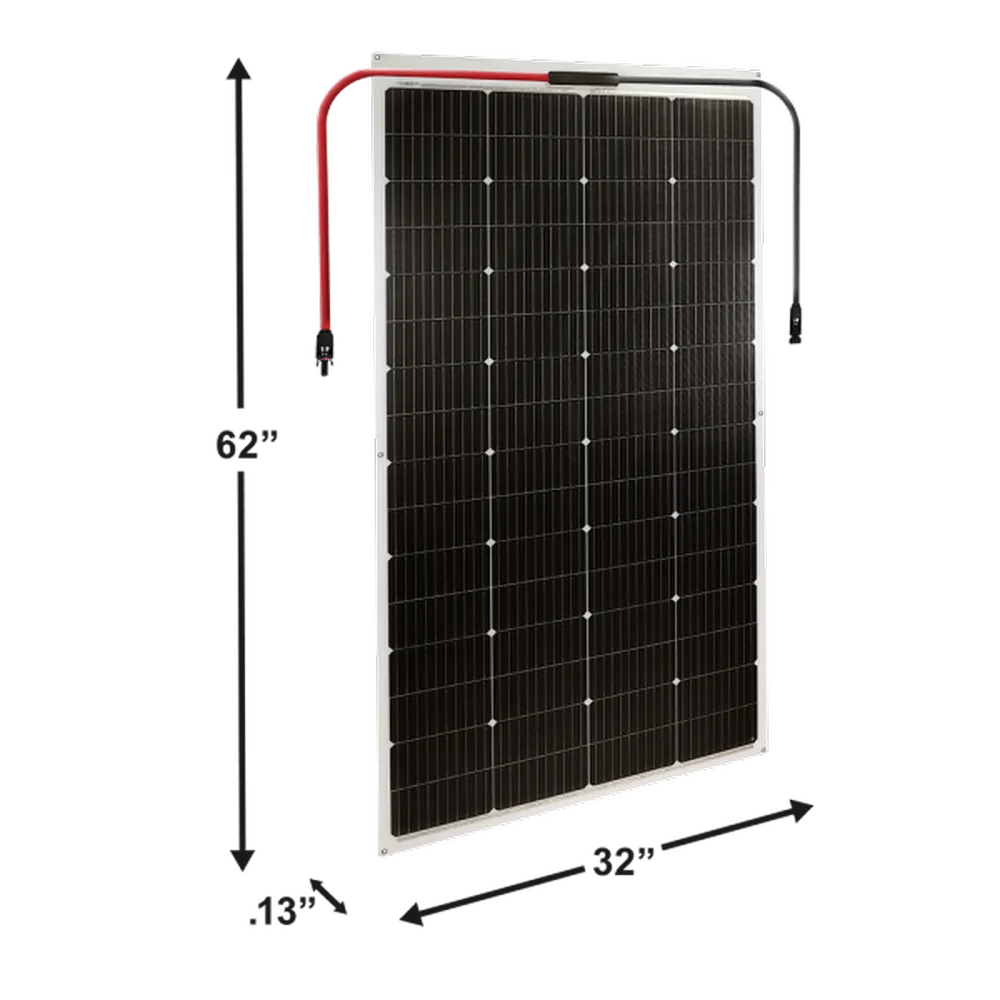

| Dimensions | 62" × 32" × 1/16" |
| Weight | 8.38 lb |
| Certifications | CE, ETL, TUV, RoHS |
| Warranty | 5 Year Warranty with 90% Output; 10 Year 80% Output Warranty |
