83 AC amps, 20,000-watt surge capacity, PWM soft-start technology, and conformal-coated boards — in a surprisingly compact, lightweight package built to run air conditioners, compressors, and whole-site power demands.

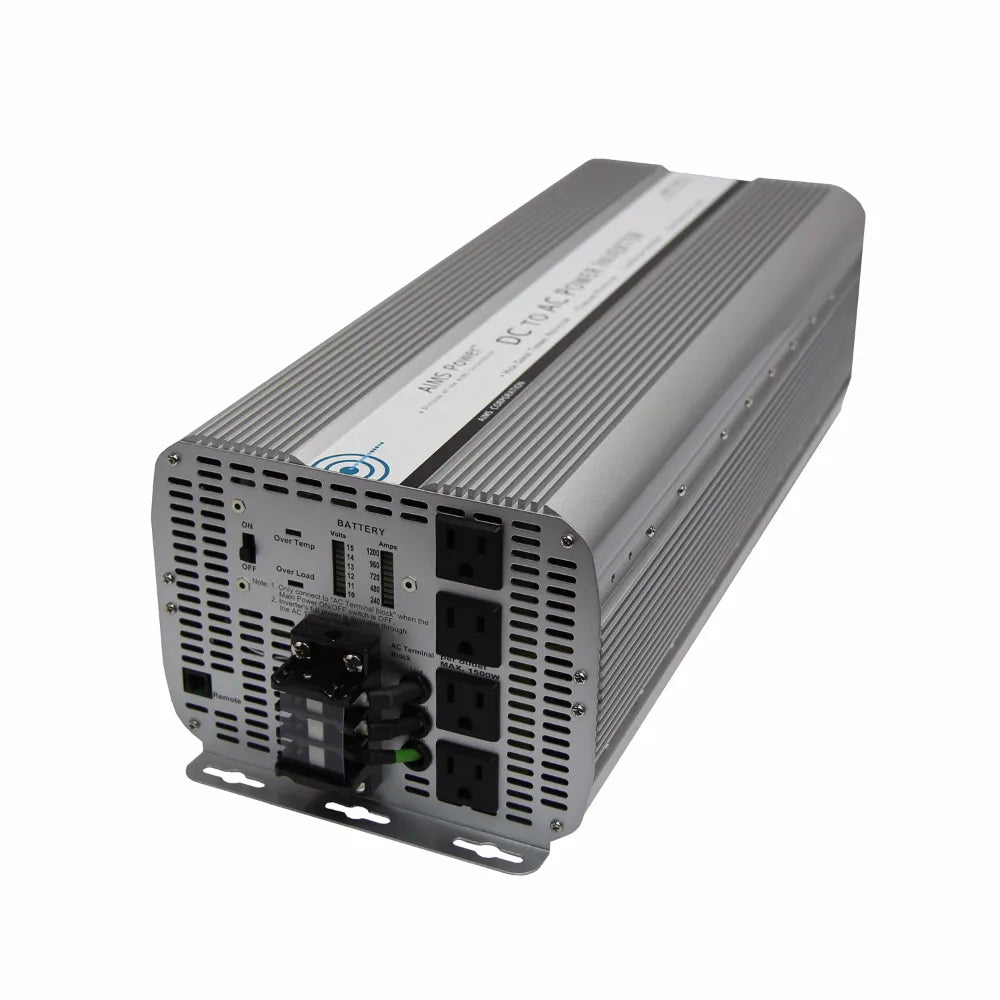

The AIMS Power 10,000 Watt Modified Sine Wave Inverter (PWRINV10KW12V) converts 12V DC battery power into 120V AC at a continuous 10,000 watts — with 20,000-watt peak surge capacity for the locked-rotor startup demands of air conditioners, large compressors, and heavy motor loads. This redesigned model incorporates Pulse Width Modulation (PWM) technology with soft-start capability, helping reduce the inrush stress on both the inverter and connected equipment during startup. Conformal-coated circuit boards protect the electronics from moisture, dust, and dirt in harsh field conditions. Despite its output class, this inverter weighs just 23.1 pounds and fits where older high-wattage units never could.
The PWRINV10KW12V combines the highest output in AIMS Power's 12V modified sine line with thoughtful engineering — PWM soft-start, conformal coating, and live monitoring — in a chassis sized for real-world mobile and off-grid installations.
Sustain 10,000 watts of continuous AC output with 20,000 watts of peak surge capacity (for 40ms) — enough to handle locked-rotor startup demands from air conditioners, large compressors, and heavy motor loads.
Built-in PWM technology progressively ramps up output power at startup rather than slamming the load with full voltage — reducing stress on connected equipment and on the inverter itself during each power-on cycle.
At up to 83 AC amps continuous, the PWRINV10KW12V outperforms any other modified sine inverter AIMS Power makes in the 12V class — capable of powering whole-site demands that exceed what even an 8000W unit can handle.
The circuit boards are conformal coated to resist water vapor, dust, and dirt — protecting the electronics in marine, outdoor, construction, and high-humidity environments where unprotected boards would eventually fail.
90% efficient at full load and 95% at one-third load, with an idle draw under 1.8A — maximizing usable power from your battery bank whether running heavy loads or lighter overnight draws.
Despite its 10,000-watt output class, the PWRINV10KW12V weighs just 23.1 pounds and takes up less than half the space of older high-wattage inverters of the same capacity. It comes pre-wired for an optional remote on/off switch, allowing control from a dashboard, wall panel, or cab without accessing the unit. A pre-slotted mounting plate integrated into the aluminum case allows permanent bolted installation on walls, floors, or vehicle frames. The thermally controlled cooling fan only engages when temperatures warrant, keeping standby operation quiet.
The PWRINV10KW12V includes over-temperature protection (auto shutdown at 140°F / 60°C), overload protection, AC output short-circuit protection, internal fuse protection, high-voltage protection (15–17V), low-voltage alarm (10.5V), and low-voltage shutdown (10.0V). Front-panel LED indicators flag over-temperature and overload conditions. Most faults auto-reset once the condition clears — no manual intervention needed in most cases.
| Continuous Output Power | 10,000 Watts |
|---|---|
| Surge / Peak Power | 20,000 Watts (for 40ms) |
| Output Voltage | 120V AC ± 10% |
| Output Waveform | Modified Sine Wave with Phase Correction (PWM / Soft-Start) |
| Output Frequency | 60 Hz ± 1 Hz |

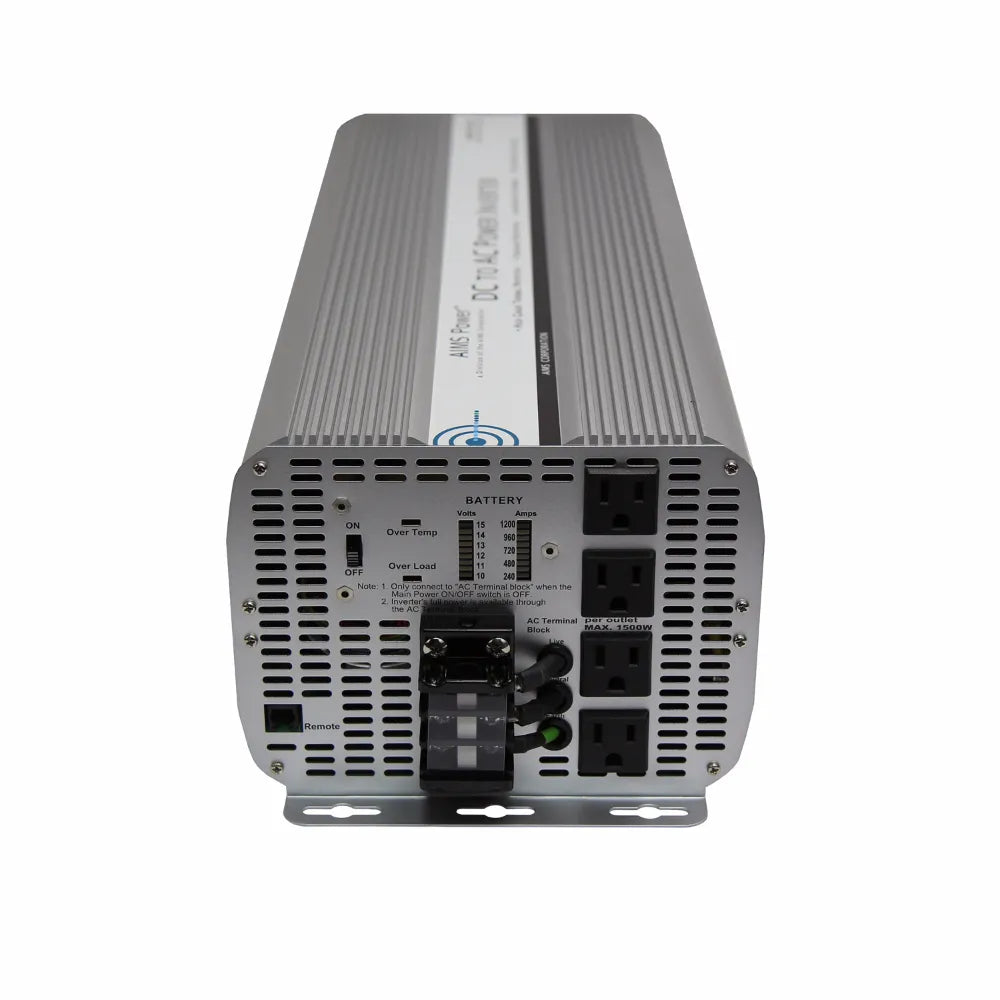

| AC Output Socket Type | Quadruple Type 2 — 3-prong receptacles + AC direct-connect terminal block |
| Max AC Amps | 83A |
| UL Max Recommended Per Outlet | 1,500W |
| DC Input Voltage Range | 10–16V DC (nominal 12V) |
|---|---|
| No-Load Current Draw | <1.8A DC |
| High Input Voltage Protection | 15V–17V (shutdown range) |
| Low Voltage Alarm | 10.5V ± 0.5V |
| Low Voltage Shutdown | 10.0V ± 0.5V |
| Required DC Cables | Two sets of 4/0 AWG (2 positive + 2 negative) |
| Recommended Fusing | Two 500A inline ANL fuses (one per cable set) |
| Full Load Efficiency | 90% |
|---|---|
| 1/3 Load Efficiency | 95% |
| Min Operating Temp (No Load) | 30°F (−1°C) |
| Max Operating Temp (Full Load) | 140°F (60°C) — auto shutdown above this |
| Board Protection | Conformal-coated (moisture, dust, and dirt resistant) |
| Unit Dimensions (L × W × H) | 21.375 × 7.875 × 6.0 in (54.3 × 20.0 × 15.2 cm) |
|---|---|
| Unit Weight | 23.1 lb (10.5 kg) |
| Boxed Weight | 25 lb (11.3 kg) |
Pulse Width Modulation (PWM) soft-start ramps up the output voltage progressively when the inverter powers on, rather than immediately delivering full voltage to connected loads. This reduces the instantaneous inrush stress on sensitive equipment at startup and reduces the peak current spike drawn from the battery bank during power-on — extending the service life of both the inverter and connected devices over time.
The 20,000-watt surge capacity (for 40ms) is designed to handle the locked-rotor amperage (LRA) that air conditioners and large compressors draw during startup. Whether a specific AC or compressor unit is compatible depends on its locked-rotor startup surge and running wattage — verify those specs against the inverter's 10,000W continuous and 20,000W surge ratings before purchase. Many common residential window AC units and portable AC units fall well within this inverter's capability.

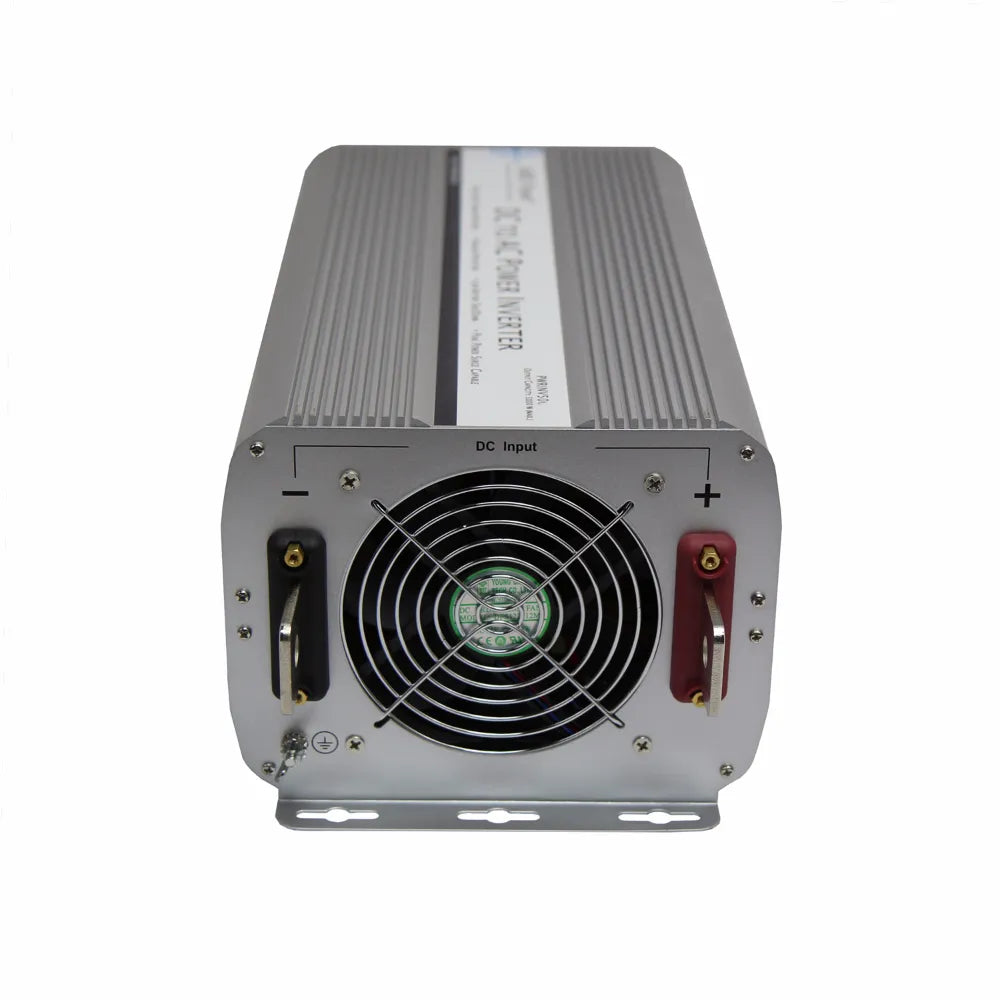

At 10,000W from a 12V battery, DC current draw approaches 1000A at full load — beyond what a single set of 4/0 AWG cables can safely carry. Two parallel cable sets (2 positive + 2 negative) divide the current between them, keeping each cable within safe thermal limits. A very large battery bank — typically 600Ah or more at 12V, using deep-cycle AGM or lithium — is needed for meaningful sustained runtime. Two 500A ANL inline fuses (one per positive cable run) are recommended. AIMS Power offers compatible cable and fuse kits separately.
Conformal coating is a protective chemical layer applied directly to the inverter's circuit boards. It seals the board against water vapor, condensation, dust, and dirt that would otherwise penetrate the components and cause corrosion or short circuits over time. This makes the PWRINV10KW12V more resilient in marine environments, humid climates, outdoor job sites, and dusty agricultural or construction applications.
At 10,000W continuous and 83 AC amps, this inverter can simultaneously run multiple major appliances, air conditioning units, large compressors, industrial power tools, refrigerators, freezers, water pumps, and more. Modified sine wave is well-suited for motors, pumps, compressors, resistive loads, and most general-purpose appliances. Variable-speed drives, some laser printers, and certain sensitive audio/medical equipment may perform better on pure sine wave output. Each individual AC outlet is UL-rated for 1500W individually; the AC terminal block can carry the full 10,000W for hardwired loads.
The inverter connects to any standard 12V battery system without modifications to the vehicle's factory wiring. However, at 10,000W the DC current demand is extremely high, and a dedicated deep-cycle battery bank separate from the vehicle's starting battery is essential — as noted in the product description, this power level typically requires an added battery to support sustained output. The vehicle's alternator cannot replenish this level of draw during operation; a solar charge controller or shore charger should be part of any sustained-use system design.
The inverter includes over-temperature shutdown (140°F / 60°C), overload protection, AC output short-circuit protection, internal fuse protection, high-voltage shutdown (15–17V range), low-voltage alarm (10.5V), and low-voltage shutdown (10.0V). Front-panel LEDs flag over-temperature and overload conditions. Most fault conditions trigger an automatic reset once the condition clears — no manual intervention required in most cases.
This inverter is covered by a 2-year manufacturer warranty from date of purchase against manufacturer defects, plus free lifetime technical support from AIMS Power's dedicated tech team. As an authorized AIMS Power dealer, TrueStead Supply ensures your warranty is valid from day one.
