Crystal Quest SMART Whole House Water Filter (9-13 GPM) – Configurable Whole House Water Filtration
The Crystal Quest SMART Whole House Water Filter is a configurable point-of-entry water treatment system built for homes that need dependable whole-house filtration with 9-11 GPM or 10-13 GPM service flow. This Crystal Quest system is offered in 1.5 cubic foot and 2.0 cubic foot configurations, with sizing guidance for 1-3 bathrooms or 2-4 bathrooms depending on the selected model. Buyers can choose standalone filtration, a salt-free conditioner configuration, or a traditional softener-equipped setup based on the needs of the property. With automatic backwash and multiple tank material options, it is designed for long-term residential water treatment with practical configuration flexibility. This makes it a strong fit for households that want one central whole-house water filter instead of relying on multiple point-of-use systems.
Multi-Stage Whole House Water Filtration

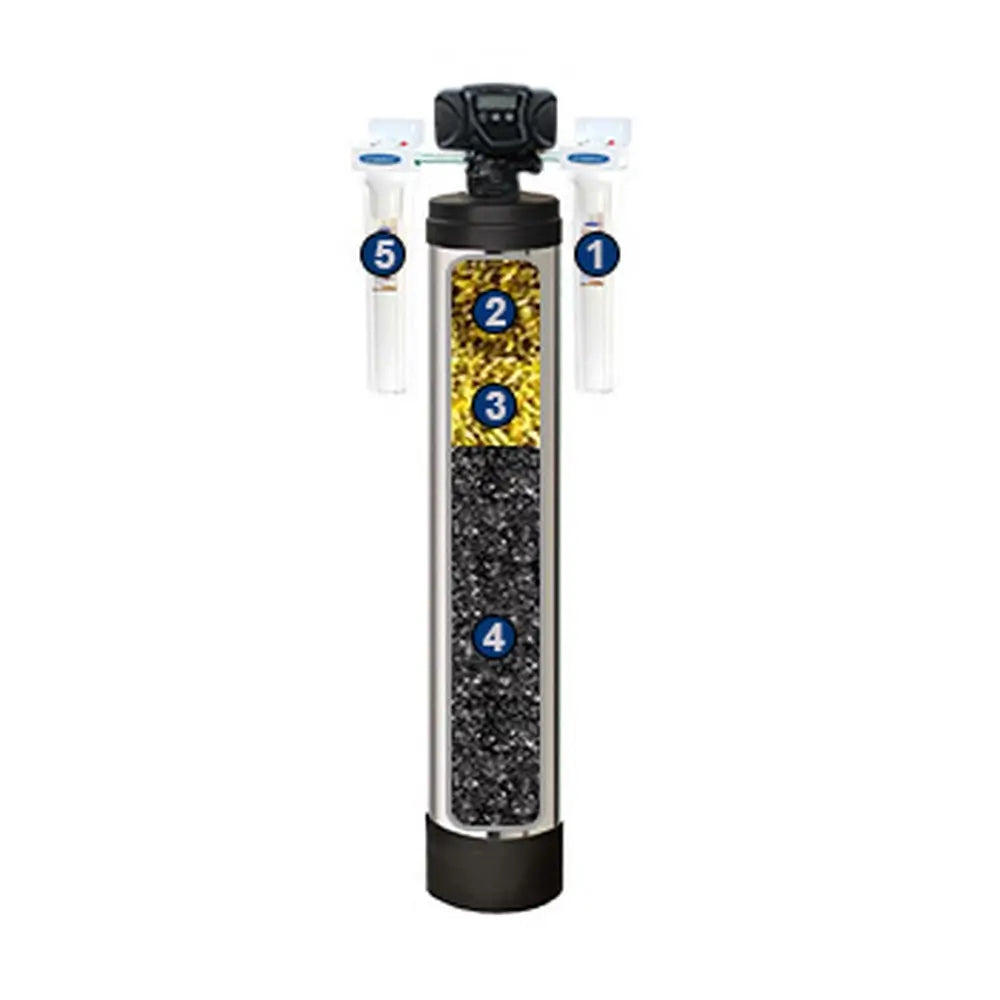

This SMART whole house water filter uses a multi-stage treatment approach with sediment pre-filtration, SMART multimedia treatment, and carbon post-filtration. Crystal Quest lists the media blend as including standard and catalytic coconut shell granular activated carbon, Eagle Redox Alloy, ion exchange resin, ceramic and tourmaline balls, and a quartz support bed.
Configurable Capacity for Different Home Sizes
Crystal Quest offers this system in two primary capacities: a 1.5 cubic foot version rated for 1,000,000 gallons and a 2.0 cubic foot version rated for 1,500,000 gallons. These options pair with published bathroom-count and service-flow ranges, making it easier to choose a system size that fits household demand.

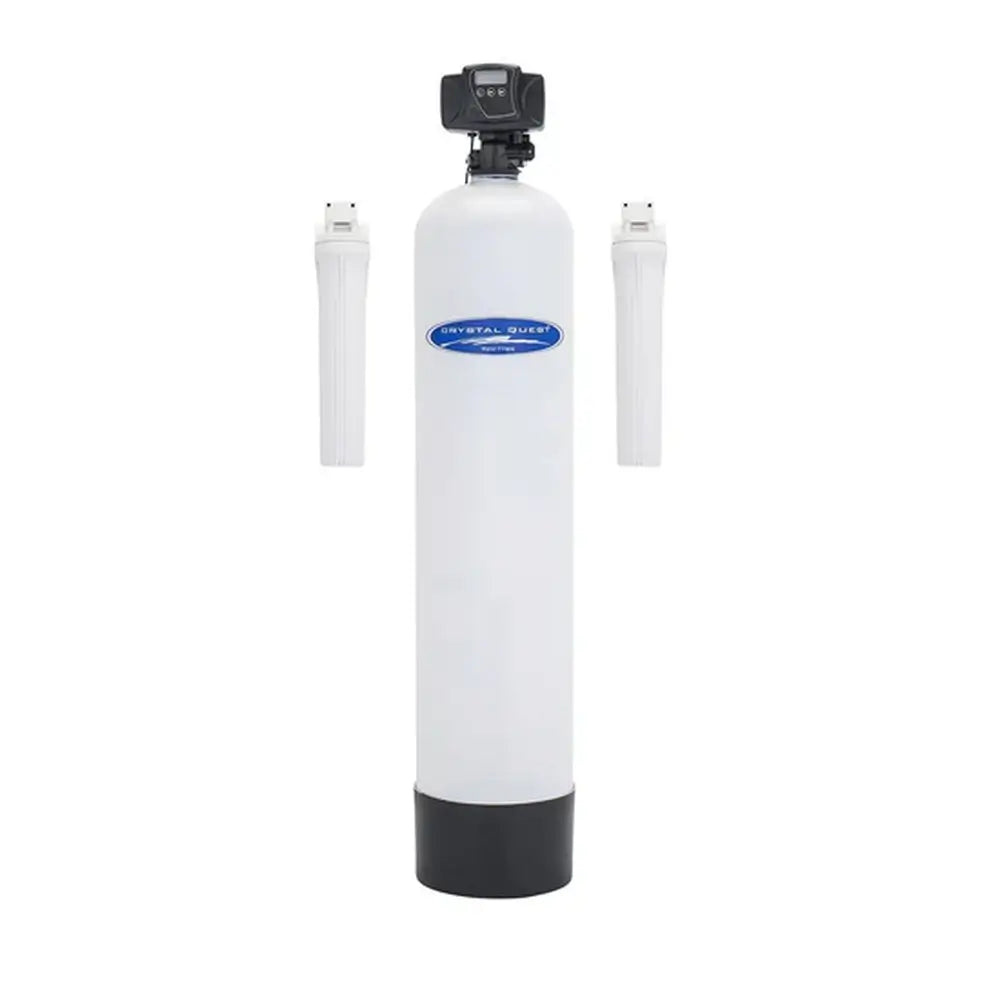

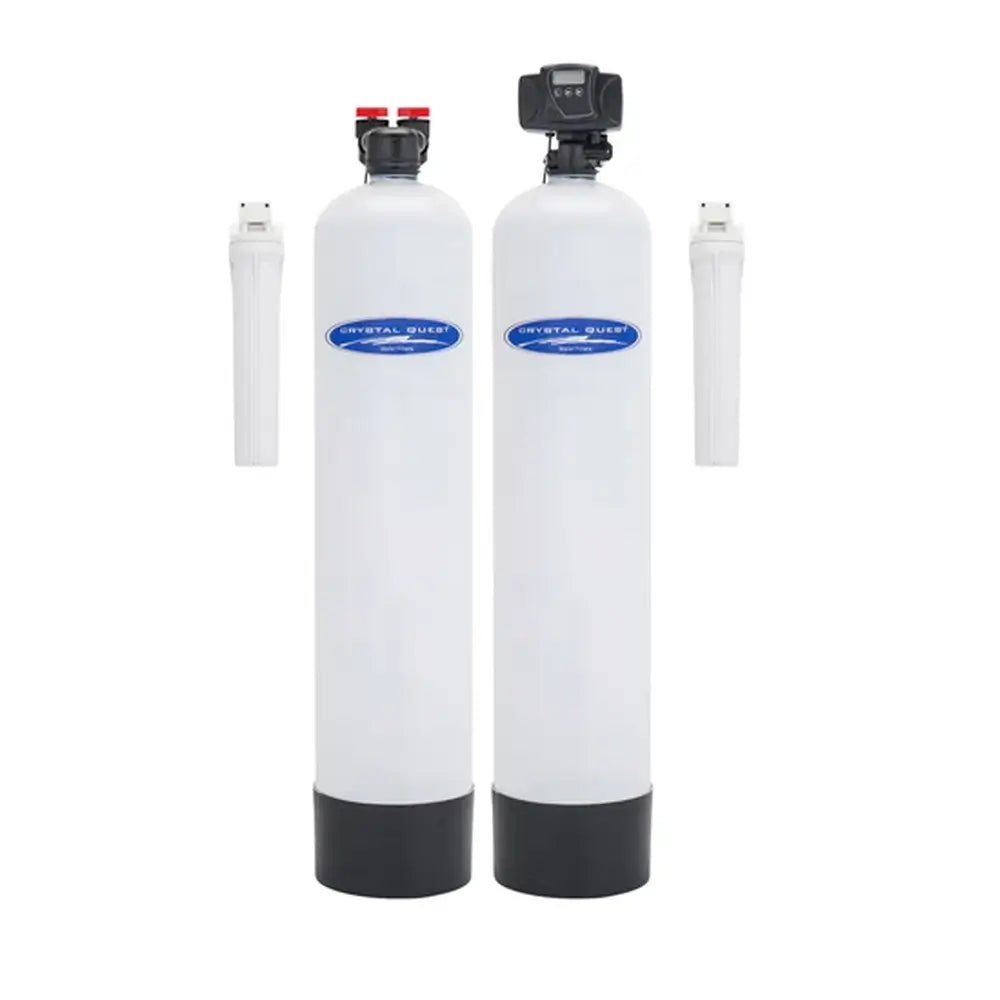

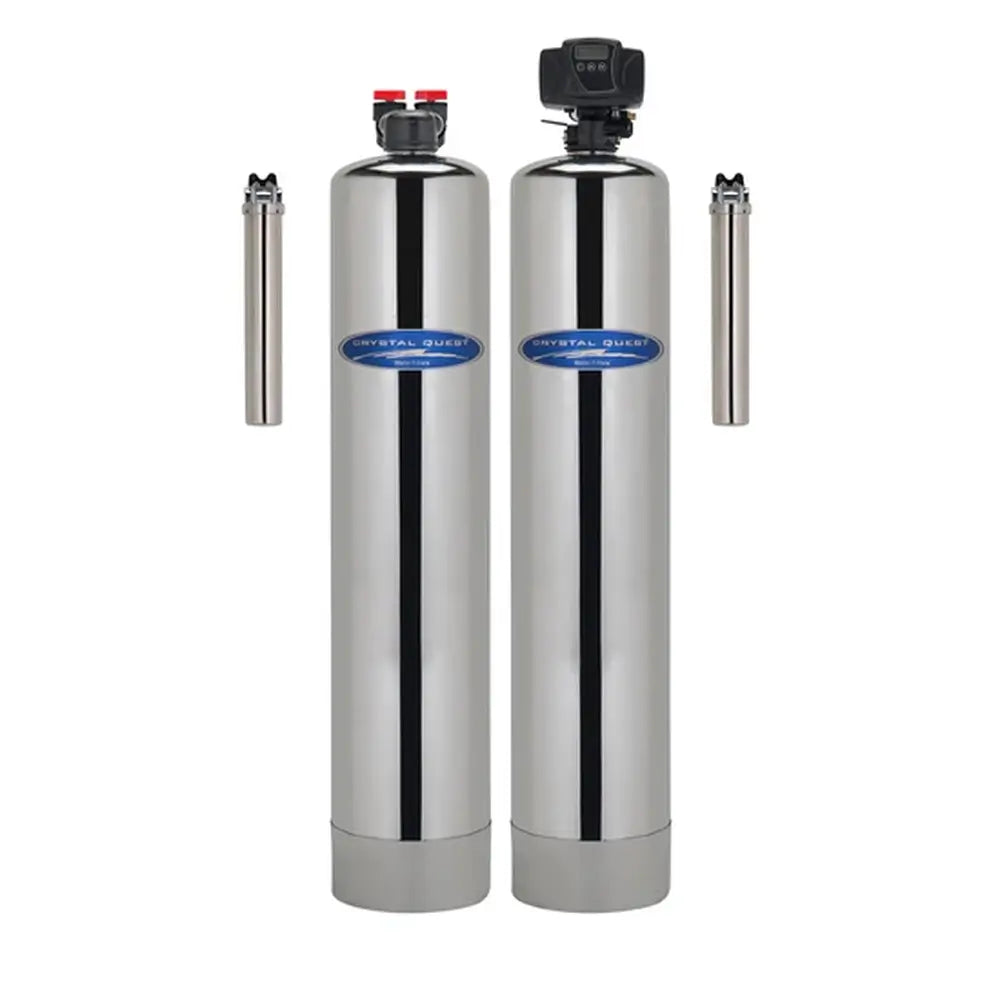

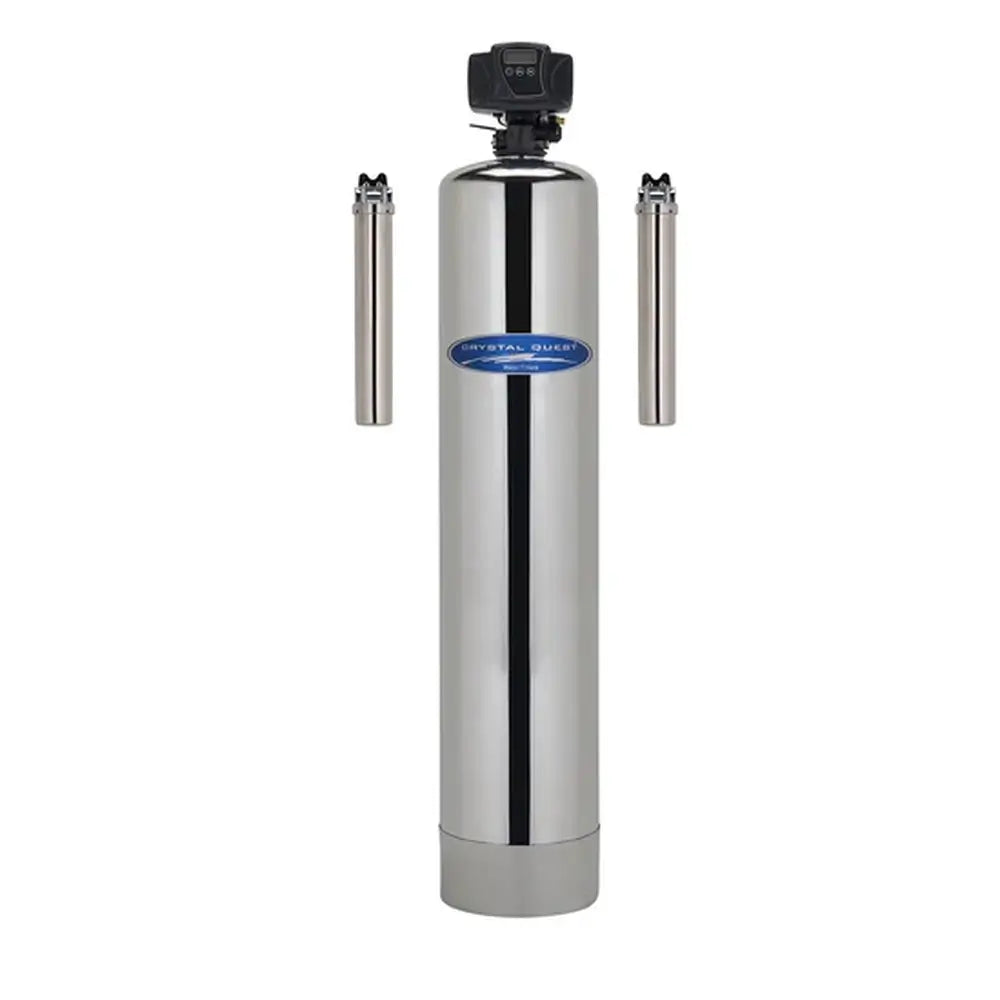

Filtration, Salt-Free Conditioning, or Softener Options

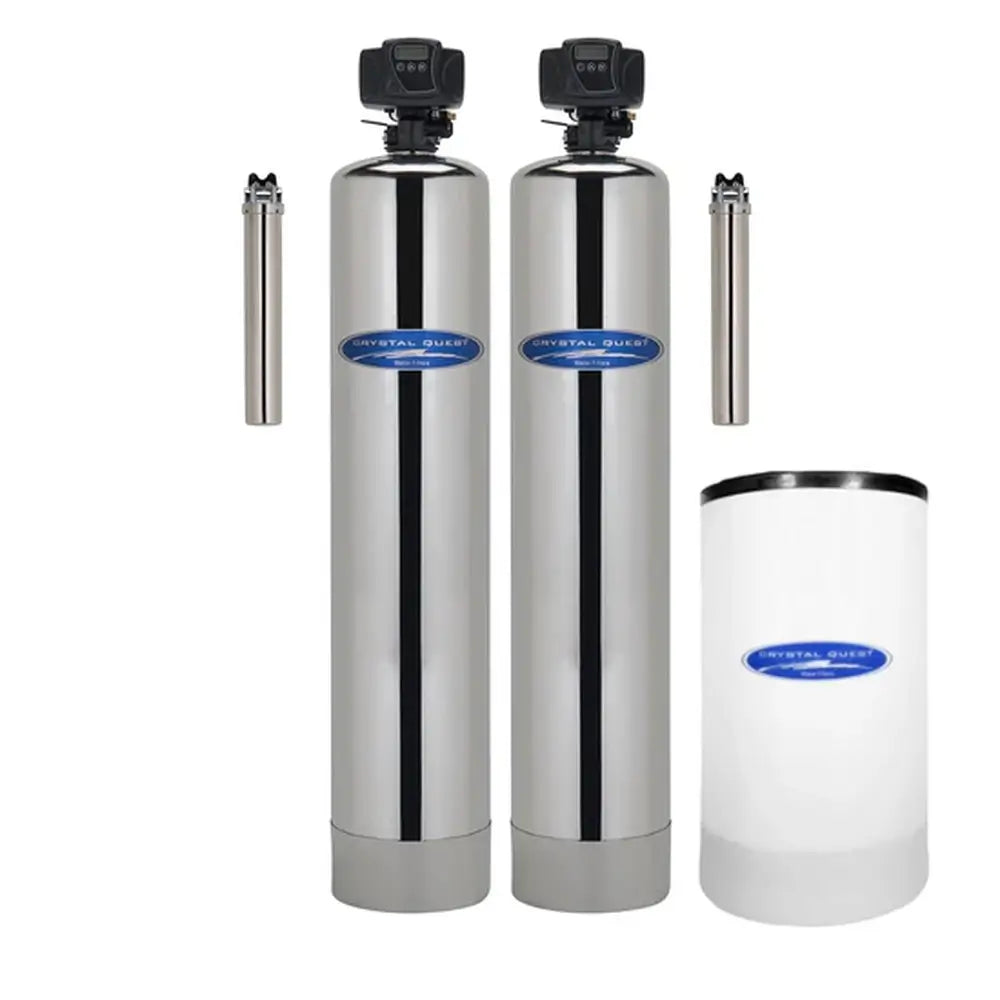

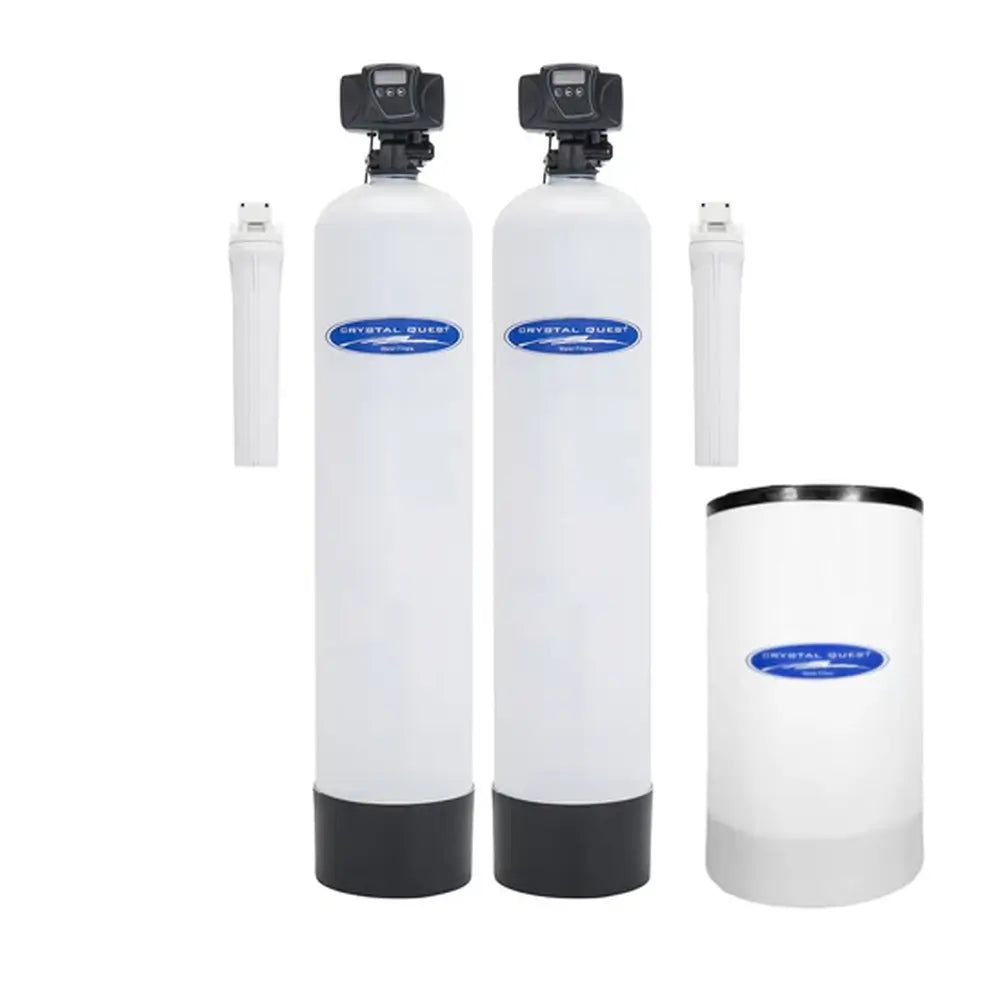

This product family is available as standalone filtration, with a salt-free conditioner, or with a traditional softener. If the softener configuration is selected, Crystal Quest lists an 18" × 33" brine tank and grain capacity options of 48,000 or 60,000 grains depending on the selected system size.
Automatic Backwash and Practical Installation Considerations
Automatic backwash is listed as standard on the system, and Crystal Quest also offers optional additions such as a 12 GPM UV water sterilizer, leak detector valve, vacuum breaker, metered valve, and oxidation system. For properties in high-humidity, salty, or condensation-prone environments, Crystal Quest recommends fiberglass tank construction over stainless steel.

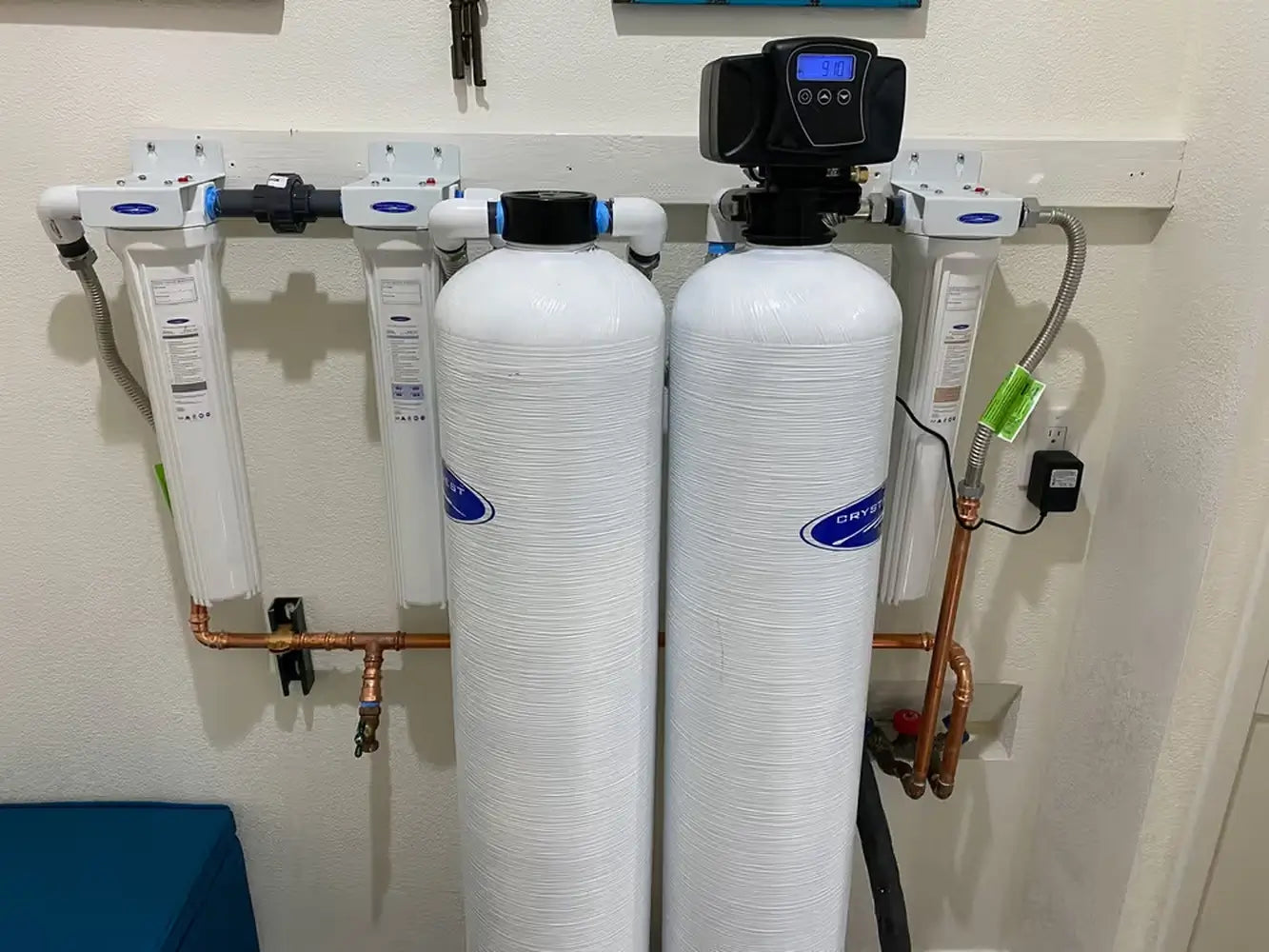

This point-of-entry Crystal Quest water filter is built to treat water at the main supply, helping support whole-house use across kitchens, bathrooms, laundry, and everyday household fixtures.
With standalone, salt-free, and softener-equipped configurations, the SMART platform offers practical flexibility for households comparing filtration-only and conditioning-focused water treatment options.
Crystal Quest SMART Whole House Water Filter Features & Benefits
-
Multi-stage filtration design: Combines sediment pre-filtration, SMART multimedia treatment, and carbon post-filtration for a more complete whole-house filtration process.
-
Two service-flow ranges: Available in 9-11 GPM and 10-13 GPM versions to better align with Crystal Quest’s published sizing for different household demands.
-
Configurable treatment options: Choose standalone filtration, a salt-free conditioner setup, or a traditional softener configuration within the same SMART product family.
-
Automatic backwash standard: Automatic backwash is built into the system to support routine operation without a fully manual cleaning process.
-
Tank material flexibility: Offered in stainless steel or fiberglass, with fiberglass recommended by Crystal Quest for humid, salty, or condensation-prone conditions.
-
High-capacity media options: Available in 1.5 cubic foot and 2.0 cubic foot versions with rated capacities of 1,000,000 or 1,500,000 gallons.
-
Optional upgrade path: Current options include a 12 GPM UV water sterilizer, leak detector valve, vacuum breaker, metered valve, and oxidation system.
Need help choosing the right Crystal Quest SMART whole house water filter setup?
We can help you compare capacity, tank material, and conditioning options for your home or property.
✓ Configurable whole-house water treatment
✓ Automatic backwash operation
✓ Flexible filtration and conditioning options
Contact Us for a Quote
Crystal Quest SMART Whole House Water Filtration Specifications
| Brand |
Crystal Quest |
| Model |
SMART Whole House Water Filter (9-13 GPM) |
| Product Type |
Point-of-entry whole house water filter system |
| Pressure Range |
30-60 psi |
| Configurations |
Standalone; with salt-free conditioner; with softener |
| Tank Material Options |
Stainless steel or fiberglass |
| Filter Media Volume |
1.5 cubic feet or 2.0 cubic feet |
| Capacity |
1,000,000 gallons or 1,500,000 gallons |
| Service Flow |
9-11 GPM or 10-13 GPM |
| Tank Dimensions |
10" × 54" or 12" × 52" |
| Backwash |
Automatic |
| Home Sizing |
1-3 bathrooms or 2-4 bathrooms |
| Softener Brine Tank Dimensions |
18" × 33" (when softener is selected) |
| Softener Grain Capacity |
48,000 or 60,000 grains (when softener is selected) |
| Built In |
USA |
| Optional Accessory |
12 GPM UV water sterilizer, leak detector valve, vacuum breaker, metered valve, oxidation system |
Crystal Quest SMART Whole House Water Filter Info
Whole House Manual
Guaranteed Performance
SMART Whole House Brochure
2.0 SMART Schematic (2.0 cu. ft. configuration)
