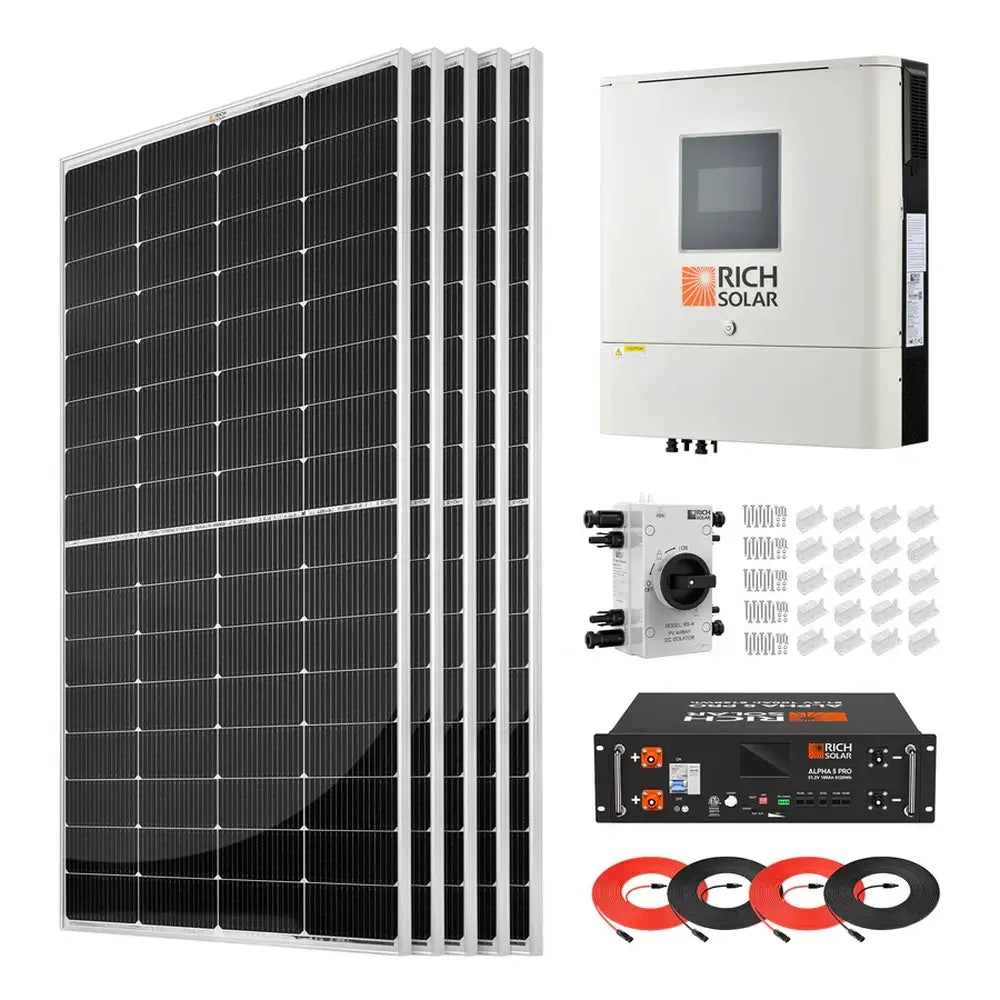

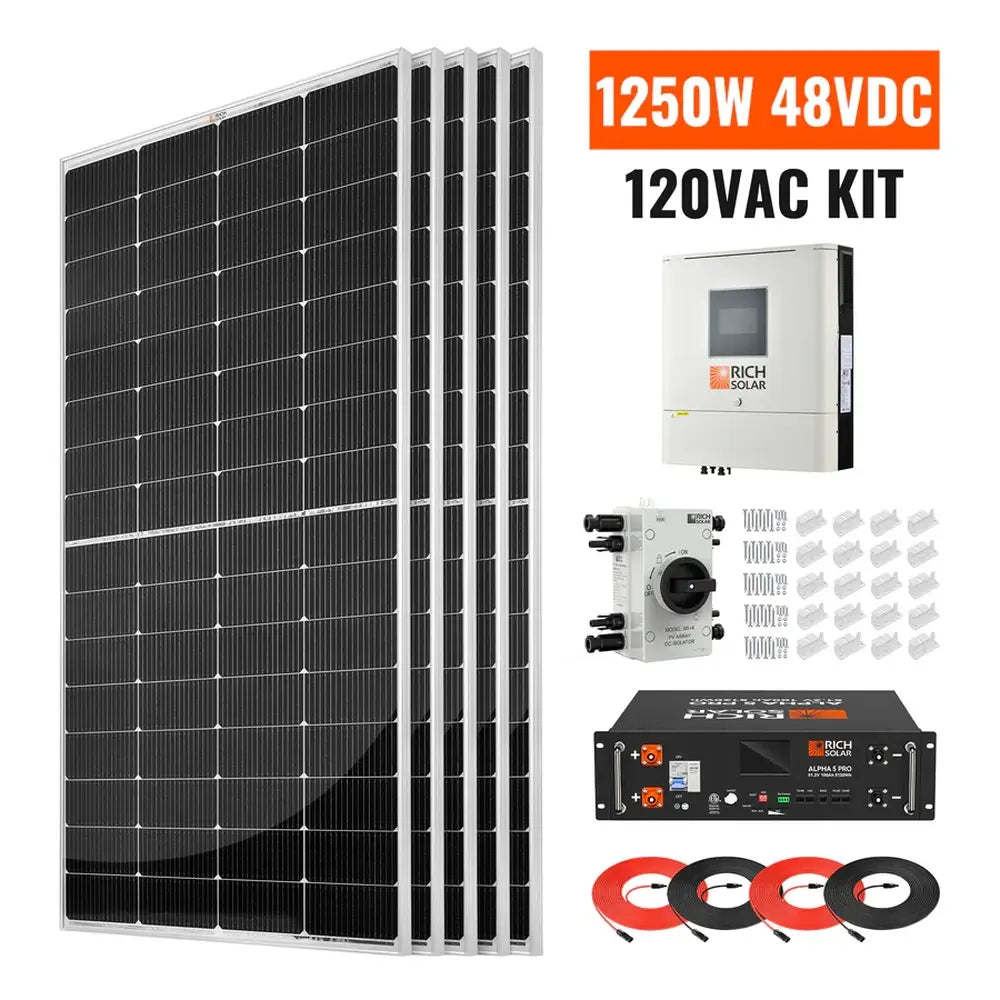

The Rich Solar RS-CBK1250 is a 48V solar, lithium battery and hybrid inverter package for professionally planned cabin, recreational vehicle, tiny home, accessory dwelling unit and off-grid power systems using the included NOVA 6500S inverter. It includes five MEGA 250 monocrystalline solar panels, one NOVA 6500S 6,500W 48V off-grid hybrid solar inverter, one ALPHA 5 PRO 51.2V 100Ah LiFePO4 server-rack battery, listed solar extension cables, eight RS-ZB4C Z-Brackets and one photovoltaic direct-current quick disconnect. The included panels provide 1,250W total rated photovoltaic capacity, while the battery provides 5.12kWh nominal energy before operating losses, reserve settings, temperature conditions and load demand are considered. The inverter accepts up to 8,000W photovoltaic array input and supplies up to 6,500W rated 120V AC output for properly configured systems. Battery-to-inverter wiring, additional protection equipment, grounding, array string design, mounting design, permitting, load planning and final installation must be completed or confirmed for the exact application before operation.

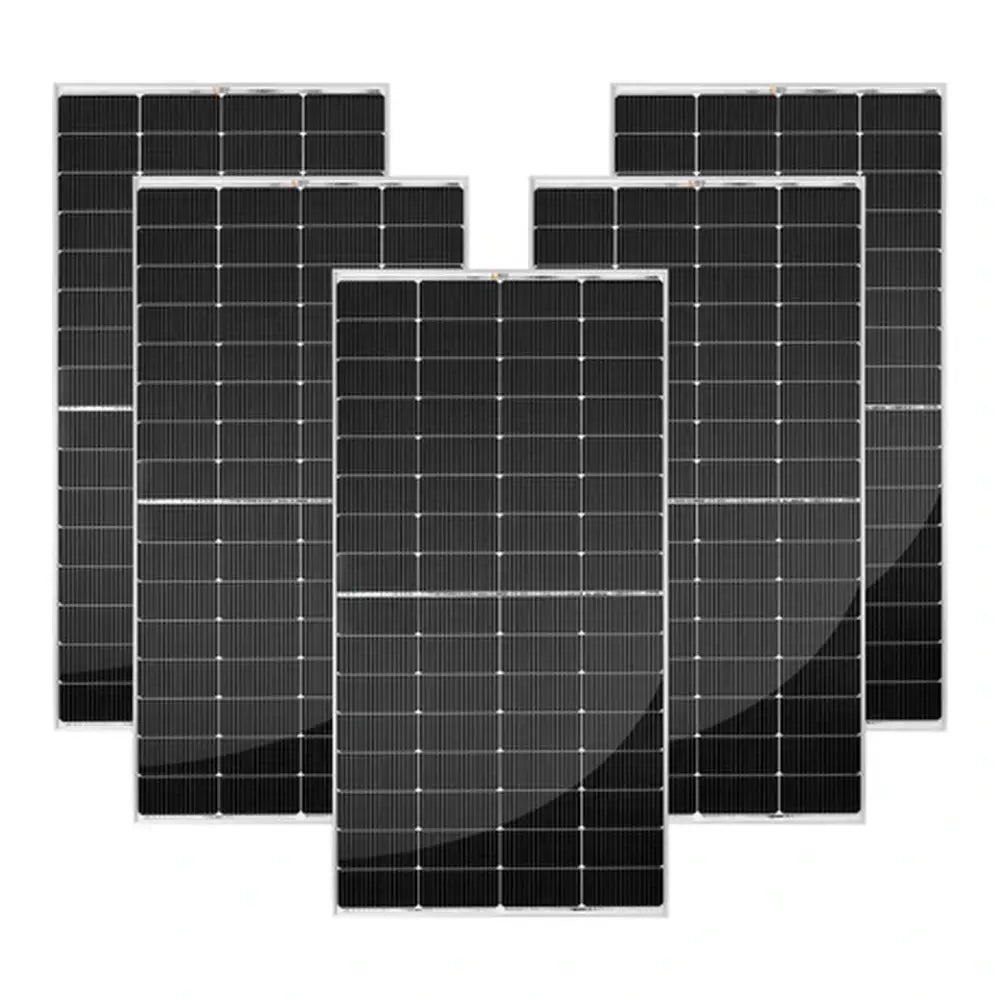

This package includes five Rich Solar MEGA 250 panels, each rated at 250W, for 1,250W of total rated photovoltaic capacity. The current panel datasheet identifies the RS-M250 as a 250W 12V module using N-Type TOPCon multi-busbar cell technology, high-transmission anti-reflective coated tempered glass and an anodized aluminum alloy frame. Final panel stringing and protective equipment must stay within the inverter’s documented photovoltaic voltage and current limits.

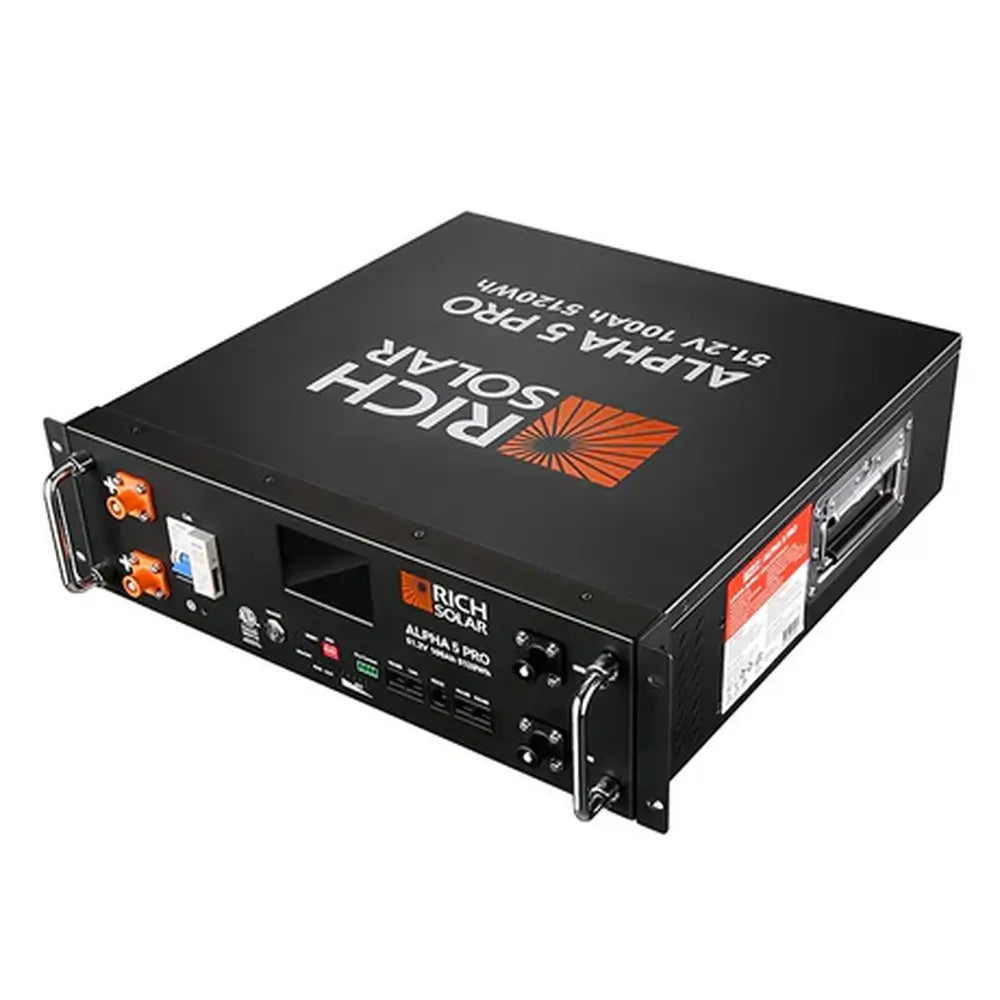

The included ALPHA 5 PRO battery, model RS-B5121P, provides 51.2V nominal voltage, 100Ah nominal capacity and 5,120Wh nominal energy. Rich Solar documents closed-loop communication support, a built-in circuit breaker, rack-mount construction, low-temperature charge protection, RS485, RS232 and CAN communication ports, and at least 7,000 cycles with at least 70% capacity retention in the current specification sheet.

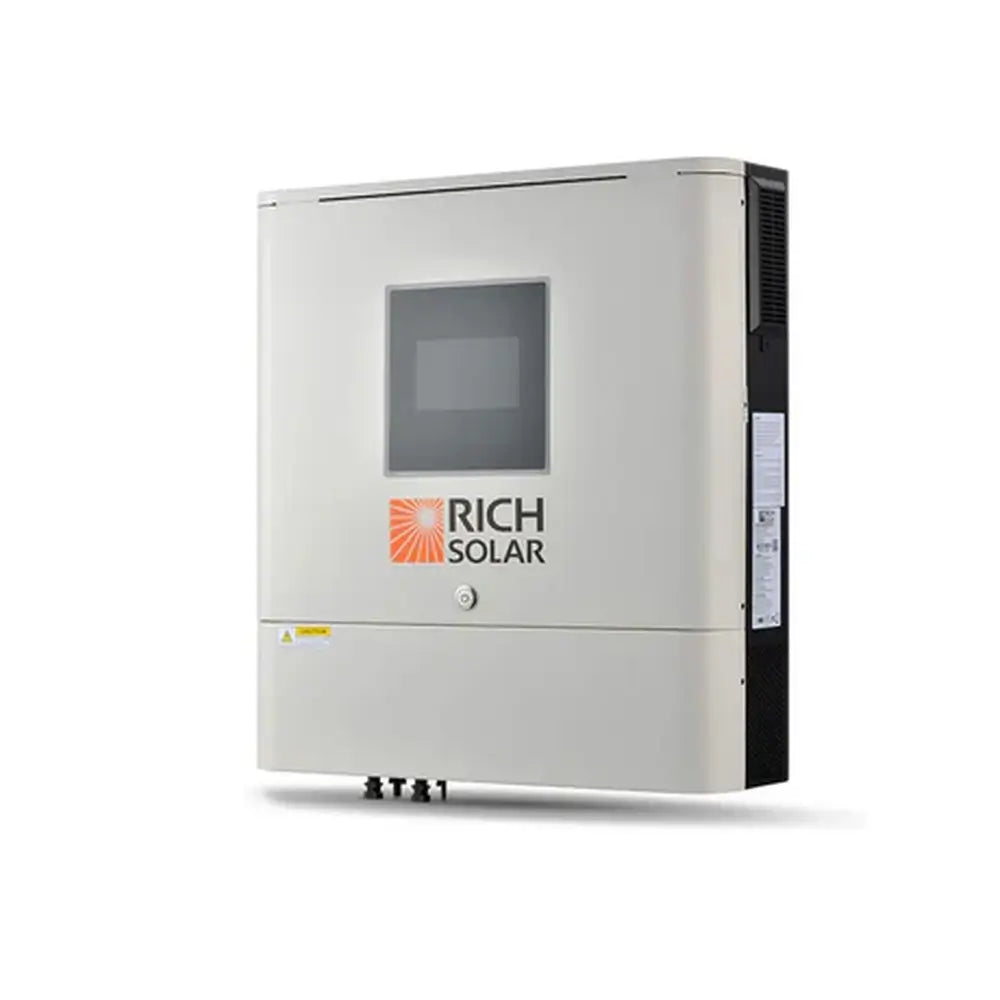

The included NOVA 6500S inverter, model RS-H6548S, is rated for 6,500VA / 6,500W output with 48V battery operation and 120V AC output. It includes maximum power point tracking solar charging, pure sine wave output, built-in Wi-Fi monitoring, RGB status indication, a 5-inch liquid crystal display, battery-management-system communication pathways and parallel capability for supported multi-inverter designs.
The RS-CBK1250 package lists one 30-foot 10 AWG extension cable, one 10-foot 10 AWG extension cable, eight RS-ZB4C Z-Brackets and one photovoltaic direct-current quick disconnect. These included parts support solar-side system assembly, but Rich Solar’s included-components list does not identify battery-to-inverter cabling, all required breakers, photovoltaic surge protection, grounding materials, structural mounting provisions or other code-required installation hardware as included.
Five MEGA 250 panels provide 1,250W of rated solar capacity for a professionally configured 48V battery-based power system.
The NOVA 6500S inverter and ALPHA 5 PRO battery combine 6,500W rated AC output with 5.12kWh nominal lithium storage.
Planning a 48V solar and battery system for your cabin, RV or off-grid project?
Contact TrueStead Supply for solar-kit guidance, battery and inverter planning support, and quote assistance.
✔ Solar system guidance ✔ Battery storage planning ✔ Quote assistance
Contact Us for a Quote| Brand | Rich Solar |
| Product Name | 1250W 48VDC–120VAC Solar Kit |
| SKU | RS-CBK1250 |
| Product Type | 48V Solar, Hybrid Inverter and LiFePO4 Battery Storage Kit |
| Total Rated PV Capacity | 1,250W |
| Included Solar Panels | 5 × Rich Solar MEGA 250 Monocrystalline Solar Panels, RS-M250 |
| Included Inverter | 1 × Rich Solar NOVA 6500S 48V Off-Grid Hybrid Solar Inverter, RS-H6548S |
| Included Battery | 1 × Rich Solar ALPHA 5 PRO 51.2V 100Ah Server Rack LiFePO4 Battery, RS-B5121P |
| Nominal Battery Energy | 5,120Wh / 5.12kWh before operating losses and reserve settings |
| Rated Inverter Output | 6,500VA / 6,500W |
| Nominal AC Output | 120VAC |
| Battery / Inverter Commissioning Note | This kit is manufacturer-listed with an ALPHA 5 PRO LiFePO4 battery and NOVA 6500S inverter; confirm the applicable lithium charging profile, battery-management-system communication settings and current Rich Solar commissioning instructions before operation |
| System Installation Requirements | Qualified-personnel installation required; array stringing, battery wiring, conductor sizing, disconnects, breakers, grounding, generator or utility connections, monitoring setup and commissioning must follow current Rich Solar manuals and applicable electrical requirements |
| PV Protection Requirement | Rich Solar’s NOVA 6500S manual requires separate DC circuit breakers between photovoltaic modules and the inverter and a photovoltaic junction box with surge protection; not all required protection equipment is identified as included with this kit |
| Inverter Mounting Requirements | Install the inverter vertically on a solid concrete or other non-combustible surface with manufacturer-required clearance for heat dissipation and wiring access |
| Battery Installation Environment | Install the ALPHA 5 PRO battery in a protected indoor area that is dry, level, free of flammable or explosive materials, protected from direct sunlight and suitable for system wiring; do not install directly outdoors |
| Inverter Warranty | 3-year warranty listed by Rich Solar for the NOVA 6500S inverter; refer to manufacturer warranty terms for coverage details |
| Qty. | Included Component | Model / SKU |
| 1 | NOVA 6500S 6,500W 48V Off-Grid Hybrid Solar Inverter | RS-H6548S |
| 5 | MEGA 250W Monocrystalline Solar Panel | RS-M250 |
| 1 | ALPHA 5 PRO 51.2V 100Ah Server Rack LiFePO4 Battery | RS-B5121P |
| 1 | 10 AWG 30 FT Solar Extension Cable | RS-30102 |
| 1 | 10 AWG 10 FT Solar Extension Cable | RS-10102 |
| 8 | Z-Bracket Set | RS-ZB4C |
| 1 | PV DC Quick Disconnect | RS-i4 |
| Model | RS-M250 |
| Quantity Included | 5 panels |
| Rated Power Per Panel | 250W |
| Total Rated Solar Capacity | 1,250W |
| Cell Technology | N-Type TOPCon multi-busbar solar cells, per current datasheet |
| Maximum Power Voltage | 18.9V |
| Maximum Power Current | 13.2A |
| Open-Circuit Voltage | 22.8V |
| Short-Circuit Current | 13.7A |
| Maximum System Voltage | 1,500VDC |
| Maximum Series Fuse Rating | 20A |
| Temperature Range | -40°F to 185°F |
| Frame and Glass | Anodized aluminum alloy frame with high-transmission anti-reflective coated tempered glass |
| Dimensions Per Panel | 60.6" × 29.9" × 1.2" |
| Weight Per Panel | 26.9 lb |
| Model | RS-H6548S |
| Product Type | 48V Off-Grid Hybrid Solar Inverter / Charger |
| Rated Inverter Output | 6,500VA / 6,500W |
| Surge Power | 13,000VA |
| AC Input Voltage | 120VAC |
| Selectable AC Input Range | 90–140VAC for UPS/computer mode; 80–140VAC for appliance mode |
| Output Voltage Regulation, Battery Mode | 120VAC ± 5% |
| Output Waveform | Pure sine wave |
| Peak Efficiency | 91% |
| Transfer Time | 10 ms for UPS mode; 20 ms for appliance mode |
| No-Load Power Consumption | Less than 75W |
| Battery Voltage | 48VDC |
| Float Charging Voltage | 54VDC |
| Solar Charger Type | Maximum Power Point Tracking (MPPT) |
| Maximum PV Array Power | 8,000W total; 4,000W × 2 inputs |
| PV MPPT Operating Voltage Range | 90–230VDC |
| Maximum PV Open-Circuit Voltage | 250VDC |
| Maximum Solar Charge Current | 120A |
| Maximum AC Charge Current | 120A |
| Parallel Capability | Up to 6 units |
| Display and Status Indication | 5" LCD and RGB status lighting |
| Monitoring and Communication | Built-in Wi-Fi; USB / RS232 / RS485 / dry-contact; BMS communication pathways for supported systems |
| Dimensions | 6.2" D × 19.8" W × 20.9" H |
| Net Weight | 44 lb |
| Manufacturer-Listed Compliance Safety | UL, per current Rich Solar specification sheet |
| Model | RS-B5121P |
| Battery Type | LiFePO4 Server Rack Battery |
| Quantity Included | 1 battery |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah |
| Nominal Energy | 5,120Wh / 5.12kWh |
| Charging Voltage | 56V listed in specification table; 57.6V maximum charge voltage listed in battery-management table |
| Maximum Charging Current | 100A |
| Maximum Discharge Current | 100A |
| Cycle Life | At least 7,000 cycles with at least 70% capacity retention, per specification sheet |
| Communication Ports | RS485 / RS232 / CAN |
| Low-Temperature Protection | Charging off below 32°F, as documented by Rich Solar |
| Dimensions | 17.7" L × 17.8" W × 5.2" H |
| Manufacturer-Listed Certifications | UL1973 and UL9540A; FCC listed in Rich Solar kit information |
| Warranty | 10-year warranty listed by Rich Solar; terms apply |
