Rich Solar RS-A10 All-in-One ESS | 6.5kW Output

Rich Solar RS-A10 All-in-One Energy Storage System – 6.5kW Off-Grid Power System

The Rich Solar RS-A10 All-in-One Energy Storage System is an integrated 6,500W off-grid power system that combines an inverter, charge controller, and lithium iron phosphate battery storage in one cabinet. The full All in One ESS configuration provides 5,120Wh battery capacity, 8,000W maximum photovoltaic input power, and 120 VAC nominal battery-mode output for properly planned energy systems. Built-in dual maximum power point tracking (MPPT) inputs and up to 120A solar charge current support solar array integration within the documented input limits. The system also supports programmable priority for photovoltaic input, battery, or grid power, plus monitoring through supported communication options and an Android or iOS app. Designed for off-grid energy-storage applications, this system requires qualified installation, appropriate load and wiring design, indoor protected placement, grounding, and mounting in accordance with the manufacturer’s manual and applicable electrical requirements.

6,500W Rated Output with 5.12kWh Battery Storage

The Rich Solar RS-A10 is rated for 6,500W output and includes a 51.2V, 100Ah lithium iron phosphate battery configuration with 5,120Wh listed capacity in the full system. This gives buyers clearly documented output and storage figures for comparing off-grid energy systems and planning priority loads.

Integrated Inverter, Battery, and Solar Charge Control

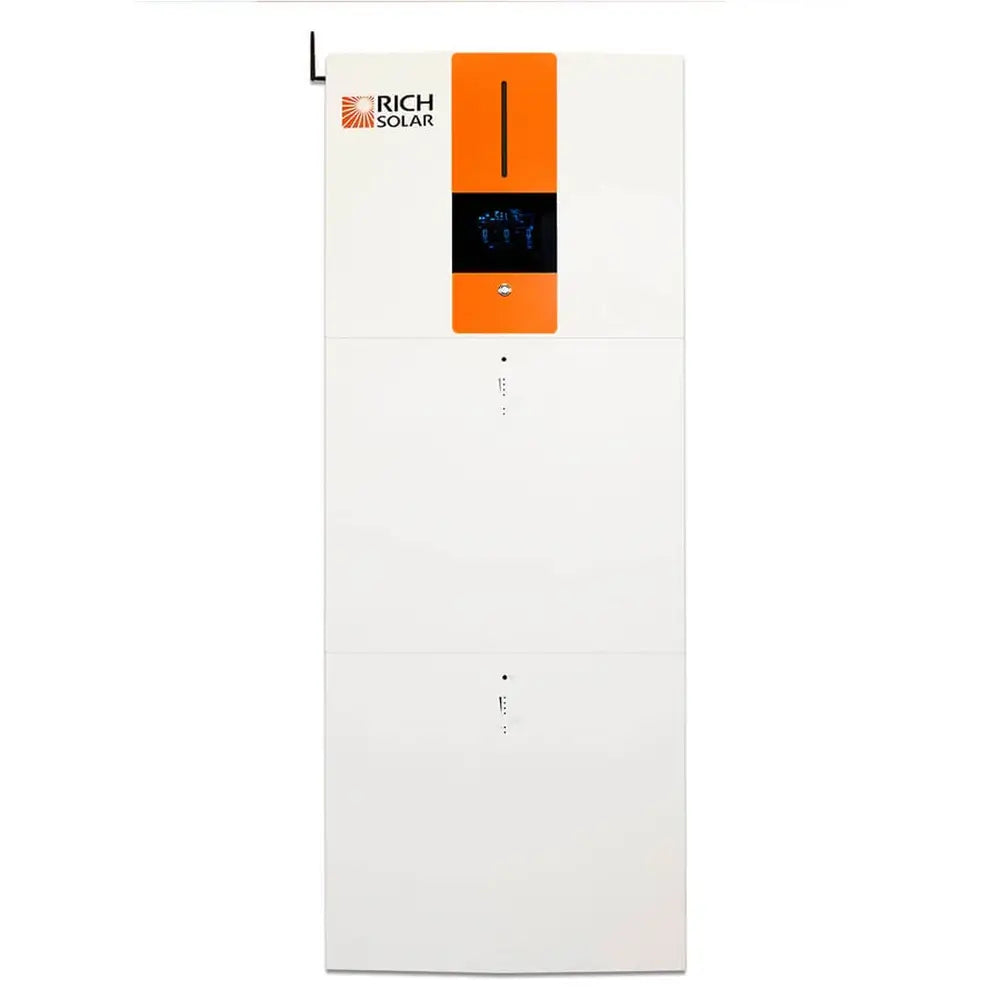

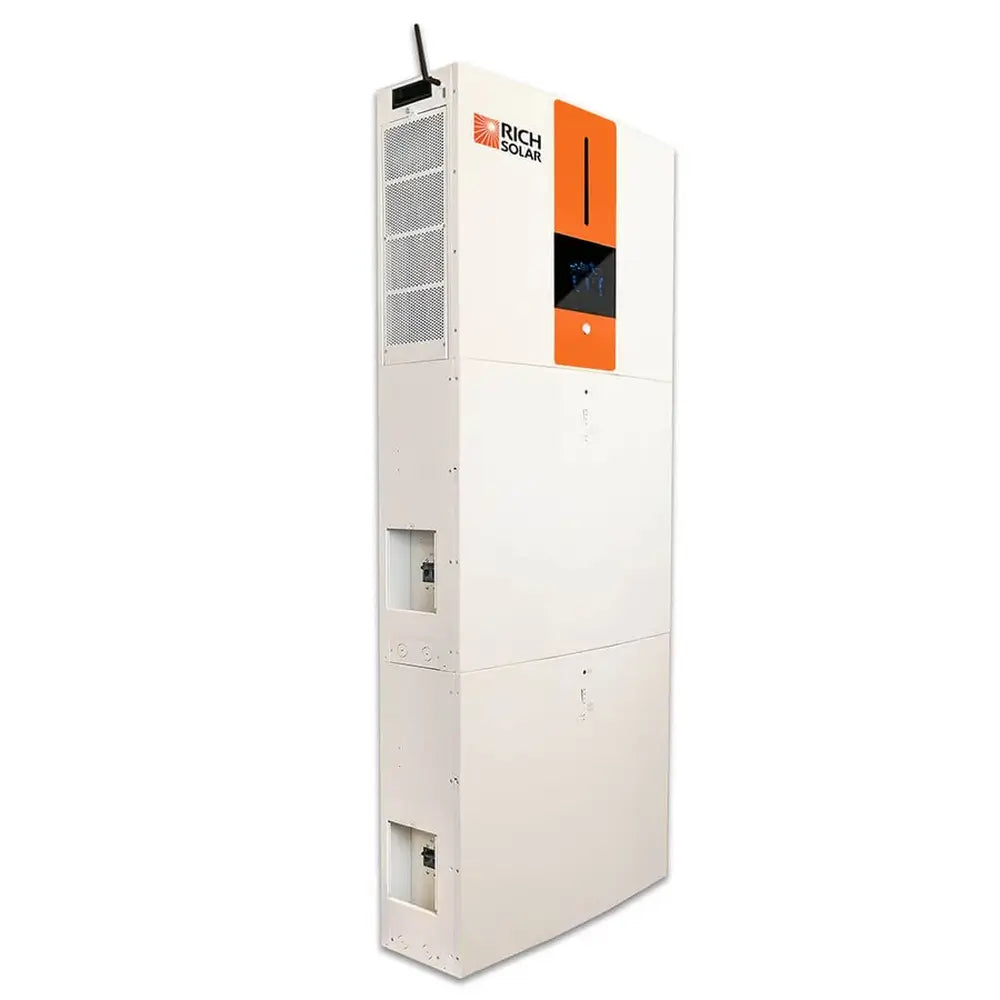

The full All in One ESS configuration combines the system components within a single 19.7" × 26" × 49.2" cabinet weighing 287 lb. Compared with assembling separate primary components, this integrated format can help simplify equipment selection and cabinet-level system organization while still requiring appropriate electrical design and installation.

Dual MPPT Solar Input and Programmable Power Priority

The system supports up to 8,000W maximum photovoltaic input power, a 90–230 VDC MPPT operating-voltage range, and two MPPT trackers with 2 × 18A maximum input current. Rich Solar also identifies programmable supply priority for photovoltaic input, battery, or grid power, giving system designers flexibility when configuring off-grid energy use.

Monitoring and Expansion Features for System Visibility

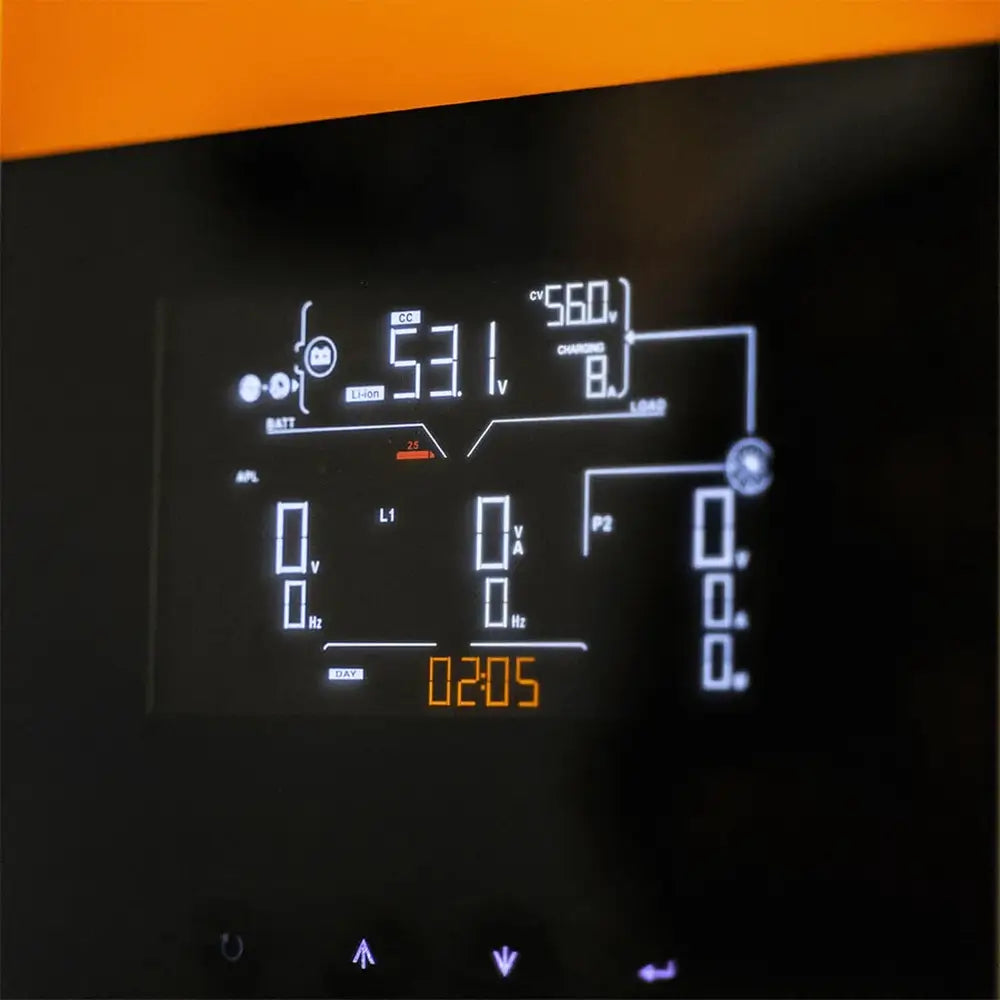

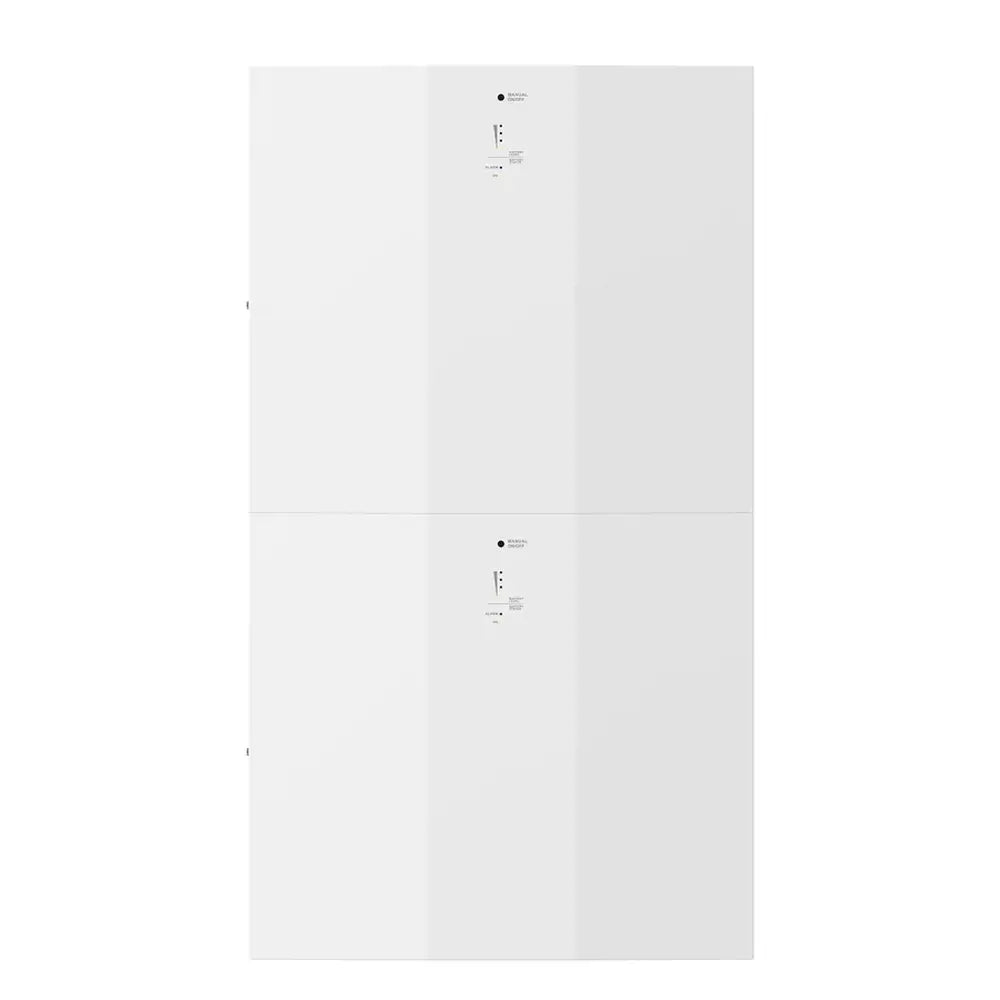

Rich Solar lists USB, RS232, SNMP, Modbus, GPRS, and Wi-Fi communication support, along with an Android and iOS monitoring app for real-time status display and parameter control. The manufacturer also identifies scalable lithium-ion battery expansion and compatibility with utility mains or generator power, subject to correct system design and installation.

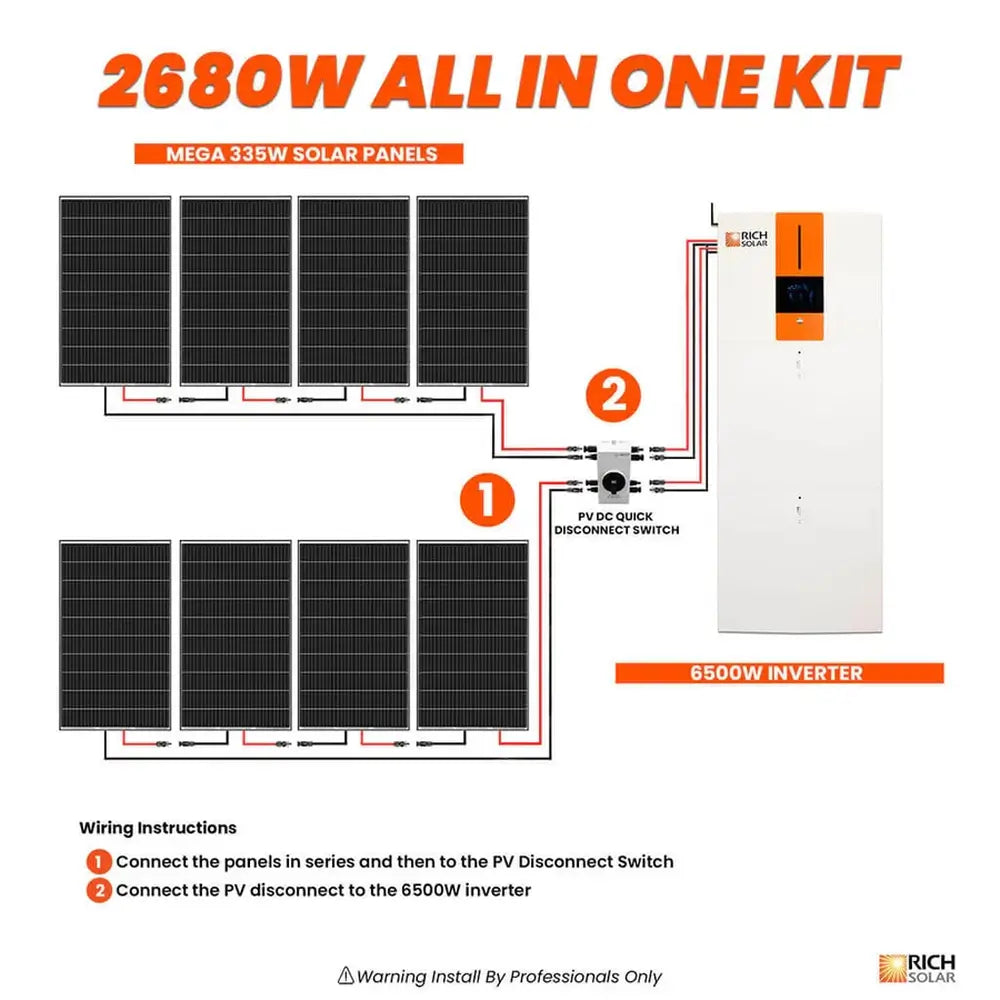

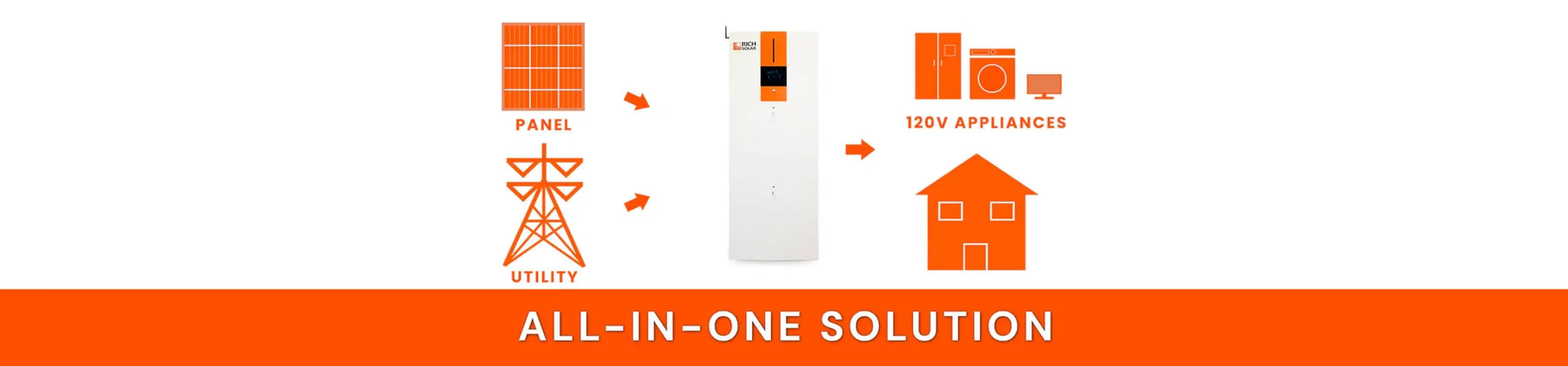

The RS-A10 integrates inverter, charge-control, and battery-storage functions within its cabinet. Solar panels, disconnect equipment, wiring, and other system components shown in this illustrative diagram should not be assumed included unless separately stated.

With documented solar input limits, monitoring connectivity, and 5.12kWh battery capacity, the RS-A10 supports properly designed indoor off-grid energy-storage installations within the manufacturer’s site and electrical requirements.

Rich Solar RS-A10 Features & Benefits

• 6,500W rated output power: Provides a documented output rating for system comparison and load-planning discussions.
• 5,120Wh lithium iron phosphate battery capacity: Supplies integrated battery storage in the full All in One ESS configuration.
• 8,000W maximum photovoltaic input power: Supports substantial solar-array input when designed within the published voltage and current limits.
• Built-in dual MPPT trackers: Supports solar harvesting through two documented tracking inputs for appropriately configured photovoltaic arrays.
• Pure sine wave output: Provides the manufacturer-listed inverter output format for compatible electrical loads.
• Monitoring and communication support: Includes listed app monitoring and multiple communication pathways for system-status visibility and parameter control.
• Integrated cabinet configuration: Combines inverter, controller, and battery-storage components within one full-system enclosure.
