Rich Solar MEGA 410 410W Solar Panel

Rich Solar MEGA 410 – 410W 24V-Class Pallet Solar Panel

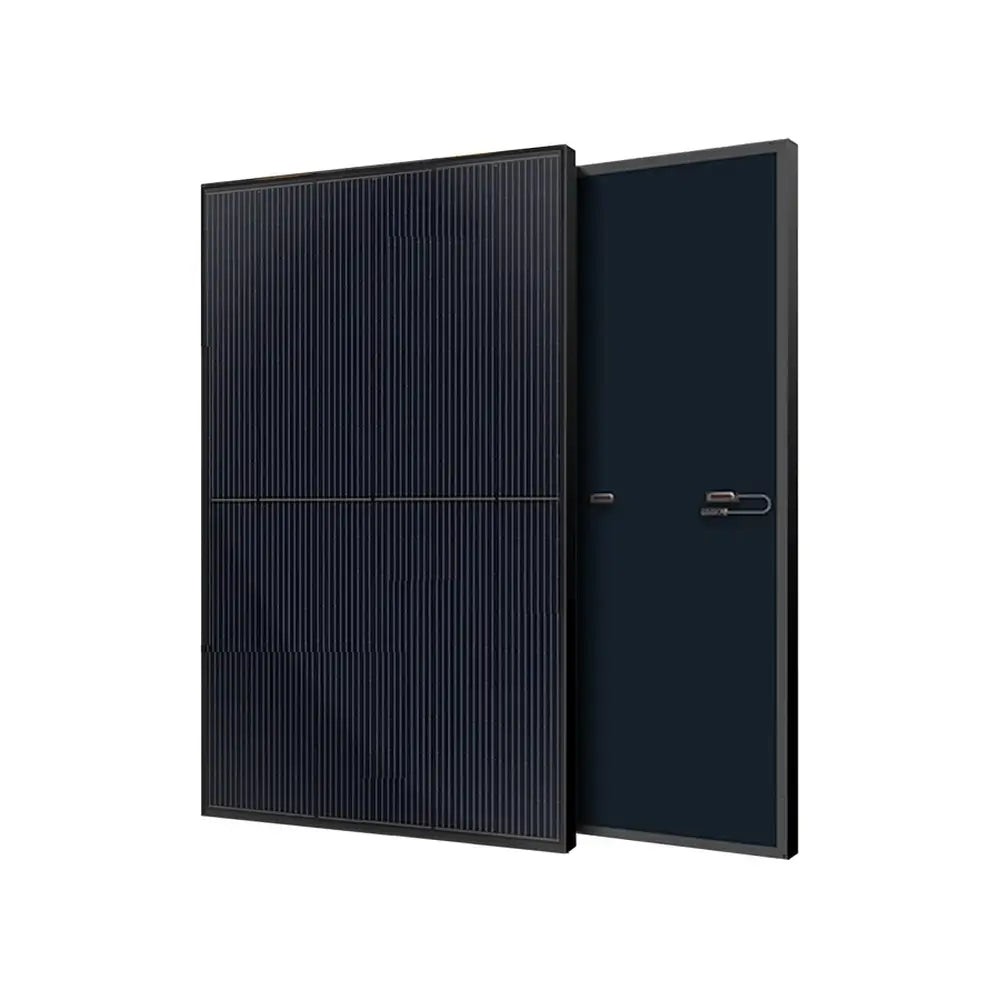

The Rich Solar MEGA 410 is a 410W solar panel built for residential, commercial, agriculture, grid-tie, and off-grid solar projects. This 24V voltage-class panel is offered in pallet quantity options of 8, 10, or 12 solar panels, making it better suited for larger solar layouts than single-panel upgrades. Each panel uses tempered glass and an anodized aluminum frame in a frame size that should be verified against the RS-M400 / RS-M410 Manual / Spec Sheet before publishing final dimensions. With 410W maximum power, 31.3V maximum power voltage, 1500VDC maximum system voltage, and a 25A maximum series fuse rating, it is designed for properly engineered solar arrays. The linked source copy lists Mono PERC technology, a 10-busbar solar cell configuration, IP-rated connection components, and a 25-year limited power output warranty.

410W Solar Panel for Larger Grid-Tie or Off-Grid Projects

The MEGA 410 is built for residential, agricultural, commercial, and off-grid systems where higher per-panel output can reduce panel count in properly designed systems compared with lower-wattage modules. Pallet quantities of 8, 10, or 12 panels help larger projects plan around matched modules, freight handling, and system design.

Mono PERC Technology with 10-Busbar Cell Design

The linked source copy lists Mono PERC technology, a 10-busbar solar cell configuration, high-transmission anti-reflective coated tempered glass, and low-light performance language. Verify these details in the RS-M400 / RS-M410 Manual / Spec Sheet before publishing them as structured technical specs.

Built-In Components for Outdoor Solar Arrays

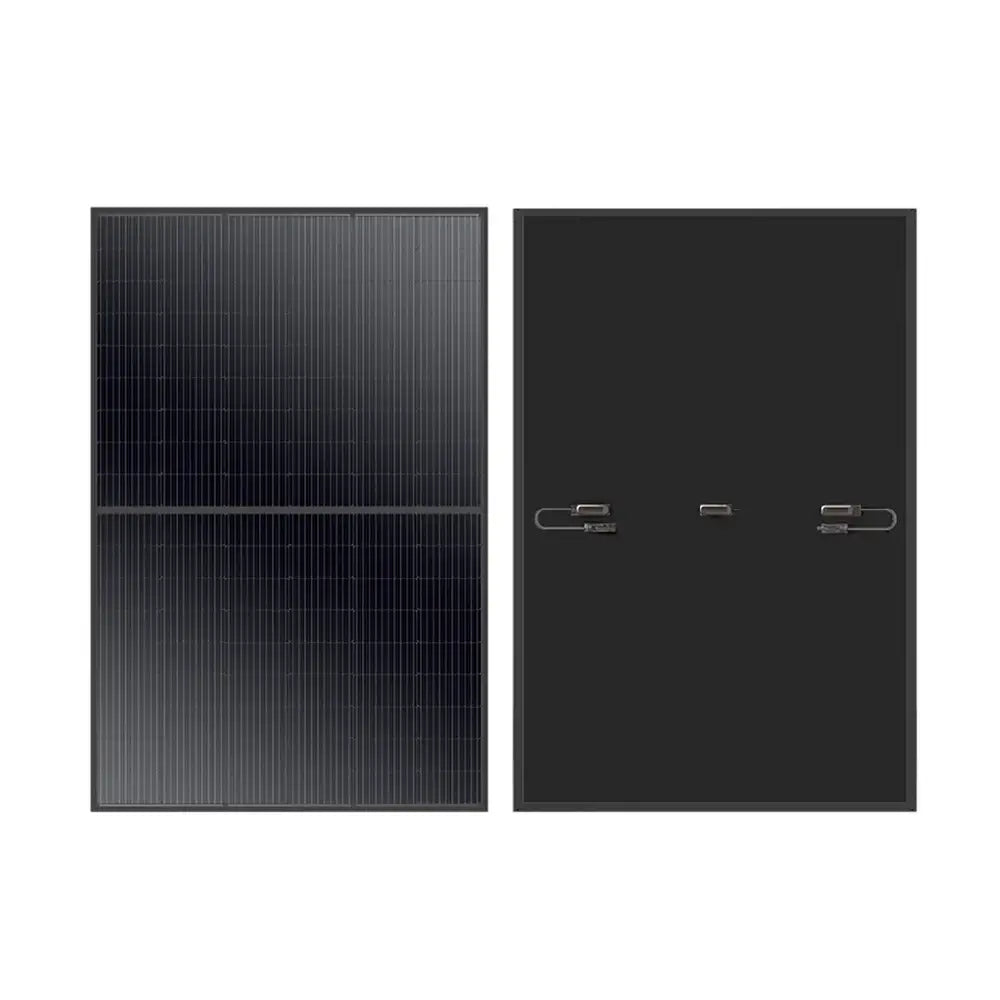

The linked source copy lists panel leads, an IP68-rated junction box, IP67-rated connectors, and bypass diodes built into the junction box. These components support practical array planning when paired with compatible wiring, inverters, racking, and protection equipment.

Pre-Drilled Mounting and Series or Parallel Wiring Support

Pre-drilled holes are listed as compatible with ground mounts, Z brackets, pole mounts, and tilt mounts. Industry-standard quick-connect cables work in series or parallel when the full system is designed with compatible controllers, inverters, wiring, and electrical protection.

The MEGA 410 is built for larger solar projects where panel count, output, and system design need to be planned together. Pallet options of 8, 10, or 12 panels support residential rooftops, commercial arrays, agriculture sites, and off-grid power layouts.

With a 1500VDC maximum system voltage, 25A maximum series fuse rating, waterproof connection components, and quick-connect cables, this panel is built for serious solar system planning. Confirm racking, inverter, controller, wiring, permitting, and site requirements before installation.

Rich Solar MEGA 410 Features & Benefits

• 410W maximum power: Provides high per-panel output for properly designed residential, commercial, agriculture, grid-tie, or off-grid solar arrays.

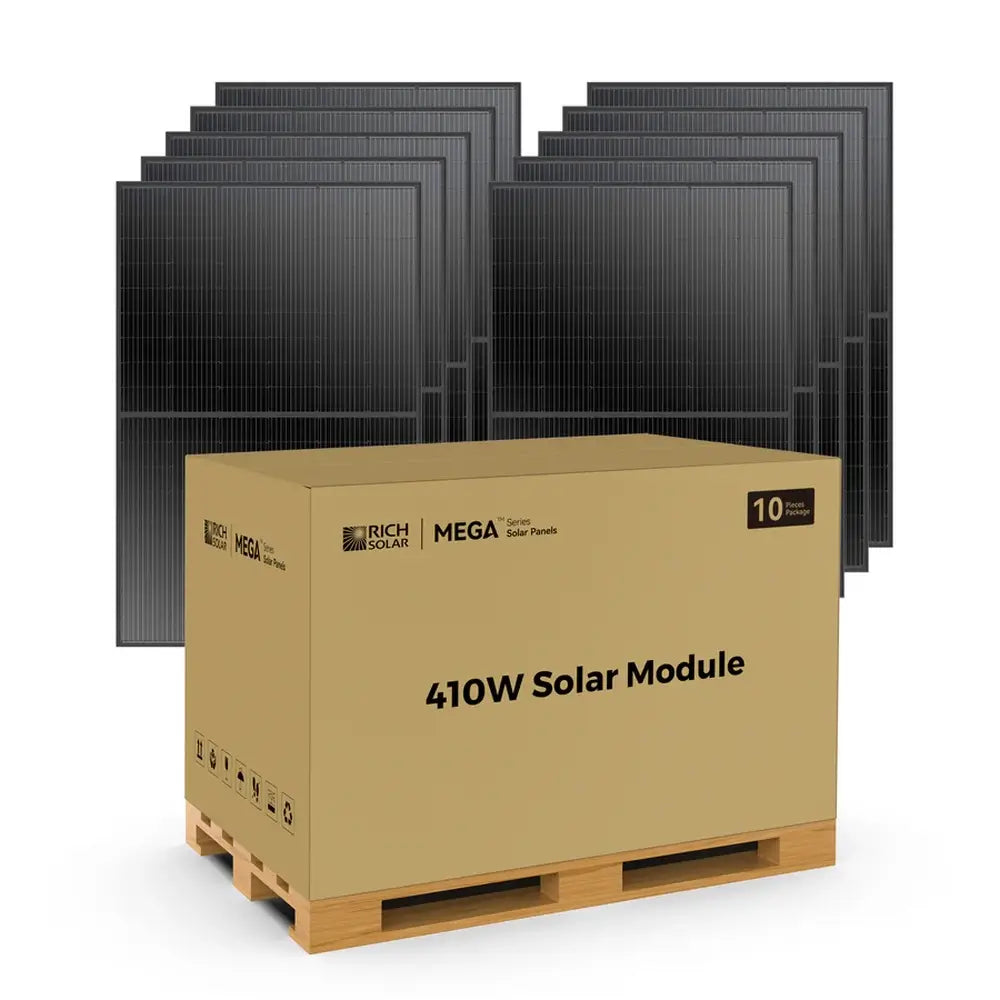

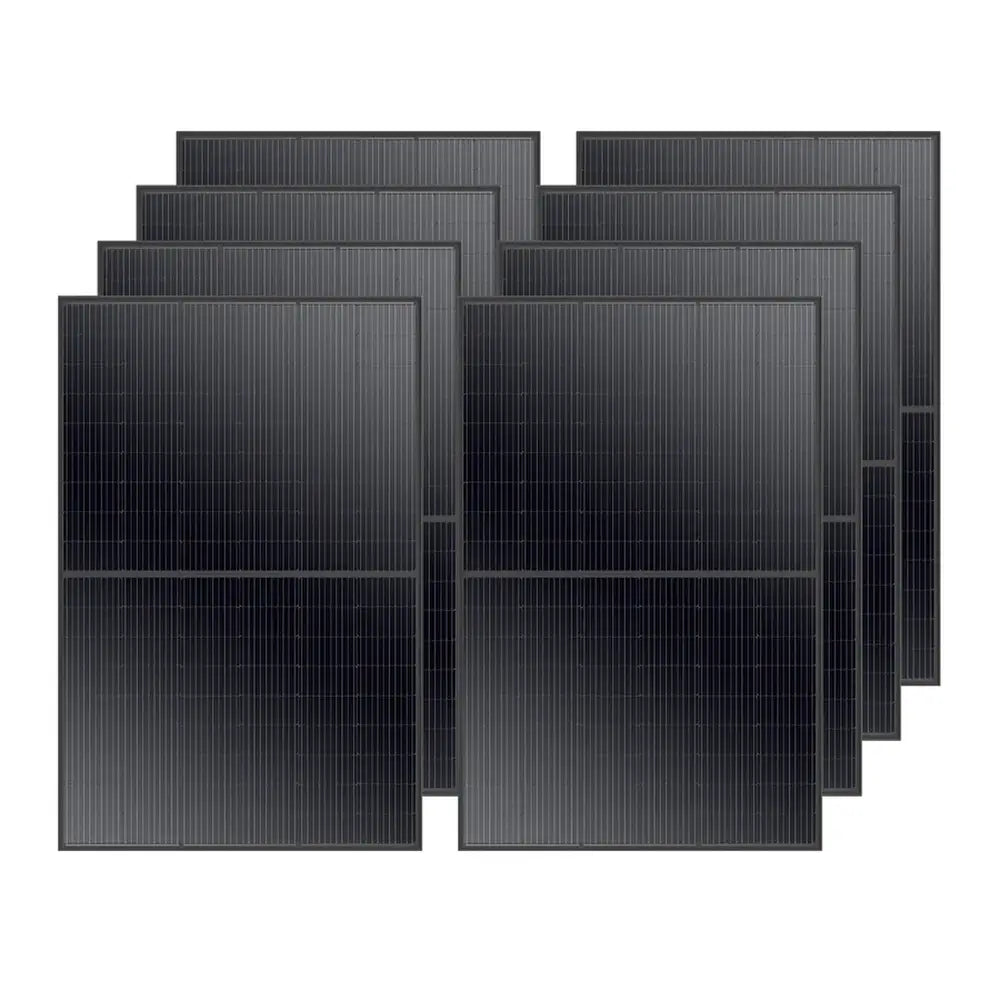

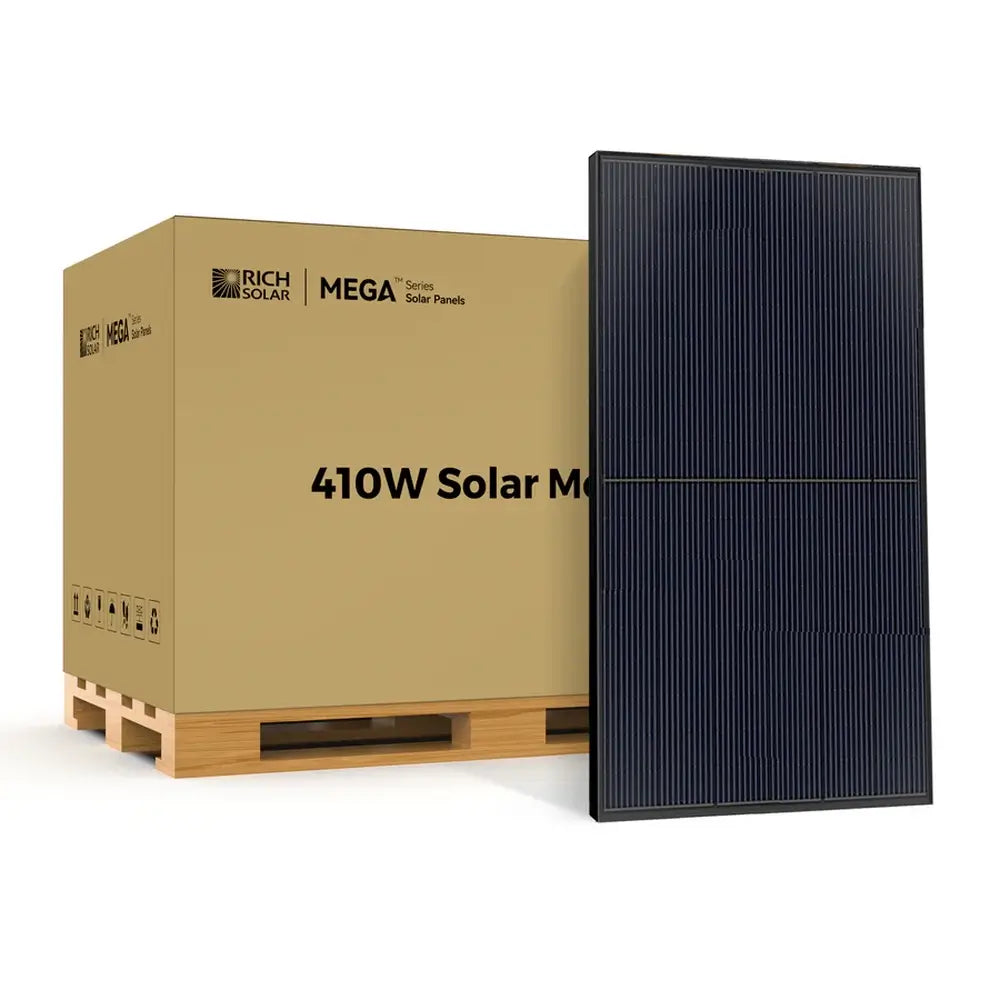

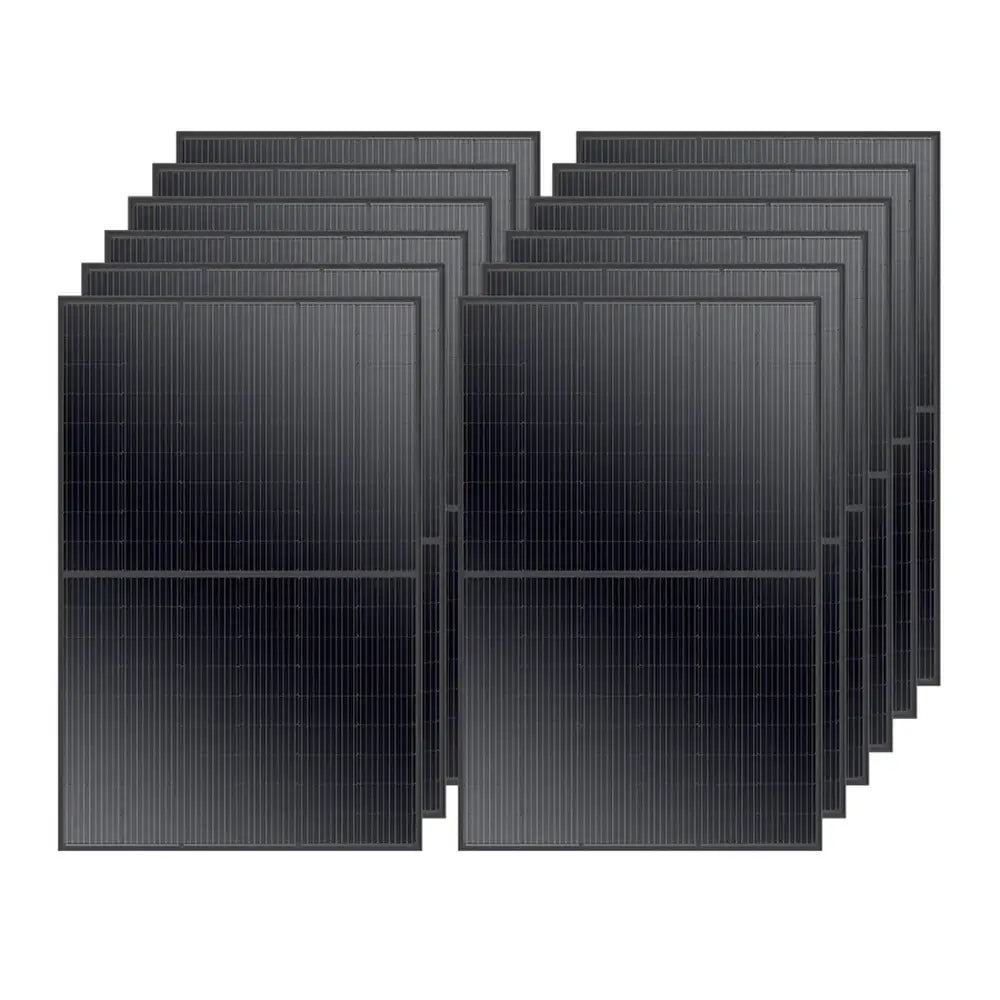

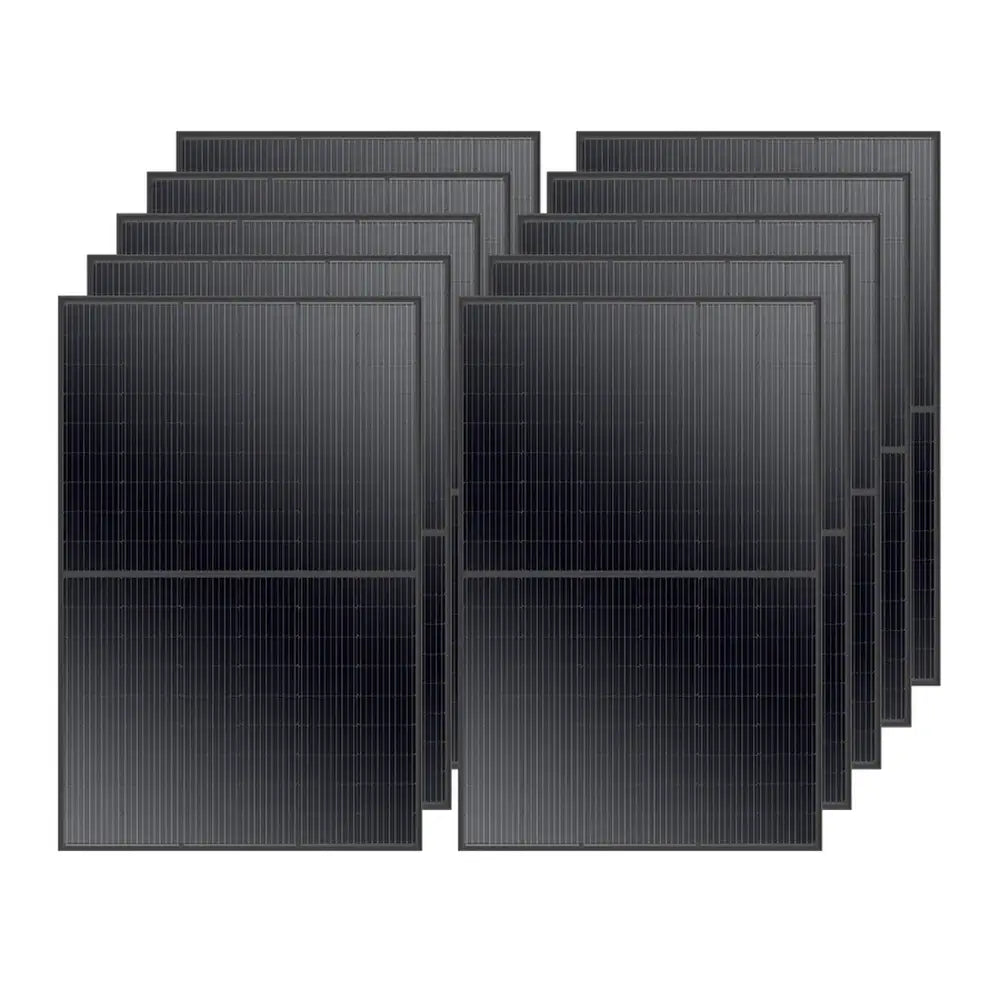

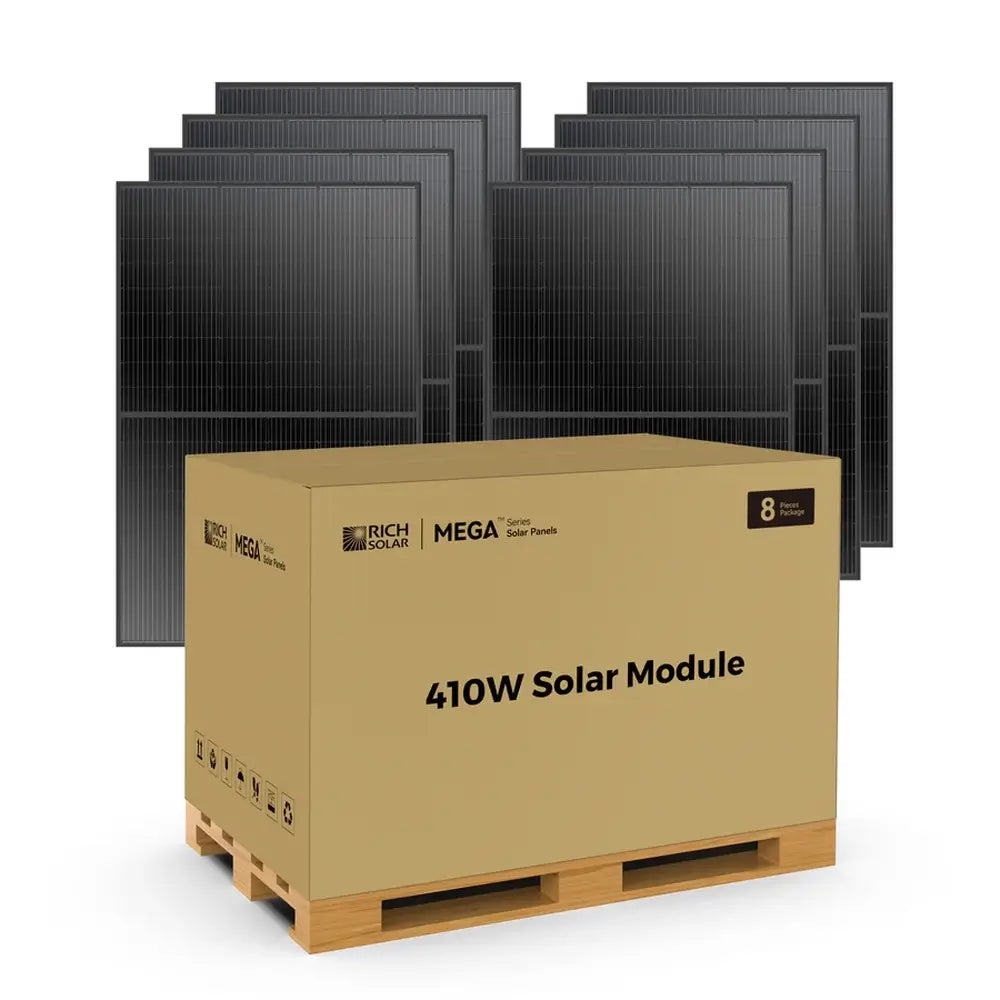

• Pallet quantity options: Offered in 8, 10, or 12-panel pallet quantities for larger project planning and freight handling.
• Mono PERC technology: Supports Rich Solar’s premium solar generation positioning for grid-tie or off-grid applications.
• 10-busbar cell configuration: Helps support the panel’s electrical design and output stability.
• IP68 junction box and IP67 connectors: Helps protect key connection points from dust and water exposure in suitable outdoor installations.
• Bypass diodes built in: Help manage output effects from partial shading within the limits of system design.
• 25-year limited power output warranty: Provides long-term output coverage; review Rich Solar warranty terms for workmanship coverage details.

Rich Solar MEGA 410 Specifications

Rich Solar MEGA 410 Info

Rich Solar MEGA 400 / MEGA 410 Manual / Spec Sheet
