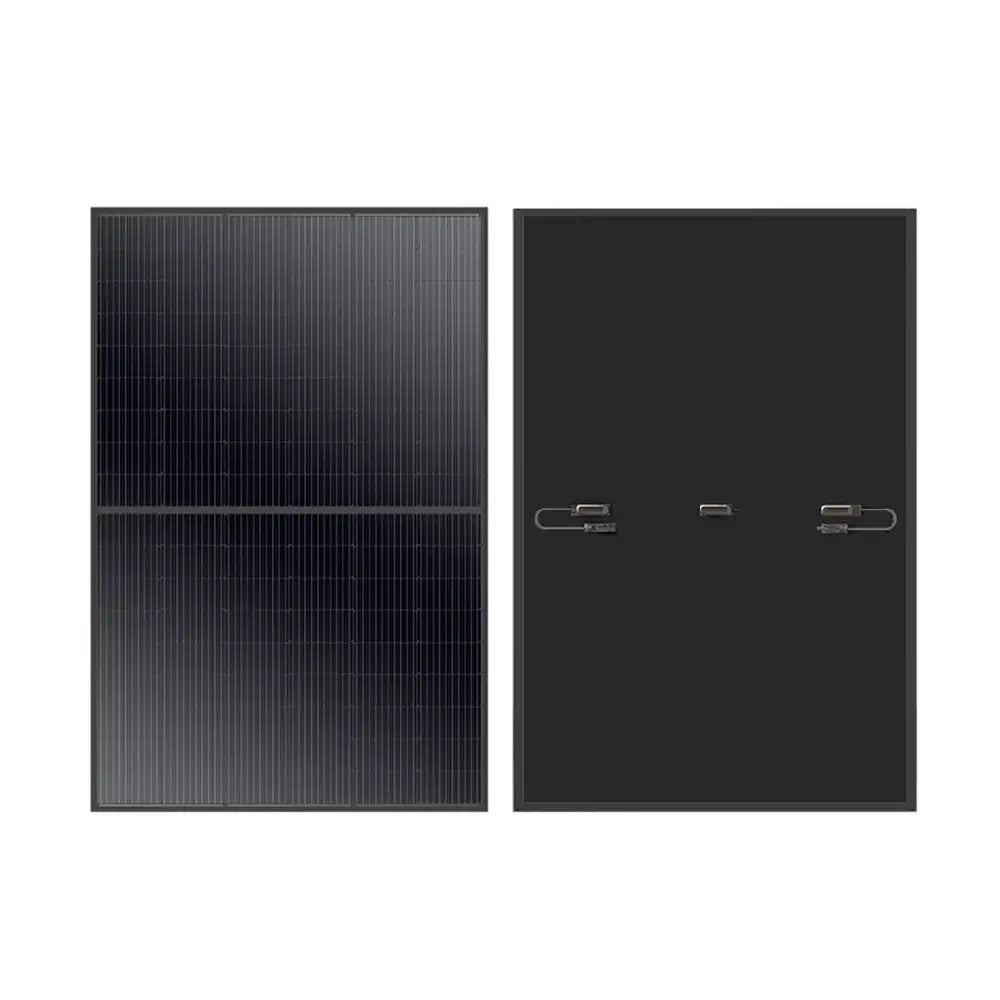

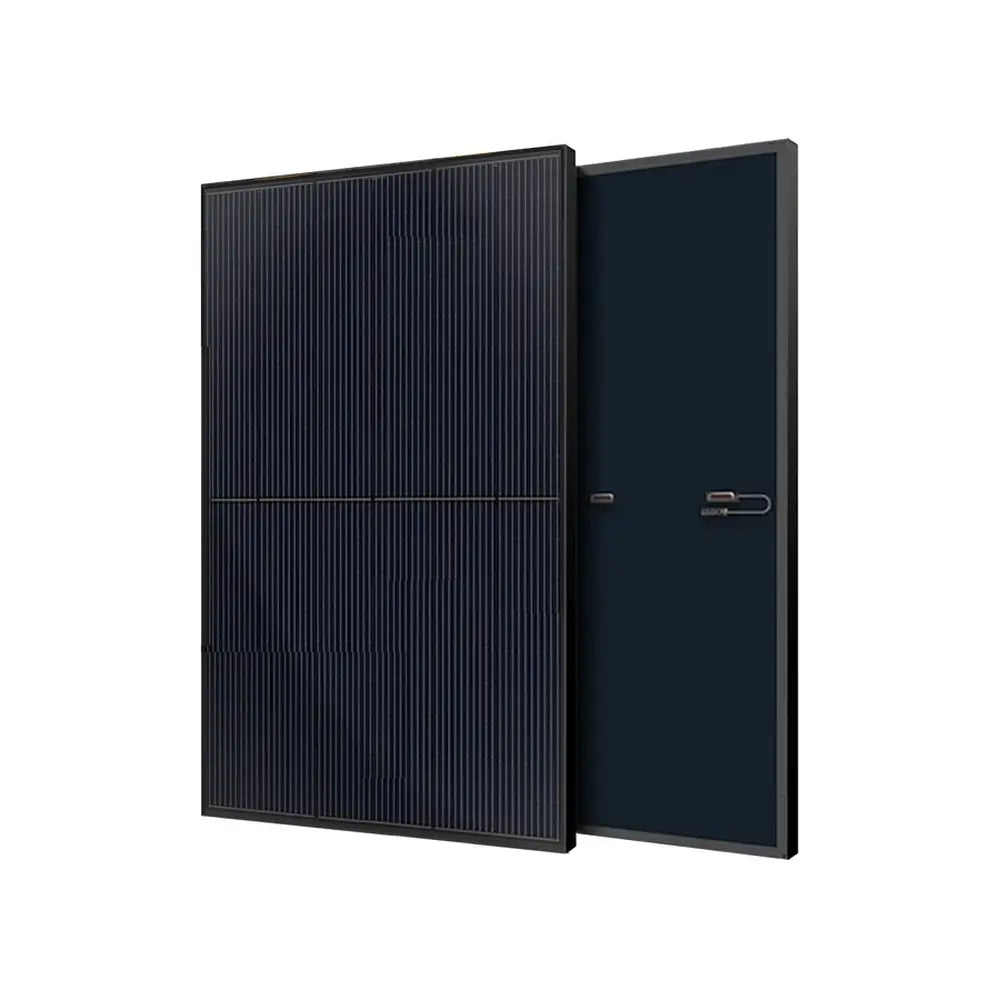

The Rich Solar MEGA 400 is a 400W solar panel built for residential, commercial, agriculture, grid-tie, and off-grid solar projects. This 24V voltage-class panel is sold in pallet quantities of 8, 10, or 12 panels, making it better suited for larger solar layouts than single-panel upgrades. Each panel uses tempered glass, aluminum, and monocrystalline silicon in the updated 67.8" × 44.7" × 1.2" frame that weighs 45.2 lb. With 400W maximum power, 31.0V maximum power voltage, 1500VDC maximum system voltage, and a 25A maximum series fuse rating, it is designed for properly engineered solar arrays. The MEGA 400 also includes approximately 47" panel cable length, listed source-copy cell technology details, and a 25-year limited power output warranty.

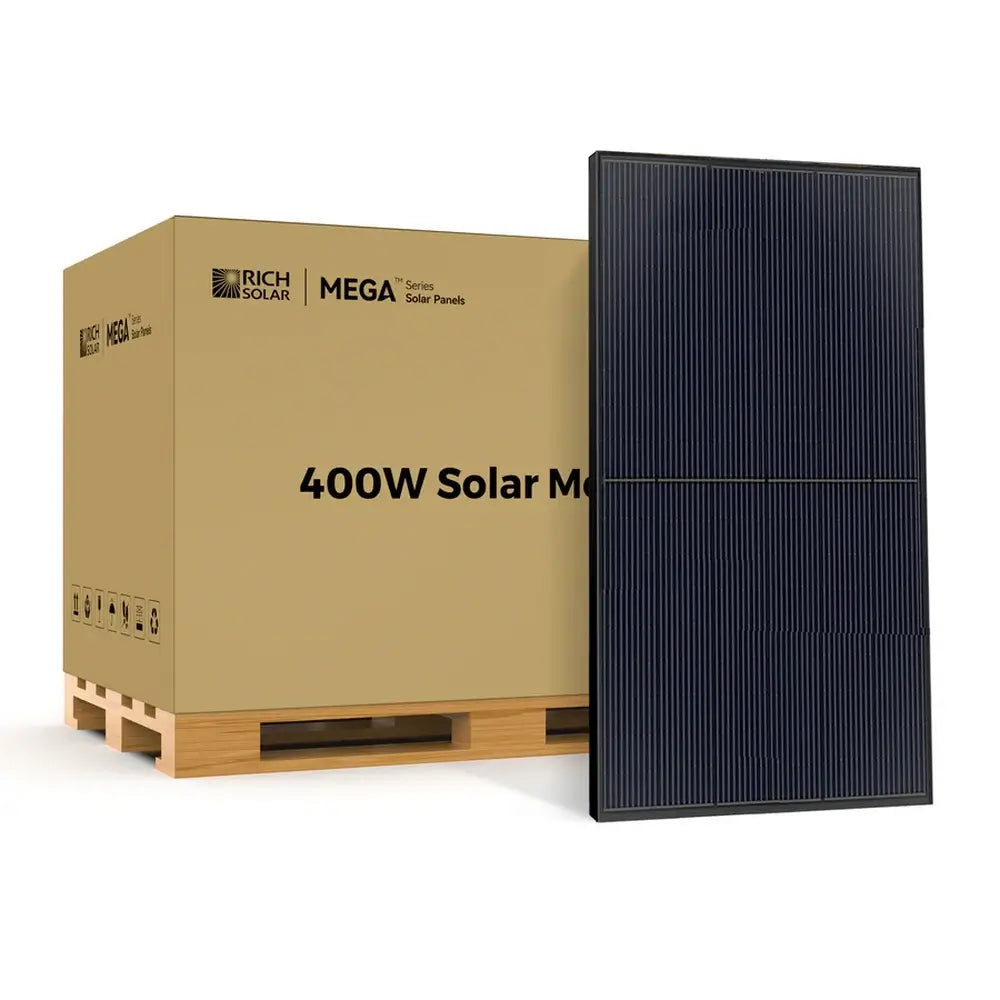

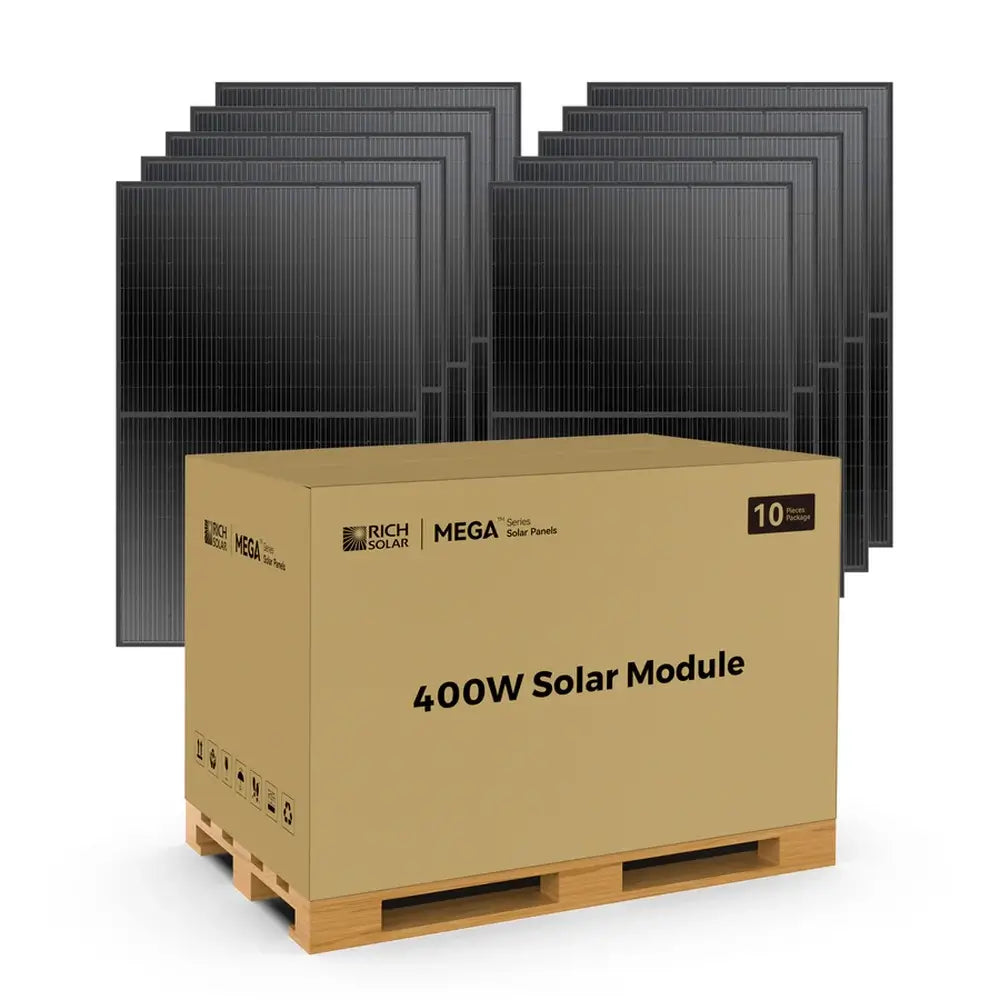

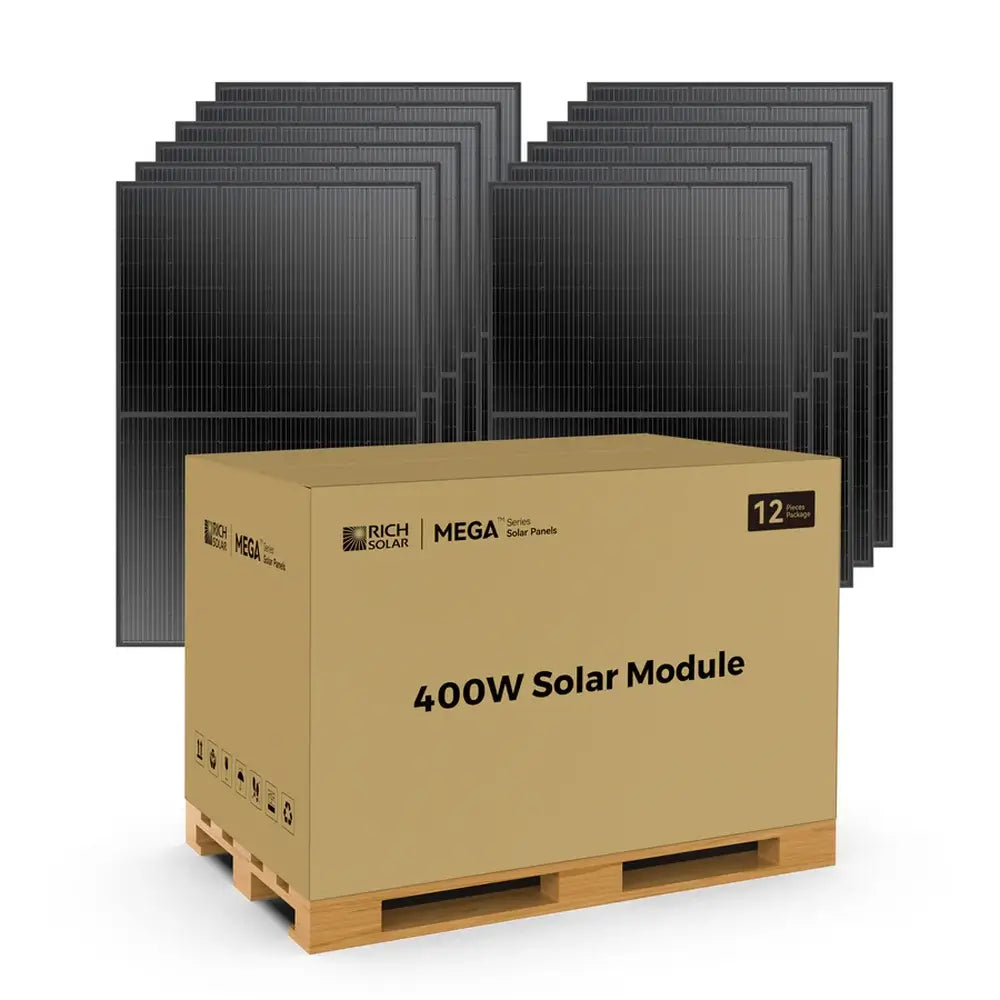

The MEGA 400 is designed for larger residential, commercial, agriculture, and off-grid solar layouts. Pallet quantities of 8, 10, or 12 panels support scaled project planning where matched panels, freight handling, and system design matter.
The provided source copy lists Mono PERC technology and a 10-busbar solar cell configuration. Verify these details in the linked RS-M400 / RS-M410 specification sheet before treating them as structured technical specs.
Rich Solar notes that the new 400W panels measure 67.8" × 44.7" × 1.2". This updated size should be used for racking, spacing, freight, layout, and installation planning instead of older MEGA 400 dimensions.
Mounting should be planned with compatible racking and hardware verified against the RS-M400 / RS-M410 specification sheet. Source-listed quick-connect cables can support series or parallel wiring only when voltage, current, controller or inverter limits, wire sizing, overcurrent protection, and full system design are properly matched.
The MEGA 400 is built for larger solar projects where panel count, output, and system design need to be planned together. Pallet options of 8, 10, or 12 panels support residential rooftops, commercial arrays, agriculture sites, and off-grid power layouts.
With a 1500VDC maximum system voltage, 25A maximum series fuse rating, and approximately 47" panel cable length, this panel is built for serious solar system planning. Confirm racking, inverter, controller, wiring, overcurrent protection, permitting, and site requirements before installation.
Need help planning a larger solar panel order?
Contact TrueStead Supply for pallet quantity guidance, system comparison support, and quote assistance.
✔ Pallet order support ✔ Grid-tie or off-grid guidance ✔ Quote assistance
Contact Us for a Quote| Brand | Rich Solar |
| Model | MEGA 400 |
| SKU | RS-M400-8 listed for 8-panel pallet option |
| Product Type | Solar panel for grid-tie or off-grid systems |
| Pallet Quantity Options | 8 solar panels; 10 solar panels; 12 solar panels |
| Maximum Power | 400W per panel |
| Panel Voltage Class | 24V voltage class; listed Vmp is 31.0V |
| Maximum Power Voltage | 31.0V |
| Maximum Power Current | 12.9A |
| Open Circuit Voltage | 37.1V |
| Short Circuit Current | 13.7A |
| Maximum System Voltage | 1500VDC |
| Maximum Series Fuse Rating | 25A |
| Cell Type | Monocrystalline silicon |
| Cell Configuration | 10-busbar solar cell configuration |
| Cell Technology | Mono PERC technology |
| Materials | Tempered glass, aluminum, monocrystalline silicon |
| Frame | Lightweight anodized aluminum frame |
| Glass | High-transmission AR-coated tempered glass |
| Panel Cable Length | Approximately 47" |
| Junction Box | Plug-and-play junction box |
| Wiring | Quick-connect cable language listed in source copy; series or parallel wiring depends on full system design, voltage/current limits, wire sizing, and overcurrent protection |
| System Integration | Suitable for properly designed grid-tie or off-grid systems; final compatibility depends on string sizing, inverter or charge-controller limits, wiring, racking, overcurrent protection, and local permitting |
| Mounting Compatibility | Ground mounts, Z brackets, pole mounts, and tilt mounts |
| Temperature Range | -40°F to +185°F |
| Dimensions | 67.8" × 44.7" × 1.2" |
| Weight | 45.2 lb per panel |
| Warranty | 25-year limited power output warranty; review Rich Solar warranty terms for workmanship coverage details |
