Rich Solar MEGA 200 – 200W 12V Off-Grid Solar Panel

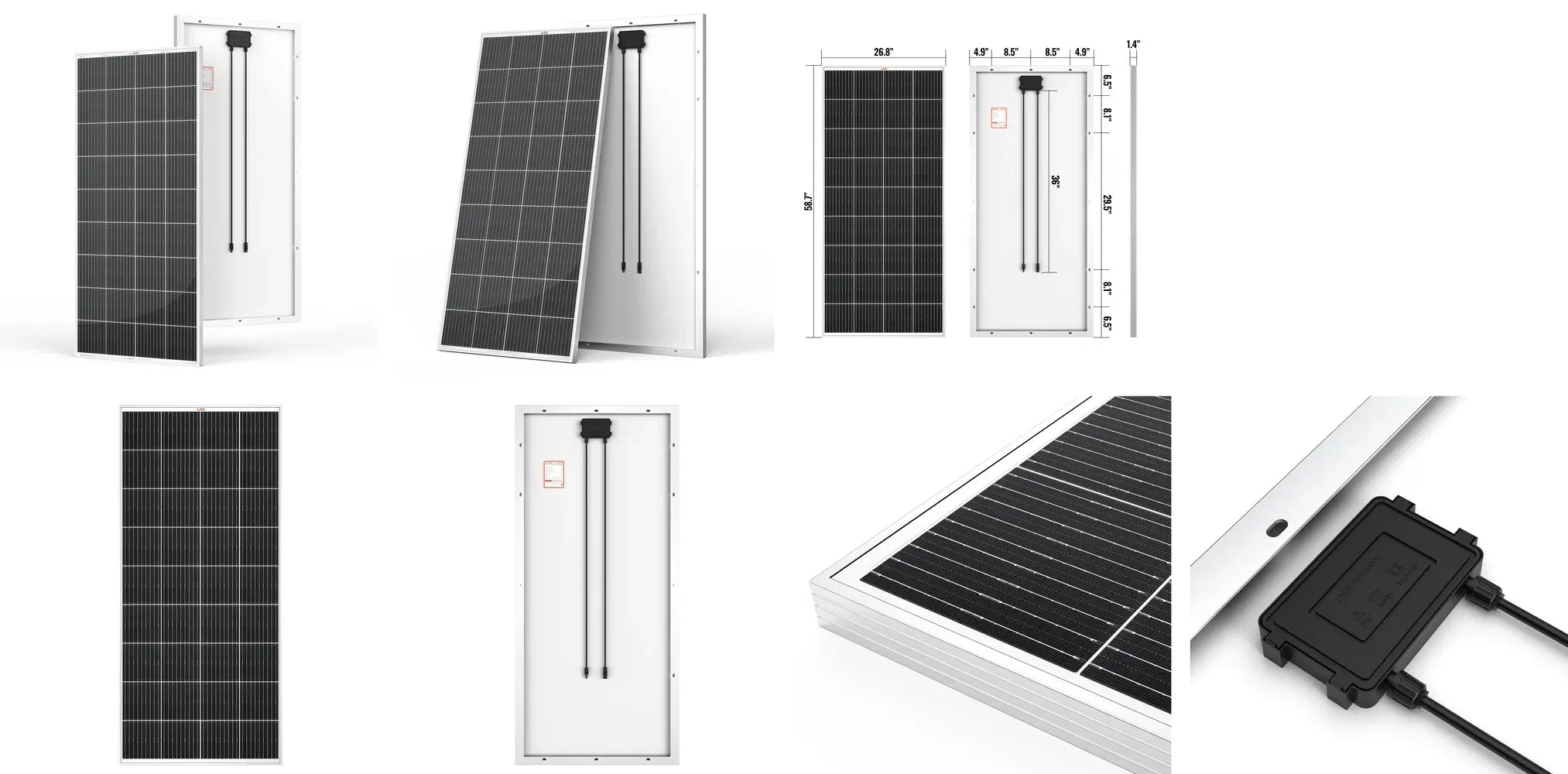

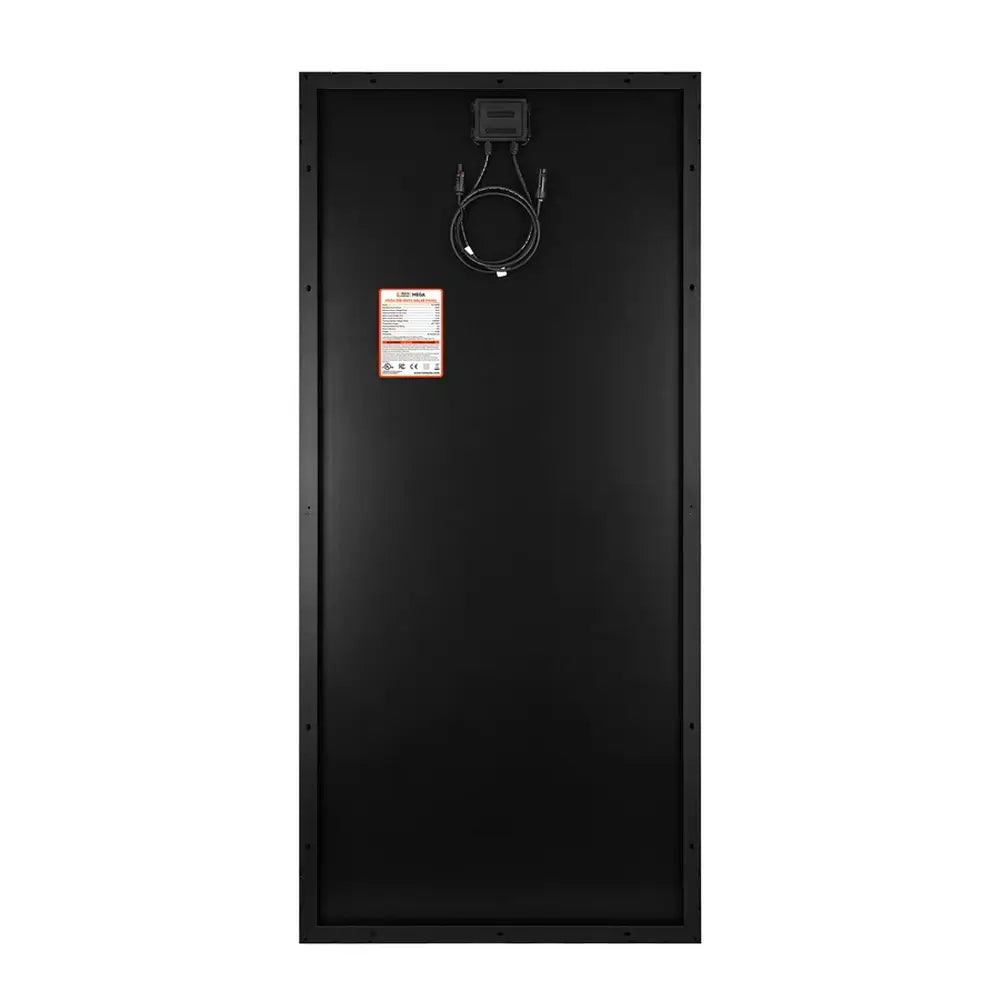

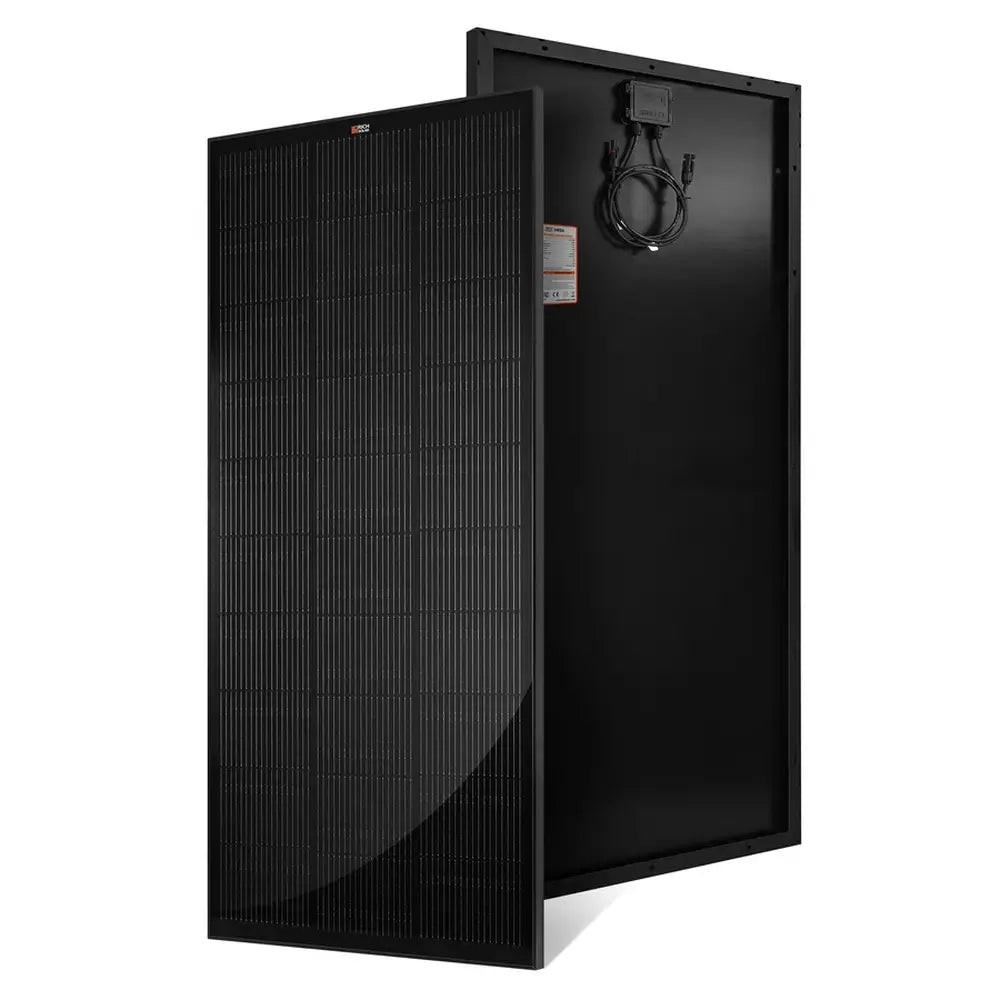

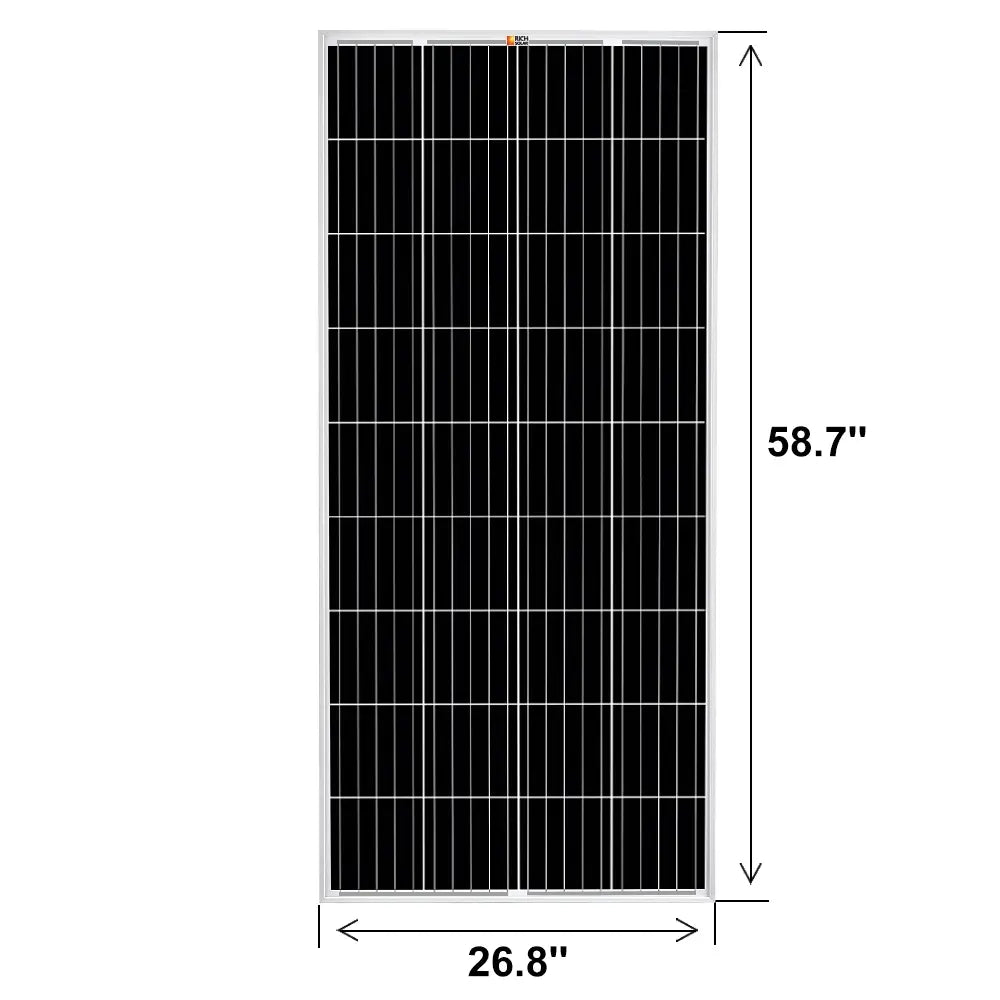

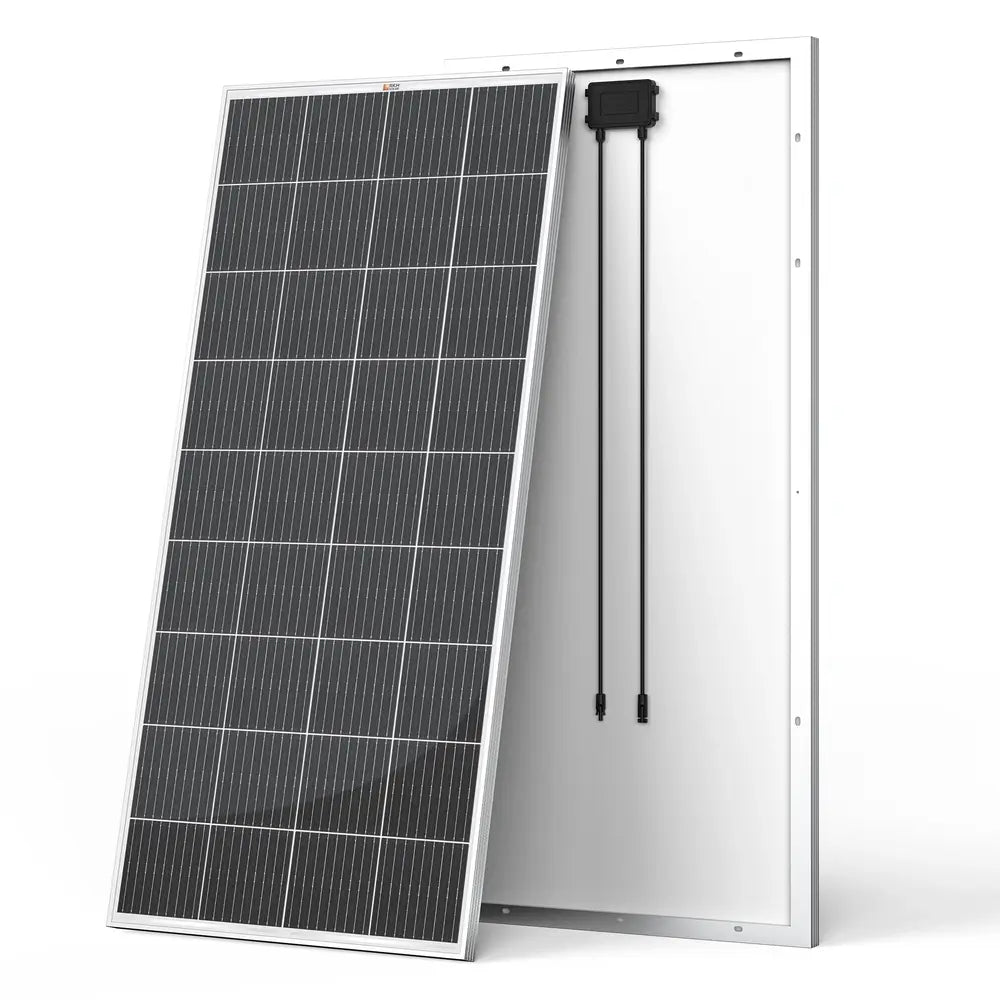

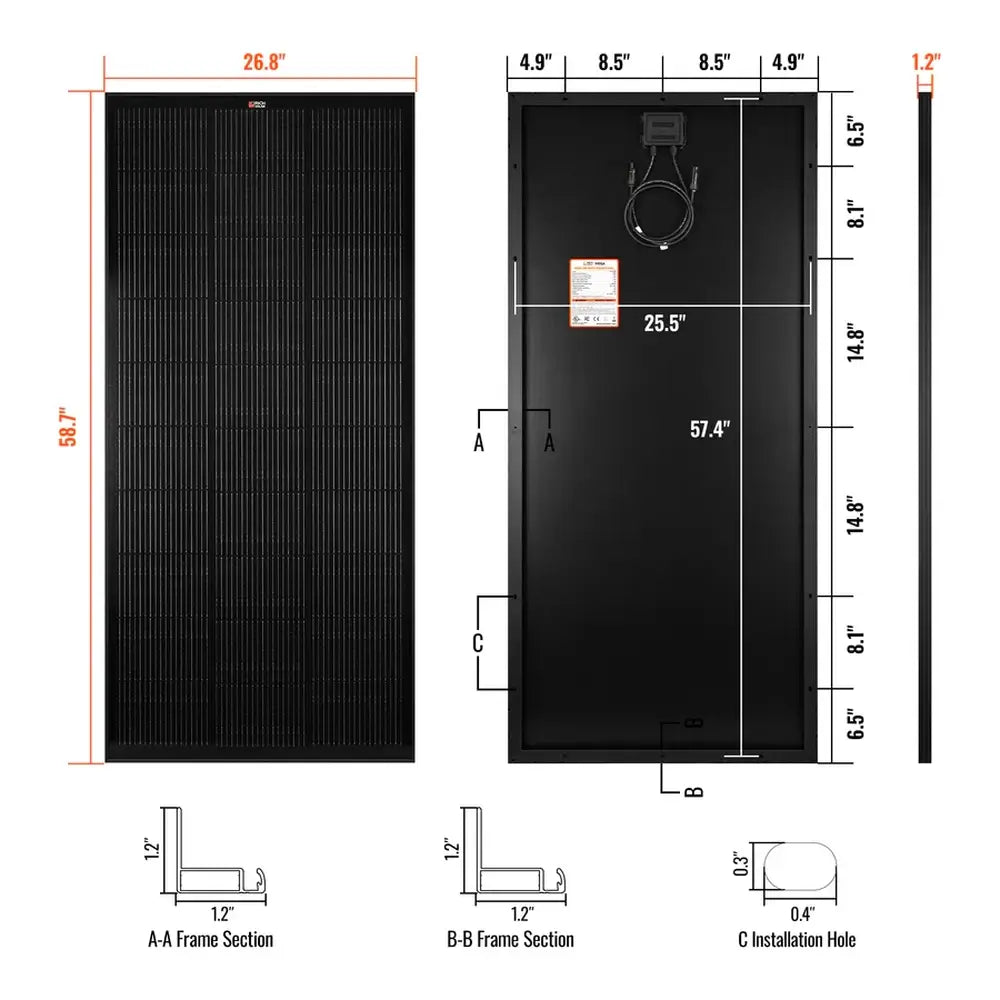

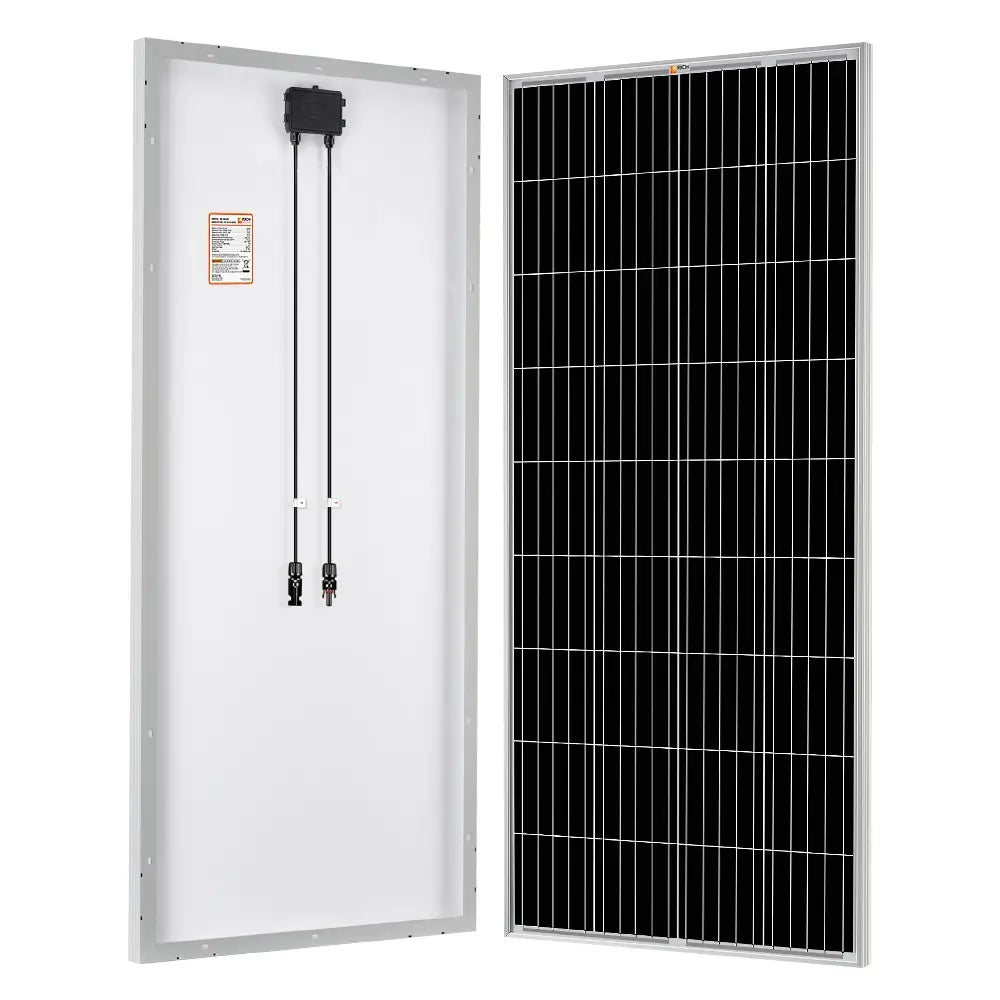

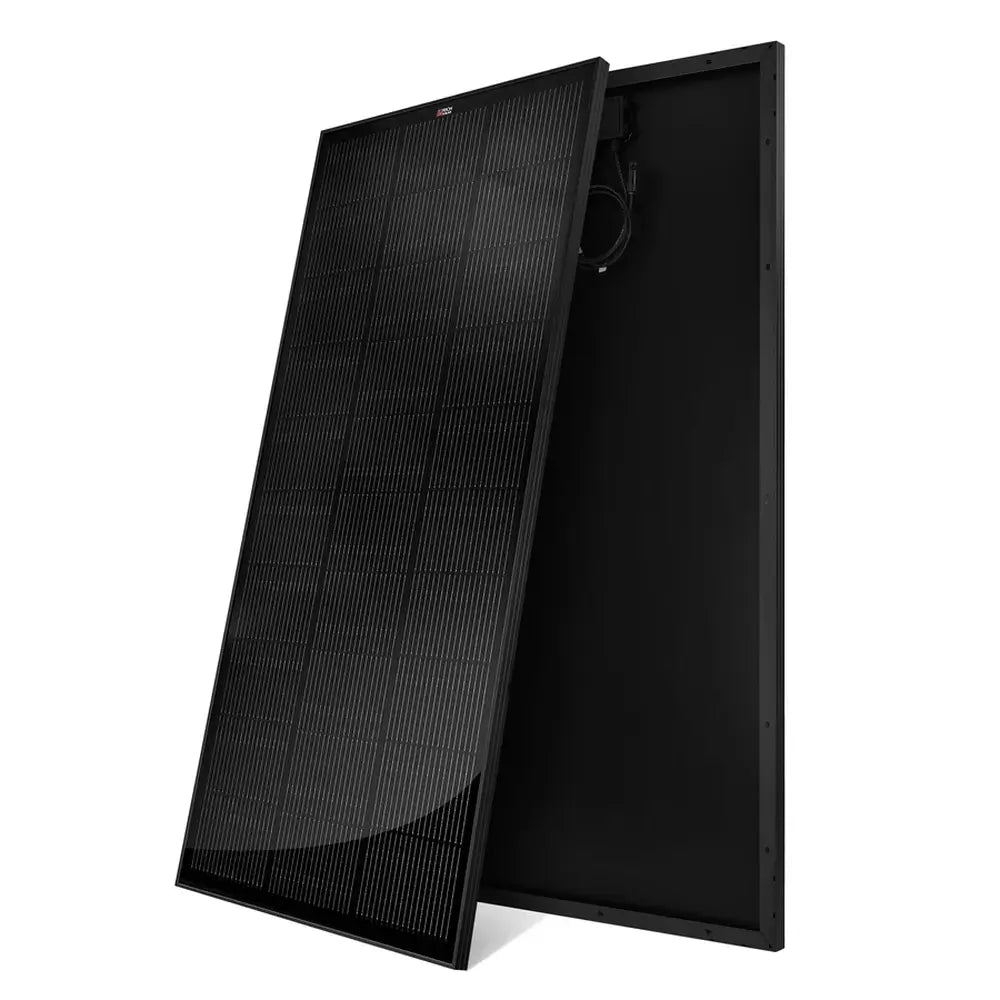

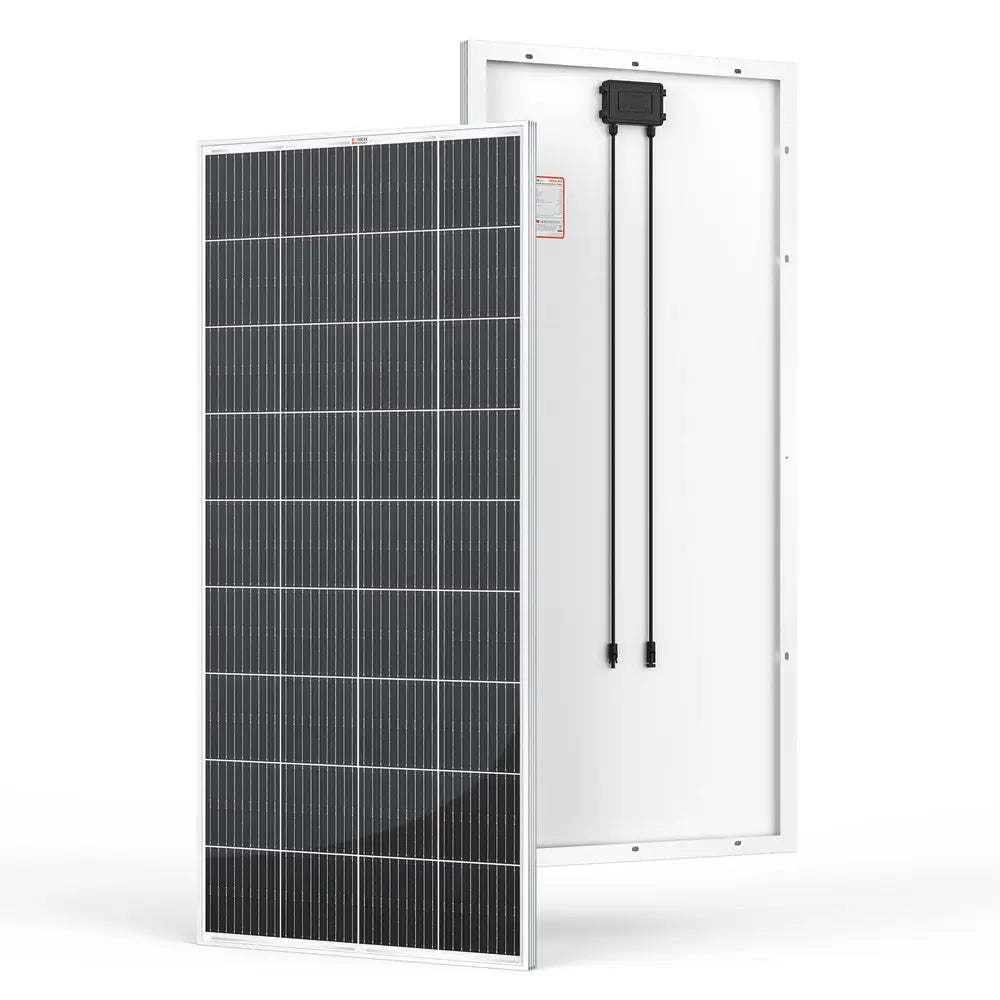

The Rich Solar MEGA 200 is a rigid 200W 12V off-grid solar panel built for RVs, cabins, boats, vans, DIY solar projects, marine setups, and stationary off-grid systems. It is available in MEGA 200 ONYX Black and MEGA 200 Silver model options. This panel uses tempered glass, aluminum, and monocrystalline silicon in a 58.7" × 26.8" × 1.2" frame that weighs 24.0 lb. The MEGA 200 is listed with 200W maximum power, 1500VDC maximum system voltage, 0 to +5W positive power tolerance, and a 30-cell monocrystalline module design. With IP67 junction box protection, pre-drilled mounting holes, bypass diodes, and a 25-year power output warranty, it is built for properly planned mobile and off-grid solar power systems.

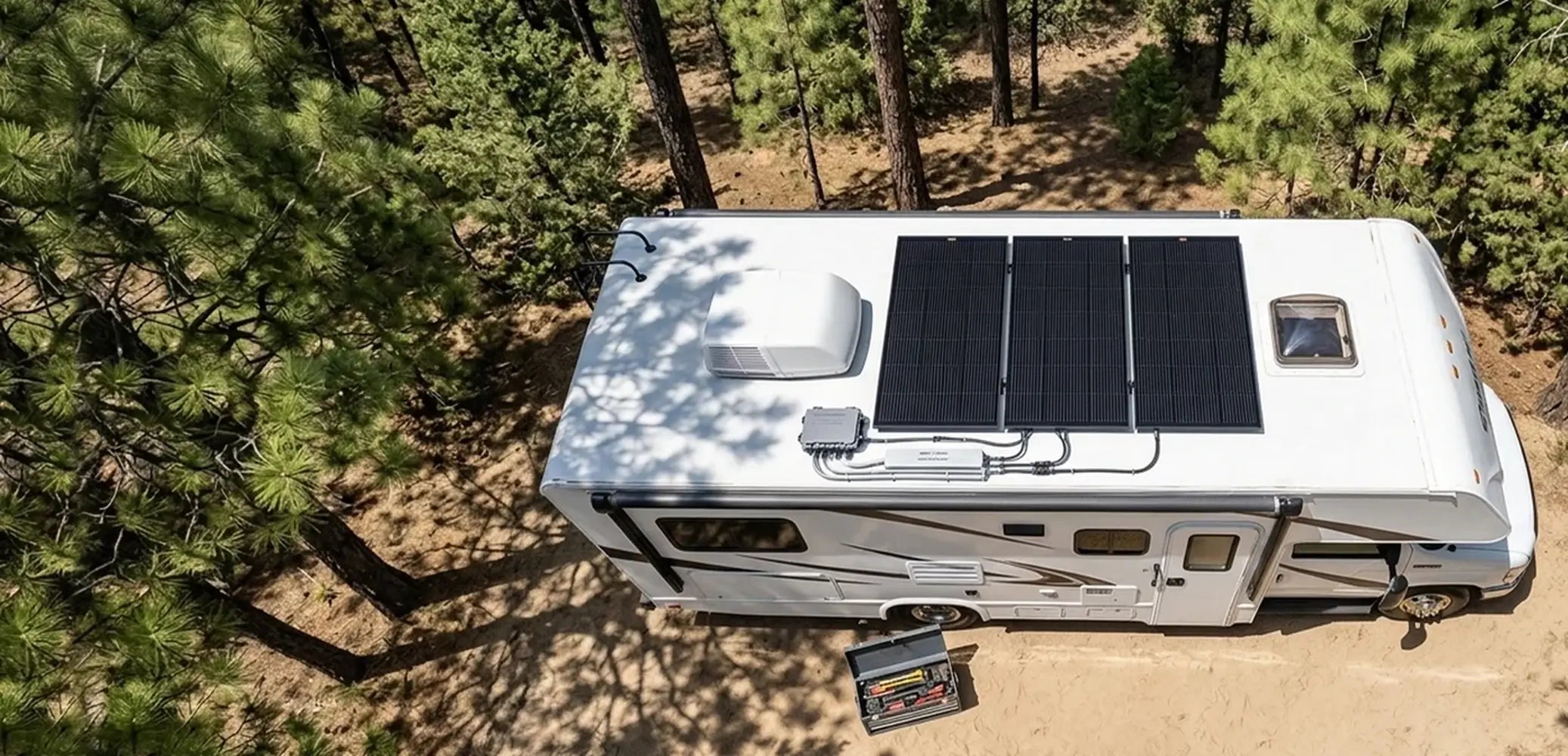

200W Solar Output for RVs, Cabins, and Boats

The MEGA 200 gives off-grid builders a higher-output 12V panel for mobile and compact power systems. It is designed for RVs, vans, cabins, boats, DIY solar projects, off-grid applications, and marine use when paired with compatible charge control, wiring, batteries, and mounting hardware.

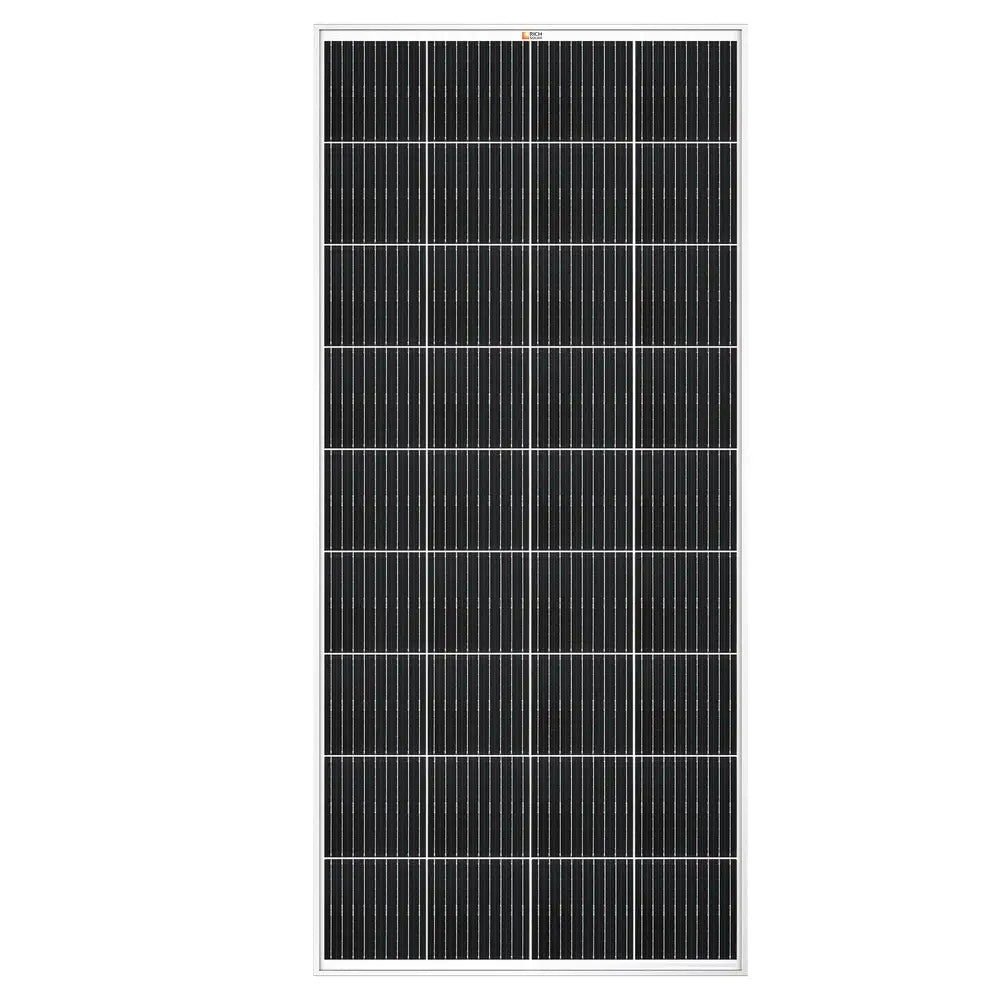

Monocrystalline 30-Cell Panel Design

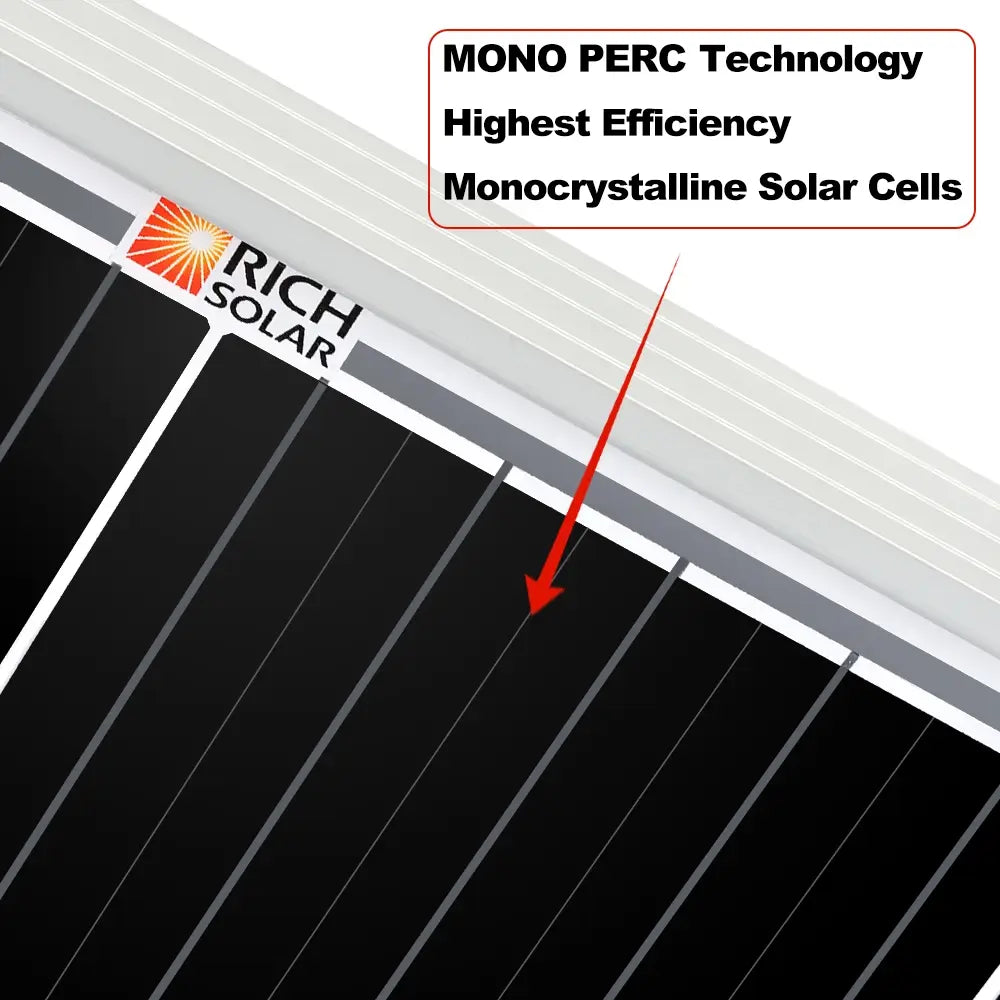

This Rich Solar panel is listed as a 30-cell monocrystalline module with 24.8% maximum cell efficiency and 0 to +5W positive power tolerance. These details support its role as a compact, high-output panel for buyers comparing 12V off-grid solar options.

Built for Harsh Outdoor Conditions

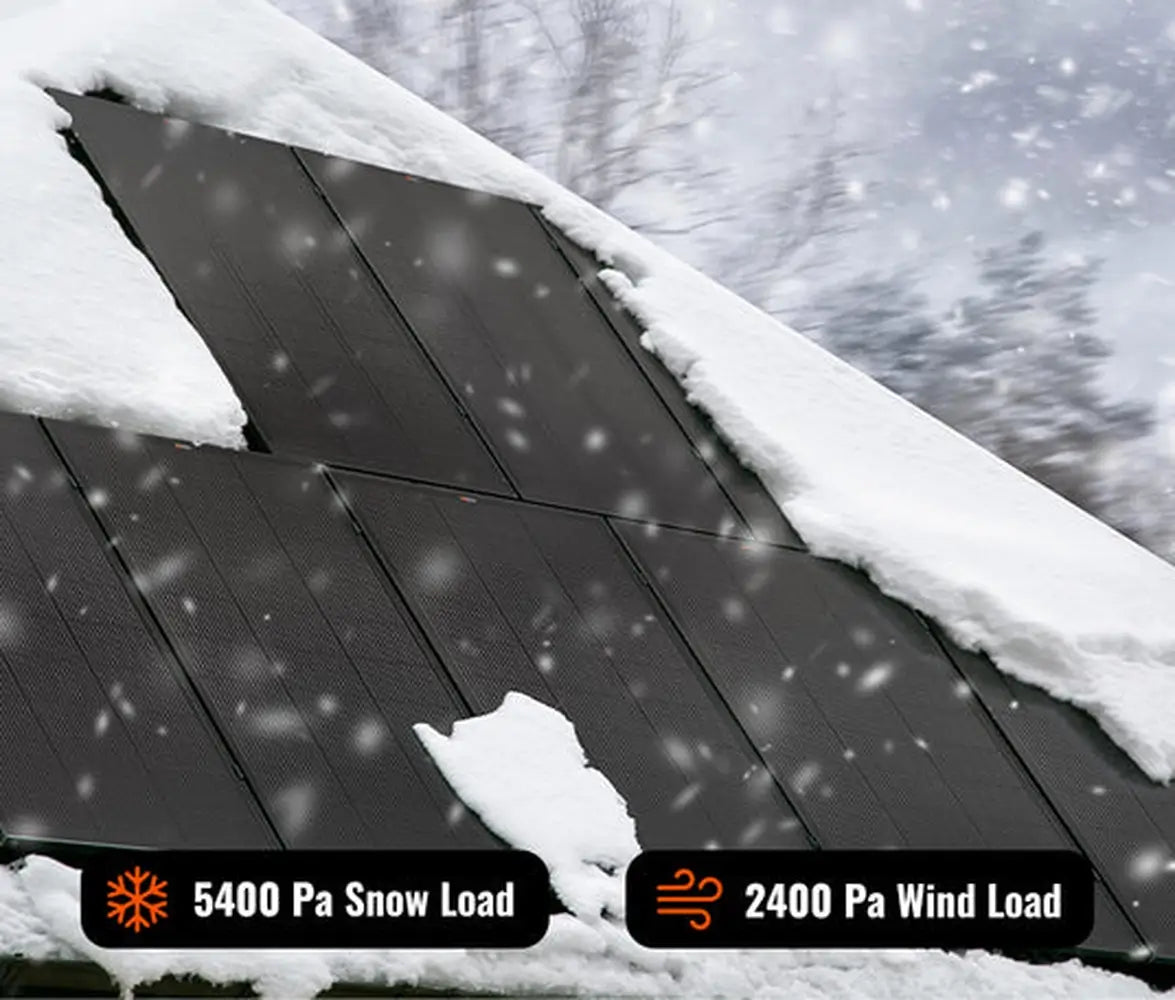

The source lists a -40°F to +185°F temperature range, 2400 Pa wind resistance, 5400 Pa snow load capacity, and hail impact protection up to 35 mm at 97 km/h. These ratings support outdoor use across a wide range of conditions when the panel is installed according to manufacturer guidance and proper system design.

Mounting and Wiring Flexibility

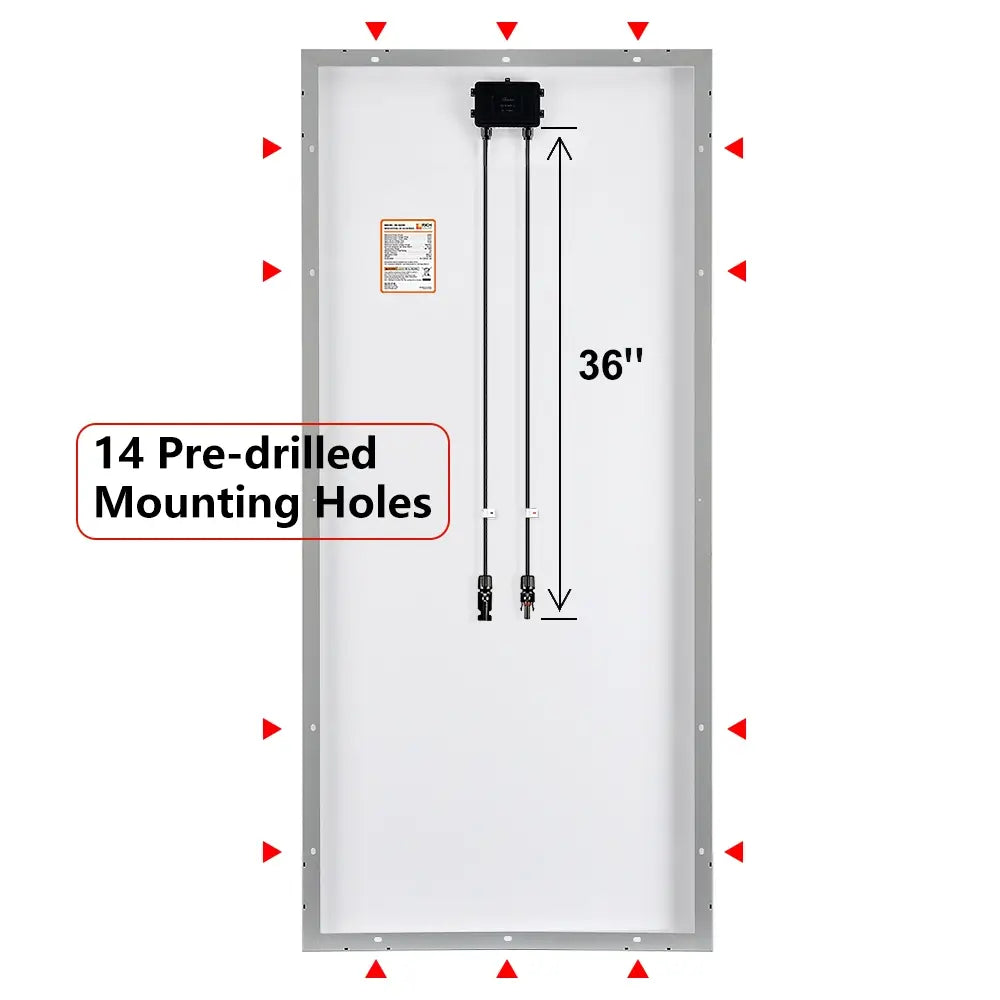

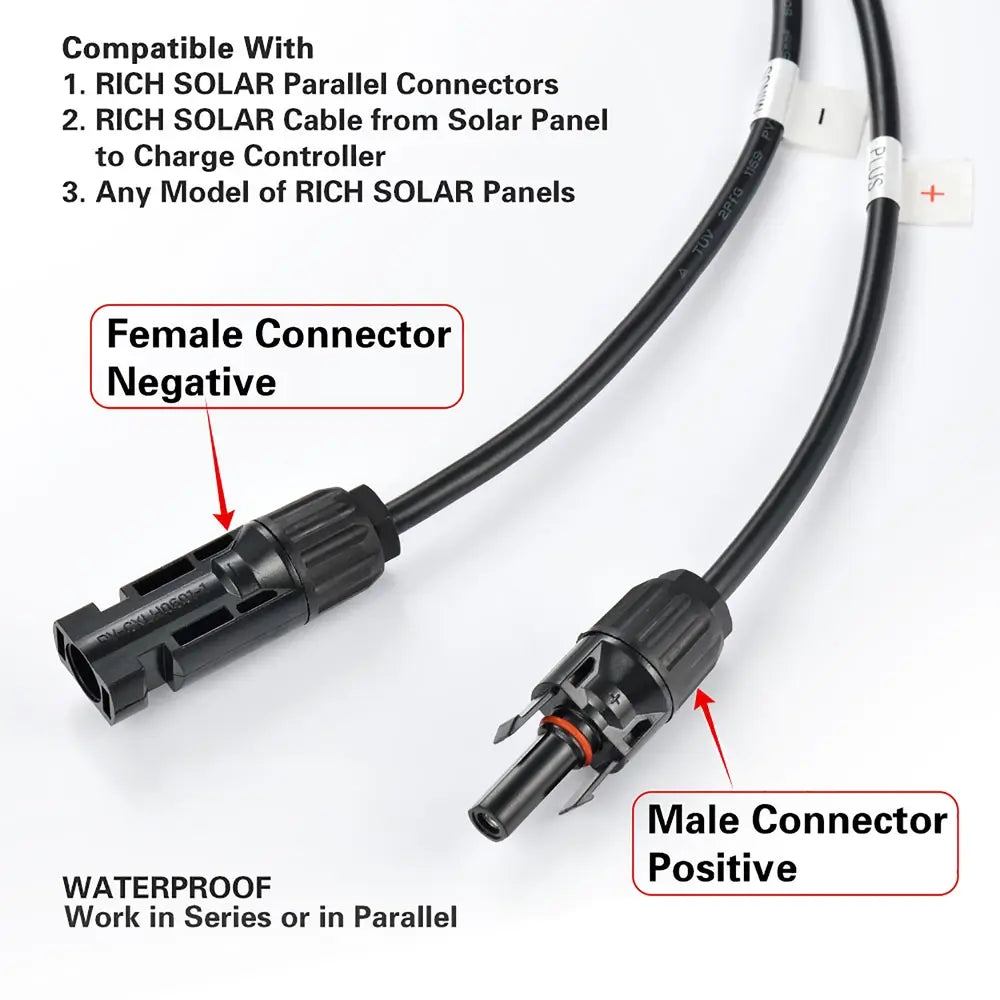

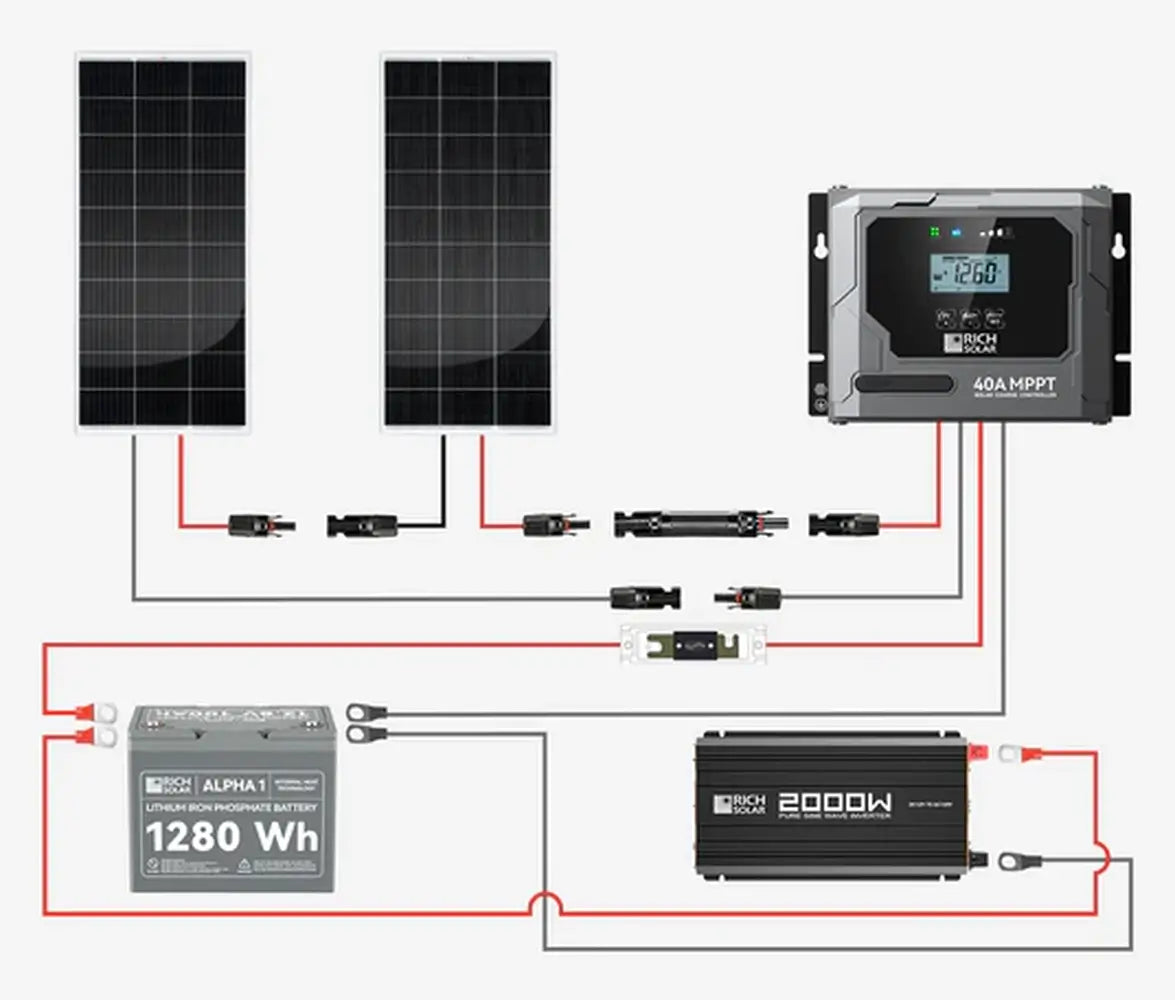

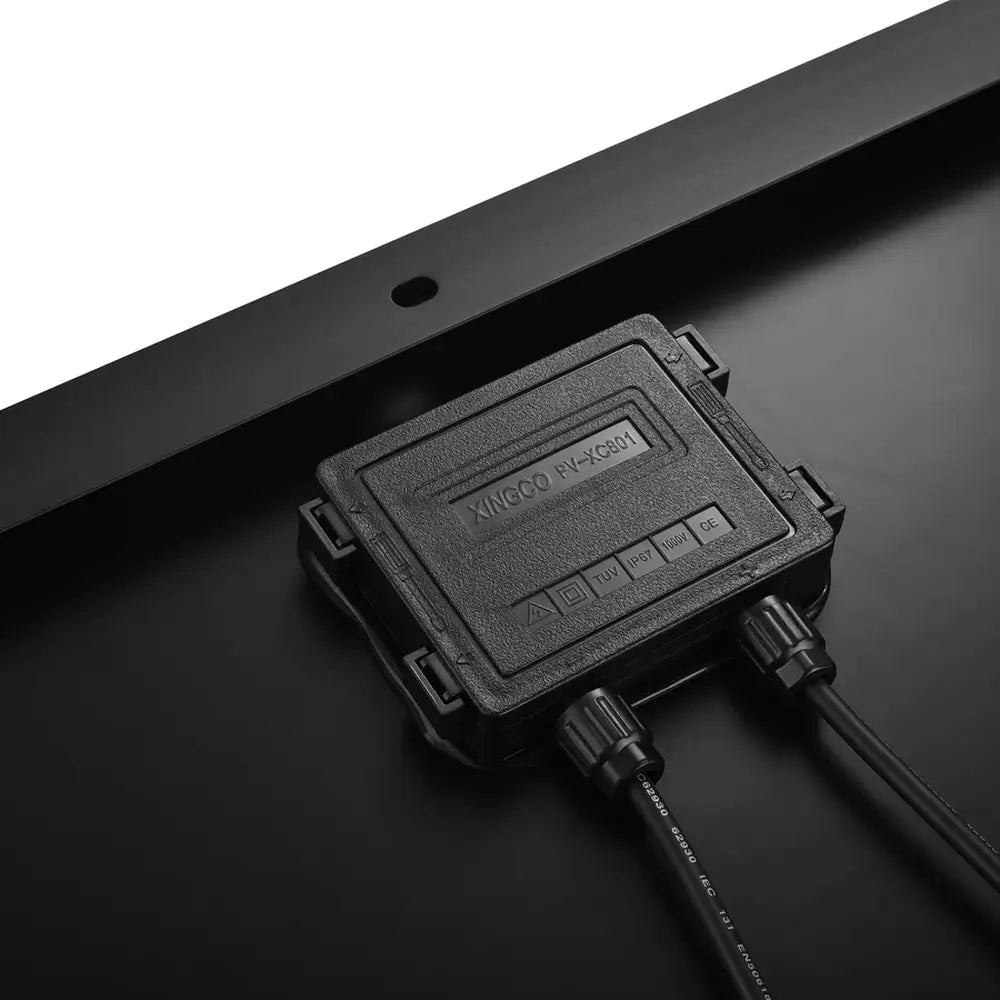

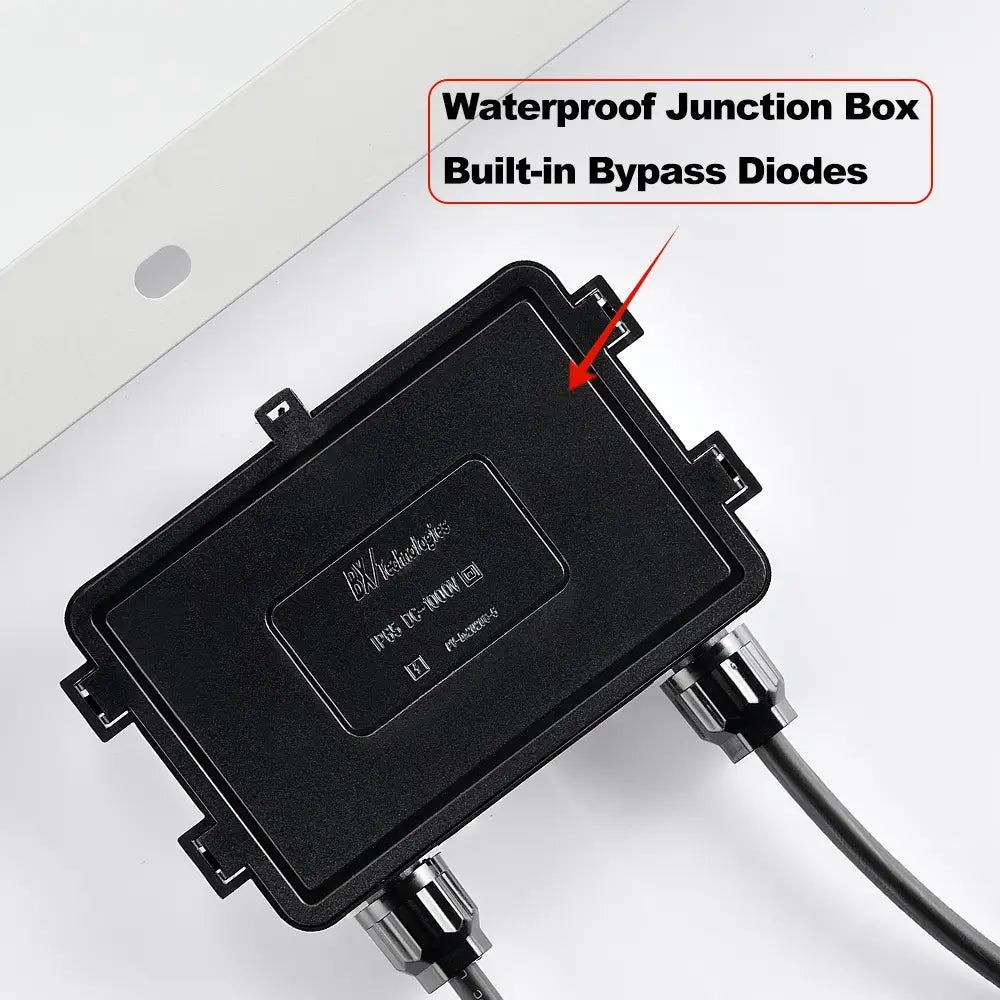

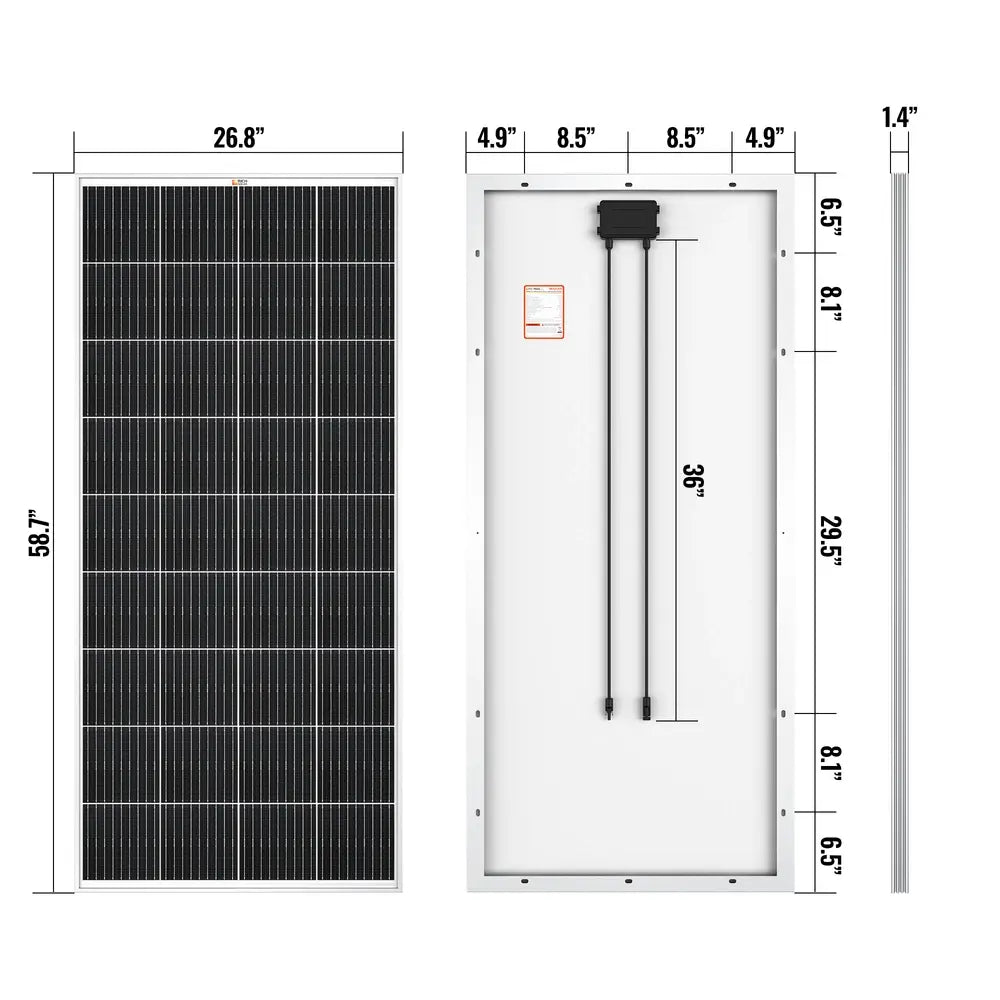

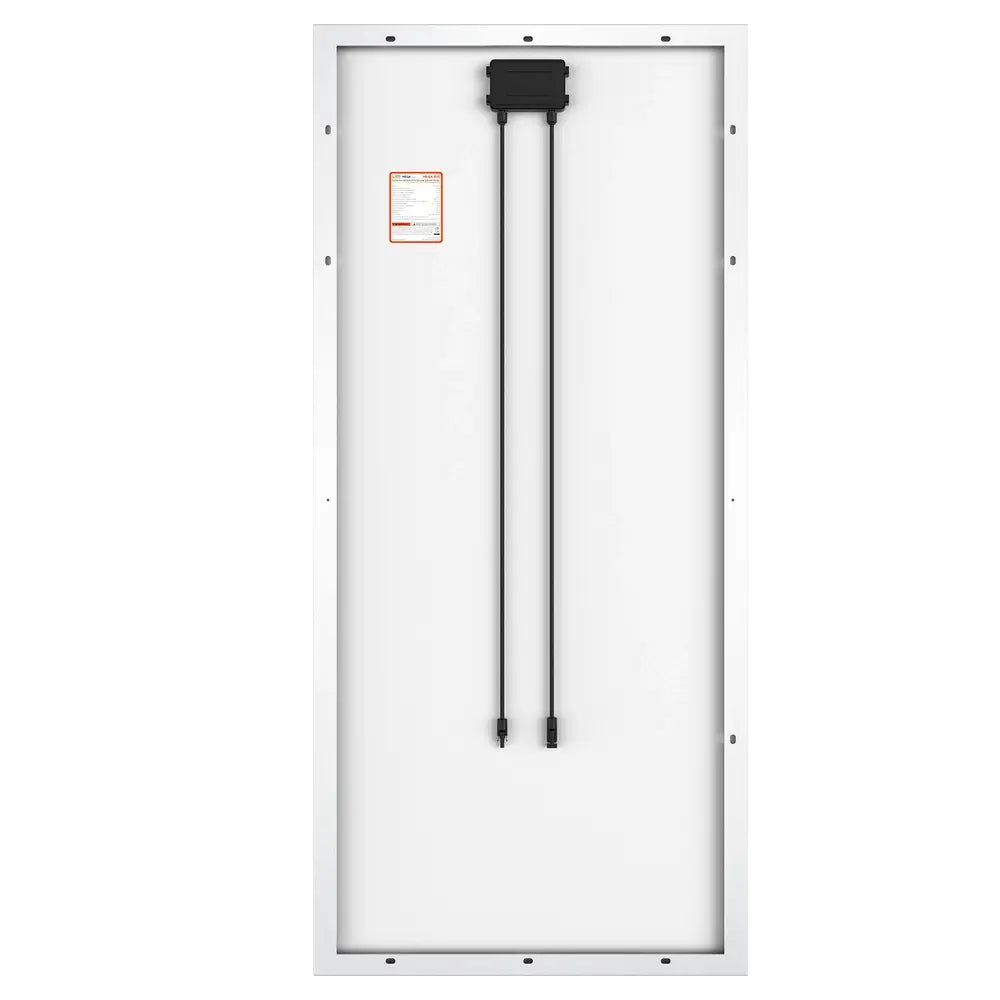

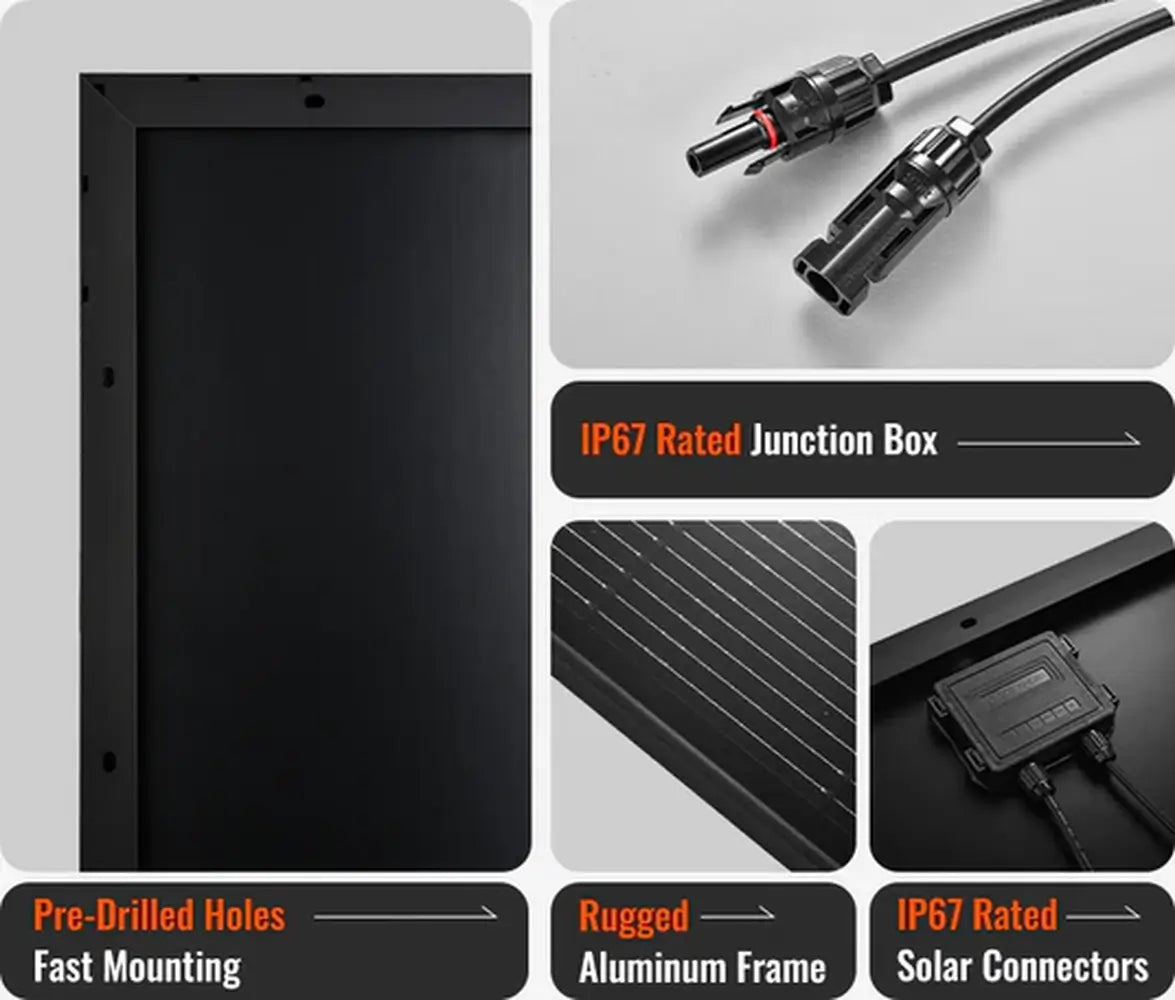

The MEGA 200 includes 14 pre-drilled holes and a lightweight anodized aluminum frame for easier mounting. Its plug-and-play IP67 junction box, built-in bypass diodes, and listed support for PWM and MPPT charge controllers help support planned solar system integration when voltage, current, controller limits, battery type, and wiring are properly matched.

The MEGA 200 gives mobile and off-grid builders a 200W solar panel option for higher-output 12V system planning. Its size, output, and mounting design make it useful for RVs, vans, cabins, boats, and fixed off-grid layouts.

With pre-drilled holes, an IP67-rated junction box, bypass diodes, and listed support for PWM or MPPT charge controllers, this panel is built for practical system integration. Confirm controller, inverter, wiring, battery, and mounting compatibility before installation.

Rich Solar MEGA 200 Features & Benefits

• 200W maximum power: Provides a higher-output 12V panel option for properly sized mobile and off-grid solar systems.
• 30-cell monocrystalline module: Supports compact solar power planning with Rich Solar’s listed 24.8% maximum cell efficiency.
• 0 to +5W positive power tolerance: Helps ensure the panel meets at least its rated output under standard test conditions.

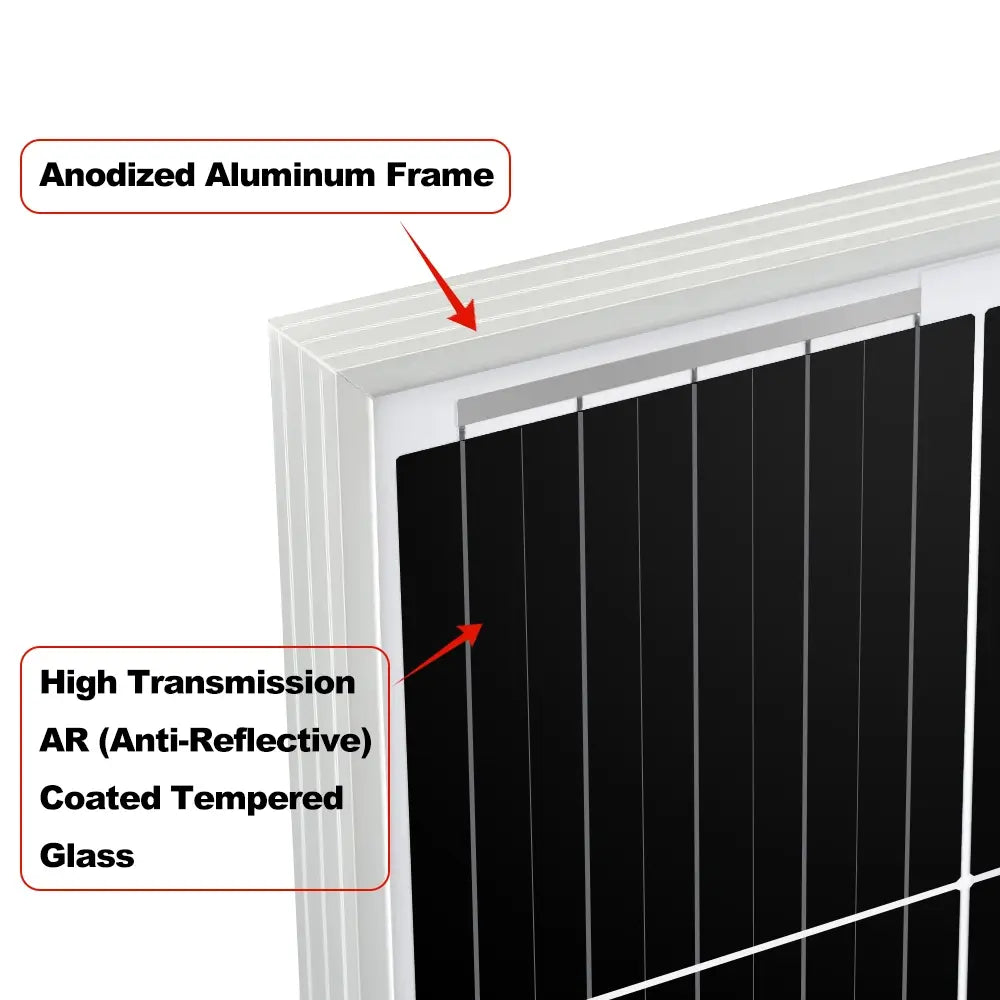

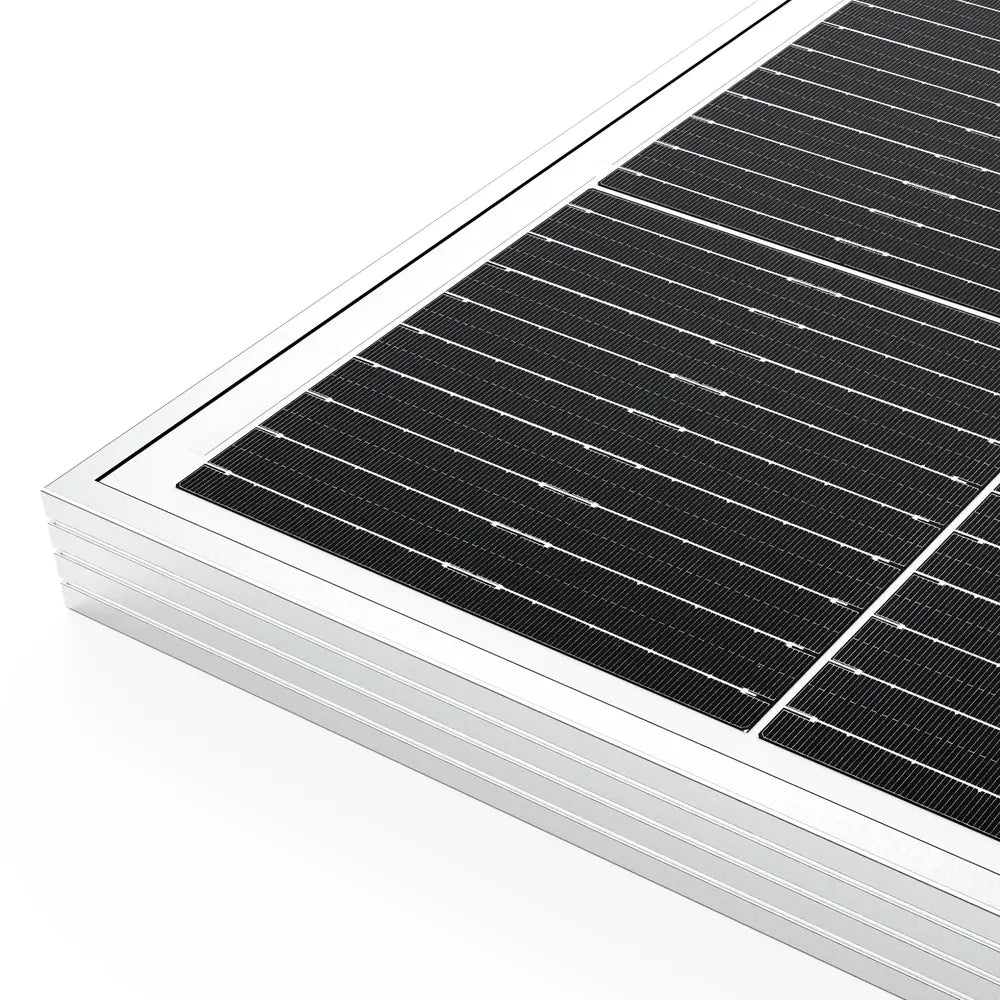

• Tempered glass and aluminum frame: Provides a rigid outdoor panel build for RV, cabin, boat, and off-grid installations.

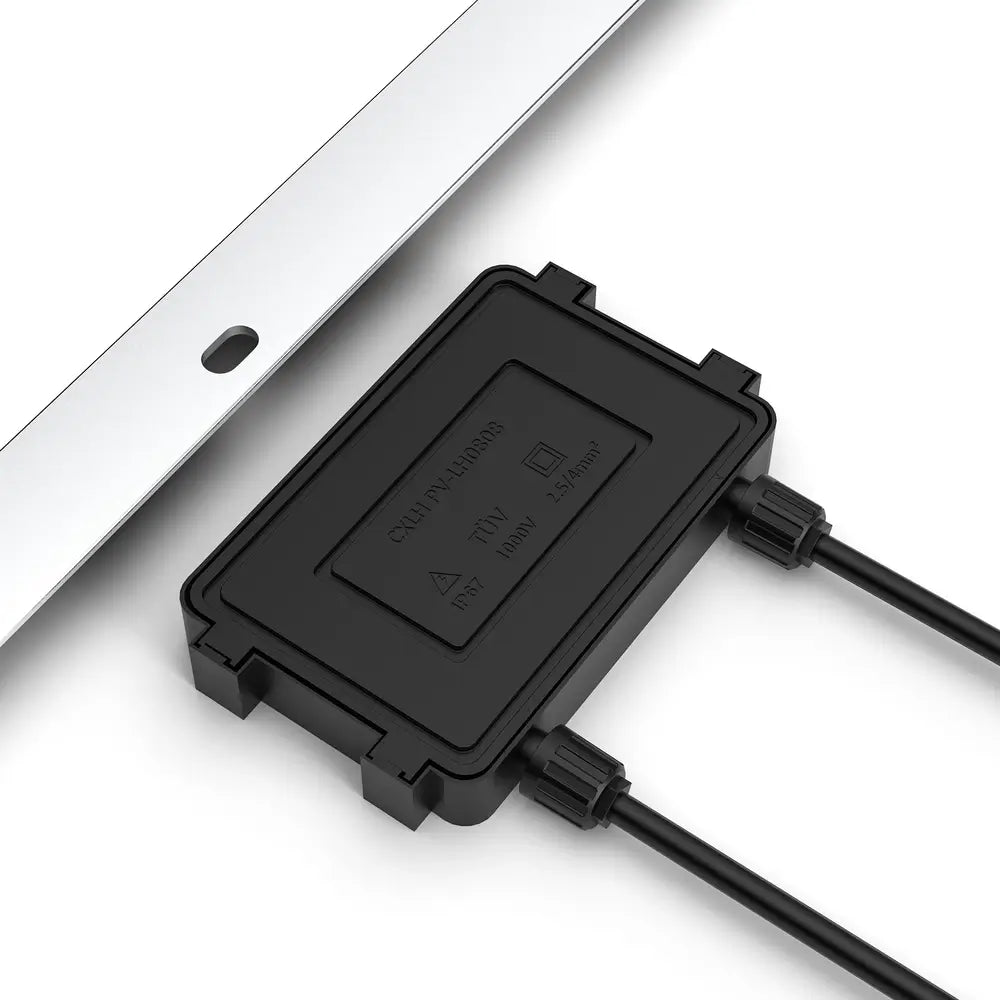

• IP67 junction box protection: Rich Solar lists IP67 protection for the plug-and-play junction box to help guard it against rain and dust.
• Built-in bypass diodes: Helps manage output effects from partial shade within the limits of system design.
• 25-year power output warranty: Provides long-term power output coverage; review Rich Solar warranty terms for full coverage details.

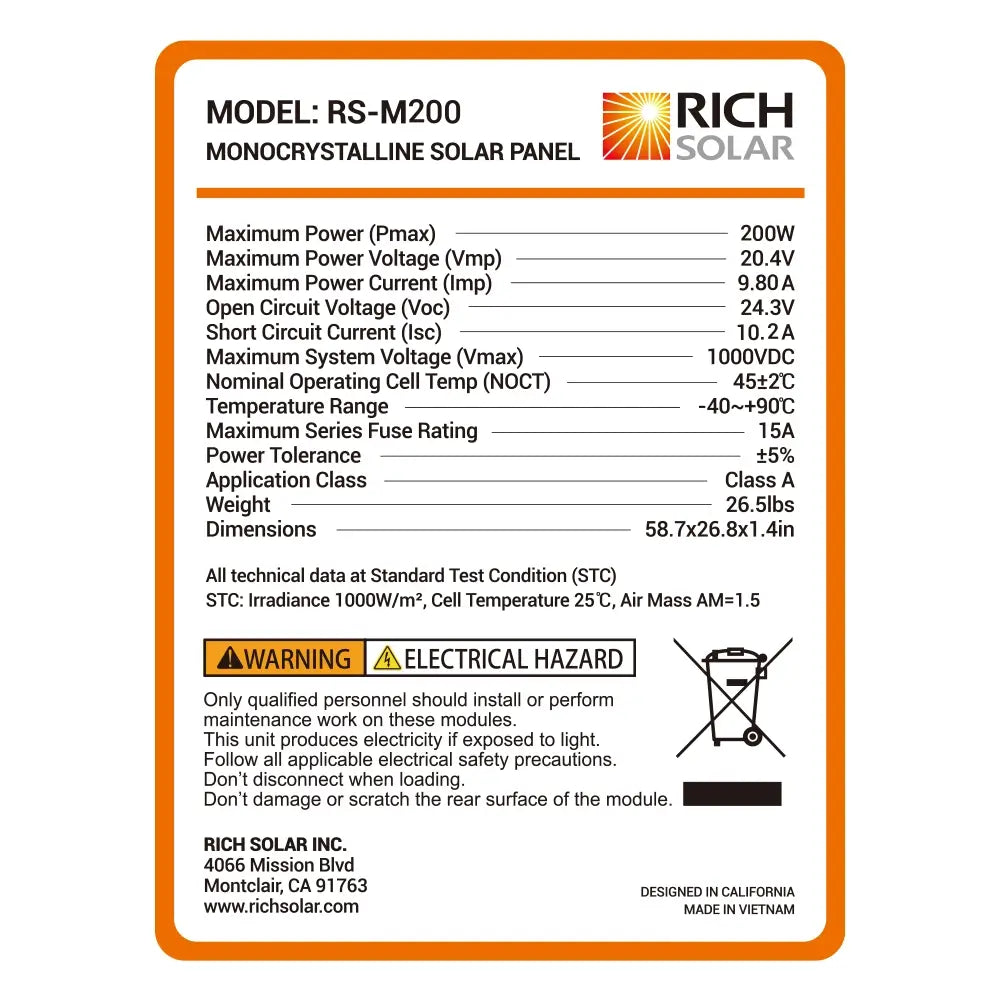

Rich Solar MEGA 200 Specifications
