The Rich Solar Complete Off-Grid Solar Kit RS-H6548 is a 48V solar, battery-storage and inverter package for professionally planned cabin, recreational vehicle, tiny home, accessory dwelling unit and off-grid power systems using the included NOVA 6548 inverter. Identified by SKU SRx3-H6548x1-M410x16, it includes sixteen MEGA 410 monocrystalline solar panels, one NOVA 6548 6,500W hybrid solar inverter, three ALPHA 5 PRO 51.2V 100Ah LiFePO4 batteries, one battery rack and listed solar-connection hardware. The included solar panels provide 6,560W total rated photovoltaic capacity, while the batteries provide 15.36kWh combined nominal energy before operating losses, reserve settings and load conditions. The included inverter accepts up to 8,000W of photovoltaic array power and supplies 6,500W rated 120V AC output for properly configured systems. Array stringing, battery setup, conductor sizing, overcurrent protection, photovoltaic surge protection, grounding, generator or utility integration, permitting and final installation must be completed or confirmed by qualified professionals.
This package includes sixteen Rich Solar MEGA 410 monocrystalline solar panels, each rated at 410W, for 6,560W of total rated photovoltaic capacity. Each panel is specified with 31.3V maximum power voltage, 13.1A maximum power current, 37.5V open-circuit voltage and a 25A maximum series fuse rating. Final series-and-parallel array layout must remain within the inverter input limits and project-specific protection requirements.
Three included ALPHA 5 PRO server-rack batteries provide 51.2V nominal voltage, 100Ah nominal capacity and 5,120Wh nominal energy each. Together, they provide 15.36kWh of nominal battery storage before usable-capacity limits, temperature conditions, charging settings, inverter losses and connected-load demand are considered. The included RS-SRA5P battery rack supports organized battery installation planning.
The included NOVA 6548 inverter, model RS-H6548, is rated for 6,500VA / 6,500W output and supports up to 8,000W of photovoltaic array input across two 4,000W inputs. It is specified with pure sine wave output, 48VDC battery operation, maximum power point tracking solar charging, 120VAC output, utility or generator input compatibility, Wi-Fi monitoring and parallel capability for up to six supported units.
The kit includes a solar photovoltaic direct current quick-disconnect switch, two 2/0 AWG wire sets, four 50-foot solar extension cables, two Y-branch parallel connectors and two 600A busbars. These listed parts support system assembly, but they do not replace the need to verify array string design, breaker requirements, lightning and surge protection, grounding, cable routing, enclosure suitability and applicable electrical-code compliance.

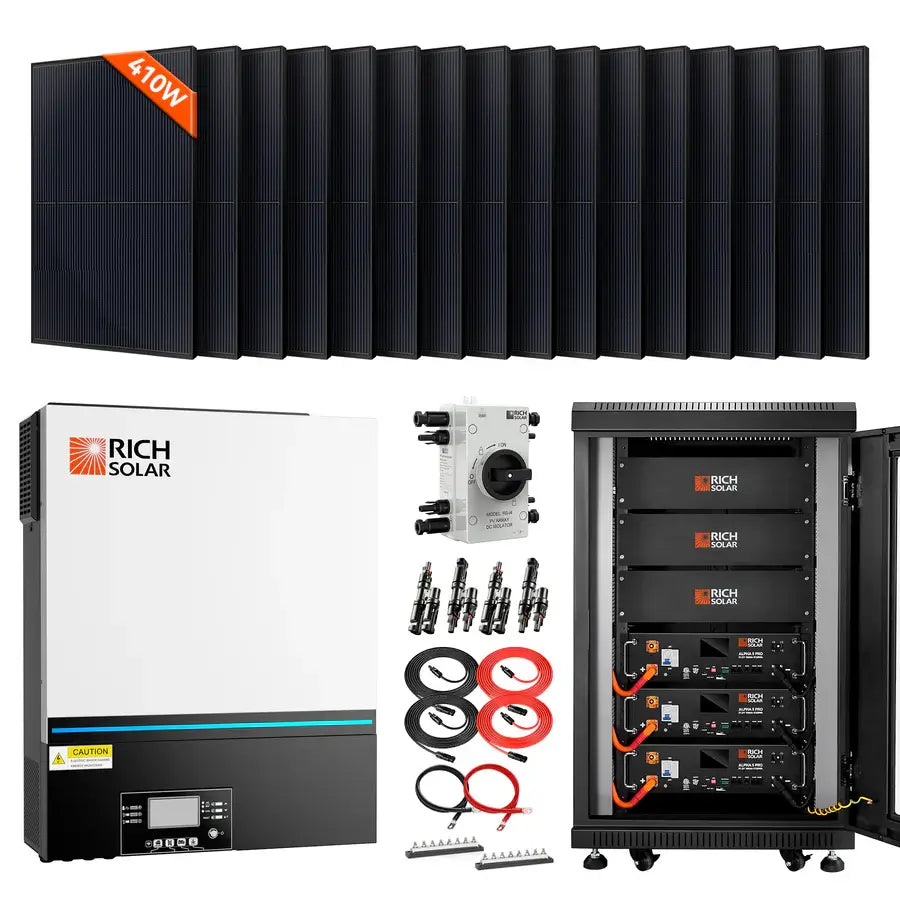

The pictured kit components align with Rich Solar’s listed KIT-SR0001 package: sixteen MEGA 410 panels, a NOVA 6548 inverter, three ALPHA 5 PRO batteries, one rack and listed connection hardware. Final system design and installation require professional confirmation.

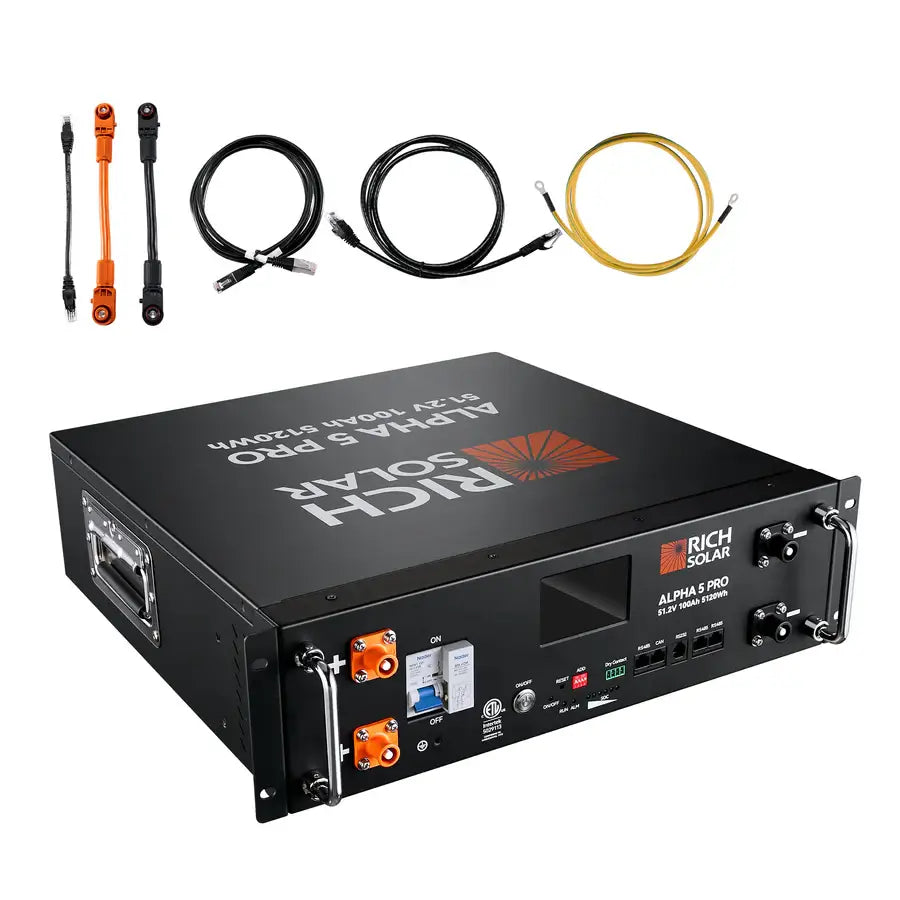

The pictured ALPHA 5 PRO battery represents the server-rack lithium battery model included in this kit. Refer to the included-components table for the confirmed three-battery quantity and system-level ratings.
Planning a complete off-grid solar and battery system for your property or mobile setup?
Contact TrueStead Supply for solar-kit guidance, battery and inverter planning support, and quote assistance.
✔ Solar system guidance ✔ Battery storage planning ✔ Quote assistance
Contact Us for a Quote| Brand | Rich Solar |
| Product Name | Complete Off-Grid Solar Kit RS-H6548 with 6,560W Solar PV |
| Kit Reference | KIT-SR0001 |
| SKU | SRx3-H6548x1-M410x16 |
| Product Type | Complete Off-Grid Solar, Inverter and LiFePO4 Battery Storage Package |
| Total Rated PV Capacity | 6,560W |
| Included Solar Panels | 16 × Rich Solar MEGA 410 Monocrystalline Solar Panels, RS-M410 |
| Included Inverter | 1 × Rich Solar NOVA 6548 48V Hybrid Solar Inverter, RS-H6548 |
| Included Batteries | 3 × Rich Solar ALPHA 5 PRO 51.2V 100Ah Server Rack LiFePO4 Batteries, RS-B5121P |
| Combined Nominal Battery Energy | 15,360Wh / 15.36kWh before operating losses and reserve settings |
| Included Battery Rack | 1 × Battery Rack, RS-SRA5P |
| System AC Output Rating | 6,500W / 6,500VA rated inverter output |
| Nominal AC Output Voltage | 120VAC |
| System Installation Requirements | Qualified-personnel installation required; array stringing, battery-bank wiring, conductor sizing, disconnects, breakers, grounding, generator or utility connections, monitoring setup and commissioning must follow current Rich Solar manuals and applicable electrical requirements |
| PV Surge Protection Requirement | Rich Solar’s NOVA 6548 manual requires a photovoltaic junction box with surge protection to reduce lightning-related inverter damage risk |
| Battery Bank Installation Guidance | Professional wiring required; install battery-bank overcurrent protection or disconnect equipment between the batteries and inverter, use appropriately matched conductors and communications wiring, and follow Rich Solar manual requirements and applicable electrical standards |
| Battery Installation Environment | Install in a protected indoor area that is dry, level, free of flammable or explosive materials, protected from direct sunlight and suitable for the battery cabinet and system wiring; do not install directly outdoors |
| Inverter Warranty | 3-year warranty listed by Rich Solar for the NOVA 6548 inverter; refer to manufacturer warranty terms for coverage details |
| Qty. | Included Component | Model / SKU |
| 16 | MEGA 410 Watt Monocrystalline Solar Panel | RS-M410 |
| 1 | NOVA 6548 6,500W 48V Off-Grid Hybrid Solar Inverter | RS-H6548 |
| 3 | ALPHA 5 PRO 51.2V 100Ah Server Rack LiFePO4 Battery | RS-B5121P |

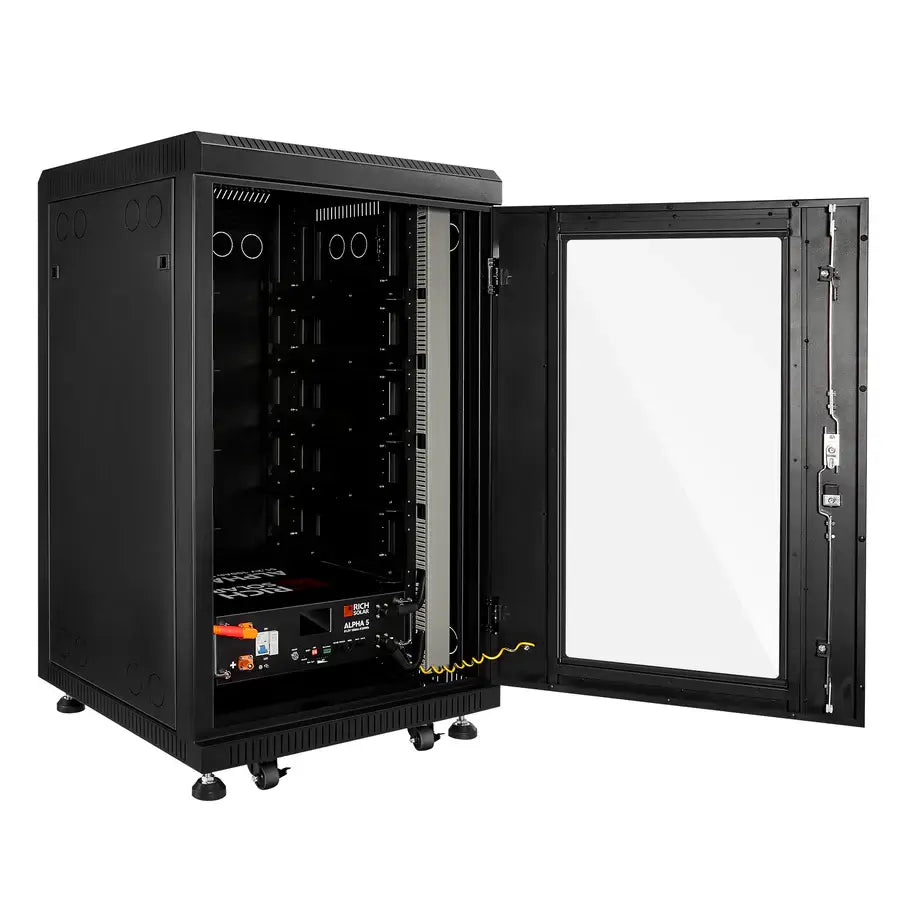

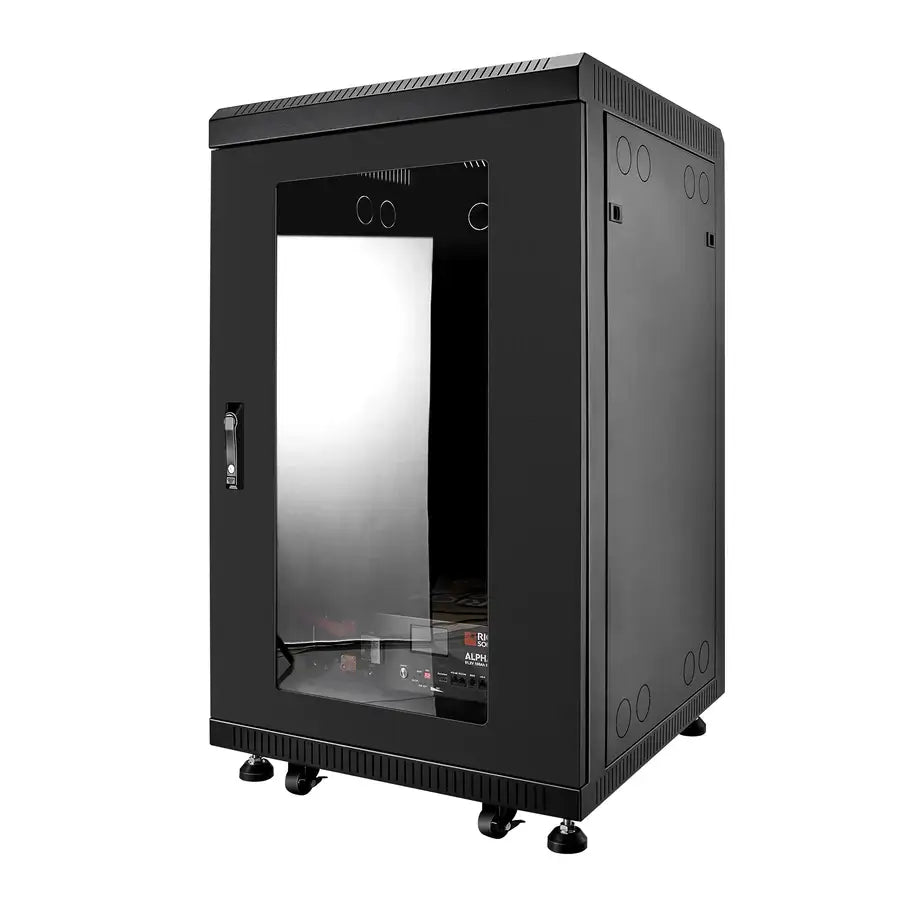

| 1 | Battery Rack | RS-SRA5P |

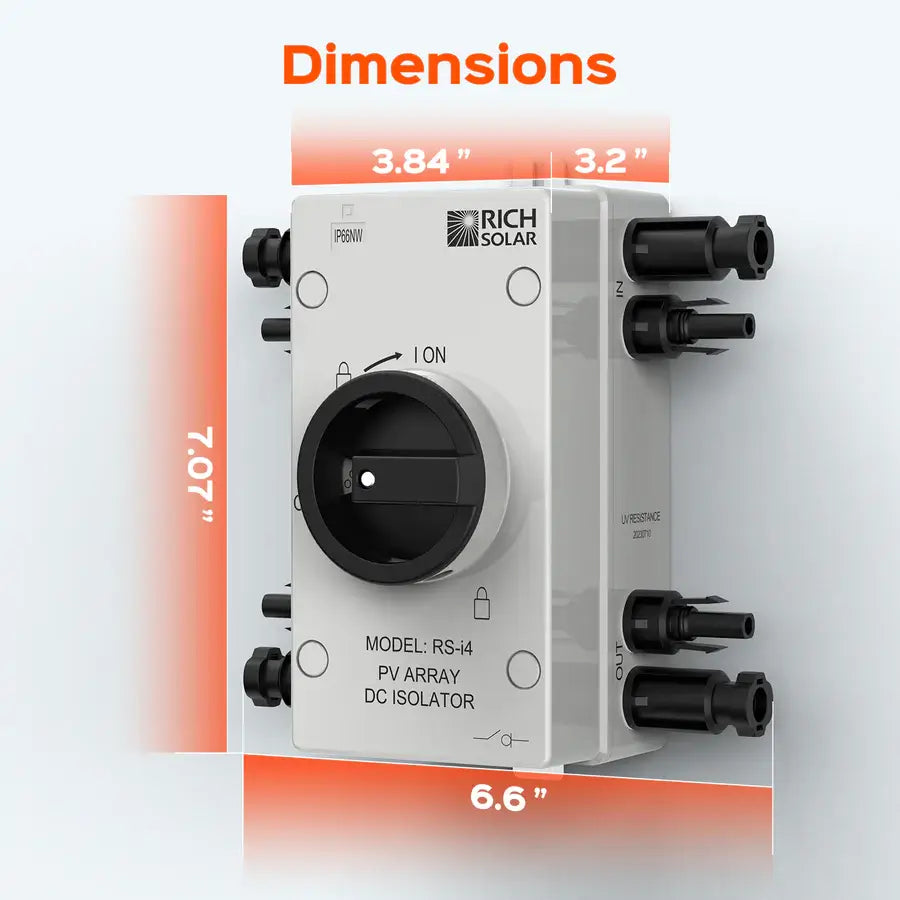

| 1 | Solar PV DC Quick Disconnect Switch | RS-i4 |

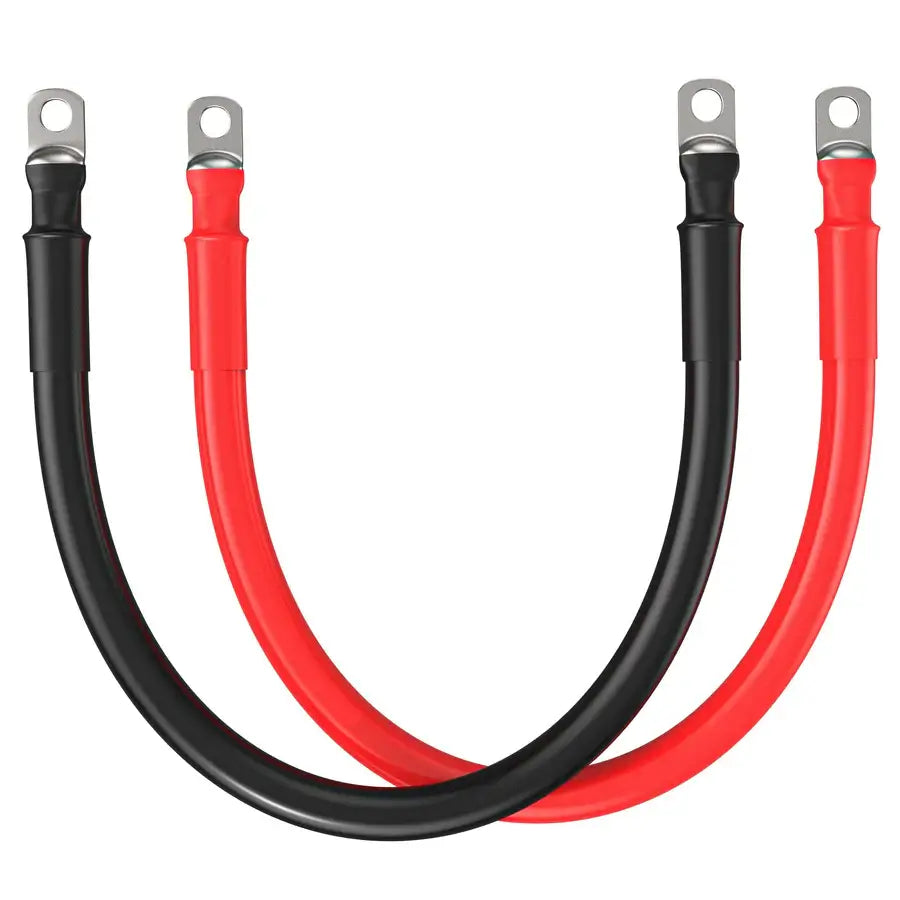

| 2 | 4 FT 2/0 Gauge AWG Wire Set with 3/8" Lugs | RS-2/0A4F3 |

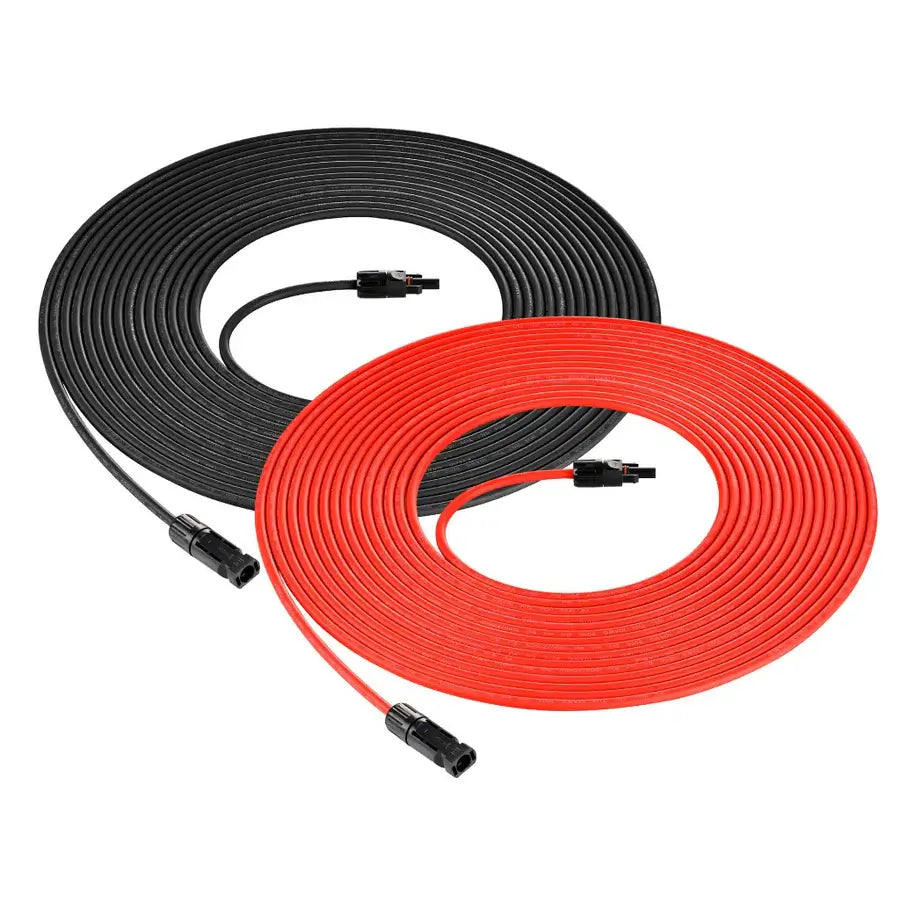

| 4 | 10 Gauge 50 FT Solar Extension Cable | RS-50102 |

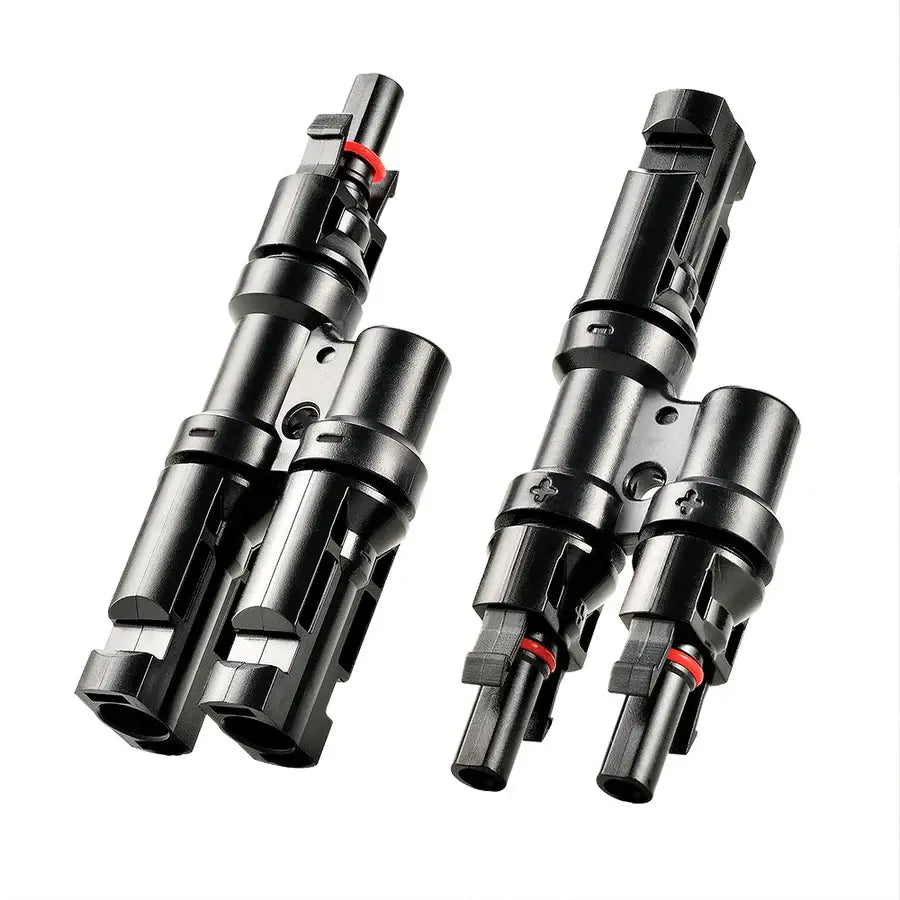

| 2 | Y Branch Parallel Connector, 2-to-1 | RS-T2 |
| 2 | 600A Busbar | Model not stated in kit listing |
| Model | RS-M410 |
| Panel Type | Monocrystalline Solar Panel |
| Quantity Included | 16 panels |
| Rated Power Per Panel | 410W |
| Total Rated Solar Capacity | 6,560W |
| Maximum Power Voltage | 31.3V |
| Maximum Power Current | 13.1A |
| Open-Circuit Voltage | 37.5V |
| Short-Circuit Current | 13.8A |
| Maximum System Voltage | 1,500VDC |
| Maximum Series Fuse Rating | 25A |
| Temperature Range | -40°F to 185°F |
| Frame and Glass | Anodized aluminum frame with high-transmission anti-reflective coated tempered glass |
| Dimensions Per Panel | 67.8" × 44.7" × 1.2" |
| Weight Per Panel | 45.2 lb |
| Model | RS-H6548 |
| Product Type | 48V Off-Grid Hybrid Solar Inverter / Charger |
| Rated Inverter Output | 6,500VA / 6,500W |
| Surge Power | 2 × rated power for 5 seconds |
| AC Input Voltage | 120VAC |
| Selectable AC Input Range | 90–140VAC for computer mode; 80–140VAC for appliance mode |
| Output Voltage Regulation, Battery Mode | 120VAC ± 5% |
| Output Waveform | Pure sine wave |
| Peak Efficiency | 91% |
| Transfer Time | 10 ms for computer mode; 20 ms for appliance mode |
| Battery Voltage | 48VDC |
| Float Charging Voltage | 54VDC |
| Solar Charger Type | Maximum Power Point Tracking (MPPT) |
| Maximum PV Array Power | 8,000W total; 4,000W × 2 inputs |
| PV MPPT Operating Voltage Range | 90–450VDC |
| Maximum PV Open-Circuit Voltage | 550VDC |
| Maximum Solar Charge Current | 120A |
| Maximum AC Charge Current | 120A |
| Parallel Capability | Up to 6 units |
| Monitoring and Communication | Built-in Wi-Fi; USB / RS232 / RS485 / dry-contact; battery-management communication pathways documented for supported systems |
| Protection Functions | Overload, over-temperature and short-circuit protection |
| Operating Temperature | -14°F to 104°F |

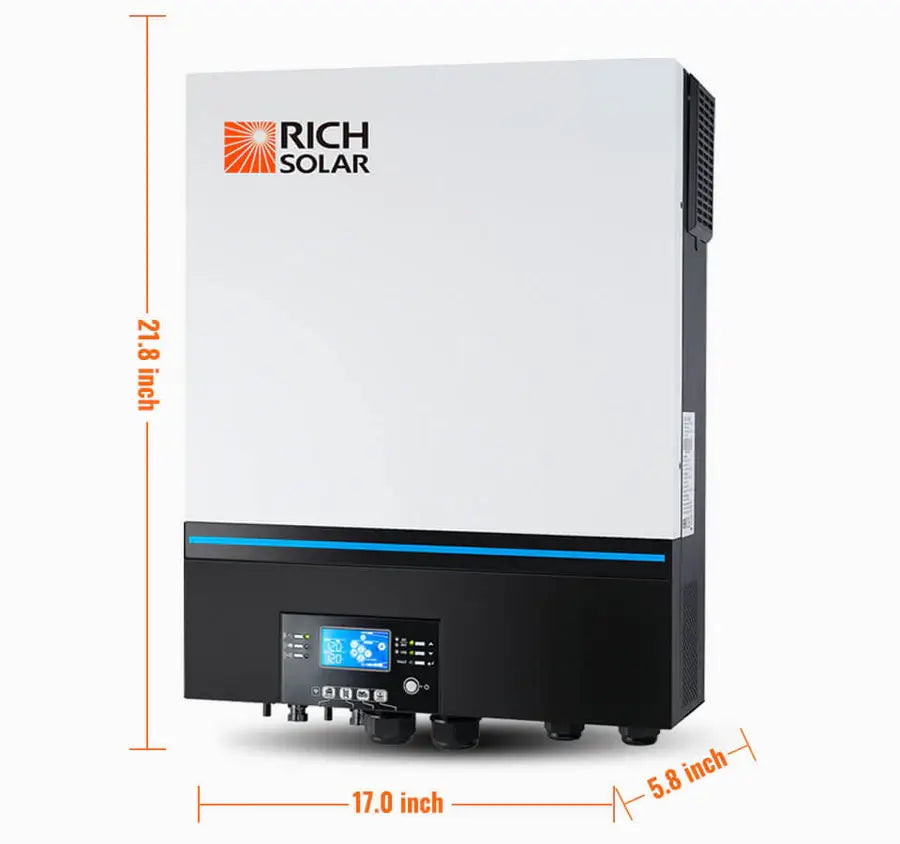

| Dimensions | 5.8" D × 17.0" W × 21.8" H |
| Net Weight | 40.6 lb |
| Manufacturer-Listed Safety Compliance | UL 1741 by TÜV |
| Model | RS-B5121P |
| Battery Type | LiFePO4 Server Rack Battery |
| Quantity Included | 3 batteries |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah each |
| Nominal Energy | 5,120Wh / 5.12kWh each |
| Combined Nominal Energy | 15,360Wh / 15.36kWh before operating losses and reserve settings |
| Charging Voltage | 56V listed in specification table; 57.6V maximum charge voltage listed in battery-management table |
| Maximum Charging Current | 100A per battery |
| Maximum Discharge Current | 100A per battery |
| Cycle Life | At least 7,000 cycles with at least 70% capacity retention, per Rich Solar specification sheet |
| Communication Ports | RS485 / RS232 / CAN |
| Low-Temperature Protection | Charging off below 32°F, as documented by Rich Solar |
| Dimensions Per Battery | 17.7" × 17.8" × 5.2" |
| Manufacturer-Listed Certifications | UL1973, UL9540A and FCC, as listed in Rich Solar kit information |
| Warranty | 10-year manufacturer-defect warranty listed in Rich Solar kit information; terms apply |
