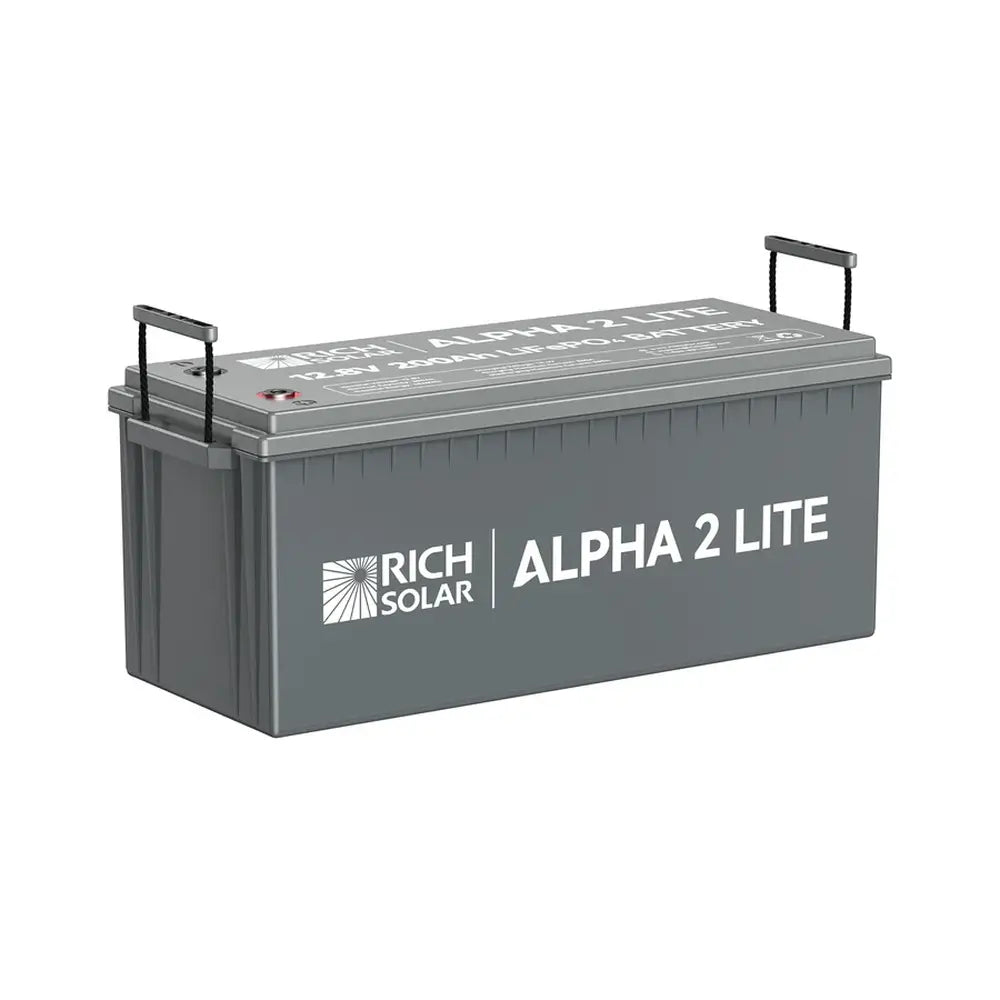

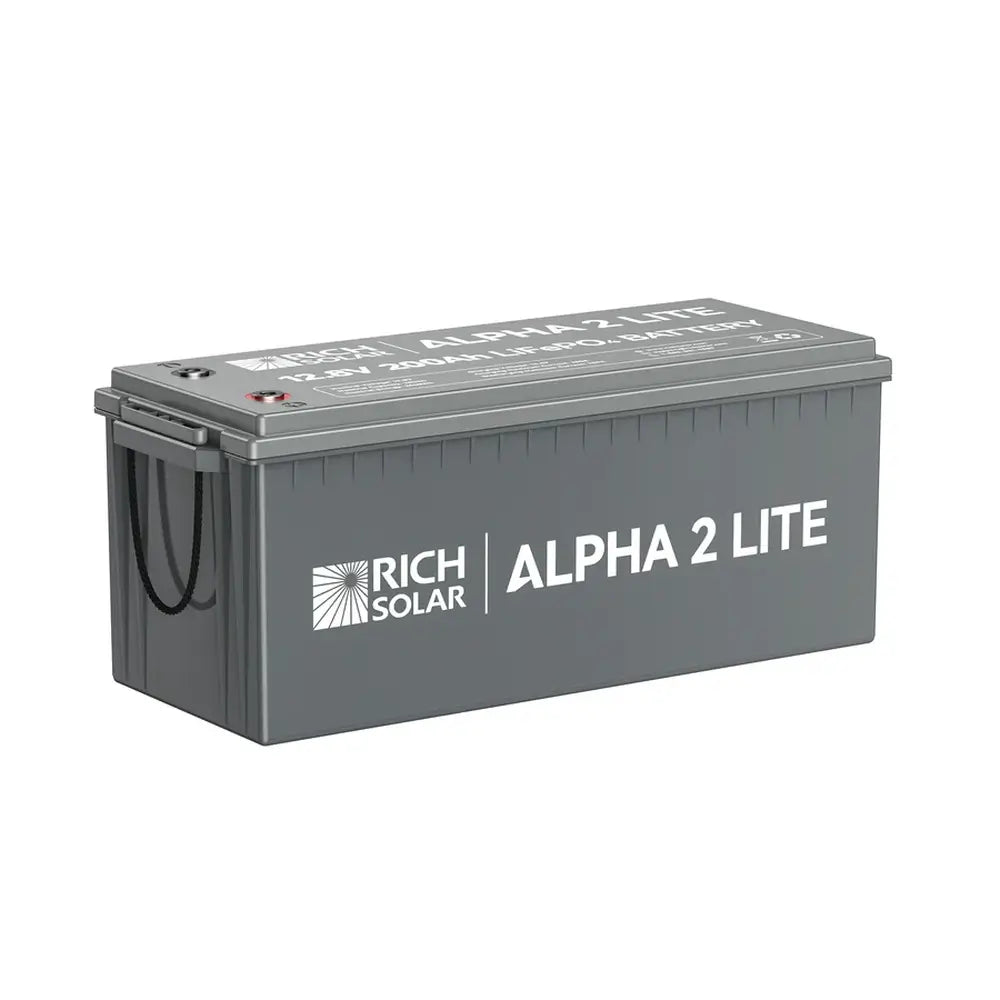

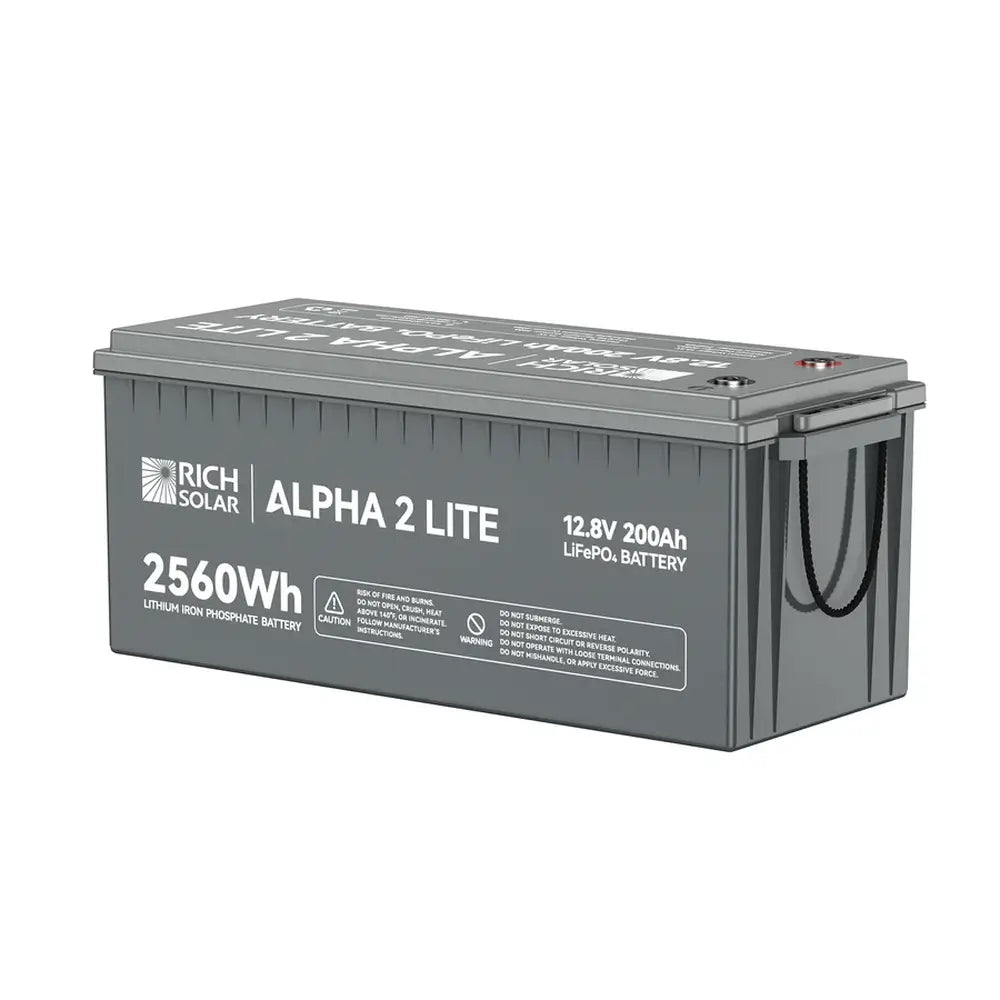

The Rich Solar ALPHA 2 LITE 12V 200Ah LiFePO4 Battery is a lithium iron phosphate deep cycle battery for compatible RV, trailer, van, boat, camping, and off-grid electrical systems. Identified by SKU RS-B12200, it provides 2,560Wh nominal energy at 12.8V with a 200Ah nominal capacity. Rich Solar documentation for the RS-B12200 ALPHA 2 LITE does not list internal heating or Bluetooth communication; the separate RS-B122S ALPHA 2 product page lists Bluetooth and internal heat technology. This LITE model supports 200A maximum charging current and 200A continuous and maximum discharge current when used within documented operating limits. Rich Solar lists a UL94 V-0 rated plastic shell and an IP55 waterproof and dustproof rating for this exact model; installation must still follow the manual’s water-exposure and placement precautions.
The ALPHA 2 LITE provides 200Ah of nominal lithium battery capacity with 2,560Wh of nominal energy for properly designed 12V power systems. The official manual identifies use as electrical power storage for motorhomes, recreational vehicles, and camping applications, while Rich Solar’s product page also markets the battery for trailers, vans, boats, and off-grid systems.
This battery is listed with 100A standard charging and discharge current ratings, plus 200A maximum charging, continuous discharge, and maximum discharge ratings. Final system planning should confirm charger output, inverter demand, cable sizing, overcurrent protection, and connected load requirements before installation.

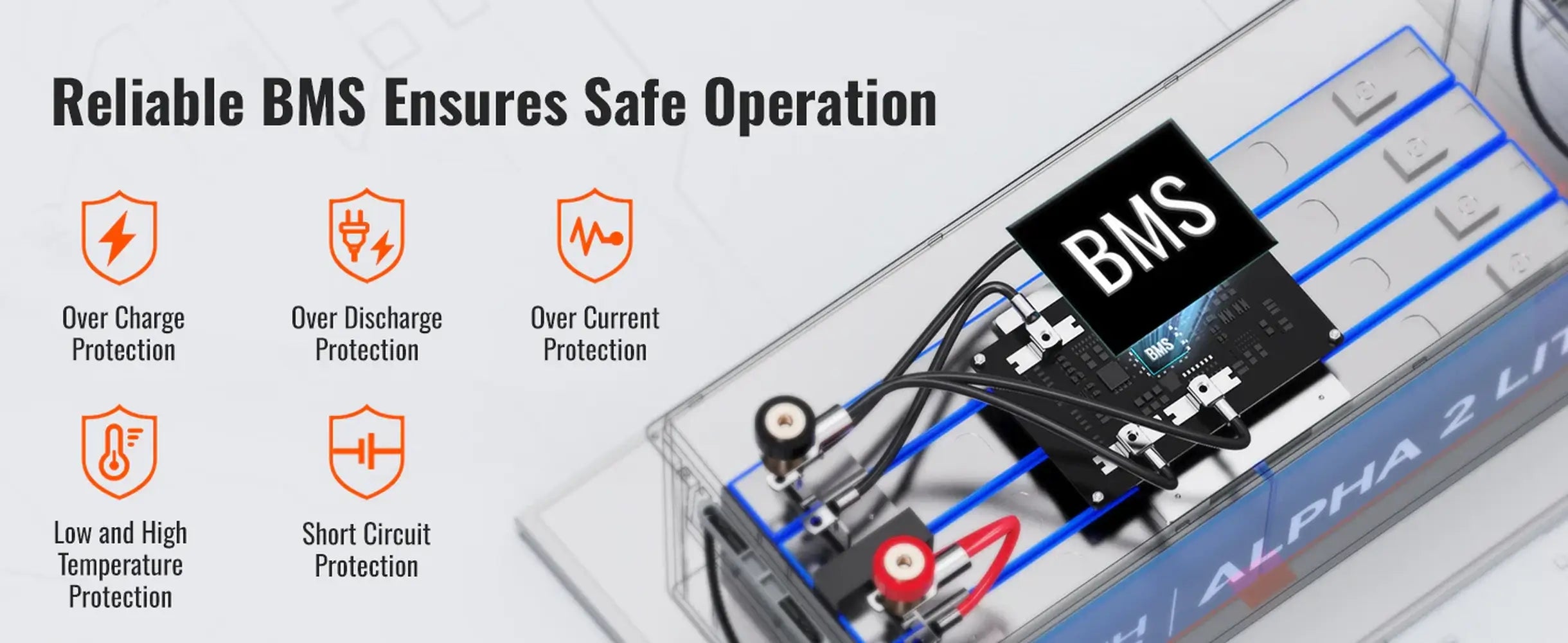

The built-in battery management system supports overcharge, over-discharge, over-current, short-circuit, charge-temperature, discharge-temperature, and balancing protection functions. The specification sheet also lists charging low-temperature protection, making operating-temperature limits important when planning seasonal or exposed installations.
The RS-B12200 is the ALPHA 2 LITE configuration and should not be confused with other ALPHA 2 variants. Rich Solar documentation for this exact LITE model does not list internal heating or Bluetooth communication. The official manual directs users to install the battery with terminals facing upward, requires electrical power supply connection by a qualified electrician, and permits no more than four matching batteries in parallel when installed according to its requirements.

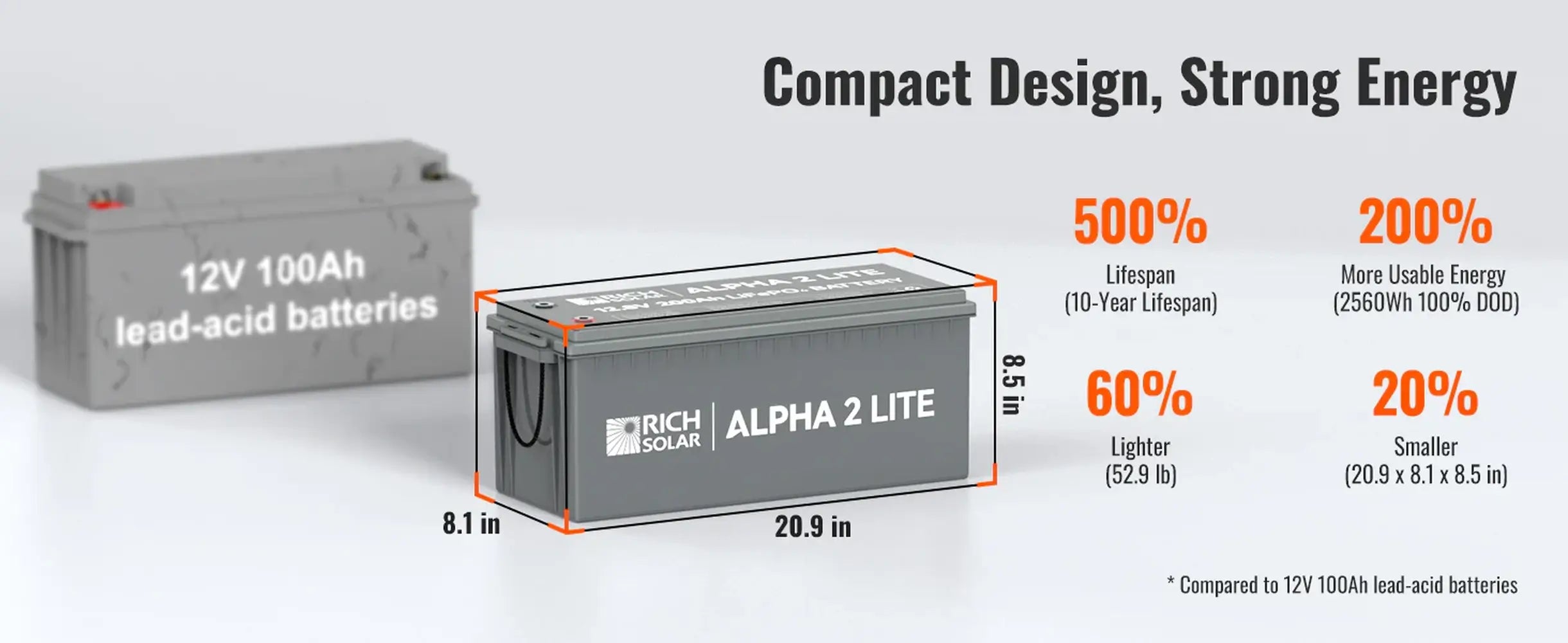

With a 20.9" × 8.1" × 8.5" footprint and approximately 52.9 lb weight, this battery provides substantial lithium storage capacity in a compact rectangular enclosure.
For battery-bank installations, follow the manual’s terminals-up orientation and parallel-connection requirements, including matching batteries, suitable cabling, and proper system protection.
Need help choosing the right lithium battery for your power system?
Contact TrueStead Supply for battery selection guidance, system-fit support, and quote assistance.
✔ Off-grid power guidance ✔ RV and mobile system support ✔ Product comparison assistance
Contact Us for a Quote| Brand | Rich Solar |
| Series | ALPHA LITE Series |
| Model | ALPHA 2 LITE |
| SKU / Model Number | RS-B12200 |
| Product Type | Lithium iron phosphate (LiFePO4) deep cycle battery |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 200Ah |
| Nominal Energy | 2,560Wh |
| Charging Voltage | 14.4V |
| Discharge Cutoff Voltage | 11.2V |
| Standard Charging Current | 100A |
| Maximum Charging Current | 200A |
| Standard Discharge Current | 100A |
| Continuous Discharge Current | 200A |
| Maximum Discharge Current | 200A |
| Battery Management System | Integrated BMS with overcharge, over-discharge, over-current, short-circuit, temperature, and balancing protection functions |
| Charging Temperature Range | 32°F to 131°F; charging current limits vary by temperature according to Rich Solar documentation |
| Discharge Temperature Range | -4°F to 140°F |
| Ingress Protection | IP55 waterproof and dustproof rating listed by Rich Solar |
| Shell Material | Plastic shell; UL94 V-0 flame-retardant rating listed by Rich Solar |
| Cycle Life | ≥4,000 cycles at 25°C ±2°C, as listed in the official specification sheet |
| Dimensions | 20.9" × 8.1" × 8.5" without handle and terminals |
| Weight | Approximately 52.9 lb / 24.0 kg |
| Parallel Configuration | Maximum of four batteries in parallel; do not mix battery brands, models, or specifications, and use equal-length matching parallel cables according to the manual |
| Included Components | Battery; SUS304 M8 screw hardware; ALPHA 2 LITE manual |
| Mounting Orientation | Install with positive and negative terminals facing upward; do not wall-mount without the required mounting bracket, according to the manual |
| Charging Limitations | Charging voltage must remain below 14.4V; charging current must remain within manufacturer limits; charge only within specified temperature conditions; reverse charging is prohibited |
| Warranty | 5-year prorated limited warranty for ALPHA LITE Series; year 1 provides full replacement coverage, with prorated replacement coverage in years 2–5, subject to Rich Solar warranty terms |
