The AIMS Power 555 Watt Monocrystalline Solar Panel Black Frame – 10 Pack gives buyers ten high-output rigid solar panels for compatible home, business, industrial, backup, off-grid, and grid-tied solar applications. Each panel is rated at 555 watts maximum power, giving the full 10-pack a combined rated panel capacity of 5,550 watts before system design, wiring configuration, inverter limits, charge controller limits, and installation conditions are considered. Built with tempered glass, monocrystalline solar cells, and pre-drilled aluminum frames, these panels are designed for efficient solar harvesting in properly matched systems. Each panel includes a bypass diode to help reduce power drop caused by shade and 12" MC4-compatible male and female cables for solar wiring integration. This AIMS Power 555W panel is also listed on the California Energy Commission Solar Equipment List, supporting its suitability for compliant solar project planning where applicable.
This AIMS Power 10-pack includes ten 555W monocrystalline solar panels, giving system builders a higher-output panel bundle for compatible home, business, industrial, backup, off-grid, and grid-tied solar projects.
Each panel uses tempered glass and a pre-drilled aluminum frame, supporting durable rigid-panel construction and easier mounting for properly designed solar installations.
The panels include 12" MC4-compatible male and female cables for solar wiring integration, along with bypass diodes that help reduce power loss caused by partial shade conditions.
The panels are backed by listed warranty terms of 91.2% output at 12 years and 80.6% output at 25 years, giving buyers a clearer long-term performance reference for the panel set.
This 10-pack configuration is built for properly designed solar installations that need a higher combined panel capacity from multiple rigid monocrystalline modules.
With pre-drilled aluminum frames, bypass diodes, MC4-compatible cables, and 25-year limited output warranty terms, these AIMS Power panels support practical solar array planning for properly matched systems.
Need help matching a 10-panel solar set to your inverter or battery setup?
Contact TrueStead Supply for solar equipment guidance, panel selection help, and quote support.
✔ Solar panel guidance ✔ Inverter compatibility support ✔ Off-grid and property power options
Contact Us for a Quote| Brand | AIMS Power |
| Model / SKU | PV555MONO-10PACK |
| Product Type | Monocrystalline Solar Panel 10 Pack |
| Frame Color | Black Frame |
| Quantity Included | 10 Panels |
| Maximum Power Per Panel | 555W |
| Combined Rated Panel Capacity | 5,550W total across ten panels |
| Operating Voltage Per Panel | 42.11V Vmp |
| Operating Current Per Panel | 13.18A Imp |
| Open Circuit Voltage Per Panel | 50.02V Voc |
| Short Circuit Current Per Panel | 14.07A Isc |
| Number of Cells Per Panel | 144 Cells / 6 × 24 |
| Front Glass Thickness | 3.2 mm |
| Cell Efficiency | 22% |
| Module Efficiency | 21.5% |
| Temperature Range | -40°C to +85°C |
| Temperature Coefficient of Isc | -0.048% / °C |
| Temperature Coefficient of Voc | -0.29% / °C |
| Temperature Coefficient of Pm | -0.37% / °C |
| Tolerance Wattage | 0–3W |
| Surface Max Load Capacity | 6000Pa Snow / 3600Pa Wind |
| Allowable Hail Load | 45 mm at 30.7 m/s |
| Bypass Diode Rating | 10A |
| MC4-Compatible Cable Length | 12" male and female cables per panel |

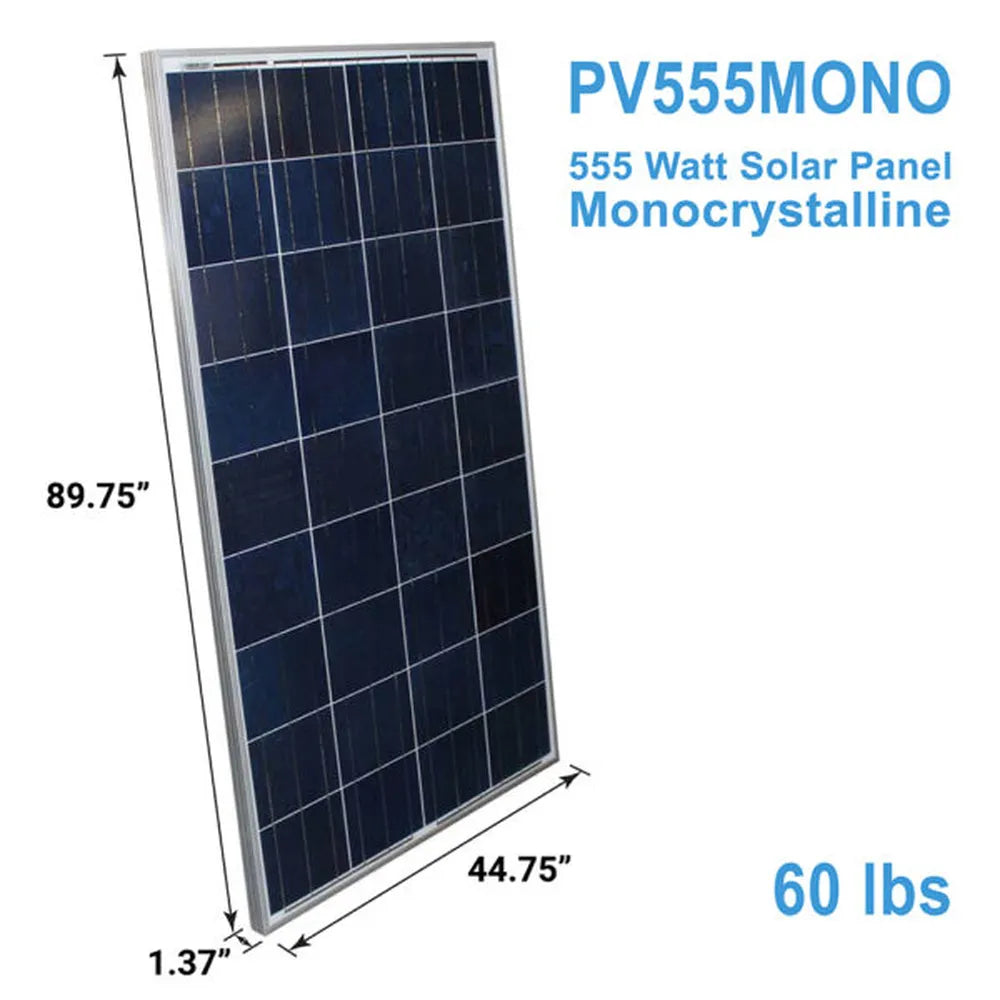

| Dimensions Per Panel | 89.75" × 44.75" × 1.37" |
| Weight Per Panel | 60 lb |
| Approximate Combined Panel Weight | 600 lb across ten panels, before packaging or freight materials |
| Warranty | 91.2% output at 12 years; 80.6% output at 25 years |
| Listing | California Energy Commission Solar Equipment List |
